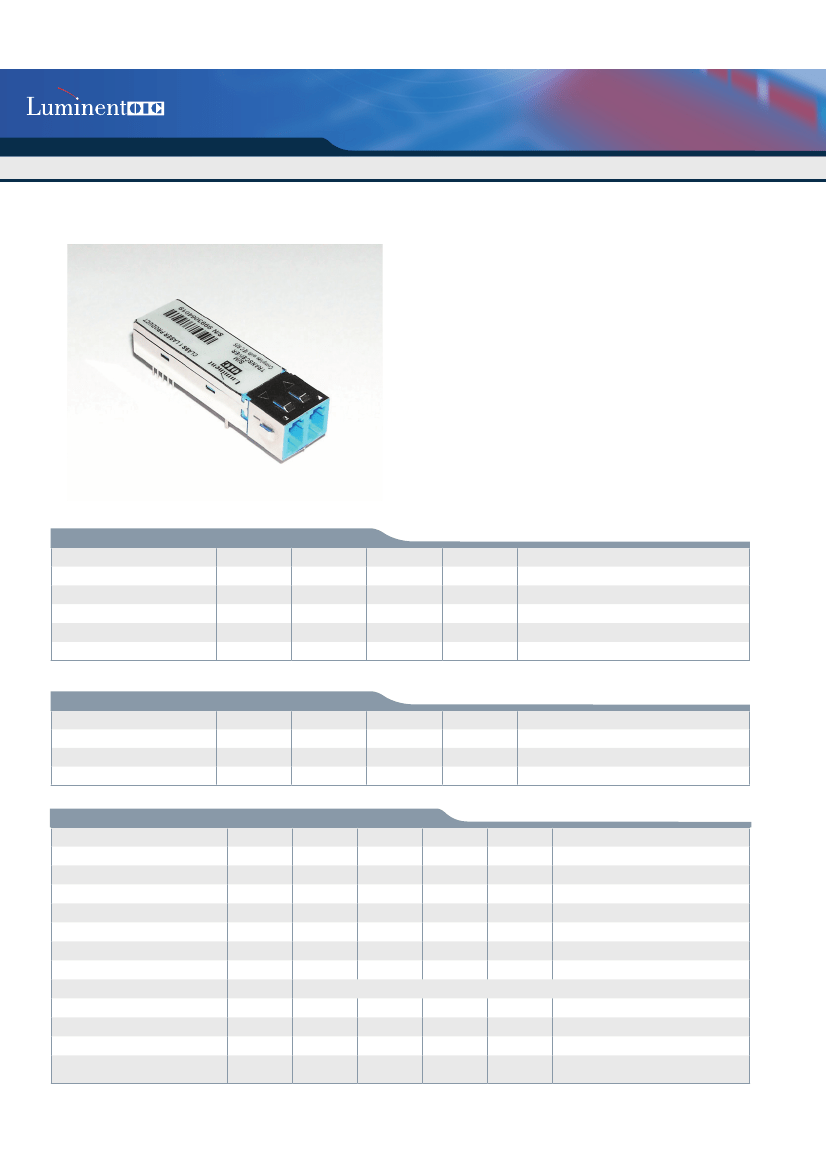

2.5 Gbps Single Mode SFF LC Transceiver
C-1XX-2500(C)-FDFB-SLCX
Features
• Duplex LC Single Mode Transceiver
• Small Form Factor Multi-sourced 2x5 Pin Package
• Complies with SONET OC-48 / SDH STM-16
• 1270 nm to1610 nm Wavelength, CWDM DFB Laser
• Single +3.3V Power Supply
• LVPECL Differential Inputs and Outputs
• LVTTL Signal Detection Output (C-1XX-2500C-FDFB-SLCX)
• LVPECL Signal Detection Output (C-1XX-2500-FDFB-SLCX)
• Class 1 Laser International Safety Standard IEC 825
compliant
• Solderability to MIL-STD-883, Method 2003
• Pin Coating is Sn/Pb with minimum 2% Pb content
• Flammability to UL94V0
• Humidity RH 5-85% (5-90% short term) to IEC 68-2-3
• Complies with Bellcore GR-468-CORE
• Uncooled laser diode with MQW structure
Absolute Maximum Rating
Parameter
Power Supply Voltage
Output Current
Soldering Temperature
Operating Temperature
Storage Temperature
Symbol
V
cc
I
out
-
T
opr
T
stg
Min.
0
0
-
0
-40
Max.
3.6
30
260
70
85
Unit
V
mA
ºC
ºC
ºC
10 seconds on leads only
Note
Recommended Operating Condition
Parameter
Power Supply Voltage
Operating Temperature (Case)
Data rate
Symbol
V
cc
T
opr
Min.
3.1
0
-
Typ.
3.3
-
2488
Max.
3.5
70
-
Unit
V
ºC
Mbps
Transmitter Specifications
Parameter
Optical
Optical Transmit Power
Optical Transmit Power
Output center Wavelength
Output Spectrum Width
Side Mode Suppression Ratio
Extinction Ratio
Output Eye
Optical Rise Time
Optical Fall Time
Relative Intensity Noise
Total Jitter
tr
tf
RIN
TJ
P
o
P
o
λ
∆λ
Sr
ER
-5
0
λ
p-5.5
-
30
8.2
-
-
-
-
-
-
λ
p
-
35
-
-
-
-
-
0
+5
λ
p+7.5
1
-
-
150
150
-120
150
dBm
dBm
nm
nm
dBm
dB
ps
ps
dB/Hz
ps
Measured with 2
23
-1 PRBS
20% to 80% Values
20% to 80% Values
C-1XX-2500(C)-FDFB-SLC2
C-1XX-2500(C)-FDFB-SLC4
λ
p=1XX0 nm
-20 dB width
CW, P
o
=5mW
Symbol
Min
Typical
Max
Unit
Notes
Compliant with G.957 STM-16
LUMINENTOIC.COM
20550 Nordhoff St. • Chatsworth, CA 91311 • tel: 818.773.9044 • fax: 818.576.9486
9F, No 81, Shui Lee Rd. • Hsinchu, Taiwan, R.O.C. • tel: 886.3.5169222 • fax: 886.3.5169213
1
LUMNDS851-Jul2005
rev. A.0
2.5 Gbps Single Mode SFF LC Transceiver
C-1XX-2500(C)-FDFB-SLCX
Transmitter Specifications
Parameter
Electrical
Power Supply Current
Transmit Enable Voltage
Transmit Disable Voltage
Differential Data Input Voltage
I
CC
VEN
VD
Symbol
Min
Typical
Max
Unit
Notes
Maximum current is specified at Vcc=
Maximum @ maximum temperature
LVTTL input
AC-coupled
-
0
2.0
300
-
-
-
-
200
0.8
Vcc
-
mA
V
V
mV
V
IH-
V
IL
Receiver Specifications
Parameter
Optical
Sensitivity
Maximum Input Power
Signal Detect-Asserted
Signal Detect-Deasserted
Signal Detect-Hysteresis
Wavelength of Operation
-
P
in
Pa
Pd
-
0
-
-38
0.5
1100
-
-
-
-
-
-
-20
-
-20
-
-
1620
dBm
dBm
dBm
dBm
dB
nm
Measured on transition: low to high
Measured on transition: high to low
Measured with 2
23
-
1 PRBS, BER = 10
-10
Symbol
Min
Typical
Max
Unit
Notes
Receiver Specifications
Parameter
Electrical
Power Supply Current
Differential Data Output Voltage
Signal Detect Output Voltage-Low
Signal Detect Output Voltage-High
Signal Detect Output Voltage-Low
Signal Detect Output Voltage-High
I
CC
V
OH
-V
OL
V
SDL-
V
cc
V
SDH-
V
cc
V
SDL-
V
cc
V
SDH-
V
cc
-
370
-2
-1.1
-
2.0
-
-
-
-
-
-
120
1600
-1.58
-0.74
0.5
-
mA
mV
V
V
V
V
The current excludes the output load
current
AC-coupled
LVPECL, C-1XX-2500-FDFB-SLCX
LVTTL, C-1XX-2500C-FDFB-SLCX
Symbol
Min
Typical
Max
Unit
Note
LUMINENTOIC.COM
20550 Nordhoff St. • Chatsworth, CA 91311 • tel: 818.773.9044 • fax: 818.576.9486
9F, No 81, Shui Lee Rd. • Hsinchu, Taiwan, R.O.C. • tel: 886.3.5169222 • fax: 886.3.5169213
2
LUMNDS851-Jul2005
rev. A.0
2.5 Gbps Single Mode SFF LC Transceiver
C-1XX-2500(C)-FDFB-SLCX

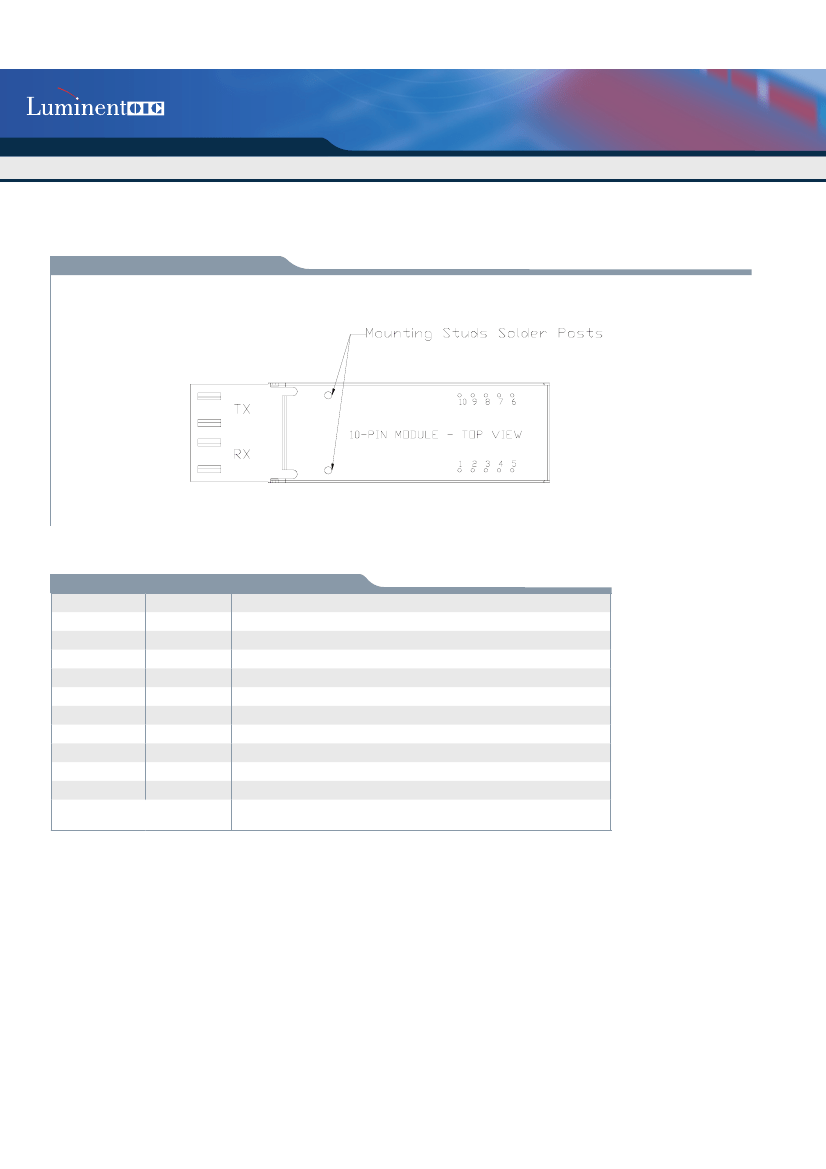

Connection Diagram
Legal Notice
PIN
1
2
3
4
5
6
7
8
9
10
Symbol
RxGND
TxVcc
SD
RD-
RD+
TxVcc
TxGND
TxDIS
TD+
TD-
Notes
Directly connect this pin to the receiver ground plane
+3.3 V dc power for the receiver section
Active high on this indicates a received optical signal(LVPECL/LVTTL)
Receiver Data Out Bar (LVPECL, AC-coupled)
Receiver Dat Out (LVPECL, AC-coupled)
+3.3 V dc power for the transmitter section
Directly connect this pin to the transmitter ground plane
Transmitter disable (LVTTL)
Transmitter Data In (LVPECL, AC-coupled)
Transmitter Data In Bar (LVPECL, AC-coupled)
The attaching posts are at case potential and may be connected to chassis
ground. They are isolated from circuit ground.
Attaching Posts
LUMINENTOIC.COM
20550 Nordhoff St. • Chatsworth, CA 91311 • tel: 818.773.9044 • fax: 818.576.9486
9F, No 81, Shui Lee Rd. • Hsinchu, Taiwan, R.O.C. • tel: 886.3.5169222 • fax: 886.3.5169213
3
LUMNDS851-Jul2005
rev. A.0
2.5 Gbps Single Mode SFF LC Transceiver
C-1XX-2500(C)-FDFB-SLCX
Recommended Circuit Schematic
Inputs to the C-1XX-2500(C)-FDFB-SLCX series transmitters are AC coupled and internally terminated through 50 ohms to AC ground.
These transceivers can operate with LVPECL or CML logic levels. The input signal must have at least a 200 mV peak to (single ended) signal
swing. Output from the receiver section of the module is also AC coupled and is expected to drive into 50 ohm load. Different termination
strategies may be required depending on the particular Serializer / Deserializer chip set used.
The C-1XX-2500(C)-FDFB-SLCX series product family are designed with AC coupled data inputs and outputs to provide the following
advantages:
■
Close positioning of SERDES with respect to transceiver; allows for shorter line lengths and at gigabit speeds reduces EMI.
■
Minimum number of external components.
■
Internal termination reduces the potential for unterminated stubs which would otherwise increase jitter and reduce transmission
margin.
Figure 1 & Figure 2 illustrates the recommended transmit and receive data line trminations for SERDES with CML and LVPECL Inputs / Outputs
respectively.
TX_DIS
8
TTL logic level
TX_GND
7
TRANSMITTER
DRIVER
LASER
TX_D
9
TX_D
½0
Vcc_TX
Vcc_RX
6
2
3
Z=50½
Z=50½
TD +
TD -
See
Fig. 4A
See
Fig. 3
Z=50½
Serializer / De-Serializer
with CML lnputs/Outputs
BIAS
PIN
TZ
AMP
POST
AMP
SD
RX_D
RX_D
RX_GND
4
RD -
5
½
Z=50½
RD +
RECEIVER
Note
½

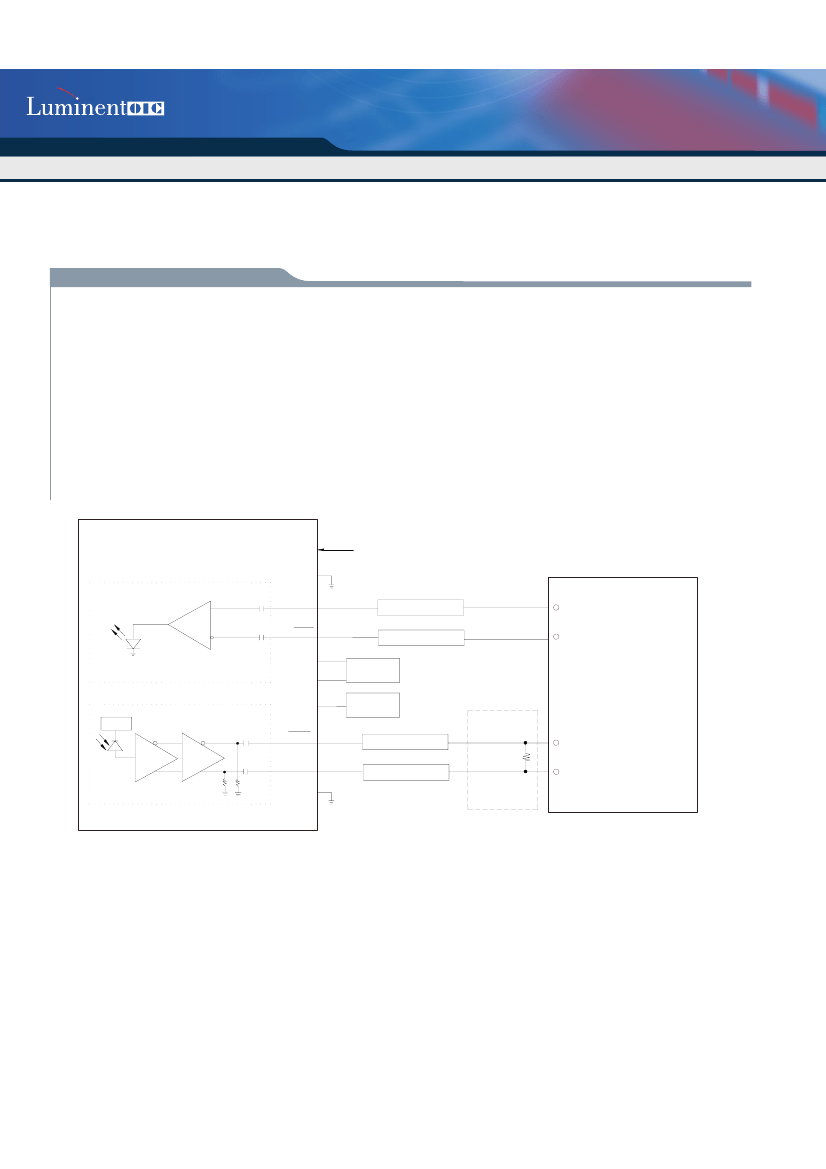

Figure 1.Recommended TRANSMIT and RECEIVE Data Terminations for SERDES with CML I/Os.
Note 1. Consult SERDES manufacturer’s data sheet and application data for appropriate receiver input biasing network.
Some deserializer inputs are internally terminated and may not need external termination resistors.
LUMINENTOIC.COM
20550 Nordhoff St. • Chatsworth, CA 91311 • tel: 818.773.9044 • fax: 818.576.9486
9F, No 81, Shui Lee Rd. • Hsinchu, Taiwan, R.O.C. • tel: 886.3.5169222 • fax: 886.3.5169213
4
LUMNDS851-Jul2005
rev. A.0
2.5 Gbps Single Mode SFF LC Transceiver
C-1XX-2500(C)-FDFB-SLCX
TX_DIS
8
TTL logic level
TX_GND 7
TRANSMITTER
TX_D 9
DRIVER
Z=50½
Z=50½
TD +
TX_D 10
Vcc_TX
Vcc_RX
TD -
LASER
6
2
See
Fig. 4A
See
Fig. 3
Note 1
o e
Nt 1
No 1
t e
Serializer / De-Serializer
with LVPECL lnputs/Outputs
Vcc= +3.3V
BIAS
PIN
SD
RX_D
TZ
AMP
POST
AMP
3
Z=50½
4
82
Ω
82
Ω
RD -
RX_D
RX_GND
5
1
Z=50½
130
Ω
130
Ω
RD +
RECEIVER

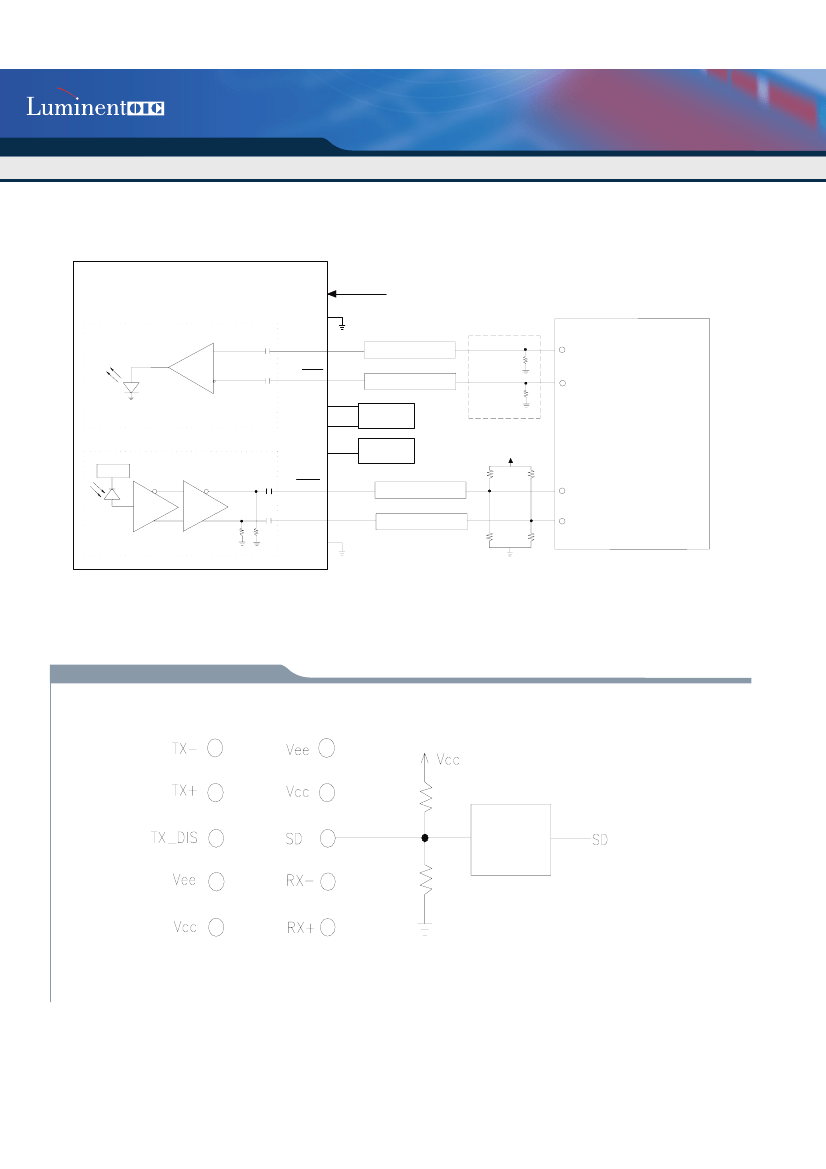

Figure 2.Recommended TRANSMIT and RECEIVE Data Terminations for SERDES with LVPECL I/Os.
Note 1. Consult SERDES manufacturer’s application information for biasing required for Tx outputs. Some serializer outputs
are internally biased and may not need external bias resistors.
Signal Detect
The C-1XX-2500(C)-FDFB-SLCX transceivers are equipped with LVTTL / LVPECL signal detect outputs. The standard LVTTL output eliminates
the need for a LVPECL to LVTTL level shifter in most in most applications.
R2
LVPECL
or
LVTTL Logic
R1
R: For LVTTL level R1=N.C., R2=N.C.
LVPECL level R1=82
,R2=130
Figure 3: Signal Detect
Note:
C-1XX-2500-FDFB-SLCX with LVPECL SD output
C-1XX-2500C-FDFB-SLCX with LVTTL SD output
