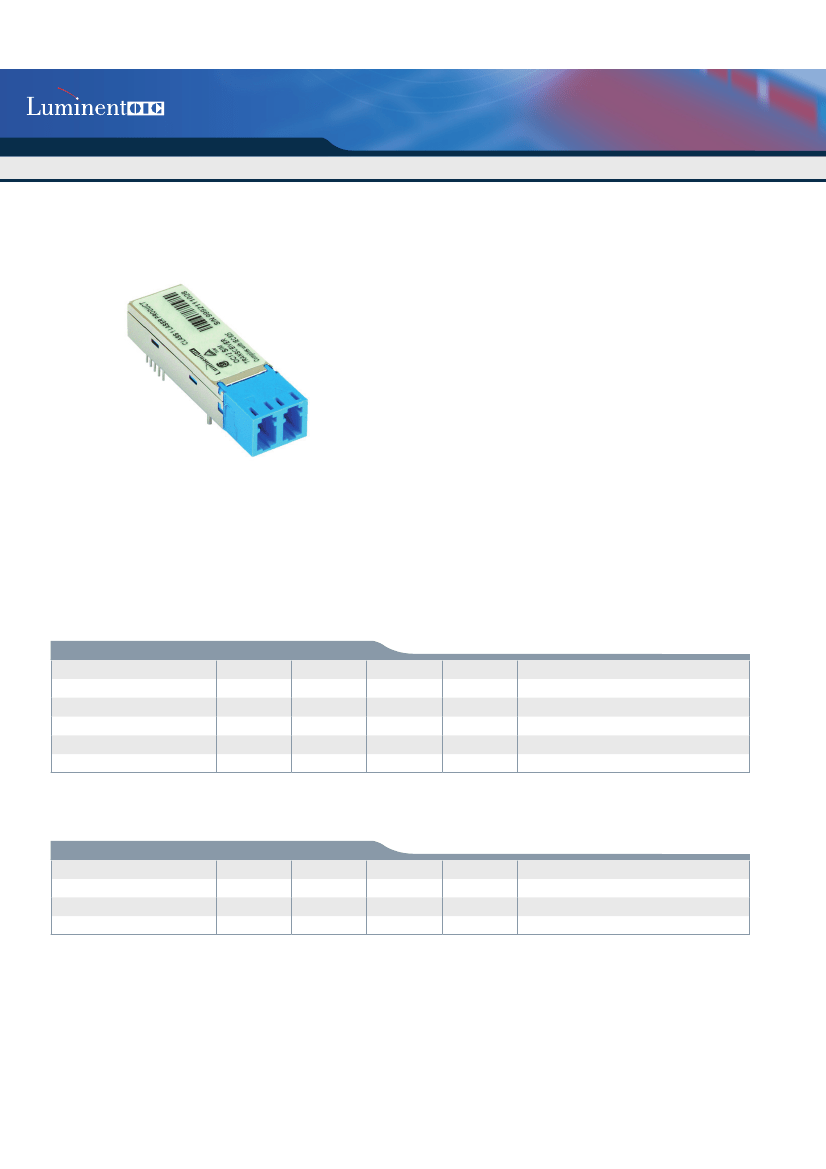

155 Mbps Single Mode SFF LC Transceiver
C-1XX-155(C)-FDFB-SLCX
Features
• Duplex LC Single Mode Transceiver
• Small Form Factor Multi-sourced 2x5 Pin Package
• Complies with SONET OC-3 / SDH STM-1
• 1270 nm to1610 nm Wavelength, CWDM DFB Laser
• Single +3.3V Power Supply
• LVPECL Differential Inputs and Outputs
• LVTTL Signal Detection Output (C-1XX-155C-FDFB-SLCX)
• LVPECL Signal Detection Output (C-1XX-155-FDFB-SLCX)
• Class 1 Laser International Safety Standard IEC 825
compliant
• Solderability to MIL-STD-883, Method 2003
• Flammability to UL94V0
• Humidity RH 5-85% (5-90% short term) to IEC 68-2-3
• Complies with Bellcore GR-468-CORE
• 40 km reach (C-1XX-155-FDFB-SLC5), 1270 to 1450 nm
• 80 km reach (C-1XX-155-FDFB-SLC5), 1470 to 1610 nm
• 80 km reach (C-1XX-155-FDFB-SLC9), 1270 to 1450 nm
• 120 km reach (C-1XX-155-FDFB-SLC9), 1470 to 1610 nm
• RoHS-5/6 compliance available
Absolute Maximum Rating
Parameter
Power Supply Voltage
Output Current
Soldering Temperature
Operating Temperature
Storage Temperature
Symbol
V
cc
I
out
-
T
opr
T
stg
Min.
0
0
-
0
-40
Max.
3.6
30
260
70
85
Unit
V
mA
ºC
ºC
ºC
10 seconds on leads only
Note
Recommended Operating Condition
Parameter
Power Supply Voltage
Operating Temperature (Case)
Data rate
Symbol
V
cc
T
opr
Min.
3.1
0
-
Typ.
3.3
-
155
Max.
3.5
70
-
Unit
V
ºC
Mbps
LUMINENTOIC.COM
20550 Nordhoff St. • Chatsworth, CA 91311 • tel: 818.773.9044 • fax: 818.576.9486
9F, No 81, Shui Lee Rd. • Hsinchu, Taiwan, R.O.C. • tel: 886.3.5169222 • fax: 886.3.5169213
1
LUMNDS850-Apr0706
Rev A.2
155 Mbps Single Mode SFF LC Transceiver
C-1XX-155(C)-FDFB-SLCX
Transmitter Specifications
Parameter
Optical
Optical Transmit Power
Optical Transmit Power
Output center Wavelength
Output Spectrum Width
Side Mode Suppression Ratio
Extinction Ratio
Output Eye
Optical Rise Time
Optical Fall Time
Relative Intensity Noise
Total Jitter
tr
tf
RIN
TJ
P
o
P
o
λ
∆λ
Sr
ER
-5
0
λ
p-5.5
-
30
10
-
-
-
-
-
-
λ
p
-
35
-
-
-
-
-
0
+5
λ
p+7.5
1
-
-
2
2
-116
1.2
dBm
dBm
nm
nm
dBm
dB
ns
ns
dB/Hz
ns
Measured with 2
23
-
1 PRBS with 72 ones
and 72 zeros.
10% to 90% Values
10% to 90% Values
C-1XX-155(C)-FDFB-SLC5
C-1XX-155(C)-FDFB-SLC9
λ
p=1XX0 nm
-20 dB width
CW, P
o
=5mW
Symbol
Min
Typical
Max
Unit
Notes
Compliant with GR-253-CORE
Transmitter Specifications
Parameter
Electrical
Power Supply Current
Transmit Enable Voltage
Transmit Disable Voltage
Data Input Current-Low
Data Input Current-High
Data Input Voltage-Low
Data Input Voltage-High
I
CC
VEN
VD
Symbol
Min
Typical
Max
Unit
Notes
Maximum current is specified at Vcc=
Maximum @ maximum temperature
-
0
2.0
-200
-
-2.0
-1.1
-
-
-
-
-
-
-
180
0.8
Vcc
-
200
-1.58
-0.74
mA
V
V
µA
µA
V
V
I
IL
I
IH
V
IL
-V
CC
V
IH
-V
CC
These inputs are compatible with 10K,
10KH and 100K ECL and PECL inputs
Receiver Specifications
Parameter
Optical
Sensitivity
Sensitivity
Maximum Input Power
Signal Detect-Asserted
Signal Detect-Asserted
Signal Detect-Deasserted
Signal Detect-Hysteresis
Wavelength of Operation
-
-
P
in
Pa
Pa
Pd
-
-
0
-
-
-45
1.0
1100
-
-
-
-
-
-
-
-
-35
-36
-
-35
-36
-
-
1620
dBm
dBm
dBm
dBm
dBm
dBm
dB
nm
Measured on transition: low to high
C-1XX-155(C)-FDFB-SLC5
Measured on transition: low to high
C-1XX-155(C)-FDFB-SLC9
Measured on transition: high to low
Measured with 2
23
-
1 PRBS, BER = 10
-10
C-1XX-155(C)-FDFB-SLC5
Measured with 2
23
-
1 PRBS, BER = 10
-10
C-1XX-155(C)-FDFB-SLC9
Symbol
Min
Typical
Max
Unit
Notes
LUMINENTOIC.COM
20550 Nordhoff St. • Chatsworth, CA 91311 • tel: 818.773.9044 • fax: 818.576.9486
9F, No 81, Shui Lee Rd. • Hsinchu, Taiwan, R.O.C. • tel: 886.3.5169222 • fax: 886.3.5169213
2
LUMNDS850-Apr0706
Rev A.2
155 Mbps Single Mode SFF LC Transceiver
C-1XX-155(C)-FDFB-SLCX
Receiver Specifications
Parameter
Electrical
Power Supply Current
Data Output Voltage-Low
Data Output Voltage-High
Signal Detect Output Voltage-Low
Signal Detect Output Voltage-High
Signal Detect Output Voltage-Low
Signal Detect Output Voltage-High
I
CC
V
OL
-V
cc
V
OH
-
V
cc
V
SDL-
V
cc
V
SDH-
V
cc
V
SDL-
V
cc
V
SDH-
V
cc
-
-2
-1.1
-2
-1.1
-
2.0
-
-
-
-
-
-
-
120
-1.58
-0.74
-1.58
-0.74
0.5
-
mA
V
V
V
V
V
V
The current excludes the output load current
These outputs are compatible with 10K,
10KH and 100K ECL and LVPECL outputs
C-1XX-155-FDFB-SLCX
C-1XX-155C-FDFB-SLCX
Symbol
Min
Typical
Max
Unit
Note

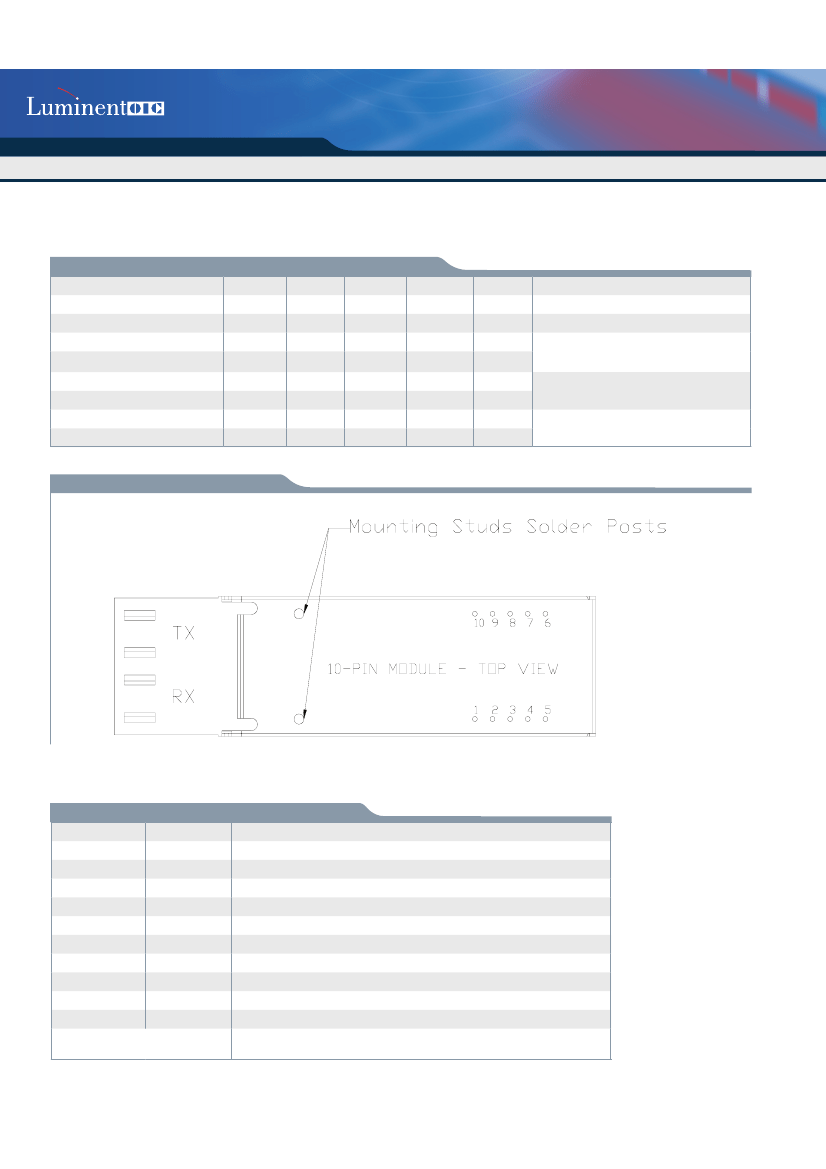

Connection Diagram
Legal Notice
PIN
1
2
3
4
5
6
7
8
9
10
Symbol
RxGND
TxVcc
SD
RD-
RD+
TxVcc
TxGND
TxDIS
TD+
TD-
Notes
Directly connect this pin to the receiver ground plane
+3.3 V dc power for the receiver section
Active high on this indicates a received optical signal(LVPECL/LVTTL)
Receiver Data Out Bar (LVPECL)
Receiver Dat Out (LVPECL)
+3.3 V dc power for the transmitter section
Directly connect this pin to the transmitter ground plane
Transmitter disable (LVTTL)
Transmitter Data In (LVPECL)
Transmitter Data In Bar (LVPECL)
The attaching posts are at case potential and may be connected to chassis
ground. They are isolated from circuit ground.
Attaching Posts
LUMINENTOIC.COM
20550 Nordhoff St. • Chatsworth, CA 91311 • tel: 818.773.9044 • fax: 818.576.9486
9F, No 81, Shui Lee Rd. • Hsinchu, Taiwan, R.O.C. • tel: 886.3.5169222 • fax: 886.3.5169213
3
LUMNDS850-Apr0706
Rev A.2
155 Mbps Single Mode SFF LC Transceiver
C-1XX-155(C)-FDFB-SLCX

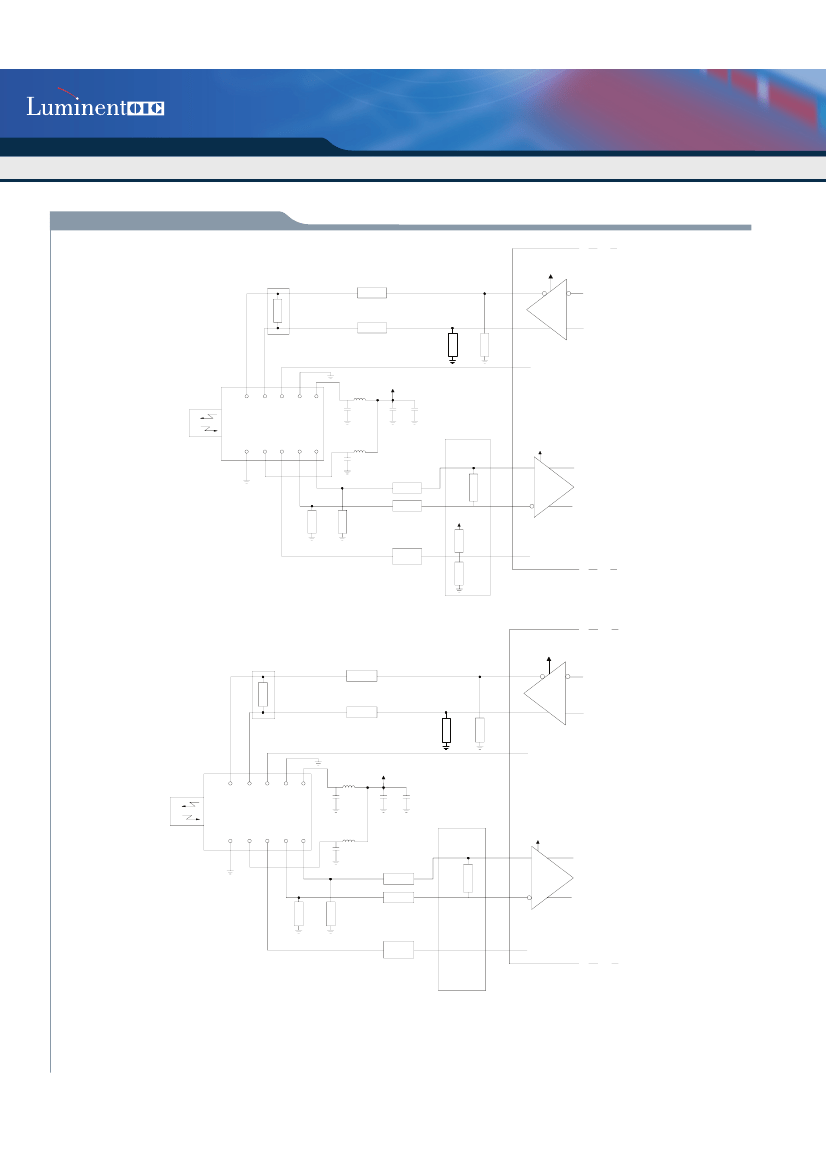

Recommended Circuit Schematic
C-1XX-155-FDFB-SLCX
TERMINATE AT
TRANSCEIVER INPUTS
Z=50
½
TD-
PHY DEVICE
Vcc(+3.3V)
100
½
LVPECL
Z=50
½
TD+
130
½
130
½
10
TD-
9
TD+
8
TxDIS
7
TxGND
6
1
½
H
TxVcc
C2
Tx Disable
LVTTL
Vcc(+3.3V)
C3
Tx
Rx
10
½
F
RxGND
RxVcc
RD+
RD-
SD
1
½
H
C1
RD+
Vcc(+3.3V)
1
2
3
4
5
Z=50
½
100
½
RD-
LVPECL
Z=50
½
130
½
130
½
Z=50
½
Vcc(+3.3V)
130
½
SD
LVPECL
82
½
NOTE:C1=C2=C3=100nF
TERMINATE AT
DEVICE INPUTS
C-1XX-155C-FDFB-SLCX
TERMINATE AT
TRANSCEIVER INPUTS
Z=50
½
TD-
PHY DEVICE
Vcc(+3.3V)
100
½
LVPECL
Z=50
½
TD+
130
½
130
½
10
TD-
9
TD+
8
TxDIS
7
TxGND
6
1
½
H
Tx Disable
LVTTL
Vcc(+3.3V)
C3
TxVcc
Tx
Rx
C2
10
½
F
RxGND
RxVcc
RD+
RD-
SD
1
½
H
C1
RD+
Vcc(+3.3V)
1
2
3
4
5
Z=50
½
100
½
RD-
LVPECL
Z=50
½
130
½
130
½
Z=50
½
Vcc(+3.3V)
SD
LVTTL
NOTE:C1=C2=C3=100nF
TERMINATE AT
DEVICE INPUTS
The split-loaded terminations for ECL signals need to be located at the input of devices receiving those ECL signals.
The power supply filtering is required for good EMI performance. Use short tracks from the inductor L1/L2 to the module Rx Vcc and Tx Vcc.
A GND plane under the module is required for good EMI and sensitivity performance.
LUMINENTOIC.COM
20550 Nordhoff St. • Chatsworth, CA 91311 • tel: 818.773.9044 • fax: 818.576.9486
9F, No 81, Shui Lee Rd. • Hsinchu, Taiwan, R.O.C. • tel: 886.3.5169222 • fax: 886.3.5169213
4
LUMNDS850-Apr0706
Rev A.2
155 Mbps Single Mode SFF LC Transceiver
C-1XX-155(C)-FDFB-SLCX

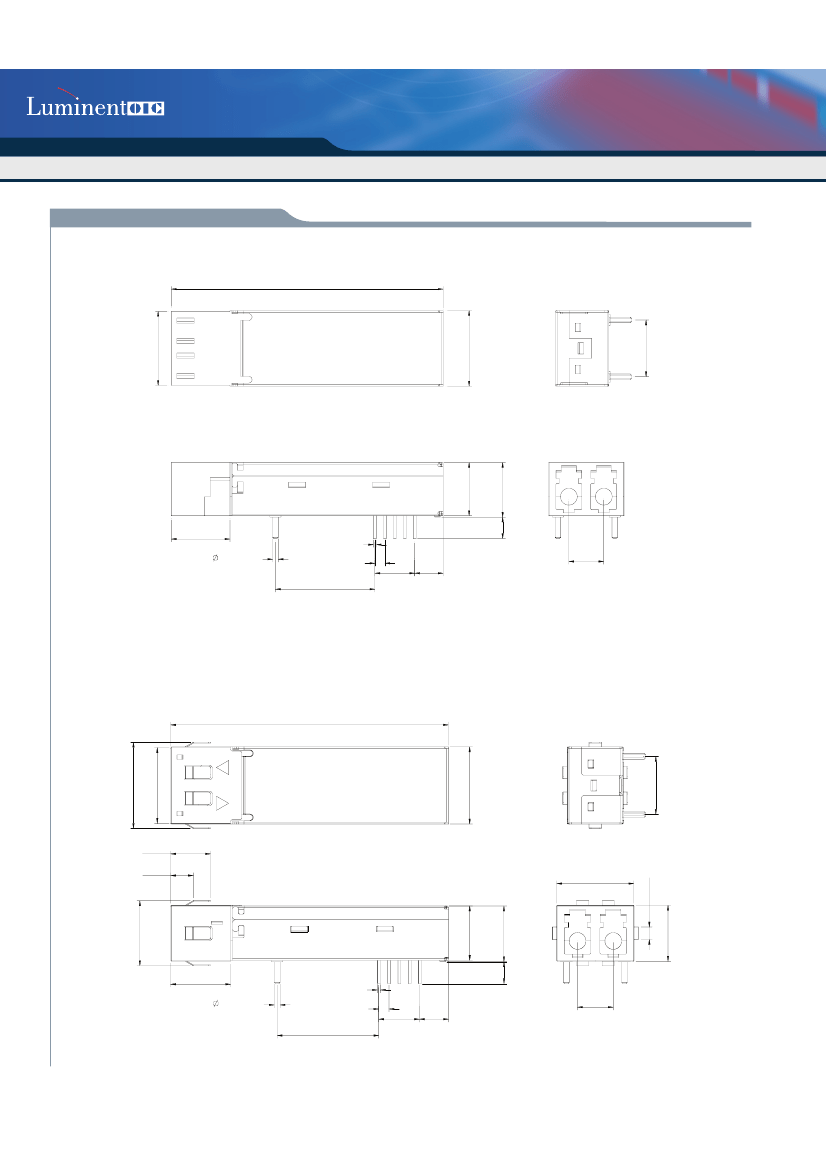

Package Diagram
C-1XX-155(C)-FDFB-SLCX
48.8
+
-.
(1.921)
+(
000
)
-(0.008)
(0.535)
+(
000
)
-(0.004)
Units: mm (inches)
½.
+
-.½
(0.520)
(0.039±0.002)
(0.700)
100½005
(0.020)
(0.070)
31½05
(0.413)
050
(0.150±0.02)
1050
(0.386)
+(
000
)
-(0.004)
(0.374)
950
.8
+
-.½
17
177
(0.280)
712
(0.200)
50
(0.246)
625
48.8
+
-.
(1.921)
+(
000
)
-(0.008)
C-1XX-155(C)-FDFB-SLCXS
Units: mm (inches)
+
-
(1.921)
+(
.000
)
-(0.008)
½
+
-½
(0.535)
+(
.000
)
-(0.004)
½
(0.
594
)
(0.520)
(0.
274
)
(0.
531
)
(0.386)
+(
.000
)
-(0.004)
+
-½
½½
(0.374)
(0.
447
)
½
(0.086)
(0.
155
)
½
(0.400)
(0.386)
13.20
9.50
10.16
(0.150±0.02)
(0.400)
1320
1016
(0.039±0.002)
(0.700)
1.00½0.05
(0.020)
(0.070)
3.81½0.5
(0.413)
10.50
0.50
1.78
17.78
(0.280)
7.12
(0.200)
5.08
(0.246)
6.25
Case with metal Shielding Finger
LUMINENTOIC.COM
20550 Nordhoff St. • Chatsworth, CA 91311 • tel: 818.773.9044 • fax: 818.576.9486
9F, No 81, Shui Lee Rd. • Hsinchu, Taiwan, R.O.C. • tel: 886.3.5169222 • fax: 886.3.5169213
5
LUMNDS850-Apr0706
Rev A.2
