5159-035-32-11-93-11: DescriptionBoard Euro Connector, 32 Contact(s), 2 Row(s), Female, Straight, 0.2 inch Pitch, Solder Terminal, Hole .099-.111, Receptacle,; CategoryThe connector The connector; File Size99KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

5159-035-32-11-93-11 Overview

Board Euro Connector, 32 Contact(s), 2 Row(s), Female, Straight, 0.2 inch Pitch, Solder Terminal, Hole .099-.111, Receptacle,

5159-035-32-11-93-11 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.417 inch
subject depth	0.453 inch
body length	3.74 inch
Body/casing type	RECEPTACLE
Connector type	BOARD EURO CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU
Contact point gender	FEMALE
Contact style	SQ PIN-SKT
DIN compliance	YES
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Plug contact pitch	0.2 inch
Match contact row spacing	0.2 inch
Mixed contacts	NO
Installation option 1	HOLE .099-.111
Installation method	STRAIGHT
Installation type	BOARD
Loaded row name	A,C
Number of rows loaded	2
Options	GENERAL PURPOSE
Plating thickness	16u inch
polarization key	HOUSING SIDE
reliability	COMMERCIAL
Terminal length	0.354 inch
Terminal pitch	5.08 mm
Termination type	SOLDER
Total number of contacts	32
UL Flammability Code	94V-0
Base Number Matches	1

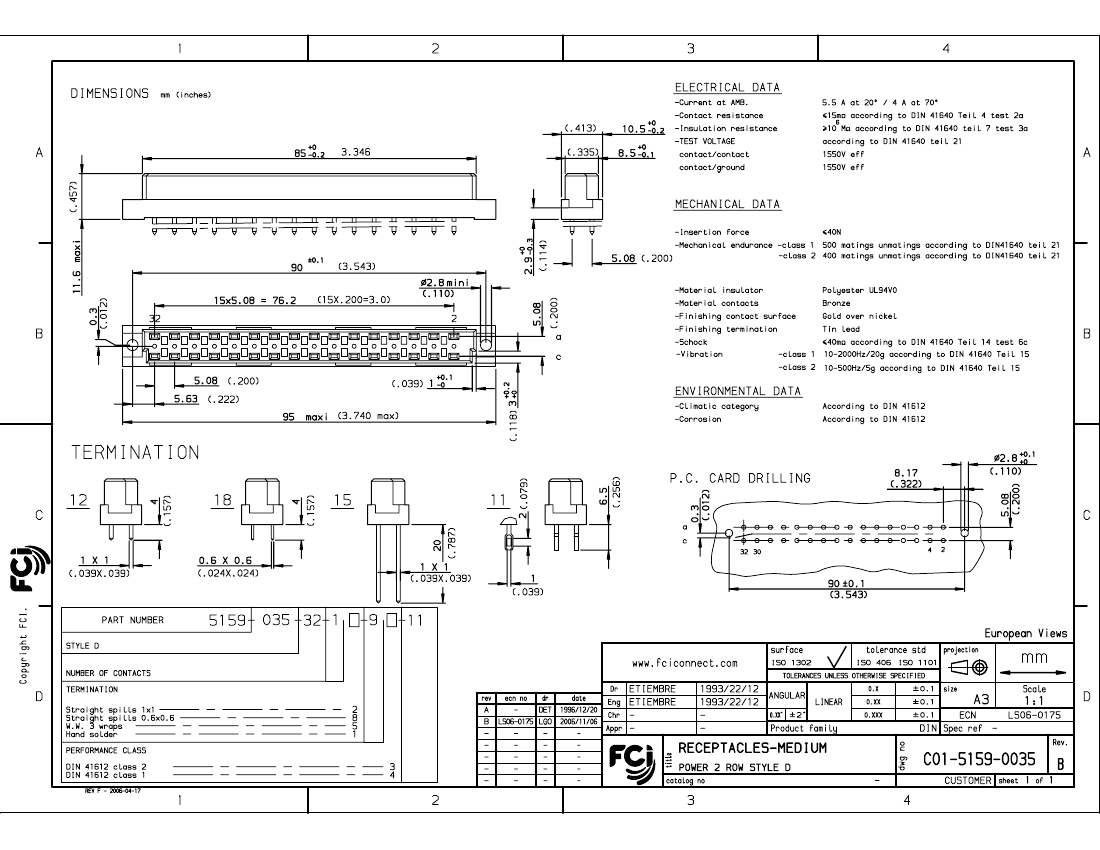

Preview

Download Datasheet

View All

PDM: Rev:B

STATUS:

Released

Printed: Nov 07, 2006

5159-035-32-11-93-11 Related Products

	5159-035-32-11-93-11	5159-035-32-18-93-11	5159-035-32-18-94-11	5159-035-32-12-93-11	5159-035-32-12-94-11	5159-035-32-11-94-11	5159-035-32-15-93-11	5159-035-32-15-94-11
Description	Board Euro Connector, 32 Contact(s), 2 Row(s), Female, Straight, 0.2 inch Pitch, Solder Terminal, Hole .099-.111, Receptacle,	Board Euro Connector, 32 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Receptacle	Board Euro Connector, 32 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Receptacle	Board Euro Connector, 32 Contact(s), 2 Row(s), Female, Straight, 0.2 inch Pitch, Solder Terminal, Hole .099-.111, Receptacle,	Board Euro Connector, 32 Contact(s), 2 Row(s), Female, Straight, 0.2 inch Pitch, Solder Terminal, Hole .099-.111, Receptacle,	Board Euro Connector, 32 Contact(s), 2 Row(s), Female, Straight, 0.2 inch Pitch, Solder Terminal, Hole .099-.111, Receptacle	Board Euro Connector, 32 Contact(s), 2 Row(s), Female, Straight, 0.2 inch Pitch, Solder Terminal, Hole .099-.111, Receptacle	Board Euro Connector, 32 Contact(s), 2 Row(s), Female, Straight, 0.2 inch Pitch, Solder Terminal, Hole .099-.111, Receptacle
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	unknown	unknown	unknown
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	YES	YES	YES	YES	YES	YES	YES	YES
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	32	32	32	32	32	32	32	32
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Maker	Amphenol	-	-	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
body width	0.417 inch	-	-	0.417 inch	0.417 inch	0.417 inch	0.417 inch	0.417 inch
subject depth	0.453 inch	-	-	0.453 inch	0.453 inch	0.453 inch	0.453 inch	0.453 inch
body length	3.74 inch	-	-	3.74 inch	3.74 inch	3.74 inch	3.74 inch	3.74 inch
Contact to complete cooperation	AU	-	-	AU	NOT SPECIFIED	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL
Contact style	SQ PIN-SKT	-	-	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Plug contact pitch	0.2 inch	-	-	0.2 inch	0.2 inch	0.2 inch	0.2 inch	0.2 inch
Match contact row spacing	0.2 inch	-	-	0.2 inch	0.2 inch	0.2 inch	0.2 inch	0.2 inch
Installation option 1	HOLE .099-.111	-	-	HOLE .099-.111	HOLE .099-.111	HOLE .099-.111	HOLE .099-.111	HOLE .099-.111
Loaded row name	A,C	-	-	A,C	A,C	A,C	A,C	A,C
Plating thickness	16u inch	-	-	16u inch	30u inch	30u inch	16u inch	30u inch
polarization key	HOUSING SIDE	-	-	HOUSING SIDE	HOUSING SIDE	HOUSING SIDE	HOUSING SIDE	HOUSING SIDE
reliability	COMMERCIAL	-	-	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.354 inch	-	-	0.157 inch	0.157 inch	0.354 inch	0.787 inch	0.787 inch
Base Number Matches	1	1	1	1	1	-	-	-
Manufacturer's serial number	-	5159	5159	-	-	5159	5159	5159
