Analog 1310 nm MQW-DFB Laser Diode Module
C-13-DFBA-PX-SXXXI/XXX-X
Features
• Laser diode with multi-quantum-well structure
• Un-cooled operation at -20 to +85ºC
• Built-in InGaAs monitor photodiode
• Hermetically sealed active component
• Complies with Telcordia Technologies GR-468-CORE
• Single frequency operation with high SMSR
• Fiber pigtailed package with optional FC/ST/SC/MU/LC connector
• Design for Analog fiber-optics application
Absolute Maximum Rating (Tc=25ºC)
Parameter
Fiber Output Power H&2
Reverse Voltage
PD Reverse Voltage
PD Forward Current
Operating Temperature
Storage Temperature
Symbol
P
f
V
RLD
V
RPD
I
FPD
T
opr
T
stg
Value
2.5(H)/4(2)
2
20
2.0
-20 to +85
-40 to +85
Unit
mW
V
V
mA
ºC
ºC
(All optical data refer to a coupled 9/125µm SM fiber)
Optical and Electrical Characteristics( T=25ºC )
Parameter
Threshold Current
Operating Current
Optical Output Power
H
2
Operating Voltage
Peak Wavelength
Side mode Suppression Ratio
Slope Efficiency
Optical Isolation
Rise Time/Fall Time
Relative Intensity Noise
Second Order Distortion
Third Order Distortion
Monitor Current
Monitor Dark Current
Photodiode Capacitance
Tracking Error
H
2
Symbol
I
th
I
op
P
f
V
F
Min
-
-
1
2
-
1280
30
0.05
0.1
45
30
-
-
-
-
100
-
-
-1.5
Typical
10
20
-
-
1.2
1310
40
-
-
-
-
-
-150
-
-
-
-
6
-
Max
20
40
2
-
1.8
1335
-
0.1
-
-
-
0.5
-145
-40
-50
-
1.0
15
1.5
Unit
mA
mA
mW
V
nm
dB
mW/mA
dB
ns
dB/Hz
dBc
dBc
µA
µA
pF
dB
Test Condition
CW
CW, P
f
=P
f
(Min)
CW,
I
th
+20mA, kink free
CW, P
f
=P
f
(Min)
CW, P
f
=P
f
(Min), RMS(-20dB) TC=-20~85ºC
CW,P
f
=P
f
(Min), -20 to 85ºC
CW, P
f
=P
f
(Min)
-20<T
c
<85ºC
I
bias
=I
th
,10% to 90%
CW
Note 1
Note 1
CW, P
f
=P
f
(Min),V
RPD
=2V
V
RPD
=5V
V
RPD
=5V, f=1MHz
APC, -20 to +85ºC
λ
Sr
Se
OI
t
r/
t
f
RIN
SSO
STO
I
m
I
DARK
C
∆P
f
/P
f
Note1.The laser is modulated with two-carrier tones (f1=13MHz,f2=19MHz) at OMI=15% per carrier tone
LUMINENTOIC.COM
20550 Nordhoff St. • Chatsworth, CA 91311 • tel: 818.773.9044 • fax: 818.576.9486
9F, No 81, Shui Lee Rd. • Hsinchu, Taiwan, R.O.C. • tel: 886.3.5169222 • fax: 886.3.5169213
LUMNDS537-MAY2405
rev. A.2
1
Analog 1310 nm MQW-DFB Laser Diode Module
C-13-DFBA-PX-SXXXI/XXX-X

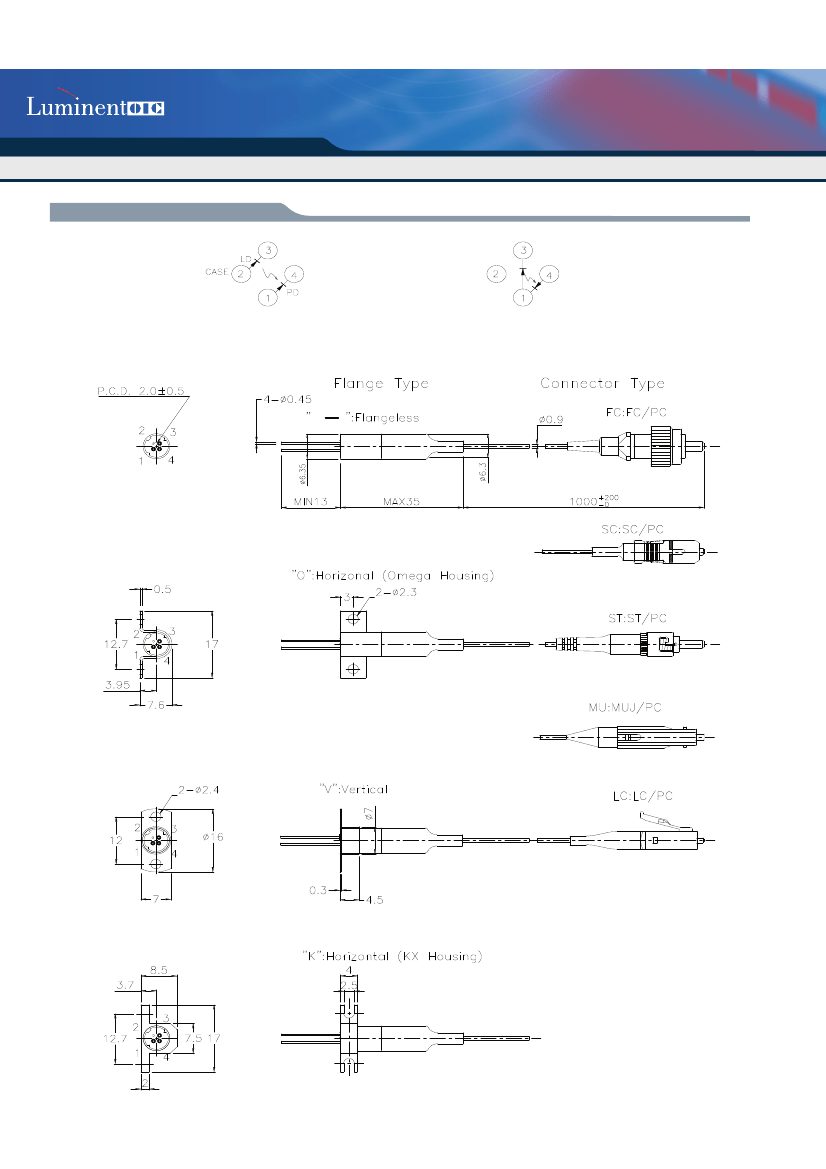

Pin Assignment
Units in mm.
B Type
D Type
CASE
LD
PD
Pin
Pin
Pin
Pin
1
2
3
4
:
:
:
:
Monitor Diode Anode
Laser Anode and Case Gnd
Laser Cathode
Monitor Diode Cathode
Pin
Pin
Pin
Pin
1
2
3
4
:
:
:
:
Laser Anode and Monitor Diode Cathode
Case Gnd
Laser Cathode
Monitor Diode Anode
LUMINENTOIC.COM
20550 Nordhoff St. • Chatsworth, CA 91311 • tel: 818.773.9044 • fax: 818.576.9486
9F, No 81, Shui Lee Rd. • Hsinchu, Taiwan, R.O.C. • tel: 886.3.5169222 • fax: 886.3.5169213
2
LUMNDS537-MAY2405
rev. A.2
Analog 1310 nm MQW-DFB Laser Diode Module
C-13-DFBA-PX-SXXXI/XXX-X
Ordering Information
C-13-DFBA-PX-SXXXI/XXX-X
Wavelength
13=1310nm
Package
B = B Type
D = DType
Analog
Pin Assignment
P=Pigtail
Connector
Fiber Output Power
H&2
"I" = Isolator
FC/ST/SC/MU/LC/-
-
PC Fiber
APC
APC Fiber
Flange type (-;O;V;K)
Warnings
Handling Precautions: This device is susceptible to damage as a result of electrostatic discharge (ESD). A static free environment is highly recommended.
Follow guidelines according to proper ESD procedures.
Laser Safety: Radiation emitted by laser devices can be dangerous to human eyes. Avoid eye exposure to direct or indirect radiation.
Legal Notice
IMPORTANT NOTICE!
All information contained in this document is subject to change without notice, at LuminentOIC’s sole and absolute discretion. LuminentOIC warrants
performance of its products to current specifications only in accordance with the company’s standard one-year warranty; however, specifications designated
as “preliminary” are given to describe components only, and LuminentOIC expressly disclaims any and all warranties for said products, including express,
implied, and statutory warranties, warranties of merchantability, fitness for a particular purpose, and non-infringement of proprietary rights. Please refer to
the company’s Terms and Conditions of Sale for further warranty information.
LuminentOIC assumes no liability for applications assistance, customer product design, software performance, or infringement of patents, services, or
intellectual property described herein. No license, either express or implied, is granted under any patent right, copyright, or intellectual property right, and
LuminentOIC makes no representations or warranties that the product(s) described herein are free from patent, copyright, or intellectual property rights.
Products described in this document are NOT intended for use in implantation or other life support applications where malfunction may result in injury
or death to persons. LuminentOIC customers using or selling products for use in such applications do so at their own risk and agree to fully defend and
indemnify LuminentOIC for any damages resulting from such use or sale.
THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROVIDED ON AN “AS IS” BASIS. Customer agrees that LuminentOIC is not liable for any actual,
consequential, exemplary, or other damages arising directly or indirectly from any use of the information contained in this document. Customer must con-
tact LuminentOIC to obtain the latest version of this publication to verify, before placing any order, that the information contained herein is current.
© LuminentOIC, Inc. 2004
All rights reserved
LUMINENTOIC.COM
20550 Nordhoff St. • Chatsworth, CA 91311 • tel: 818.773.9044 • fax: 818.576.9486
9F, No 81, Shui Lee Rd. • Hsinchu, Taiwan, R.O.C. • tel: 886.3.5169222 • fax: 886.3.5169213
3
LUMNDS537-MAY2405
rev. A.2
