MC74HC4051D datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> MC74HC4051D

MC74HC4051D: Description8-CHANNEL, SGL ENDED MULTIPLEXER, PDSO16, PLASTIC, SOIC-16; CategoryAnalog mixed-signal IC The signal circuit; File Size337KB，12 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com; Related ProductsFound20parts with similar functions to MC74HC4051D

Download Datasheet Parametric View All

MC74HC4051D Overview

8-CHANNEL, SGL ENDED MULTIPLEXER, PDSO16, PLASTIC, SOIC-16

MC74HC4051D Parametric

Parameter Name	Attribute value
Maker	Motorola ( NXP )
Parts packaging code	SOIC
package instruction	SOP,
Contacts	16
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	SINGLE-ENDED MULTIPLEXER
JESD-30 code	R-PDSO-G16
JESD-609 code	e0
length	9.9 mm
Nominal Negative Supply Voltage (Vsup)	-6 V
Number of channels	8
Number of functions	1
Number of terminals	16
Nominal off-state isolation	40 dB
On-state resistance matching specifications	40 Ω
Maximum on-state resistance (Ron)	140 Ω
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Maximum seat height	1.75 mm
Maximum supply current (Isup)	0.16 mA
Maximum supply voltage (Vsup)	6 V
Minimum supply voltage (Vsup)	2 V
Nominal supply voltage (Vsup)	6 V
surface mount	YES
Maximum disconnect time	15 ns
Maximum connection time	15 ns
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	3.9 mm
Base Number Matches	1

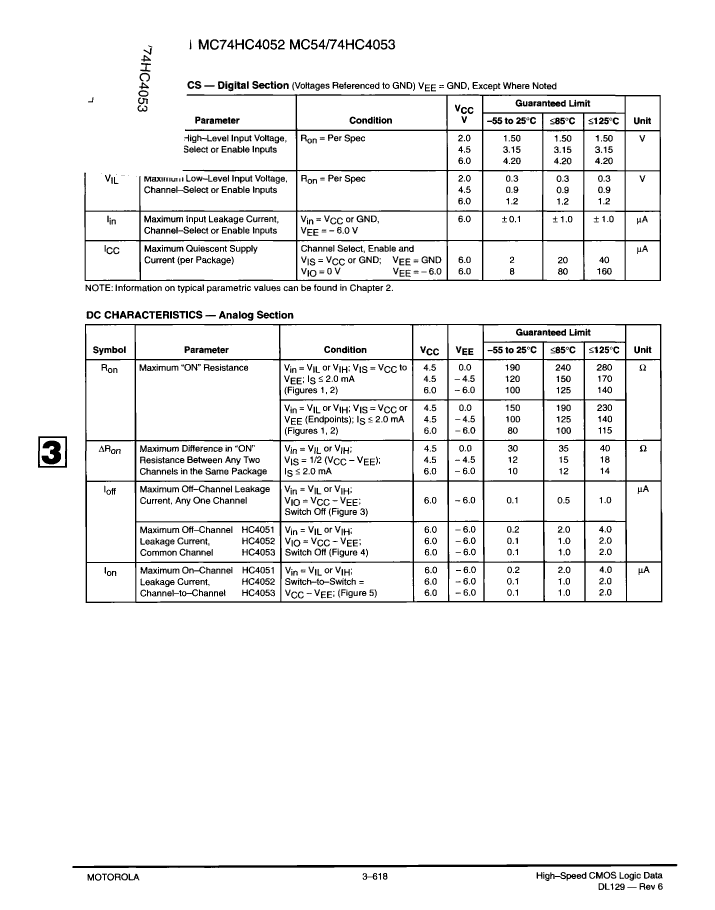

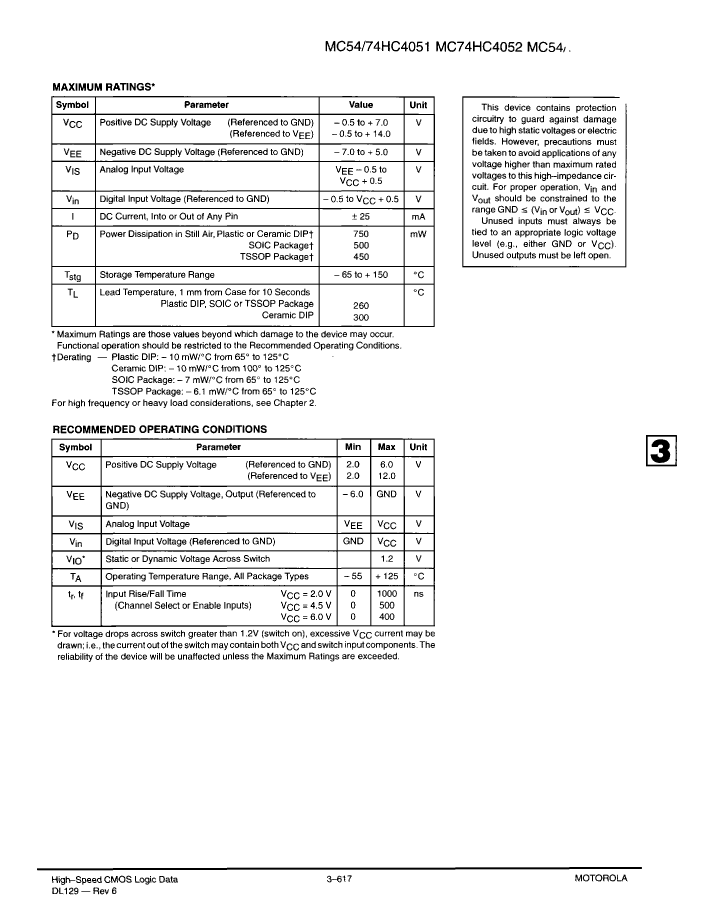

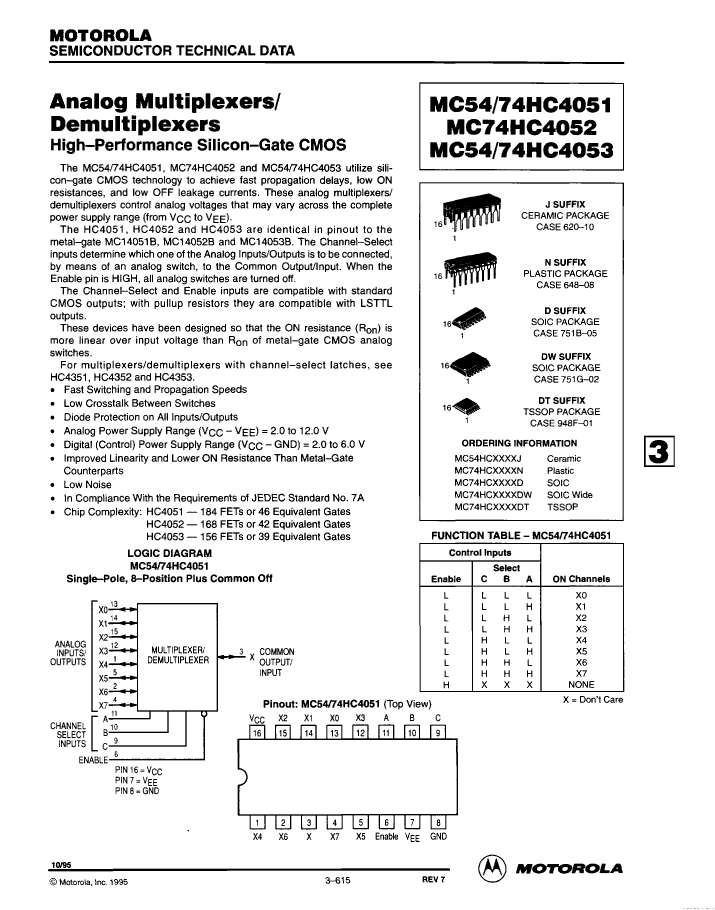

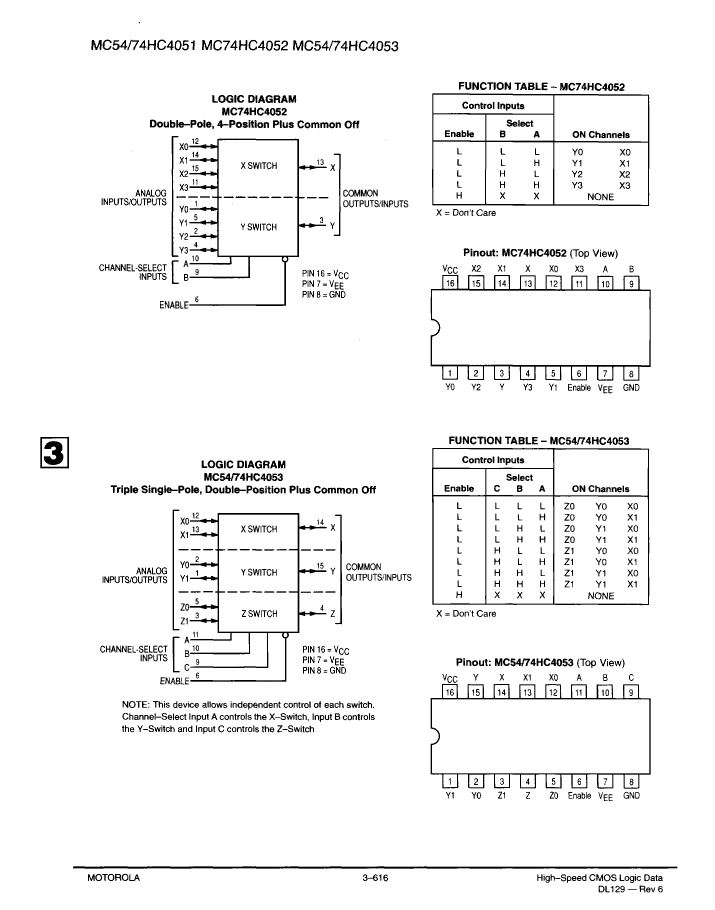

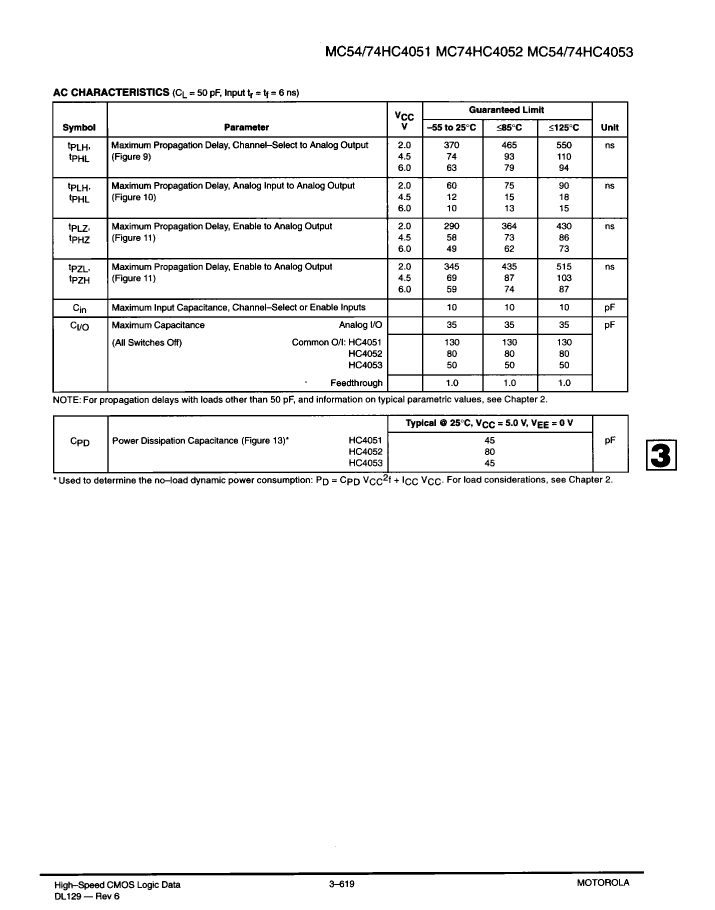

Preview

Download Datasheet

View All
