54LS165/B2AJC datasheet, PDF - EEWORLD Datasheet

54LS165/B2AJC: DescriptionParallel In Serial Out, LS Series, 8-Bit, Right Direction, Complementary Output, TTL, CQCC20, CERAMIC, LCC-20; Categorylogic logic; File Size276KB，6 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric View All

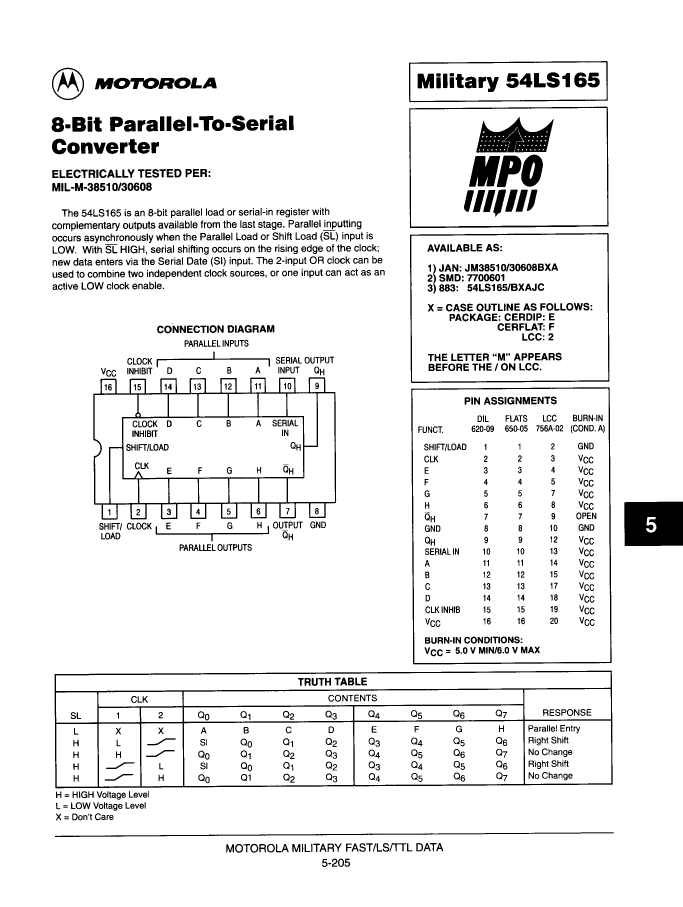

54LS165/B2AJC Overview

Parallel In Serial Out, LS Series, 8-Bit, Right Direction, Complementary Output, TTL, CQCC20, CERAMIC, LCC-20

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Motorola ( NXP )
package instruction	QCCN, LCC20,.35SQ
Reach Compliance Code	unknown
Other features	CLOCK INHIBIT
Counting direction	RIGHT
series	LS
JESD-30 code	S-CQCC-N20
JESD-609 code	e0
length	8.89 mm

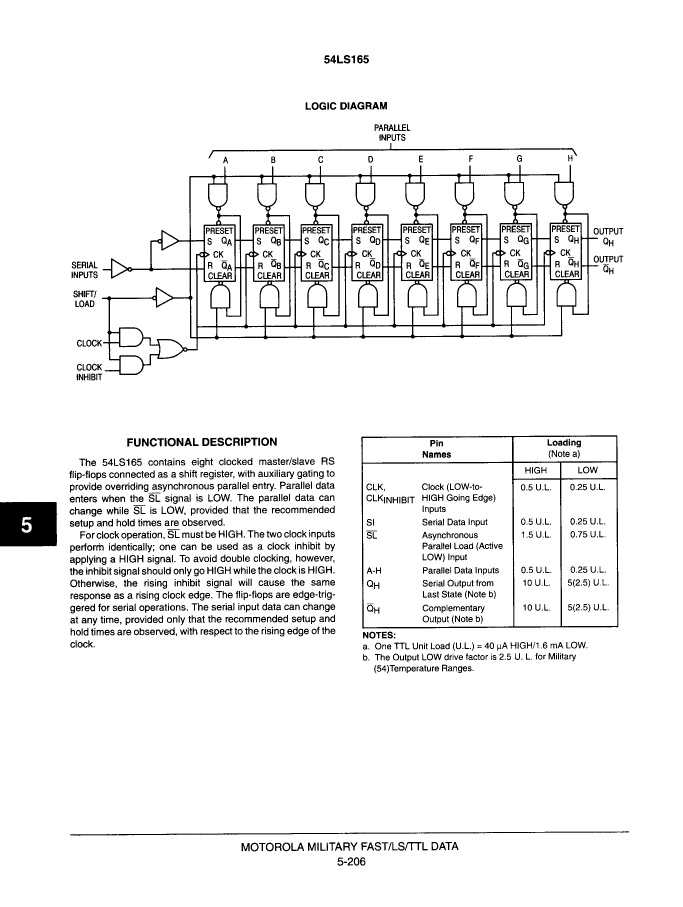

Logic integrated circuit type	PARALLEL IN SERIAL OUT
Maximum Frequency@Nom-Sup	25000000 Hz
Number of digits	8
Number of functions	1
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output polarity	COMPLEMENTARY
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Encapsulate equivalent code	LCC20,.35SQ
Package shape	SQUARE
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V

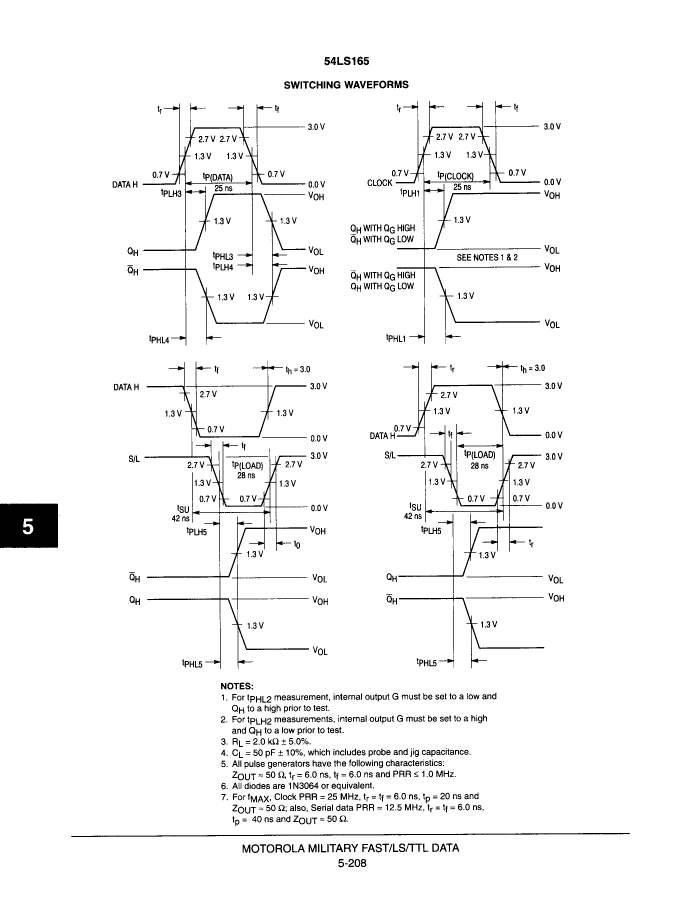

propagation delay (tpd)	58 ns
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Maximum seat height	1.9 mm

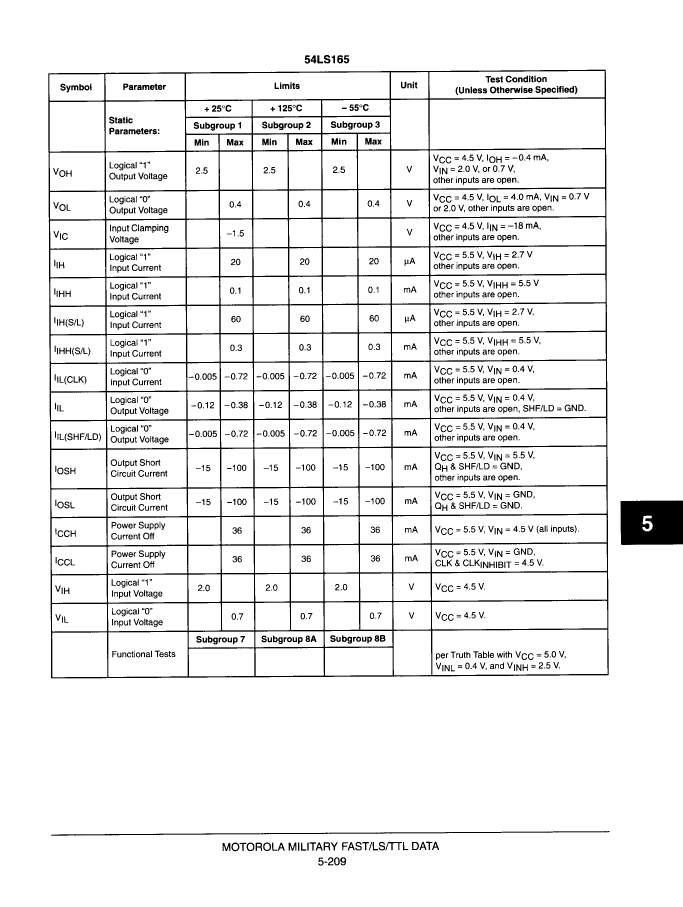

Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED

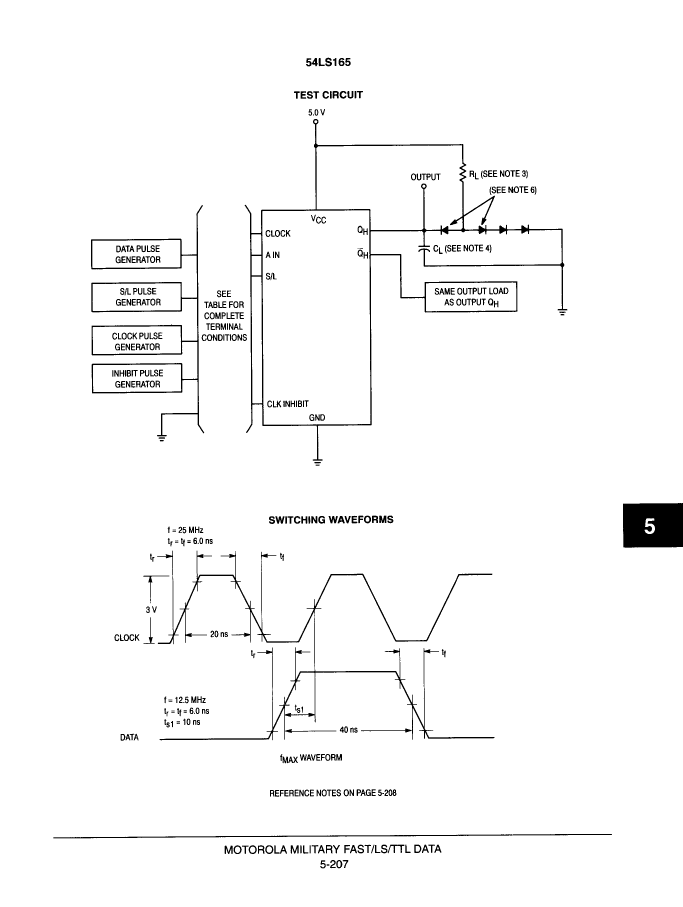

Trigger type	POSITIVE EDGE
width	8.89 mm
minfmax	25 MHz
Base Number Matches	1
