54938-22LLSLF datasheet, PDF - EEWORLD Datasheet

54938-22LLSLF: DescriptionPCMCIA Connector, 136 Contact(s), 4 Row(s), Male, Straight, Solder Terminal, LEAD FREE; CategoryThe connector The connector; File Size343KB，3 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

54938-22LLSLF Overview

PCMCIA Connector, 136 Contact(s), 4 Row(s), Male, Straight, Solder Terminal, LEAD FREE

Parameter Name	Attribute value
Maker	Amphenol
package instruction	LEAD FREE
Reach Compliance Code	compliant
Other features	SHROUDED
Connector type	PCMCIA CONNECTOR
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	54938
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	4
Options	GENERAL PURPOSE
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	136
UL Flammability Code	94V-0
Base Number Matches	1

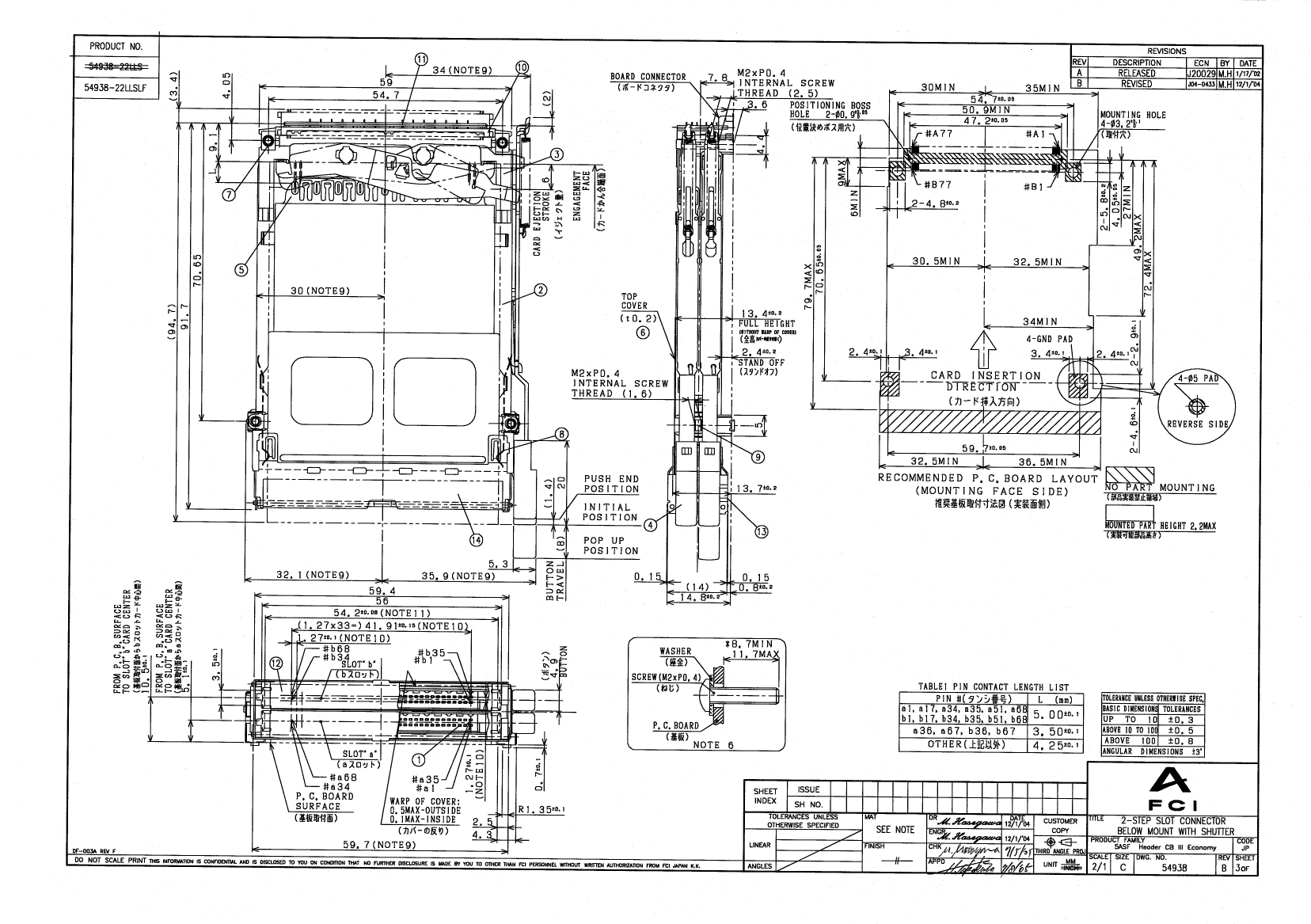

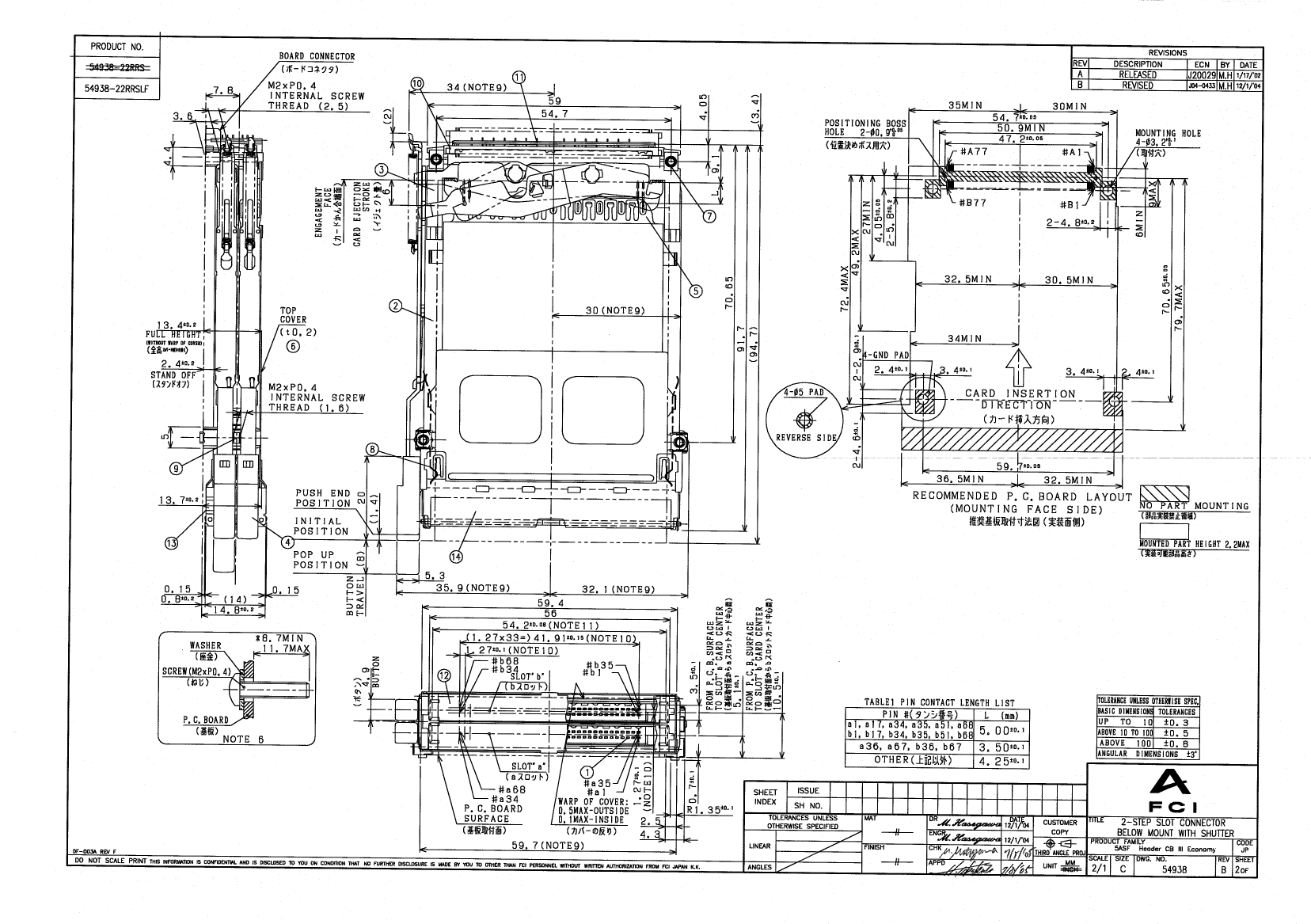

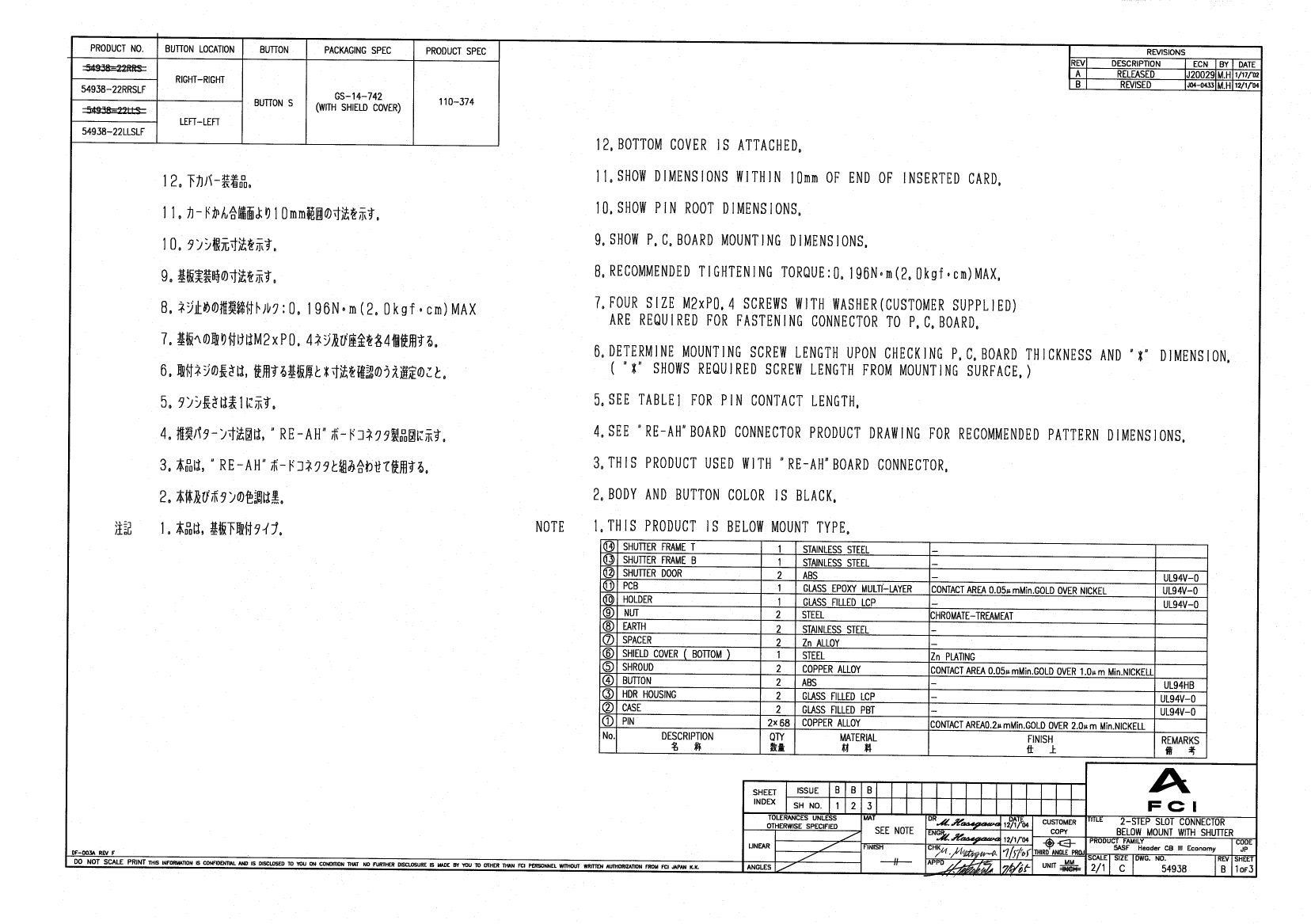

PDM: Rev:B

STATUS:

Released

Printed: Nov 30, 2006

.

	54938-22LLSLF	54938-22RRS	54938-22RRSLF	54938-22LLS
Description	PCMCIA Connector, 136 Contact(s), 4 Row(s), Male, Straight, Solder Terminal, LEAD FREE	PCMCIA Connector, 136 Contact(s), 4 Row(s), Male, Straight, Solder Terminal	PCMCIA Connector, 136 Contact(s), 4 Row(s), Male, Straight, Solder Terminal, LEAD FREE	PCMCIA Connector, 136 Contact(s), 4 Row(s), Male, Straight, Solder Terminal
Maker	Amphenol	Amphenol	Amphenol	Amphenol
Reach Compliance Code	compliant	compliant	unknown	unknown
Other features	SHROUDED	SHROUDED	SHROUDED	SHROUDED
Connector type	PCMCIA CONNECTOR	PCMCIA CONNECTOR	PCMCIA CONNECTOR	PCMCIA CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO
Manufacturer's serial number	54938	54938	54938	54938
Mixed contacts	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	4	4	4	4
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	136	136	136	136
UL Flammability Code	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	1
