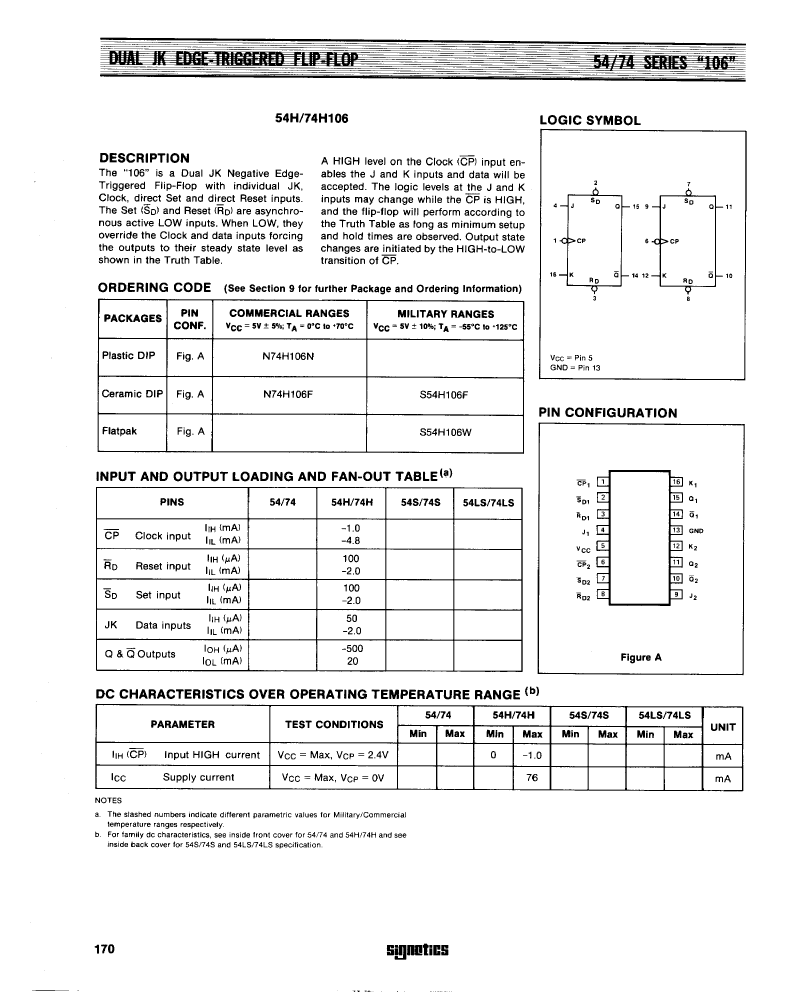

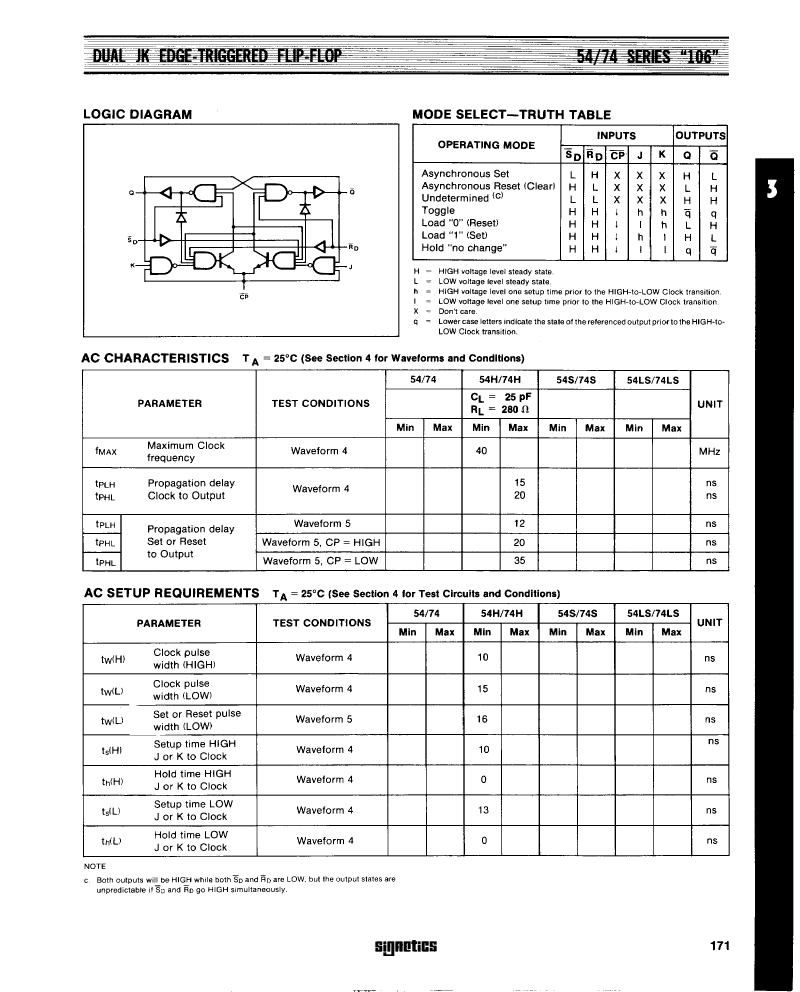

N74H106F: DescriptionJ-K Flip-Flop, 2-Func, Negative Edge Triggered, TTL, CDIP16; Categorylogic logic; File Size128KB，2 Pages; ManufacturerPhilips Semiconductors (NXP Semiconductors N.V.); Websitehttps://www.nxp.com/

Download Datasheet Parametric Compare View All

N74H106F Overview

J-K Flip-Flop, 2-Func, Negative Edge Triggered, TTL, CDIP16

N74H106F Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Philips Semiconductors (NXP Semiconductors N.V.)
package instruction	DIP, DIP16,.3
Reach Compliance Code	unknown
JESD-30 code	R-XDIP-T16
JESD-609 code	e0
Logic integrated circuit type	J-K FLIP-FLOP
Maximum Frequency@Nom-Sup	40000000 Hz
MaximumI(ol)	0.02 A
Number of functions	2
Number of terminals	16
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Maximum supply current (ICC)	76 mA
Certification status	Not Qualified
surface mount	NO
technology	TTL
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Trigger type	NEGATIVE EDGE
Base Number Matches	1

Preview

Download Datasheet

View All

N74H106F Related Products

	N74H106F	N74H106FB	S54H106F/883B	S54H106F/883C
Description	J-K Flip-Flop, 2-Func, Negative Edge Triggered, TTL, CDIP16	J-K Flip-Flop, 2-Func, Negative Edge Triggered, TTL, CDIP16	J-K Flip-Flop, 2-Func, Negative Edge Triggered, TTL, CDIP16	J-K Flip-Flop, 2-Func, Negative Edge Triggered, TTL, CDIP16
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
package instruction	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3
Reach Compliance Code	unknown	unknown	unknown	unknown
JESD-30 code	R-XDIP-T16	R-XDIP-T16	R-XDIP-T16	R-XDIP-T16
JESD-609 code	e0	e0	e0	e0
Logic integrated circuit type	J-K FLIP-FLOP	J-K FLIP-FLOP	J-K FLIP-FLOP	J-K FLIP-FLOP
Maximum Frequency@Nom-Sup	40000000 Hz	40000000 Hz	40000000 Hz	40000000 Hz
MaximumI(ol)	0.02 A	0.02 A	0.02 A	0.02 A
Number of functions	2	2	2	2
Number of terminals	16	16	16	16
Maximum operating temperature	70 °C	70 °C	125 °C	125 °C
Package body material	CERAMIC	CERAMIC	CERAMIC	CERAMIC
encapsulated code	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP16,.3	DIP16,.3	DIP16,.3	DIP16,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Maximum supply current (ICC)	76 mA	76 mA	76 mA	76 mA
surface mount	NO	NO	NO	NO
technology	TTL	TTL	TTL	TTL
Temperature level	COMMERCIAL	COMMERCIAL	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
Trigger type	NEGATIVE EDGE	NEGATIVE EDGE	NEGATIVE EDGE	NEGATIVE EDGE
Base Number Matches	1	1	1	1
