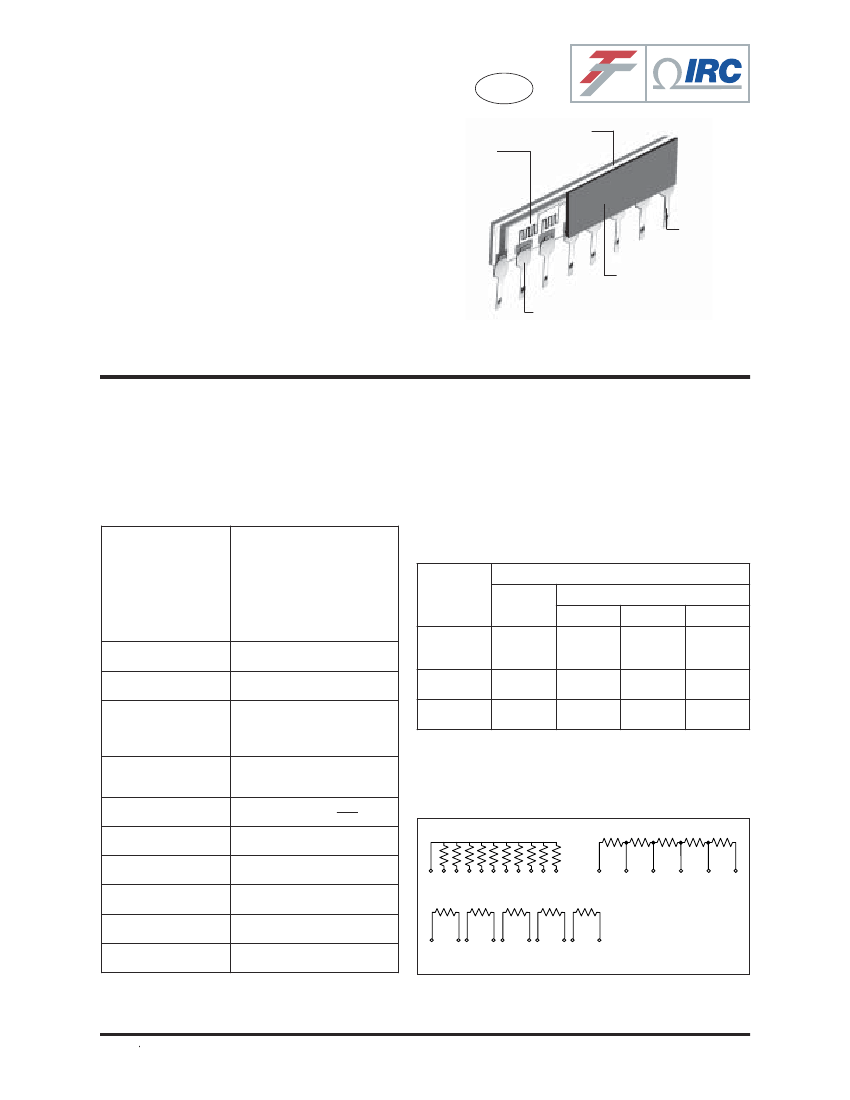

TaNFilm
®
Precision SIP Network
Commercial and Mil Qualified
ISO-9001
Registered
High alumina
substrate
Sputtered
tantalum nitride
with
passivation
oxide layer
4700
SERIES
•
Inherent reliability
•
MIL-PRF-83401 qualified
•
Absolute tolerence to ±0.05% - ratio accuracy to ±0.02%
•
Absolute TCR to ±10 ppm/°C - ratio tracking to ±2ppm/°C
•
Bonded leads not susceptible to solder reflow problems
•
Custom configurations available
Thermal
compression
bonded lead
terminations provide
exceptional reliability
Lid and
ceramic
substrate
totally filled
with an
epoxy
adhesive
Copper leads
electroplated
with gold
over nickel,
hot tinned
leads
available
The IRC 4700 Series is the ultimate combination of
precision performance, reliability, and long term stability in a
low profile, TaNFilm
®
SIP package. Rugged welded lead
construction combined with the inherent passivation
characteristics of tantalum nitride insure superior ongoing
performance over the installed life of the part.
Visit our website to view a graphical demonstration of IRC’s
TaNFilm reliability and performance features.
SPECIFICATIONS:
Resistance Ranges
(ohms)
Mil Qualified
Schematic C: 100 to 100K
Schematic G: 100 to 100K
Commercial
Schematic C: 49.9 to 200K
Schematic F: 20 to 150K
Schematic G: 20 to 400K
Higher and lower resistance
values available
0.05, 0.1, 0.25, 0.5, 1.2
(.02 available)
to ± .01
Mil Qualified:
±50, ±100, ±300
Commercial:
Available to 10 ppm
TCR Tracking
5ppm/°C (except Schematic C
below 500 ohms 20 ppm/ °C)
2 ppm/°C available
100V
(not to exceed
√
PXR)
-55°C to +125°C
R
1
R
1
3
4
N
1
2
3
4
N
POWER RATING AT 70°C:
Wattage
Network
Schematic
C, F
(commercial
or military)
G - military
G - commercial
Element
6 Pin
8 Pin
10 Pin
Standard Resistance
Tolerance (±%)
Available Ratio Tolerance
Temperature Coefficient
{TCR (ppm/°C)}
0.12W
0.60W
0.84W
1.08W
0.12W
0.20W
0.60W
0.36W
0.80
0.48W
1.0W
0.60W
Voltage Rating
Temperature Range
Noise Level
Lead Material
STANDARD CIRCUITS:
Schematic "C"
Schematic "F"
Less than -30 db
1
2
Gold Plated Copper
(hot tin/lead available)
99.6% pure alumina ceramic
Lid and ceramic substrate totally
filled with an epoxy adhesive
Schematic "G"
Substrate Material
Construction
R
1
1
2 3
4
N-1
N
Consult factory for Tighter tolerances and TCR.
Custom circuits and special testing available.
ADVANCED FILM DIVISION
4222 South Staples Street
•
Corpus Christi, Texas 78411
070202
•
Tel: 361-992-7900
•
Fax: 361-992-3377
•
www.irctt.com
ISO-9001
Registered
4700 SERIES ENVIRONMENTAL TESTING:
Test Per MIL-PRF-83401
Thermal Shock and Power Conditioning
Low Temperature Operation
Short Term Overload
Terminal Strength
Resistance to Solder Heat
Moisture Resistance
Shock
Vibration
Life
High Temperature Exposure
Low Temperature Storage
25°C Double Load
MIL-PRF-83401 Limits (Delta R%)
M
0.7
0.5
0.5
0.25
0.25
0.5
0.25
0.25
2.0
1.0
0.5
2.0
K
0.7
0.25
0.25
0.25
0.25
0.5
0.25
0.25
0.5
0.5
0.25
0.5
H
0.5
0.1
0.1
0.1
0.1
0.4
0.25
0.25
0.5
0.2
0.1
0.5
TaNFilm Test Data
(Delta R%)
Max
Typica
0.10
0.05
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.05
0.02
0.02
0.02
0.02
0.02
0.02
0.02
0.02
0.02
0.02
0.02
0.02
DIMENSIONS
(Inches):
0.070±0.010
Dim A Max
No.
Pins
6
8
IRC
Std. Mil
Model
Spec
Number Style
476X
478X
470X
RZ070
RZ080
RZ090
Hi Rel
Mil
Style
RZ210
RZ220
RZ230
Dim.
A
0.598
0.798
0.998
0.130+0.008/-0.010
0.187±0.010
0.322 Ref
10
0.135
+0.015/-0.010
0.015 min
Clean Lead
Above Seating Plane
0.026±0.003
0.020±0.003
0.050±0.003
0.100±0.005
0.010±0.001
0.045±0.015
HOW TO ORDER:
Sample Part No.
SIP - 4781 - 03 - 1001 F B
Optional Ratio Tolerance to R
1
F=±1.0%; D=±0.5%; C=±0.25%;
B = ±0.1%; A = ±0.05%; Q= ±0.02%
Absolute Tolerance
Standard MIL tolerance code
J = ±5%; G = ±2%; F=±1.0%; D=±0.5%;
C = ±0.25%; B = ±0.1%; A = ±0.05%
Resistance
Standard MIL resistance code.
Example: 1001 = 1000
Ω;
50R0 = 50Ω
Characteristic (See table below)
Model
Model
4761
4761HR
4768
4769
4769HR
4781
4781HR
4788
4789
4789HR
4701
4701HR
4708
4709
4709HR
Pins
6
6
6
8
8
8
10
10
10
Schematic
C
F
G
C
F
G
C
F
G
MIL Type
RZ070
RZ210
N/A
RZ070
RZ210
RZ080
RZ220
N/A
RZ080
RZ220
RZ090
RZ230
N/A
RZ090
RZ230
Code
01
02
03
04
05
Classification
Commercial
Commercial
Commercial
MIL-PRF-83401
MIL-PRF-83401
TCR
(ppm/°C)
100
50
25
300
100
Code
06
07
10
11
10
Classification
MIL-PRF-83401
Military Screened
Commercial
Commercial
Commercial
TCR
(ppm/°C)
50
25
20
15
10
