ES3250402BGL datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> ES3250402BGL

ES3250402BGL: DescriptionPower/Signal Relay, 3PDT, Momentary, 0.097A (Coil), 28VDC (Coil), 2716mW (Coil), 25A (Contact), 28VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount,; CategoryMechanical and electronic products relay; File Size159KB，3 Pages; ManufacturerSTPI Siege Social

Download Datasheet Parametric View All

ES3250402BGL Overview

Power/Signal Relay, 3PDT, Momentary, 0.097A (Coil), 28VDC (Coil), 2716mW (Coil), 25A (Contact), 28VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount,

ES3250402BGL Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	PANEL MOUNTABLE
body width	26.04 mm
body height	25.65 mm
Body length or diameter	26.04 mm
Maximum coil current (DC)	0.097 A
Coil operating voltage (DC)	18.7 V
Coil power	2716 mW
Coil release voltage (DC)	1.5 V
Coil resistance	290 Ω
Maximum coil voltage (DC)	28 V
Coil/Input Power Type	DC
Contact (AC) maximum rated R load	25A@200VAC
Maximum contact current (AC)	25 A
Maximum contact current (DC)	25 A
Contact (DC) maximum rated R load	25A@28VDC
Maximum contact voltage (AC)	200 V
Maximum contact voltage (DC)	28 V
Contact/Output Power Type	AC/DC
Electrical life	50000 Cycle(s)
JESD-609 code	e4
Installation features	THROUGH HOLE-STRAIGHT MOUNT
operating hours	16 ms
Maximum operating temperature	125 °C
Minimum operating temperature	-70 °C
physical size	26.04mm x 26.04mm x 25.65mm
Guideline	MIL-PRF-83536
Relay action	MOMENTARY
Relay function	3PDT
Relay type	POWER/SIGNAL RELAY
release time	16 ms
seal	HERMETICALLY SEALED
surface mount	NO
Terminal surface	GOLD
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

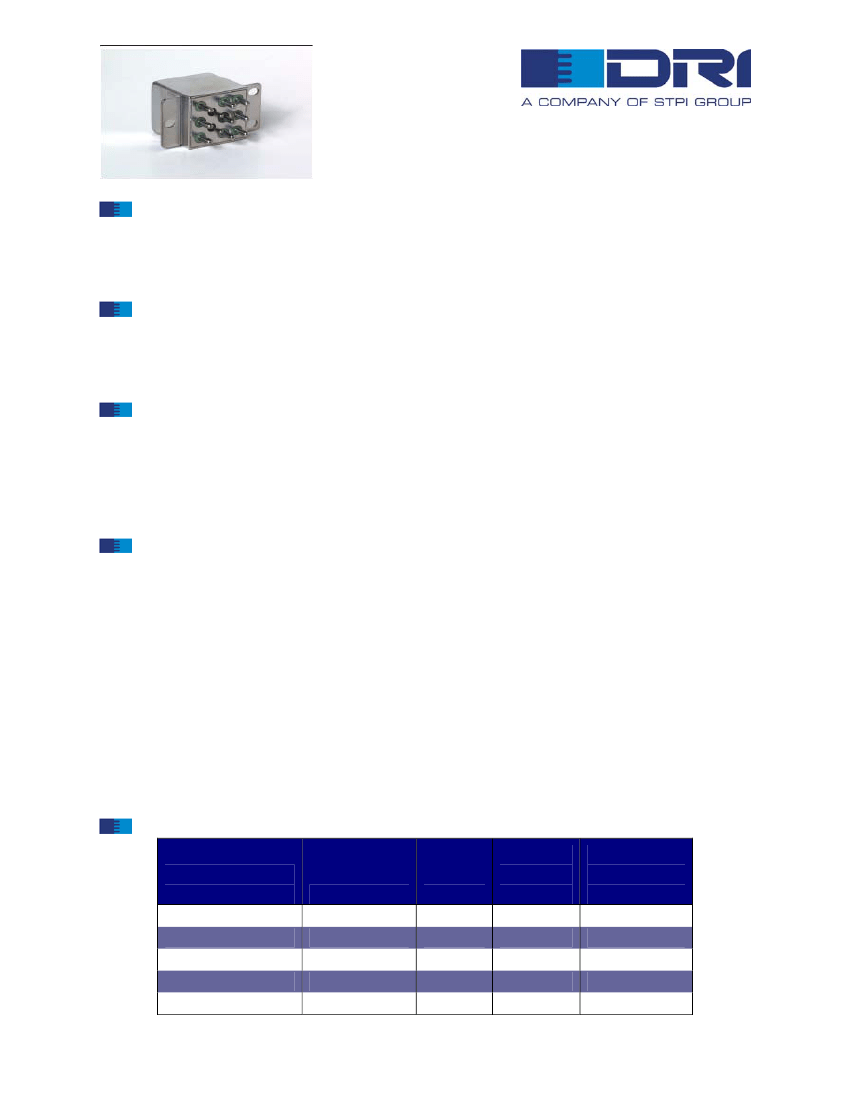

E325 & ES325

Military Specified

Meets MIL-PRF-83536

General Characteristics

Number of Poles:

Dimensions:

Weight:

3 Form C (3PDT)

1.025” x 1.025” x 1.010”

(26.0mm x 26.0mm x 25.7mm)

0.18 lb. (82 grams)

Switching Characteristics

Operate Time @ 25 C:

Release Time @ 25 C:

Bounce Time:

Mechanical Life:

15 ms Max.

1 ms Max.

400,000 Cycles

-70 C to +125 C

30g 10-3,000 Hz

20g 57-3,000 Hz

200g, 6 ms

100g, 6 ms

-8

Hermetic (1x10 atm cm /s)

Environmental Characteristics

Temperature Range:

Vibration (Sinusoidal):

Mounting Code 03:

Shock (any axis):

Mounting Code 03:

Seal:

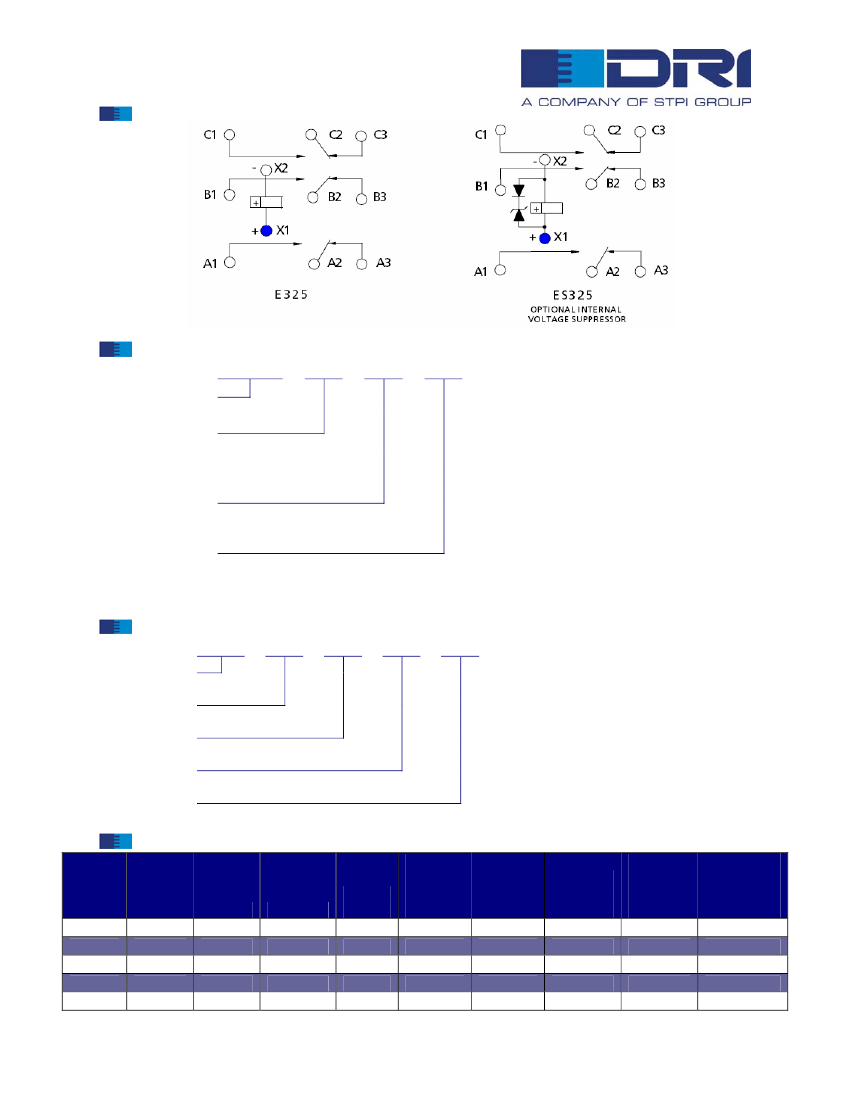

Electrical Characteristics

Contact Voltage Drop (at rated resistive load)

-Initial:

-After Guaranteed Life:

Dielectric Strength

Coil to Case @ Sea Level

-Initial @ 60 Hz:

-After Life Test @ 60 Hz:

All Other Points @ Sea Level

-Initial @ 60 Hz:

-After Life Test @ 60 Hz:

Insulation Resistance

-Initial:

-After Life Tests:

Back EMF (Transient Voltage):

150 mV Max.

175 mV Max.

1,000 Vrms

1,250 Vrms

1,000 Vrms

100 MΩ Min, @ 500 Vdc

50 MΩ Min, @ 500 Vdc

42 Vdc Max. (ES325 Only)

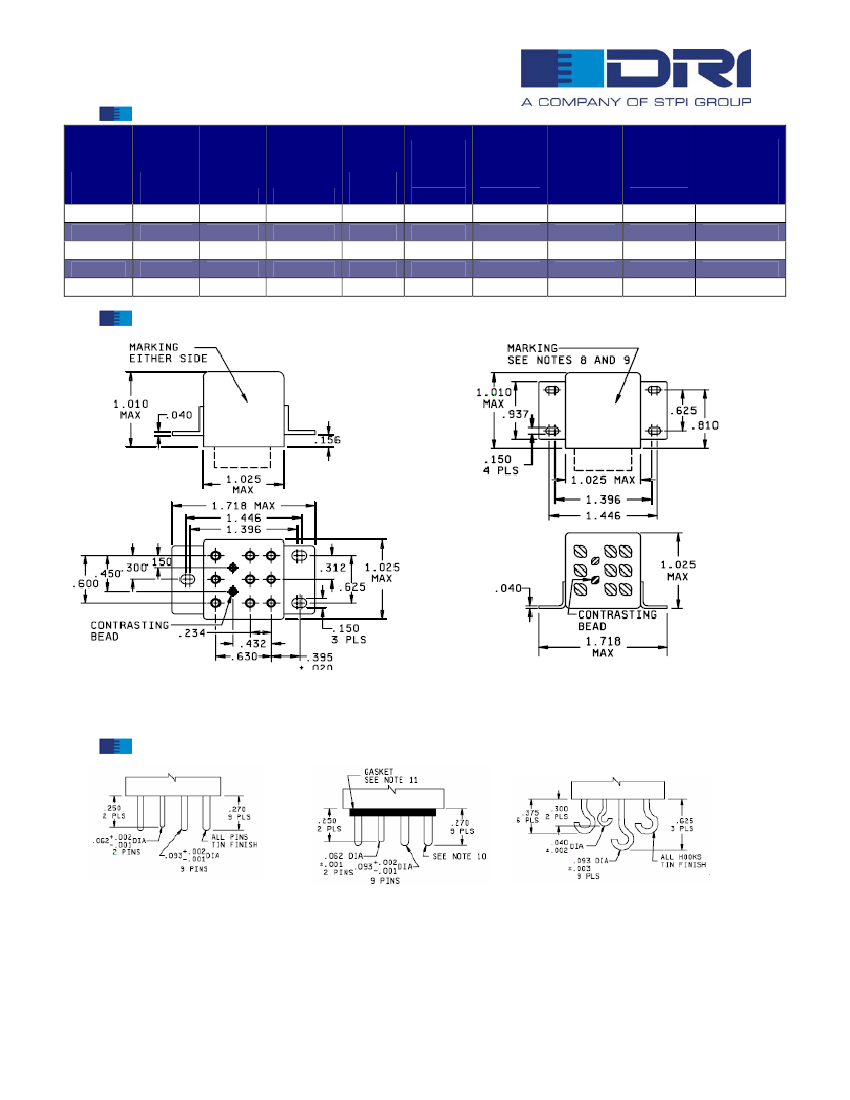

Contact Rating (Amps)

Type of Load

(High Level)

Resistive

Inductive

Motor

Lamp

55 Engineers Road

Hauppauge, NY 11788

Cycles x 10

28 Vdc

N/A

115 Vac

400 Hz

1 Phase

N/A

115/200 Vac

400 Hz

3 Phase

N/A

Mil Spec E325

Page 1/3

www.drirelays.net

(631) 342-1700
