863125S015 datasheet, PDF - EEWORLD Datasheet

863125S015: DescriptionD Subminiature Connector, 25 Contact(s), Female, Solder Terminal, Socket; CategoryThe connector The connector; File Size93KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

863125S015 Overview

D Subminiature Connector, 25 Contact(s), Female, Solder Terminal, Socket

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
Is Samacsys	N
Body/casing type	SOCKET
Connector type	D SUBMINIATURE CONNECTOR
Contact completed and terminated	GOLD
Contact point gender	FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	THERMOSET
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	863125S015
Mixed contacts	NO
Options	GENERAL PURPOSE
Shell surface	TIN LEAD
Shell material	STEEL
Housing size	3/B
Termination type	SOLDER
Total number of contacts	25
UL Flammability Code	94V-0
Base Number Matches	1

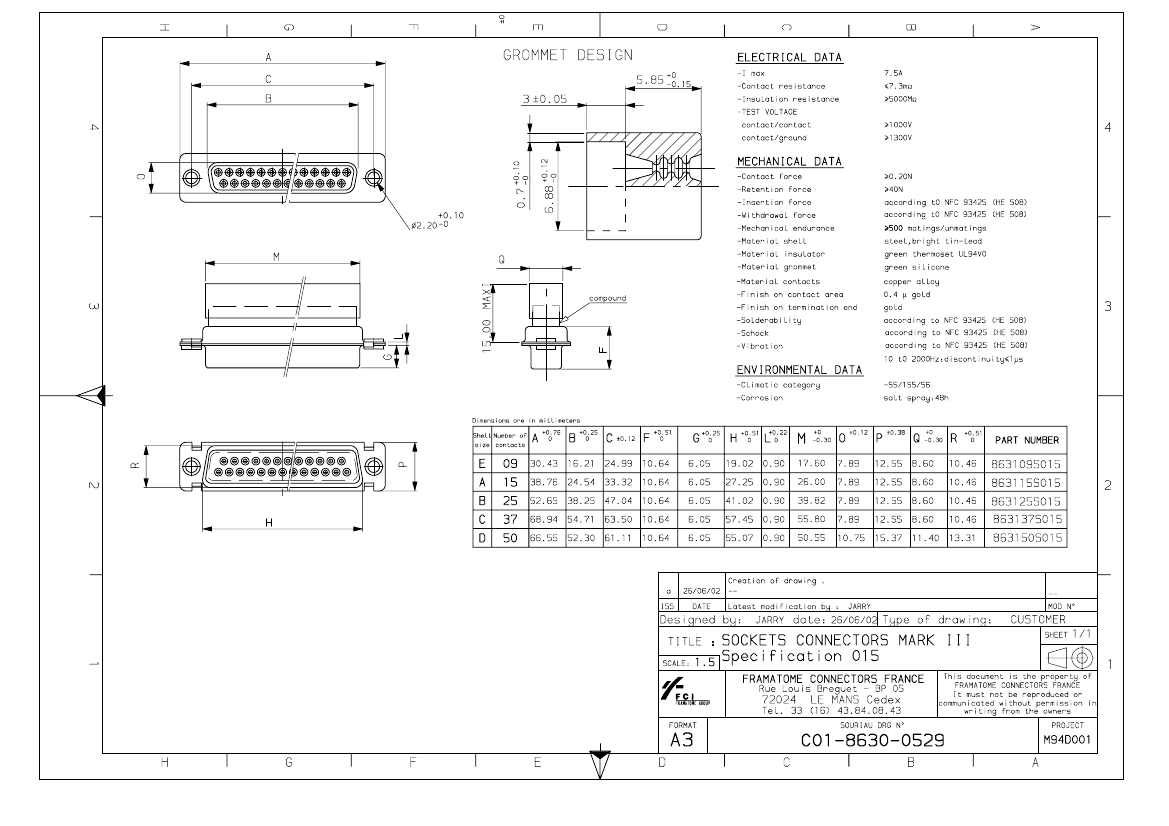

PDM: Rev:A

STATUS:

Released

Printed: Jun 28, 2002

	863125S015	863109S015	863115S015	863137S015	863150S015
Description	D Subminiature Connector, 25 Contact(s), Female, Solder Terminal, Socket	D Subminiature Connector, 9 Contact(s), Female, Solder Terminal, Socket	D Subminiature Connector, 15 Contact(s), Female, Solder Terminal, Socket	D Subminiature Connector, 37 Contact(s), Female, Solder Terminal, Socket	D Subminiature Connector, 50 Contact(s), Female, Solder Terminal, Socket
Maker	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant
Is Samacsys	N	N	N	N	N
Body/casing type	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contact completed and terminated	GOLD	GOLD	GOLD	GOLD	GOLD
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO
insulator material	THERMOSET	THERMOSET	THERMOSET	THERMOSET	THERMOSET
JESD-609 code	e4	e4	e4	e4	e4
MIL compliance	NO	NO	NO	NO	NO
Manufacturer's serial number	863125S015	863109S015	863115S015	863137S015	863150S015
Mixed contacts	NO	NO	NO	NO	NO
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell surface	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD
Shell material	STEEL	STEEL	STEEL	STEEL	STEEL
Housing size	3/B	1/E	2/A	4/C	5/D
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	25	9	15	37	50
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	1	1
