87317-615

Description
Board Connector, 15 Contact(s), 1 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle
CategoryThe connector    The connector
File Size181KB,2 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Download Datasheet Parametric View All

87317-615 Overview

Board Connector, 15 Contact(s), 1 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle

87317-615 Parametric

Parameter NameAttribute value
MakerAmphenol
Reach Compliance Codecompliant
ECCN codeEAR99
Is SamacsysN
Other featuresPOLARIZED
body width0.203 inch
subject depth0.45 inch
body length1.5 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact point genderMALE
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact styleSQ PIN-SKT
DIN complianceNO
Filter functionNO
IEC complianceNO
Insulator colorBLACK
insulator materialGLASS FILLED PCT
MIL complianceNO
Manufacturer's serial number87317
Plug contact pitch0.1 inch
Mixed contactsNO
Installation option 1LOCKING
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
PCB row number1
Number of rows loaded1
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
Plating thickness30u inch
polarization keyPOLARIZED HOUSING
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.12 inch
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts15
UL Flammability Code94V-0
Base Number Matches1

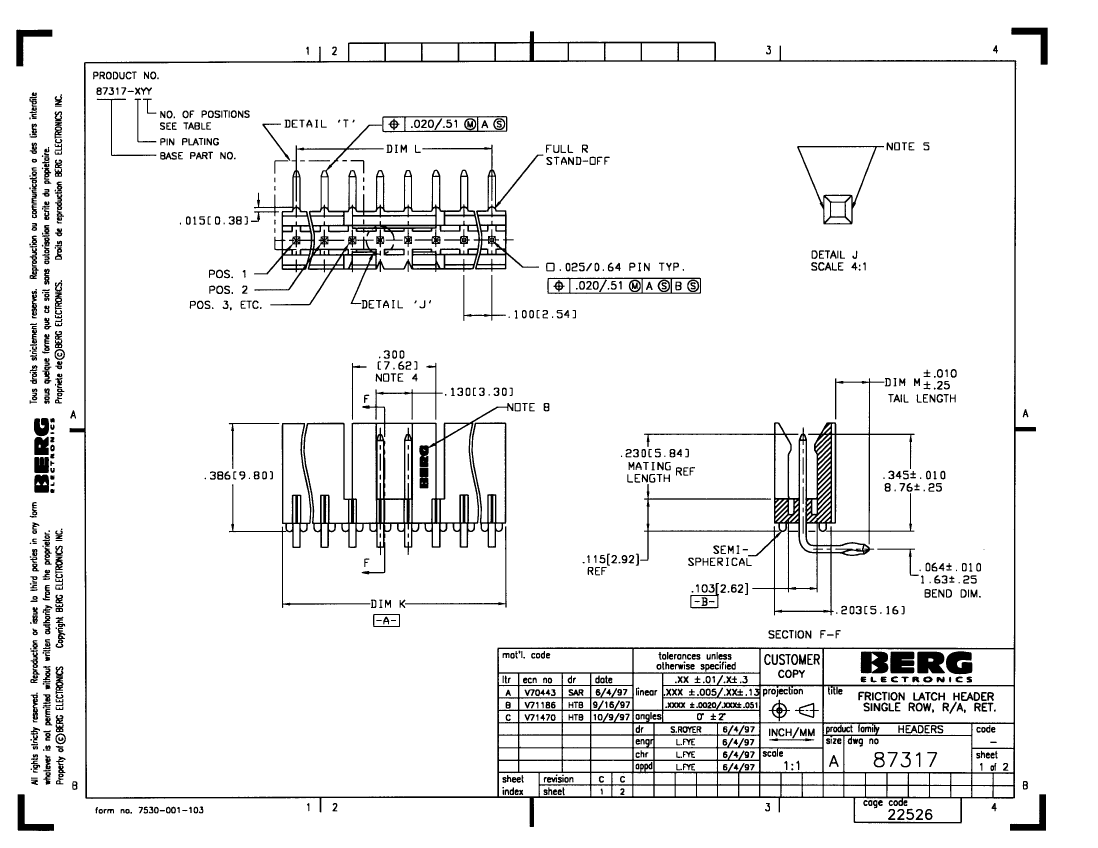

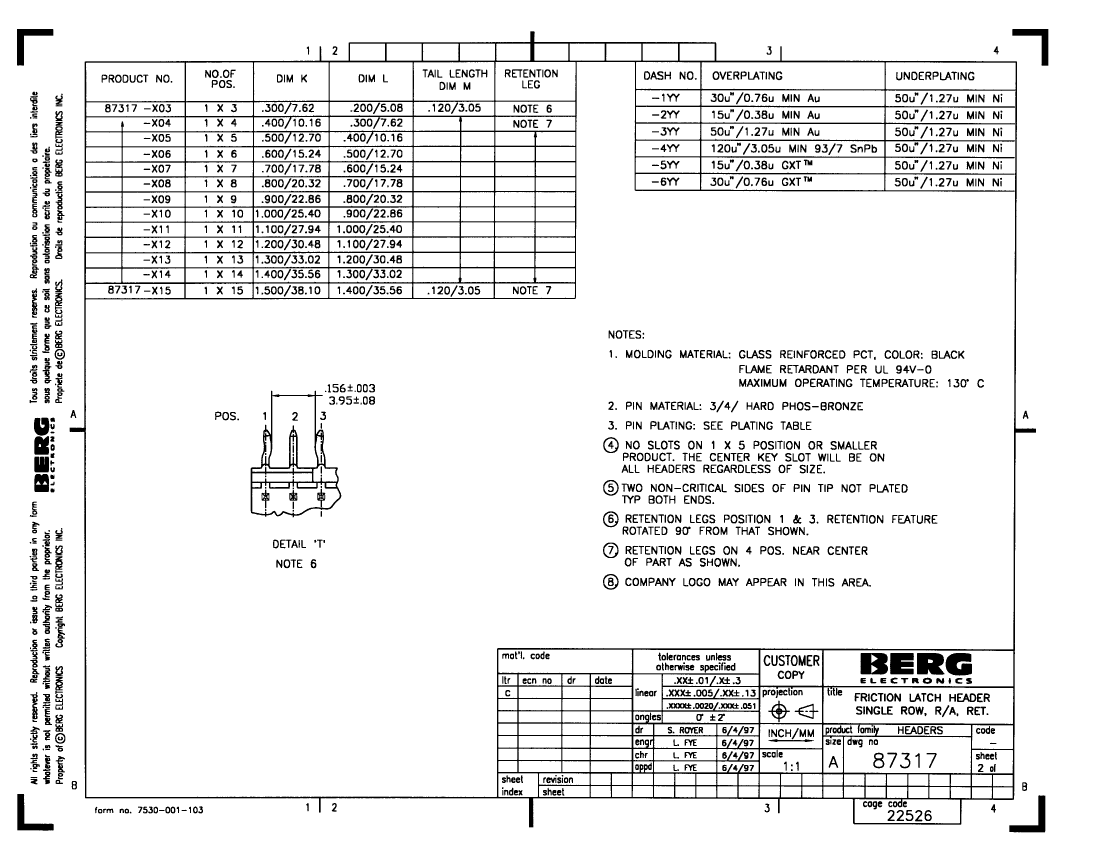

PDM: Rev:C
STATUS:
Released
Printed: Apr 15, 2003
