51766-11702000A0 datasheet, PDF

51766-11702000A0: DescriptionBoard Connector, 37 Contact(s), 4 Row(s), Female, Right Angle, Solder Terminal, Locking, Receptacle,; CategoryThe connector The connector; File Size220KB，3 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

51766-11702000A0 Overview

Board Connector, 37 Contact(s), 4 Row(s), Female, Right Angle, Solder Terminal, Locking, Receptacle,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	1604614306
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	6.83
Other features	TERMINAL PITCH FOR POWER CONTACTS: 6.35 MM
body width	0.448 inch
subject depth	0.82 inch
body length	4.84 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	COPPER ALLOY
Contact resistance	20 mΩ
Contact style	HYBRID
DIN compliance	NO
Dielectric withstand voltage	2500VDC V
Durability	200 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	6.95 N
Insulation resistance	500000000 Ω
insulator material	GLASS FILLED POLYETHYLENE
MIL compliance	NO
Mixed contacts	YES
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
Number of rows loaded	4
Maximum operating temperature	105 °C
Minimum operating temperature	-20 °C
Options	GENERAL PURPOSE
Rated current (signal)	3 A
Guideline	UL
Terminal length	0.135 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	37
UL Flammability Code	94V-0

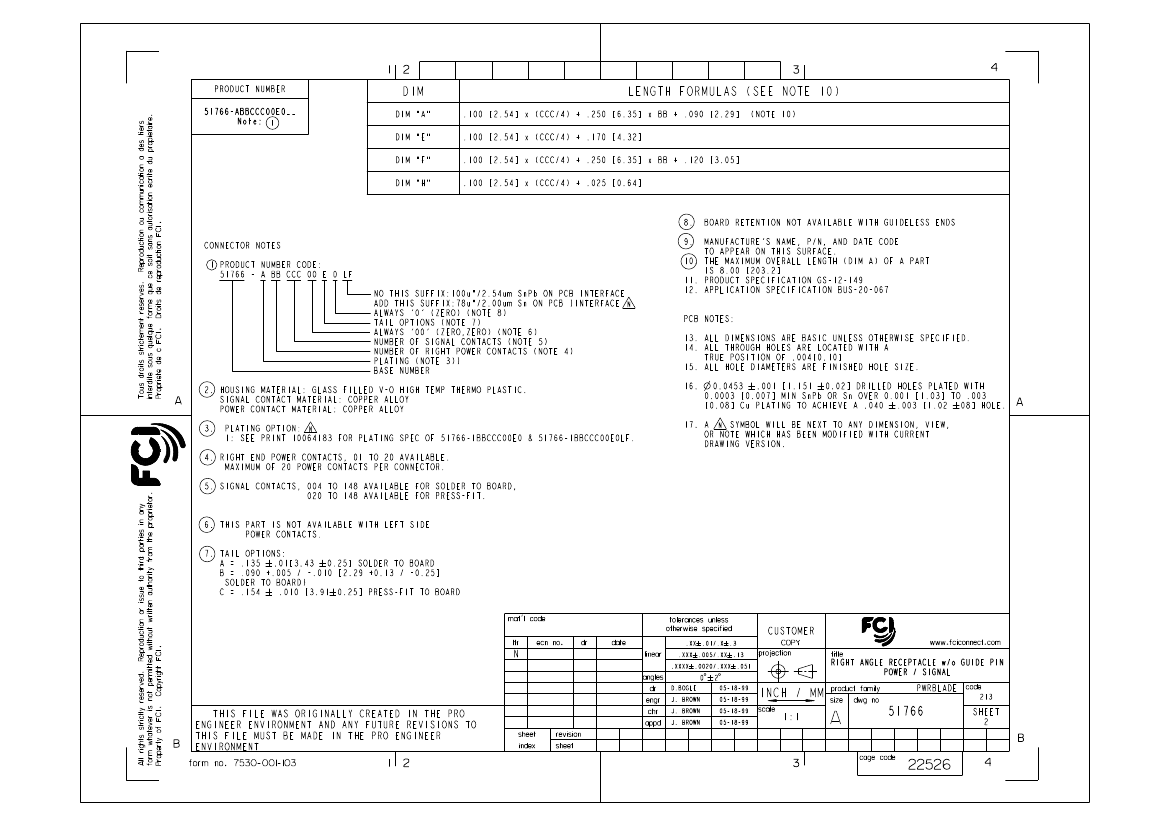

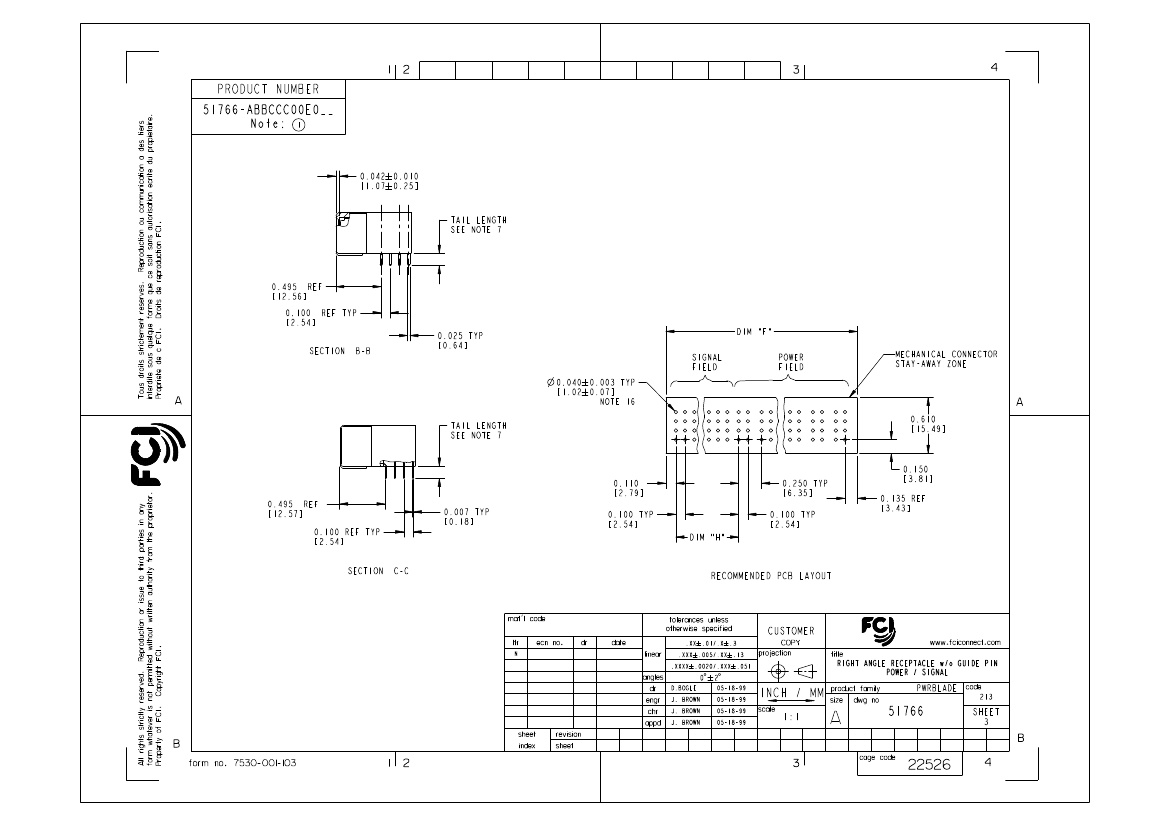

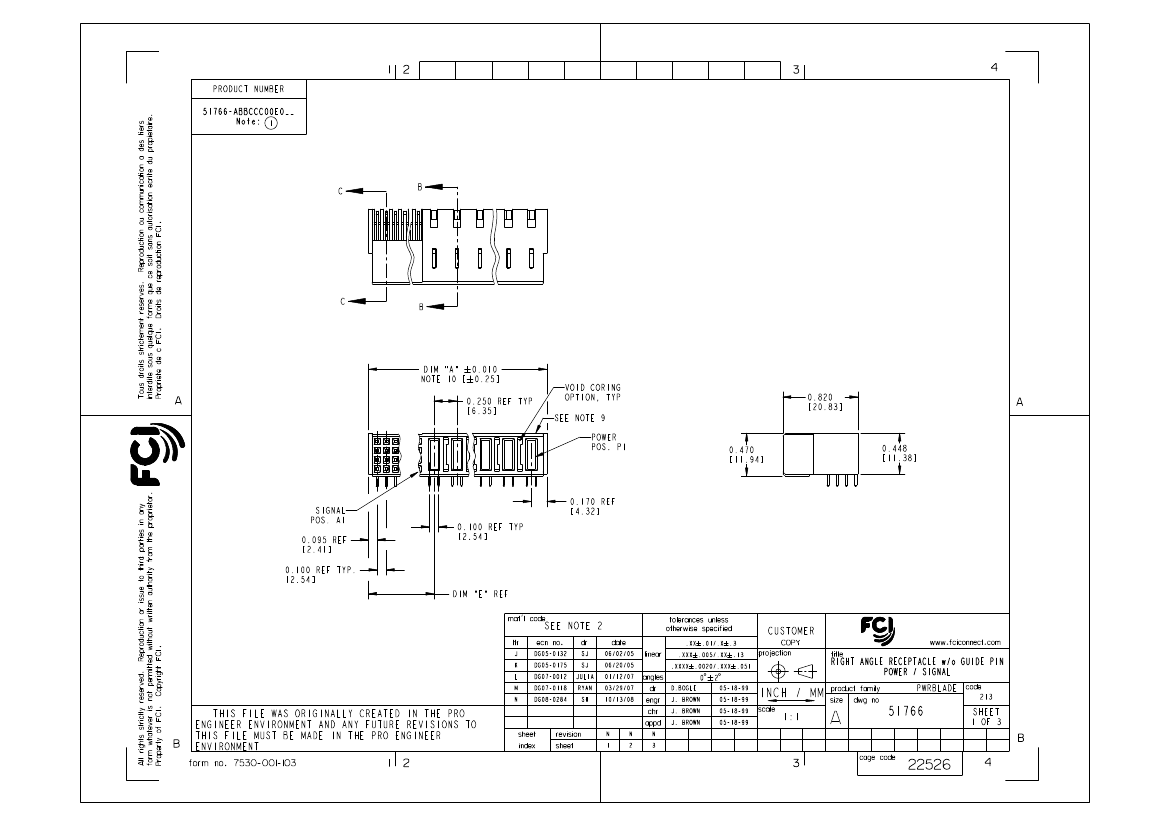

PDM: Rev:N

STATUS:

Released

Printed: Dec 20, 2010
