5159.036.48.63.94.111: DescriptionBoard Euro Connector, 48 Contact(s), 3 Row(s), Male, Right Angle, Solder Terminal, Plug,; CategoryThe connector The connector; File Size833KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

5159.036.48.63.94.111 Overview

Board Euro Connector, 48 Contact(s), 3 Row(s), Male, Right Angle, Solder Terminal, Plug,

5159.036.48.63.94.111 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
Is Samacsys	N
Other features	STANDARD: DIN 14612
Body/casing type	PLUG
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	YES
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	3
Terminal pitch	5.08 mm
Termination type	SOLDER
Total number of contacts	48
Base Number Matches	1

Preview

Download Datasheet

View All

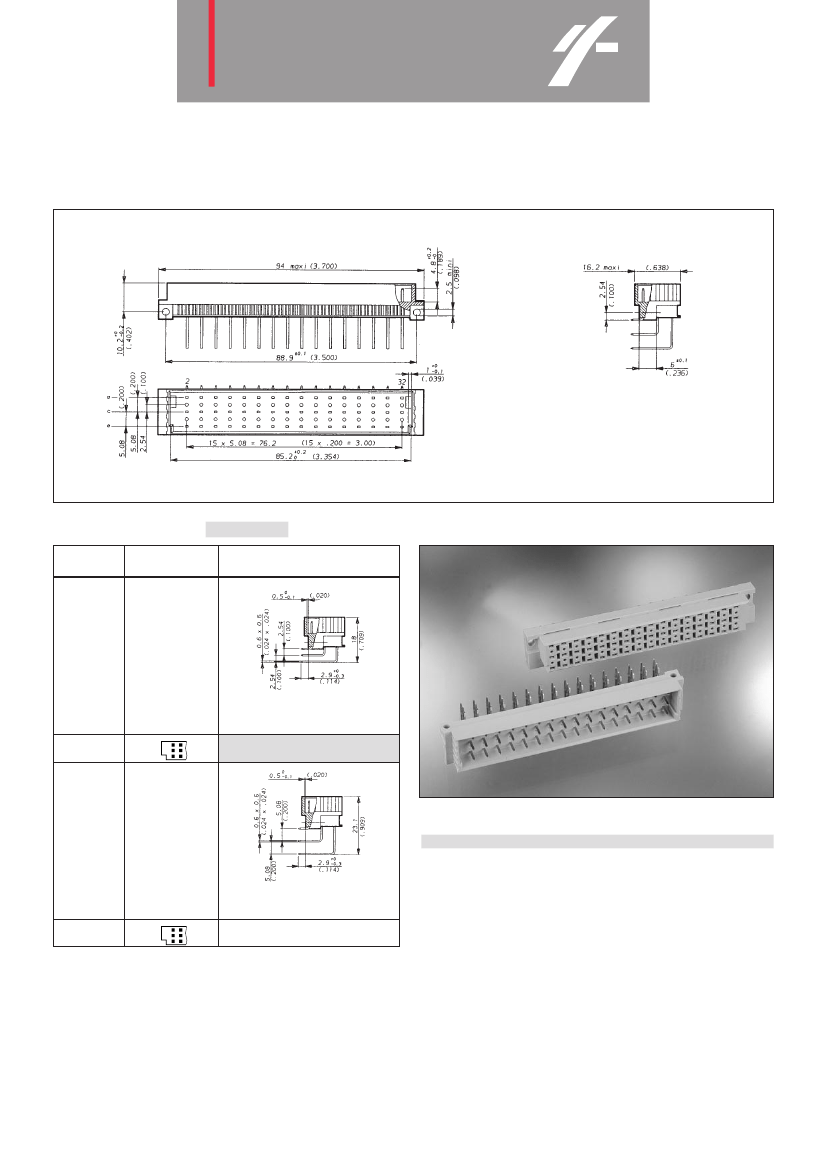

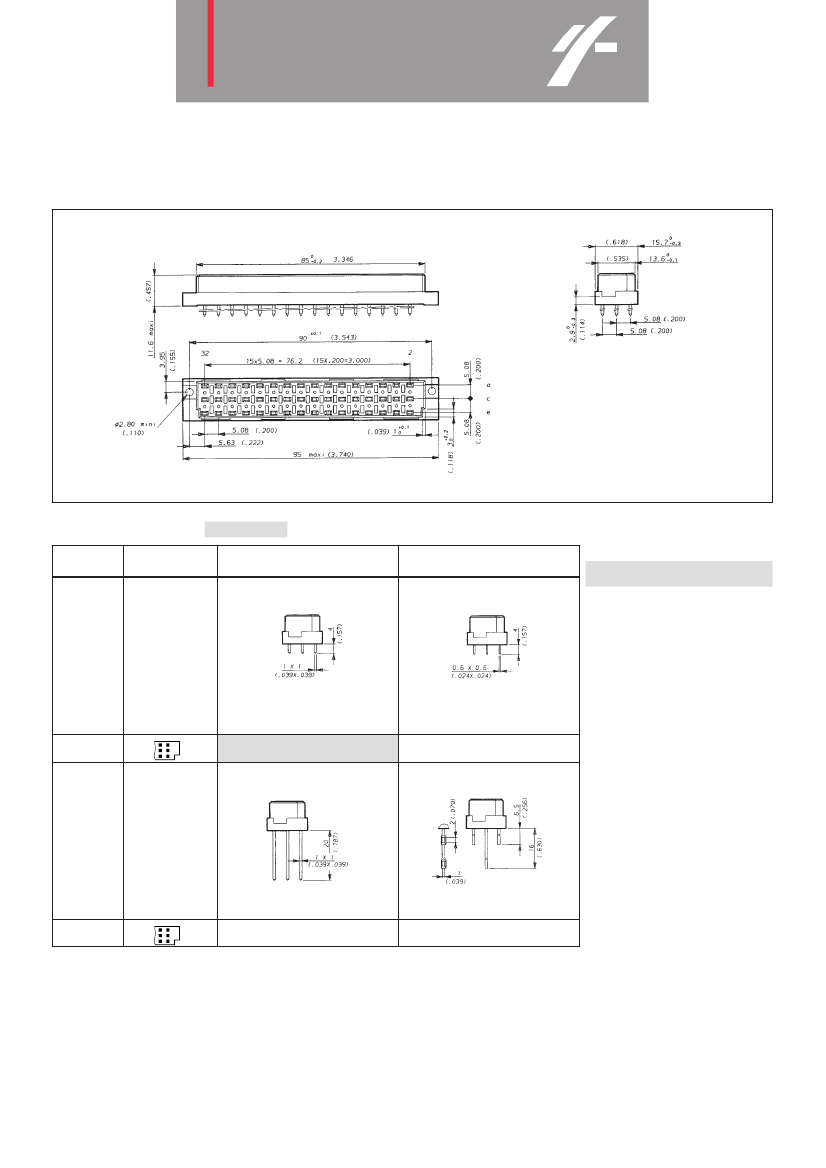

DIN 41612

Plugs, medium power, 3 row

5159 series, style E

Catalogue numbers -

standard items

Nbr of

contacts

Contact

arrang.

Contact

termination

angled spills 2,54x5,08

(.100x.200) centers

2 4

5159.036.48.63.x4.111

Performance class / plating:

• DIN 41612 class II: replace x by

in part number.

• DIN 41612 class I: replace x by

in part number.

Contact plating: selective gold over nickel on contact area, tin-lead on

termination.

angled spills 5,08x5,08

(.200x.200) centers

2 4

Options:

Special terminations and contact arrangements are available upon

request : consult factory.

5159.036.48.63.x4.222
