86093967113H85 datasheet, PDF - EEWORLD Datasheet

86093967113H85: DescriptionBoard Euro Connector, 96 Contact(s), 3 Row(s), Male, Right Angle, Solder Terminal; CategoryThe connector The connector; File Size67KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

86093967113H85 Overview

Board Euro Connector, 96 Contact(s), 3 Row(s), Male, Right Angle, Solder Terminal

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
Is Samacsys	N
Other features	STANDARD: DIN 41612
Connector type	BOARD EURO CONNECTOR
Contact completed and terminated	TIN LEAD OVER NICKEL
Contact point gender	MALE
DIN compliance	YES
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	8609
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	3
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	96
UL Flammability Code	94V-0
Base Number Matches	1

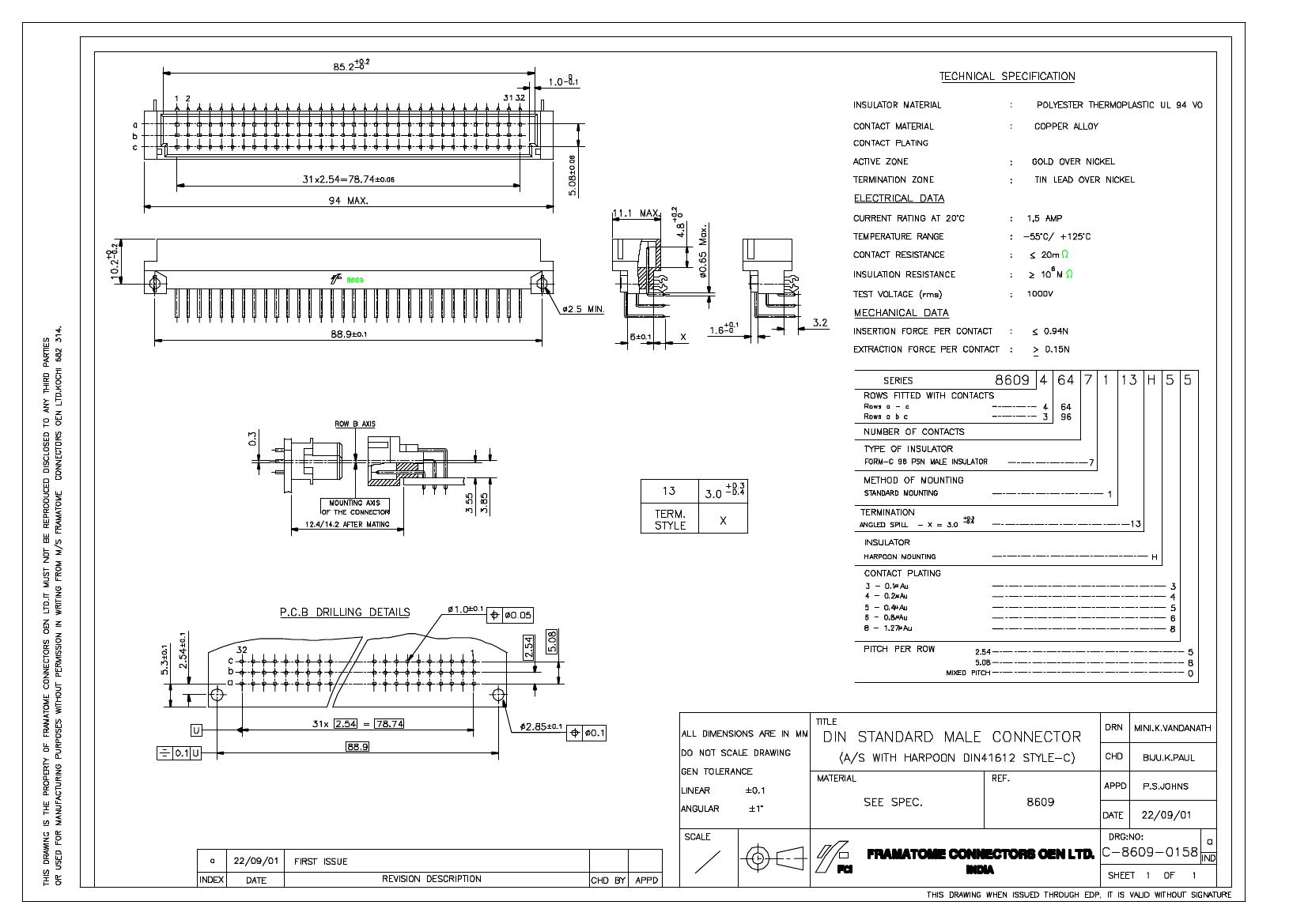

PDM: Rev:A

STATUS:

Released

Printed: Nov 13, 2002

	86093967113H85	86093967113H35	86093967113H45
Description	Board Euro Connector, 96 Contact(s), 3 Row(s), Male, Right Angle, Solder Terminal	Board Euro Connector, 96 Contact(s), 3 Row(s), Male, Right Angle, Solder Terminal	Board Euro Connector, 96 Contact(s), 3 Row(s), Male, Right Angle, Solder Terminal
Maker	Amphenol	Amphenol	Amphenol
Reach Compliance Code	compliant	compliant	compliant
Other features	STANDARD: DIN 41612	STANDARD: DIN 41612	STANDARD: DIN 41612
Connector type	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR
Contact completed and terminated	TIN LEAD OVER NICKEL	TIN LEAD OVER NICKEL	TIN LEAD OVER NICKEL
Contact point gender	MALE	MALE	MALE
DIN compliance	YES	YES	YES
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
JESD-609 code	e0	e0	e0
MIL compliance	NO	NO	NO
Manufacturer's serial number	8609	8609	8609
Mixed contacts	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD
Number of rows loaded	3	3	3
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER
Total number of contacts	96	96	96
UL Flammability Code	94V-0	94V-0	94V-0
