70430-934 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 70430-934

70430-934: DescriptionBoard Connector, 5 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal; CategoryThe connector The connector; File Size592KB，5 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

70430-934 Overview

Board Connector, 5 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal

70430-934 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Amphenol
Reach Compliance Code	compliant
Is Samacsys	N
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Tin/Lead (Sn/Pb)
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	5
Options	GENERAL PURPOSE
Terminal pitch	6 mm
Termination type	PRESS FIT
Total number of contacts	5
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

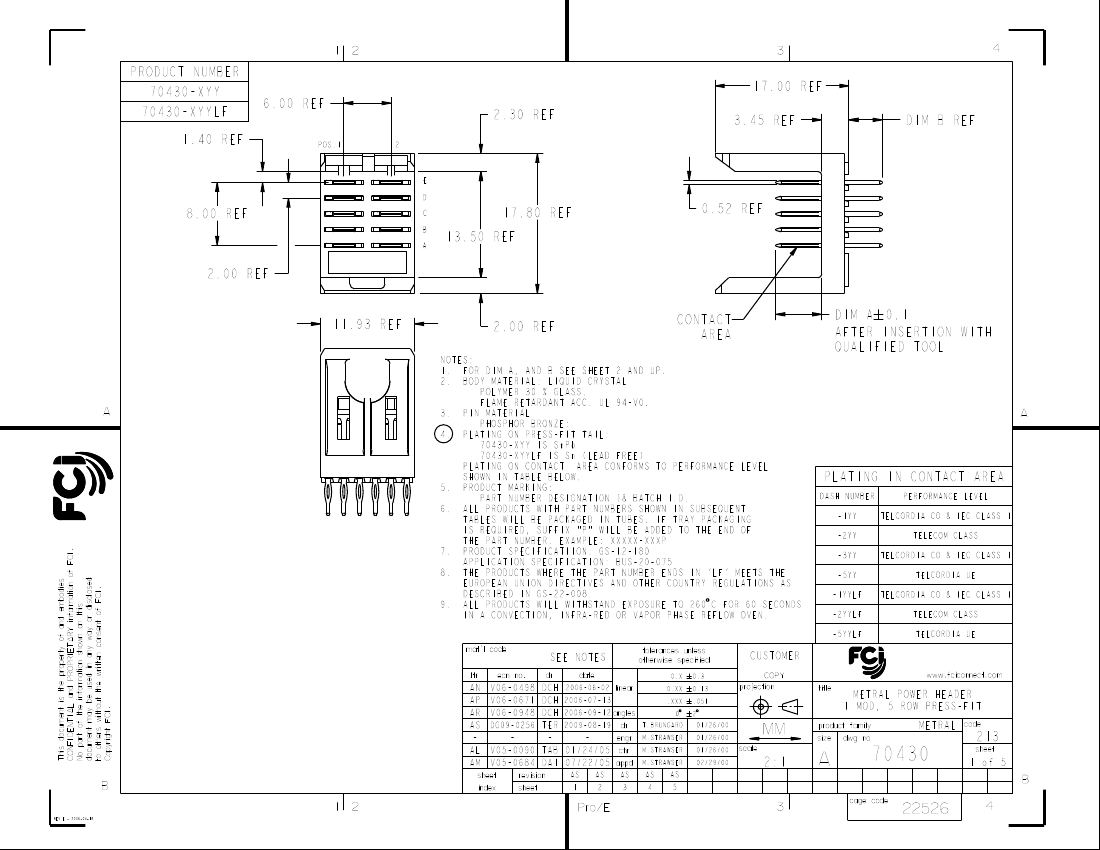

PRODUCT NUMBER

70430-XYY

70430-XYYLF

1.40 REF

17.00 REF

6.00 REF

POS.1

2.30 REF

3.45 REF

DIM B REF

8.00 REF

17.80 REF

13.50 REF

0.52 REF

2.00 REF

CONTACT

AREA

DIM A 0.1

AFTER INSERTION WITH

QUALIFIED TOOL

11.93 REF

2.00 REF

CONFIDENTIAL and PROPRIETARY information of FCI.

NOTES:

1. FOR DIM A, AND B SEE SHEET 2 AND UP.

2. BODY MATERIAL: LIQUID CRYSTAL

POLYMER 30 % GLASS.

FLAME RETARDANT ACC. UL 94-V0.

3. PIN MATERIAL

PHOSPHOR BRONZE:

4. PLATING ON PRESS-FIT TAIL:

70430-XYY IS SnPb

70430-XYYLF IS Sn (LEAD FREE)

PLATING ON CONTACT AREA CONFORMS TO PERFORMANCE LEVEL

SHOWN IN TABLE BELOW.

5. PRODUCT MARKING:

PART NUMBER DESIGNATION } & BATCH I.D.

6. ALL PRODUCTS WITH PART NUMBERS SHOWN IN SUBSEQUENT

TABLES WILL BE PACKAGED IN TUBES. IF TRAY PACKAGING

IS REQUIRED, SUFFIX "P" WILL BE ADDED TO THE END OF

THE PART NUMBER. EXAMPLE: XXXXX-XXXP

7. PRODUCT SPECIFICATIION: GS-12-180

APPLICATION SPECIFICATION: BUS-20-075

8. THE PRODUCTS WHERE THE PART NUMBER ENDS IN 'LF' MEETS THE

EUROPEAN UNION DIRECTIVES AND OTHER COUNTRY REGULATIONS AS

DESCRIBED IN GS-22-008.

9. ALL PRODUCTS WILL WITHSTAND EXPOSURE TO 260 C FOR 60 SECONDS

IN A CONVECTION, INFRA-RED OR VAPOR PHASE REFLOW OVEN.

PLATING IN CONTACT AREA

DASH NUMBER

-1YY

-2YY

-3YY

-5YY

-1YYLF

-2YYLF

-5YYLF

PERFORMANCE LEVEL

TELCORDIA CO & IEC CLASS 1

TELECOM CLASS

TELCORDIA CO & IEC CLASS 1

TELCORDIA UE

TELCORDIA CO & IEC CLASS 1

TELECOM CLASS

TELCORDIA UE

This document is the property of and embodies

to others without the written consent of FCI.

document may be used in any way or disclosed

No part of the information shown on this

mat'l code

SEE NOTES

ecn no.

date

linear

tolerances unless

otherwise specified

CUSTOMER

COPY

projection

title

www.fciconnect.com

ltr

0.X

0.XX

.XXX

angles

engr

chr

appd

0.3

0.13

.051

V06-0498 DCH

2006-06-02

V06-0671 DCH

2006-07-13

V06-0948 DCH

2006-09-12

DG09-0256

TER

2009-08-19

V05-0090 TAB 01/24/05

V05-0684 DAI 07/22/05

revision

sheet

METRAL POWER HEADER

1 MOD, 5 ROW PRESS-FIT

METRAL

code

dwg no

T.BRUNGARD

M.STRAWSER

01/26/00

02/29/00

scale

product family

size

2:1

70430

cage code

213

sheet

1 of 5

sheet

REV E - 2006-04-18

index

Pro/E

22526

PDM: Rev:AS

STATUS:

Released

Printed: Sep 16, 2009
