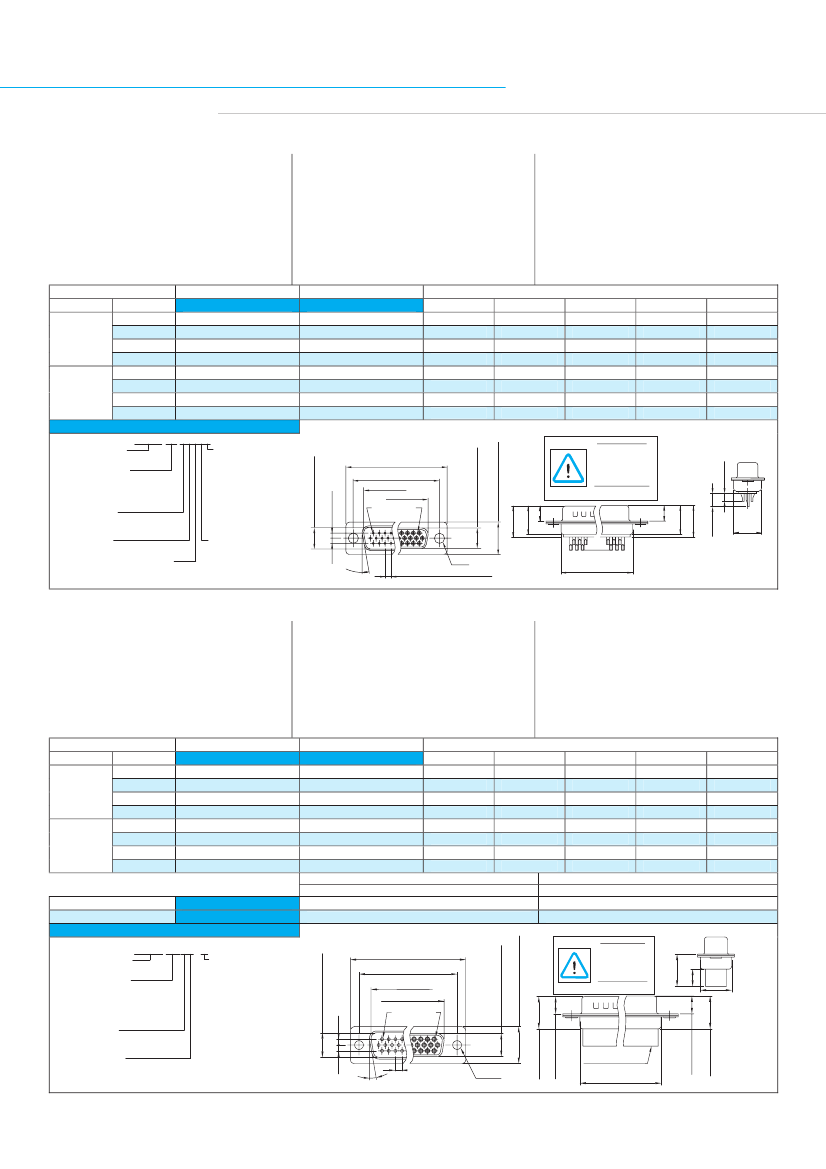

Amphenol
D Subminiature Interconnects
DSub HD/G17SH Series
High Density Solder-pot for Low Volume Terminations
Most popular Part Numbers noted below.
Both HD and G17SH conform to Mil-C-24308.
HD is supplied form Europe while G17S is
supplied from ASIA.
Materials
HD
G17SH
– Tin plated Steel
– Tin/Lead over Nickel
plated Carbon Steel
Insulator
– 94V-0 thermoplastic
Contacts Pin
– Brass
Contacts Sockets – Phosphor Bronze
Finish
– Gold Flash
Board-locks
– Phosphor Bronze
Screw-locks
– Brass
G17SH
Part Number:
A
30.84
G17SH1510110
39.24
G17SH2610110
53.04
G17SH4410110
69.32
G17SH6210110
30.84
G17SH1500110
39.24
G17SH2600110
53.04
G17SH4400110
69.32
G17SH6200110
12.55
±0.38
(.494±0.015)
Available Upon Request
►
78 Way Versions
►
Various Contact Finishes: 15µ”Au, 30µ”Au
►
Various Shell Finishes: Zinc Chromate or Nickel
►
Various Screw Locks: #4-40, M3
Electrical
Current
Voltage
– 3A
– 250VAC/rms 60Hz
Accessories
Hoods:
– Page F-9
Mechanical
Durability
– 75 Cycles
Series
HD
Gender
Positions
Part Number:
15 Way
717HDE15P
26 Way
717HDA26P
44 way
717HDB44P
62 Way
717HDC62P
15 Way
77HDE15S
26 Way
77HDA26S
44 way
77HDB44S
62 Way
77HDC62S
Detailed Part Number System
Female
Male
G17SH XX XXXXX
HD DSub CONNECTOR
Solder pot
NUMBER OF POSITIONS
15: 15 Position
26: 26 Position
44: 44 Position
62: 62 Position
CONTACT STYLE
0: Receptacle
1: Plug
CONTACT FINISH
0: Gold Flash
1: 15µ” Gold
FRONT SHELL FINISH
2: 30µ” Gold
0: Zinc chromate
1: Tin/Lead over Nickel
2: Nickel
B
Dimensions (mm)
C
D
16.24
24.56
38.38
54.76
16.24
24.56
38.38
54.76
E
19.28
27.51
41.30
57.71
19.28
27.51
41.30
57.71
24.99
16.92
33.32
24.70
47.04
38.96
63.50
55.42
24.99
16.92
33.32
24.70
47.04
38.96
63.50
55.42
Common Part Specifications
For ‘G’ Part Numbers
Suffix
may added.
This
Suffix
is for.
internal use mainly
Additional
Suffix
‘EU’
or ‘LF’ will be added for
RoHS compliant product.
For other Part Numbers
Add
Prefix
‘L’ for RoHS
Compliant product.
12.2 (.48)
12 (.472)
11 (.433)
PLUG
SOCKET
5 (.197)
POSITION #1
11.2 (.441)
FLANGE MOUNTING OPTION
0:
∅3.05mm
clear hole
1: #4-40 threaded hole
2: #4-40 threaded screw-lock
installed
3: #4-40 threaded hole with
#4-40 threaded screw-lock
bulk-packed
4: M3 threaded hole
5: M3 screw-lock installed
7: #4-40 threaded screw-lock
clinch-mounted installed
BACK SHELL FINISH
0: Zinc chromate
1: Tin/Lead over Nickel
2: Nickel
8.38
±0.13
(.33±0.005)
1.98 (.078)
5.9 (.232)
B±0.13 (.005)
C±0.13 (.005)
D±0.13 (.005)
6.1
(.240)
3 (.118)
10.72 (.422)
10.3 (.406)
5.2 (.205)
10.72 (.422)
11.2 (.441)
6.1 (.240)
A±0.38 (.015)
1.98
10°
Ø3.05 (.120)
2.29±0.05 (.09±0.002)
E±0.13 (.005)
PNS17SH Rev.A, DSUB-G17SH1500112-25 Rev.A, E5.B
DSub HR/G17RH
High Density Rear Release Crimp Contact for Volume Termination
Most popular Part Numbers noted below.
Both HR and G17RH conform to Mil-C-24308.
HR is supplied form Europe while G17RH is
supplied from ASIA.
7.9
±0.13
(.311±0.005)
Materials
– Tin plated Steel
– Tin/Lead over Nickel
plated Carbon Steel
Insulator
– 94V-0 thermoplastic
Contacts Pin
– Brass
Contacts Sockets – Phosphor Bronze
Finish
– Gold Flash
Durability
– 75 Cycles
G17RH
Part Number:
A
30.84
G17RH115100
39.24
G17RH126100
53.04
G17RH144100
69.32
G17RH162100
30.84
G17RH015100
39.24
G17RH026100
53.04
G17RH044100
69.32
G17RH062100
HR
G17RH
Available Upon Request
►
78 Way Versions
►
Various Contact Finishes: 15µ”Au, 30µ”Au
►
Various Shell Finishes: Zinc Chromate or Nickel
►
Various Screw Locks: #4-40, M3
Electrical
Current
Voltage
– 3A
– 250VAC/rms 60Hz
Tools (HR Series only)
Insertion/Removal Tool- 17D438SP
Crimp Machine
- 970MC
Crimp Die 24-28AWG - 973MC
Accessories
– Hoods Page F-9
Housing Series
HR
Gender
Positions
Part Number:
15 Way
777HRE15P
26 Way
777HRA26P
44 way
777HRB44P
62 Way
777HRC62P
15 Way
177HRE15S
26 Way
177HRA26S
44 way
177HRB44S
62 Way
177HRC62S
Crimp Contacts
Pins
for Male Hse.
Part Number:
Sockets
for Female Hse.
Part Number:
Detailed Part Number System
G17RH XX XX 0X
8.38
±0.13
(.33±.005)
HD DSub Crimp type
Cable Mount
NUMBER OF POSITIONS
15: 15 Position
26: 26 Position
44: 44 Position
62: 62 Position
78: 78 Position
CONTACT STYLE
0: Receptacle
1: Plug
FRONT SHELL FINISH
0: Zinc chromate
1: Tin/Lead over Nickel
2: Nickel
FLANGE MOUNTING OPTION
0:
∅3.05mm
clear hole
1: #4-40 threaded hole
2: #4-40 threaded screw-lock
installed
3: #4-40 threaded hole with
#4-40 threaded screw-lock
bulk-packed
4: M3 threaded hole
5: M3 screw-lock installed
7: #4-40 threaded screw-lock
clinch-mounted installed
E
D
16.92
16.24
19.28
24.70
24.56
27.51
38.96
38.38
41.30
55.42
54.76
57.71
16.92
16.24
19.28
24.70
24.56
27.51
38.96
38.38
41.30
55.42
54.76
57.71
For HR Series 10K/Reel Left Hand Feed
For G17RH Series 10K/Reel Left Hand Feed
24~28 AWG
22~28 AWG
17HRD2M1110G
G17HRC1014
17HRD2F1110G
G17HRC0014
Common Part Specifications
24.99
33.32
47.04
63.50
24.99
33.32
47.04
63.50
A±0.38 (.015)
B±0.13 (.005)
C±0.13 (.005)
7.9
±0.13
(.311±.005)
12.55
±0.38
(.494±.015)
For ‘G’ Part Numbers
Suffix
may added.
This
Suffix
is for.
internal use mainly
Additional
Suffix
‘EU’
or ‘LF’ will be added for
RoHS compliant product.
For other Part Numbers
Add
Prefix
‘L’ for RoHS
Compliant product.
B
Dimensions (mm)
C
Female
Male
1.98 (.078)
D±0.13 (.005)
POSITION #1
PLUG
5.9 (.232)
11 (.433)
SOCKET
1.98
numbered cavities
E±0.13 (.005)
10°
2.29
ø3.05 (.120)
PNS-17RH Rev.A, DSUB-G17RH1ST-25 Rev.B, E11/A
ASF-D/AMTA
F-7
