8001401ZC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Amplifier circuit> 8001401ZC

8001401ZC: DescriptionBuffer Amplifier, 1 Func, MBCY12, METAL CAN, 12 PIN; CategoryAnalog mixed-signal IC Amplifier circuit; File Size60KB，9 Pages; ManufacturerELANTEC (Renesas )

Download Datasheet Parametric Compare View All

8001401ZC Overview

Buffer Amplifier, 1 Func, MBCY12, METAL CAN, 12 PIN

8001401ZC Parametric

Parameter Name	Attribute value
Maker	ELANTEC (Renesas )
package instruction	METAL CAN, 12 PIN
Reach Compliance Code	unknown
Is Samacsys	N
Amplifier type	BUFFER
Maximum average bias current (IIB)	0.0025 µA
JESD-30 code	O-MBCY-W12
Negative supply voltage upper limit	-40 V
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	1
Number of terminals	12
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	METAL
Package shape	ROUND
Package form	CYLINDRICAL
Filter level	MIL-PRF-38534 Class H
Supply voltage upper limit	40 V
Nominal supply voltage (Vsup)	15 V
surface mount	NO
Temperature level	MILITARY
Terminal form	WIRE
Terminal location	BOTTOM
Base Number Matches	1

Preview

Download Datasheet

View All

REVISIONS

LTR

DESCRIPTION

Change table I parameters V

∆V

/∆T, format change.

Add 2nd vendor.

Add vendors, FSCM 63071 and 64762. Remove vendor FSCM

27014. Page 5, figure 1, change terminal connection 9. Editorial

changes throughout.

Add vendor FSCM 27014. Page 4, table I, correct test condition for

OUT(2)

Convert to military drawing format. Add vendor CAGE 23223. Page

6, Table I, delete I

minimum limit.

Add vendor CAGE 34031. Table I, change test condition R

and I

OUT

for R

OUT

test. Editorial changes throughout. Change drawing CAGE

to 67268.

Changed to reflect MIL-H-38534 processing. Remove vendor CAGE

63071. Editorial changes throughout.

Table I, changed SR test to +SR and -SR tests. Editorial changes

throughout. Remove CAGE numbers 29832 and 34031.

Changes in accordance with NOR 5962-R196-93.

Add vendor CAGE 51651 and method 1030 to paragraph 4.2.

Change figure 1, dimension A minimum. Rewrite entire document.

Remove CAGE codes 23223 and 64762. Change to table I.

Corrections to sheet 1. Update drawing boilerplate.

DATE (YR-MO-DA)

83-01-10

83-06-23

84-12-14

APPROVED

N. A. Hauck

85-12-05

87-11-23

89-01-11

N. A. Hauck

R. P. Evans

M. A. Frye

90-01-05

92-03-16

93-06-25

95-09-29

98-07-01

04-02-23

W. Heckman

Alan Barone

K. A. Cottongim

Raymond Monnin

THE ORIGINAL FIRST SHEET OF THIS DRAWING HAS BEEN REPLACED.

CURRENT CAGE CODE 67268

REV

SHEET

REV

SHEET

REV STATUS

OF SHEETS

PMIC N/A

REV

SHEET

PREPARED BY

C. R. Jackson

CHECKED BY

William E. Shoup

STANDARD

MICROCIRCUIT

DRAWING

DEFENSE SUPPLY CENTER COLUMBUS

POST OFFICE BOX 3990

COLUMBUS, OHIO 43216-5000

http://www.dscc.dla.mil

THIS DRAWING IS

AVAILABLE

FOR USE BY ALL

DEPARTMENTS

AND AGENCIES OF THE

DEPARTMENT OF DEFENSE

AMSC N/A

APPROVED BY

N. A. Hauck

MICROCIRCUIT, HYBRID, LINEAR, BUFFER

AMPLIFIER, THICK FILM

DRAWING APPROVAL DATE

80-12-22

REVISION LEVEL

SIZE

SHEET

CAGE CODE

14933

1 OF

80014

5962-E142-04

DSCC FORM 2233

APR 97

DISTRIBUTION STATEMENT A. Approved for public release; distribution is unlimited.

STANDARDS

DEPARTMENT OF DEFENSE

MIL-STD-883 - Test Method Standard Microcircuits.

MIL-STD-1835 - Interface Standard Electronic Component Case Outlines.

HANDBOOKS

DEPARTMENT OF DEFENSE

MIL-HDBK-103 - List of Standard Microcircuit Drawings (SMD's).

MIL-HDBK-780 - Standard Microcircuit Drawings.

(Unless otherwise indicated, copies of the specification, standards, and handbooks are available from the Standardization

Document Order Desk, 700 Robbins Avenue, Building 4D, Philadelphia, PA 19111-5094.)

2.2 Order of precedence. In the event of a conflict between the text of this drawing and the references cited herein, the text

of this drawing takes precedence. Nothing in this document, however, supersedes applicable laws and regulations unless a

specific exemption has been obtained.

3. REQUIREMENTS

3.1 Item requirements. The individual item performance requirements for device class H shall be in accordance with MIL-

PRF-38534. Compliance with MIL-PRF-38534 may include the performance of all tests herein or as designated in the device

manufacturer's Quality Management (QM) plan or as designated for the applicable device class. Therefore, the tests and

inspections herein may not be performed for the applicable device class (see MIL-PRF-38534). Furthermore, the

manufacturers may take exceptions or use alternate methods to the tests and inspections herein and not perform them.

However, the performance requirements as defined in MIL-PRF-38534 shall be met for the applicable device class. The

modification in the QM plan shall not affect the form, fit, or function as described herein.

3.2 Design, construction, and physical dimensions. The design, construction, and physical dimensions shall be as specified

in MIL-PRF-38534 and herein.

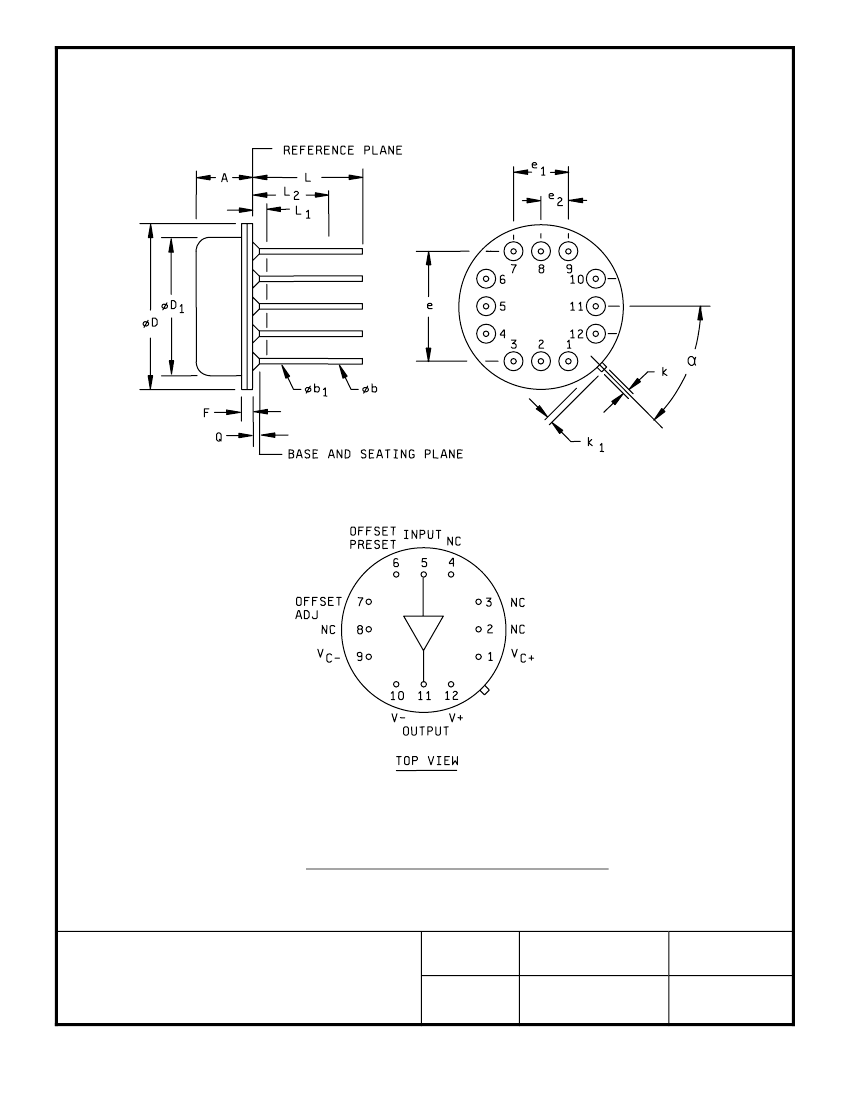

3.2.1 Case outline(s). The case outline(s) shall be in accordance with 1.2.2 herein and figure 1.

3.2.2 Terminal connections. The terminal connections shall be as specified on figure 1.

3.3 Electrical performance characteristics. Unless otherwise specified herein, the electrical performance characteristics are

as specified in table I and shall apply over the full specified operating temperature range.

3.4 Electrical test requirements. The electrical test requirements shall be the subgroups specified in table II. The electrical

tests for each subgroup are defined in table I.

3.5 Marking of device(s). Marking of device(s) shall be in accordance with MIL-PRF-38534. The device shall be marked

with the PIN listed in 1.2 herein. In addition, the manufacturer's vendor similar PIN may also be marked.

3.6 Data. In addition to the general performance requirements of MIL-PRF-38534, the manufacturer of the device described

herein shall maintain the electrical test data (variables format) from the initial quality conformance inspection group A lot

sample, for each device type listed herein. Also, the data should include a summary of all parameters manually tested, and for

those which, if any, are guaranteed. This data shall be maintained under document revision level control by the manufacturer

and be made available to the preparing activity (DSCC-VA) upon request.

3.7 Certificate of compliance. A certificate of compliance shall be required from a manufacturer in order to supply to this

drawing. The certificate of compliance (original copy) submitted to DSCC-VA shall affirm that the manufacturer's product meets

the performance requirements of MIL-PRF-38534 and herein.

3.8 Certificate of conformance. A certificate of conformance as required in MIL-PRF-38534 shall be provided with each lot of

microcircuits delivered to this drawing.

STANDARD

MICROCIRCUIT DRAWING

DEFENSE SUPPLY CENTER COLUMBUS

COLUMBUS, OHIO 43216-5000

SIZE

REVISION LEVEL

80014

SHEET

DSCC FORM 2234

APR 97
