57102-F04-13R datasheet, PDF - EEWORLD Datasheet

57102-F04-13R: DescriptionBoard Connector, 26 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Kinked Leads Terminal, Black Insulator, Receptacle; CategoryThe connector The connector; File Size69KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

57102-F04-13R Overview

Board Connector, 26 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Kinked Leads Terminal, Black Insulator, Receptacle

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Amphenol
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	BAG PACKAGING,POST LEN=0.079"
body width	0.157 inch
subject depth	0.059 inch
body length	1.024 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	Tin/Lead (Sn/Pb)
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	25 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	650VAC V
Durability	100 Cycles
maximum insertion force	1.7514 N
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	THERMOPLASTIC
JESD-609 code	e0
Manufacturer's serial number	57102
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	FLASH inch
Rated current (signal)	2 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER KINKED LEADS
Total number of contacts	26
Evacuation force-minimum value	.1946 N
Base Number Matches	1

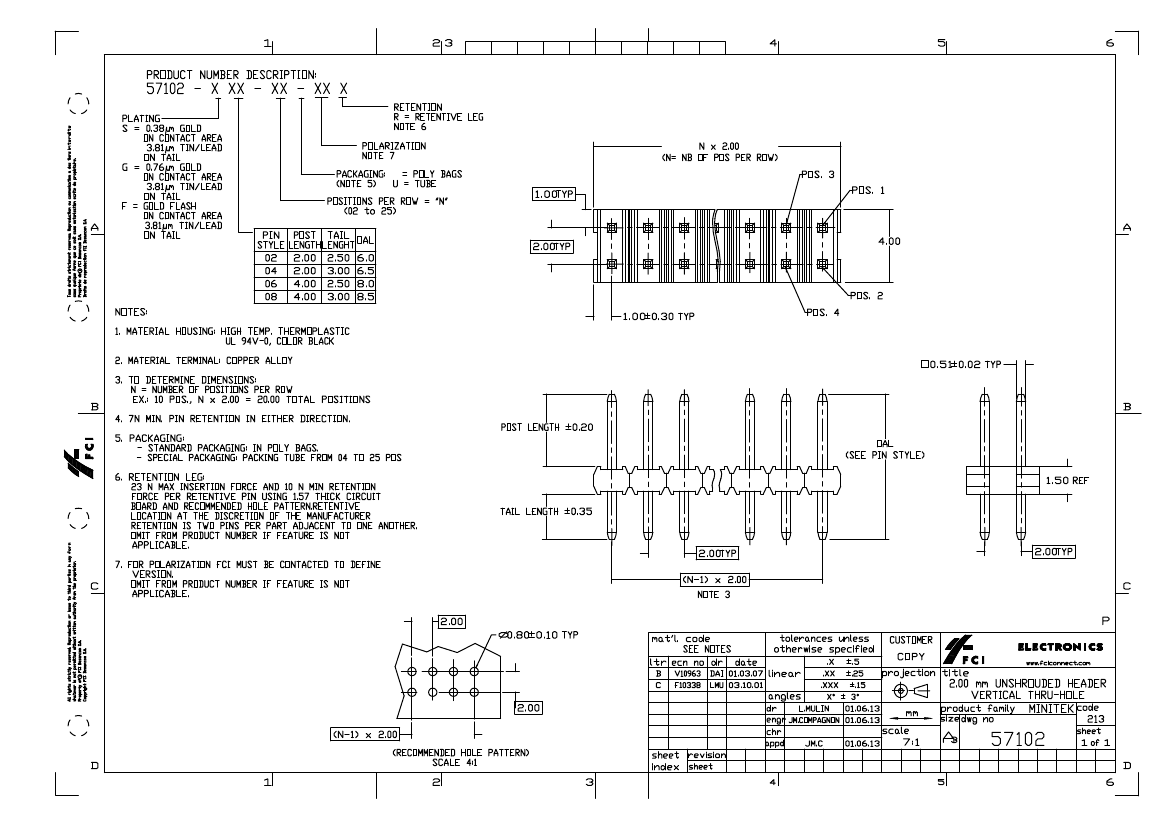

PDM: Rev:C

STATUS:

Released

Printed: Aug 02, 2002
