B412-20-10 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> B412-20-10

B412-20-10: Description0.01 A, SILICON, SIGNAL DIODE; CategoryDiscrete semiconductor diode; File Size482KB，2 Pages; ManufacturerEDAL; Websitehttp://www.edal.com/

Download Datasheet Parametric View All

B412-20-10 Overview

0.01 A, SILICON, SIGNAL DIODE

B412-20-10 Parametric

Parameter Name	Attribute value
Maker	EDAL
package instruction	O-XALF-W2
Contacts	2
Reach Compliance Code	unknow
ECCN code	EAR99
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	35 V
JESD-30 code	O-XALF-W2
Maximum non-repetitive peak forward current	4 A
Number of components	1
Number of terminals	2
Maximum operating temperature	150 °C
Maximum output current	0.01 A
Package body material	UNSPECIFIED
Package shape	ROUND
Package form	LONG FORM
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	20000 V
surface mount	NO
Terminal form	WIRE
Terminal location	AXIAL

Preview

Download Datasheet

View All

Edal

SERIES B412

Miniature High Voltage Silicon Rectifiers

Smaller in size than other high voltage rectifiers, compact tubular construction and flexible leads facilitate circuit

mounting and provide excellent thermal conductivity. These units are ideally suited for commercial and industrial

applications including high voltage power supplies, electrostatic applications, cathode ray tubes, oscilloscopes, TV,

display, X-ray and laser. Diodes used consist of double diffused junctions, bonded selected and pre-tested for

uniform electrical characteristics. Compact, rugged, tubular construction eliminates sharp edges to reduce corona

common to rectangular packages. Series B412 units meet moisture resistance requirements of MIL Standard 202A,

Method 106. A varied operating range is available from 5,000 volts to 50,000 volts PIV, 5mA to 25mA and available

in both standard and fast recovery series.

Electrical Ratings

Maximum Allowable One Cycle Surge Current

(60 Hz single phase non-recurrent at

rated PRV and no load)

4 amps

Maximum Reverse Current at PIV

25 o C

1 ua*

100 o C

40 ua*

*fast recovery series 2 ua and 100 ua. Maximum reverse

recovery time trr @ If =2 ma and Ir = 4 ma. Recovery

to 1.0 ma – 250 nanoseconds

Standard Series

EDAL P/N*

AVG. FWD CURRENT Io AT

55oC

PIV

VOLTS

MAX.

FWD

VOLTAGE

DROP AT

25oC & Io

VOLTS

IN.

Fast Recovery Series

EDAL P/N*

AVG. FWD CURRENT Io AT 55oC

PIV

VOLTS

MAX.

FWD

VOLTAGE

DROP AT

25oC & Io

VOLTS

120

IN.

5 ma

B412-5-5

B412-7-5

B412-10-5

B412-12-5

B412-15-5

B412-20-5

B412-25-5

B412-30-5

B412-40-5

B412-50-5

10 ma

B412-5-10

B412-7-10

B412-10-10

B412-12-10

B412-15-10

B412-20-10

B412-25-10

B412-30-10

B412-40-10

B412-50-10

25ma

B412-5-25

B412-7-25

B412-10-25

B412-12-25

B412-15-25

B412-20-25

B412-25-25

B412-30-25

B412-40-25

B412-50-25

5000

7000

10000

12000

15000

20000

25000

30000

40000

50000

1.0

2.0

3.0

5.0

5 ma

BR412-5-5

BR412-7-5

BR412-10-5

BR412-12-5

BR412-15-5

BR412-20-5

BR412-25-5

BR412-30-5

BR412-40-5

BR412-50-5

10 ma

BR412-5-10

BR412-7-10

BR412-10-10

BR412-12-10

BR412-15-10

BR412-20-10

BR412-25-10

BR412-30-10

BR412-40-10

BR412-50-10

25 ma

BR412-5-25

BR412-7-25

BR412-10-25

BR412-12-25

BR412-15-25

BR412-20-25

BR412-25-25

BR412-30-25

BR412-40-25

BR412-50-25

5000

7000

10000

12000

15000

20000

25000

30000

40000

50000

1.0

2.0

3.0

5.0

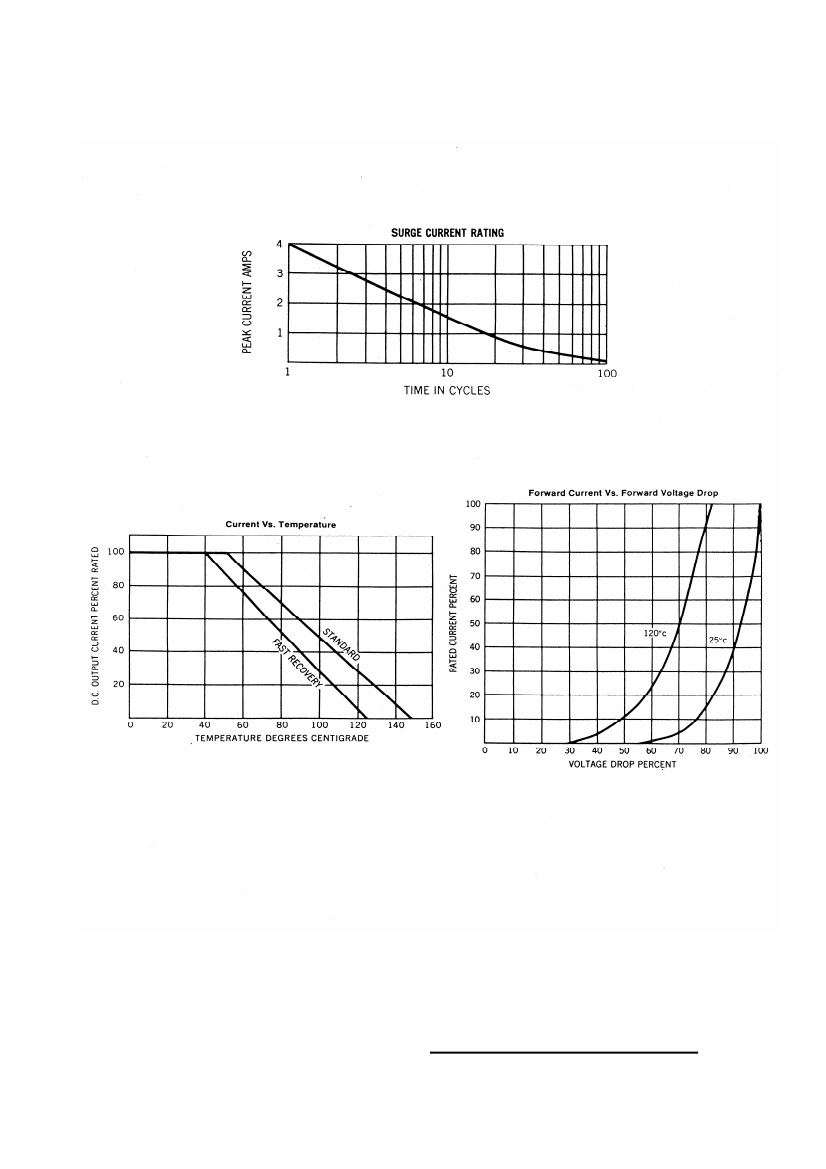

* Standard product lines are also available in 50 ma and 100 ma ratings. Other values are available upon request.

(203) 467-2591 TEL

(203) 469-5928 FAX

Email: Info@edal.com

Internet:http://www.edal.com

EDAL

industries, inc.

51 Commerce St. East Haven, CT 06512
