51750-046

Description
Board Connector, 36 Contact(s), 4 Row(s), Female, Straight, Press Fit Terminal, Guide Pin, Receptacle
CategoryThe connector    The connector
File Size342KB,4 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Download Datasheet Parametric Compare View All

51750-046 Overview

Board Connector, 36 Contact(s), 4 Row(s), Female, Straight, Press Fit Terminal, Guide Pin, Receptacle

51750-046 Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerAmphenol
Reach Compliance Codecompliant
ECCN codeEAR99
Is SamacsysN
Other featuresTERMINAL PITCH FOR POWER CONTACTS: 6.35 MM

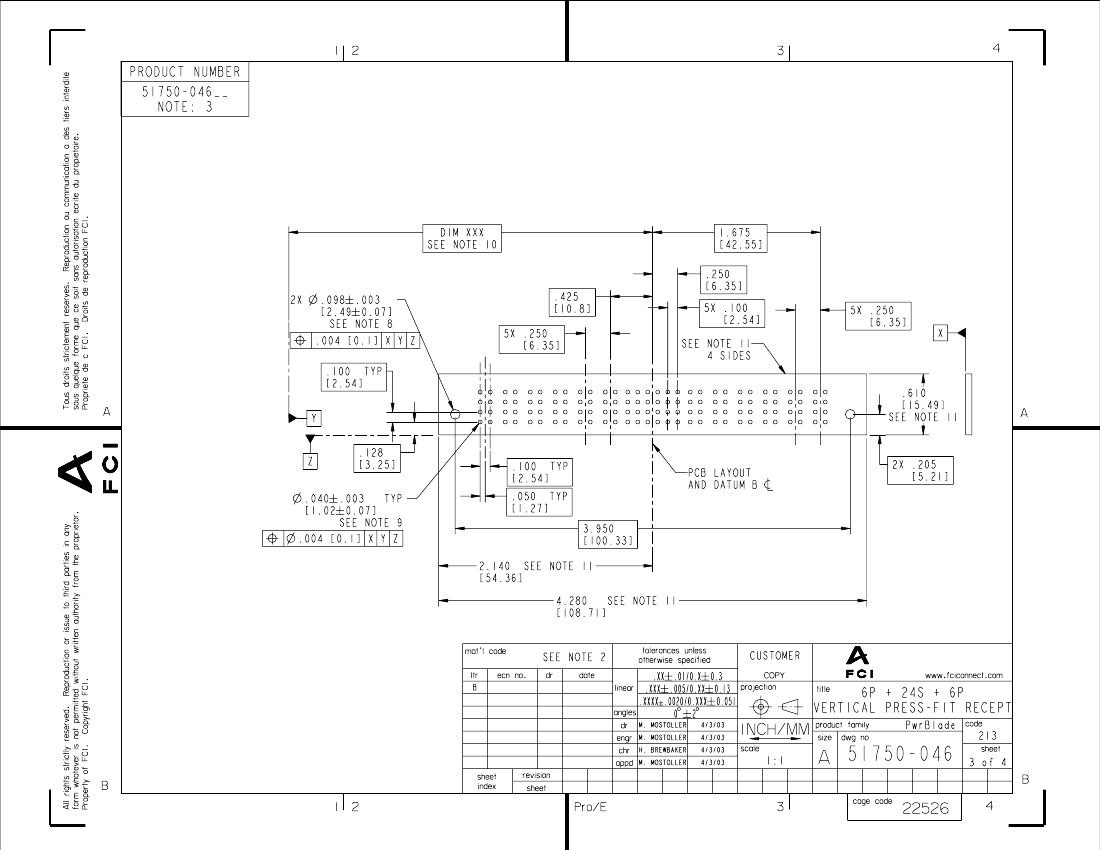

Board mount optionsHOLE .086-.098

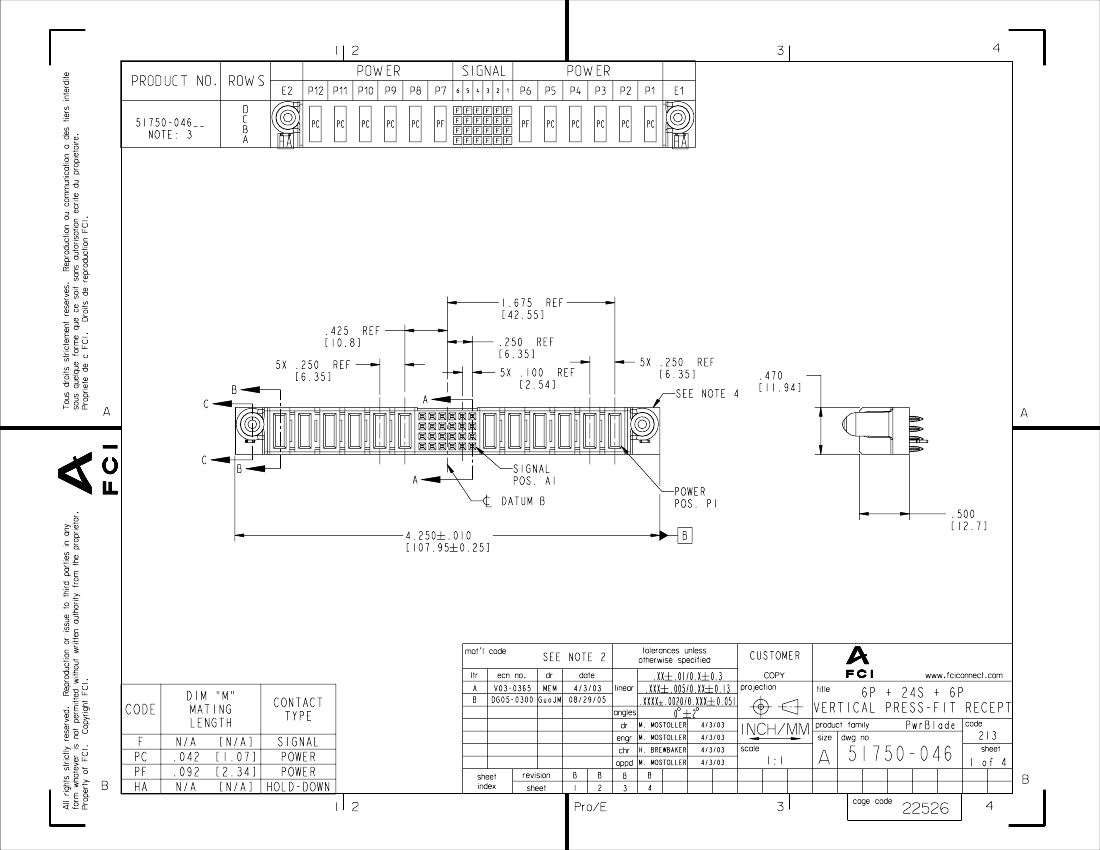

body width0.47 inch
subject depth0.5 inch
body length4.25 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact arrangementS24P12

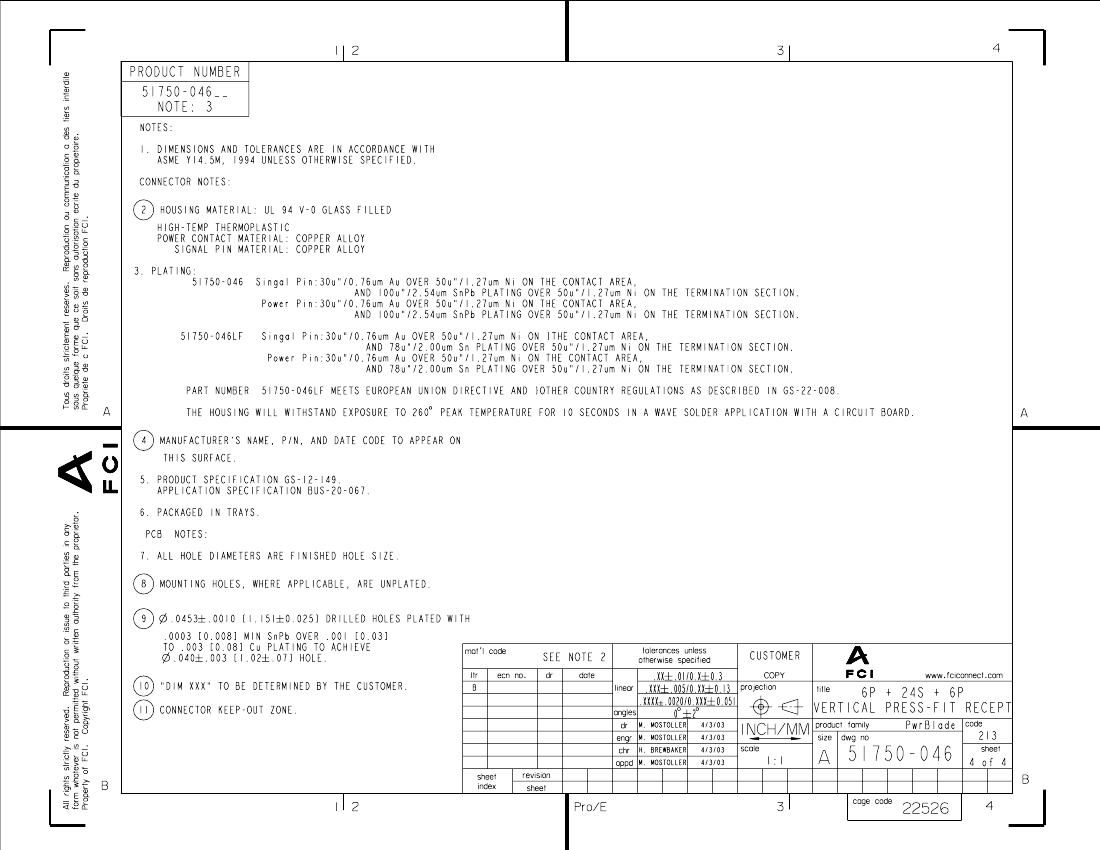

Contact to complete cooperationGOLD (30) OVER NICKEL
Contact completed and terminatedTIN LEAD (100) OVER NICKEL
Contact point genderFEMALE
Contact materialCOPPER ALLOY
Contact resistance20 mΩ
Contact styleHYBRID
DIN complianceNO
Dielectric withstand voltage2500VDC V
Durability200 Cycles
Filter functionNO
IEC complianceNO
maximum insertion force.973 N
Insulation resistance500000000 Ω
insulator materialGLASS FILLED THERMOPLASTIC
JESD-609 codee0
MIL complianceNO
Manufacturer's serial number51750
Mixed contactsYES
Installation option 1GUIDE PIN
Installation option 2LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
Number of rows loaded4
Maximum operating temperature105 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
Plating thickness30u inch
GuidelineUL
reliabilityCOMMERCIAL

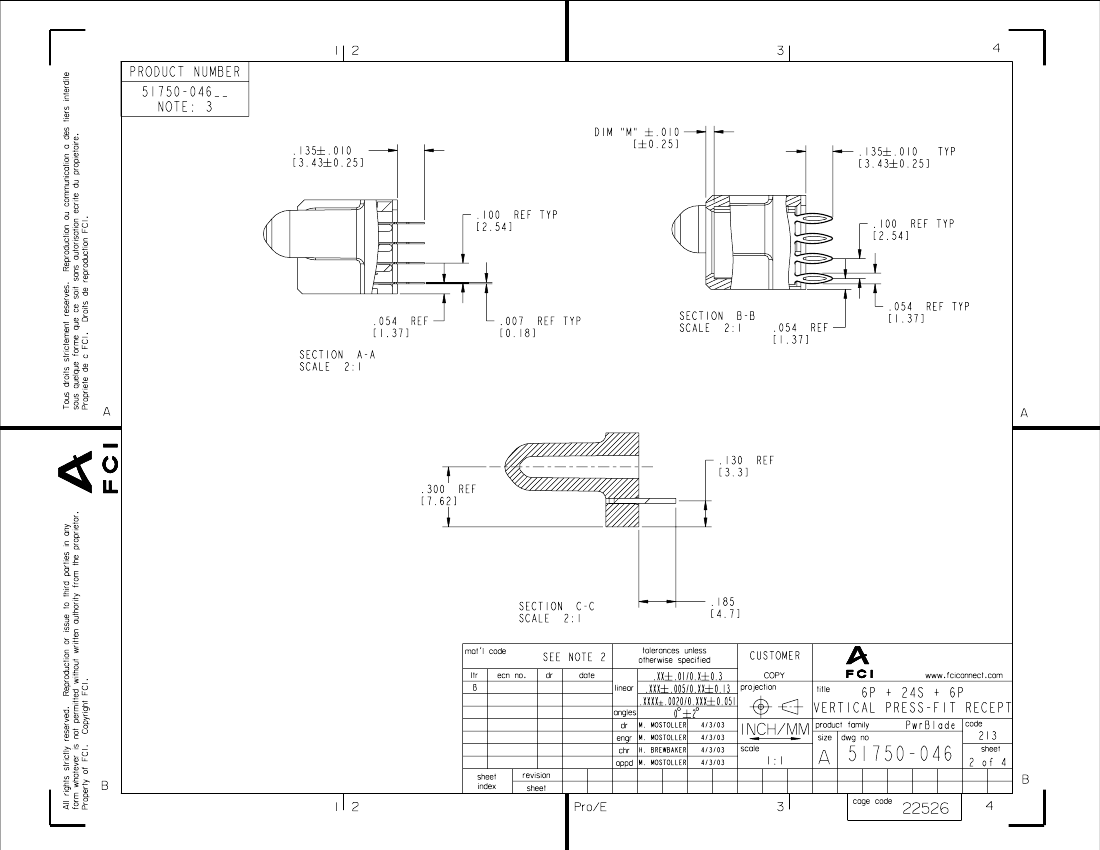

Terminal length0.135 inch
Terminal pitch2.54 mm
Termination typePRESS FIT
Total number of contacts36
UL Flammability Code94V-0
Evacuation force-minimum value.1668 N
Base Number Matches1
PDM: Rev:B
STATUS:
Released
Printed: Dec 20, 2010
.

51750-046 Related Products

51750-046 51750-046LF
Description Board Connector, 36 Contact(s), 4 Row(s), Female, Straight, Press Fit Terminal, Guide Pin, Receptacle Board Connector, 36 Contact(s), 4 Row(s), Female, Straight, Press Fit Terminal, Guide Pin, Receptacle, LEAD FREE
Is it lead-free? Contains lead Lead free
Is it Rohs certified? incompatible conform to
Maker Amphenol Amphenol
Reach Compliance Code compliant compliant
ECCN code EAR99 EAR99
Is Samacsys N N
Other features TERMINAL PITCH FOR POWER CONTACTS: 6.35 MM TERMINAL PITCH FOR POWER CONTACTS: 6.35 MM
Board mount options HOLE .086-.098 HOLE .086-.098
body width 0.47 inch 0.47 inch
subject depth 0.5 inch 0.5 inch
body length 4.25 inch 4.25 inch
Body/casing type RECEPTACLE RECEPTACLE
Connector type BOARD CONNECTOR BOARD CONNECTOR
Contact arrangement S24P12 S24P12
Contact to complete cooperation GOLD (30) OVER NICKEL GOLD (30) OVER NICKEL
Contact completed and terminated TIN LEAD (100) OVER NICKEL TIN (78) OVER NICKEL
Contact point gender FEMALE FEMALE
Contact material COPPER ALLOY COPPER ALLOY
Contact resistance 20 mΩ 20 mΩ
Contact style HYBRID HYBRID
DIN compliance NO NO
Dielectric withstand voltage 2500VDC V 2500VDC V
Durability 200 Cycles 200 Cycles
Filter function NO NO
IEC compliance NO NO
maximum insertion force .973 N .973 N
Insulation resistance 500000000 Ω 500000000 Ω
insulator material GLASS FILLED THERMOPLASTIC GLASS FILLED THERMOPLASTIC
JESD-609 code e0 e3
MIL compliance NO NO
Manufacturer's serial number 51750 51750
Mixed contacts YES YES
Installation option 1 GUIDE PIN GUIDE PIN
Installation option 2 LOCKING LOCKING
Installation method STRAIGHT STRAIGHT
Installation type BOARD BOARD
Number of connectors ONE ONE
Number of rows loaded 4 4
Maximum operating temperature 105 °C 105 °C
Minimum operating temperature -55 °C -55 °C
Options GENERAL PURPOSE GENERAL PURPOSE
Plating thickness 30u inch 30u inch
Guideline UL UL
reliability COMMERCIAL COMMERCIAL
Terminal length 0.135 inch 0.135 inch
Terminal pitch 2.54 mm 2.54 mm
Termination type PRESS FIT PRESS FIT
Total number of contacts 36 36
UL Flammability Code 94V-0 94V-0
Evacuation force-minimum value .1668 N .1668 N
Base Number Matches 1 1
