Part Number

Search

54F350E

Description
Shifter, F/FAST Series, 4-Bit, TTL, CDIP16, CERDIP-16
Categorylogic    logic
File Size58KB,3 Pages
ManufacturerMotorola ( NXP )
Websitehttps://www.nxp.com
Download Datasheet Parametric Compare View All

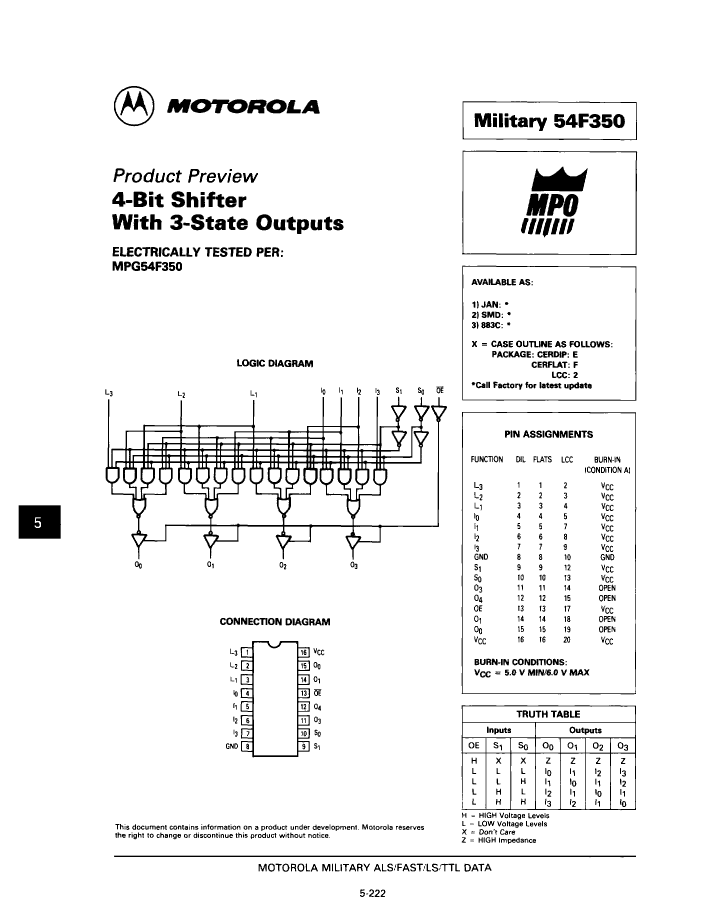

54F350E Overview

Shifter, F/FAST Series, 4-Bit, TTL, CDIP16, CERDIP-16

54F350E Parametric

Parameter NameAttribute value
MakerMotorola ( NXP )
package instructionDIP,
Reach Compliance Codeunknown
Is SamacsysN
Other featuresWITH BARREL SHIFTING; THREE LINKING INPUTS FOR EXPANSION
seriesF/FAST
JESD-30 codeR-GDIP-T16
length19.3 mm
Logic integrated circuit typeSHIFTER
Number of digits4
Number of functions1
Number of terminals16

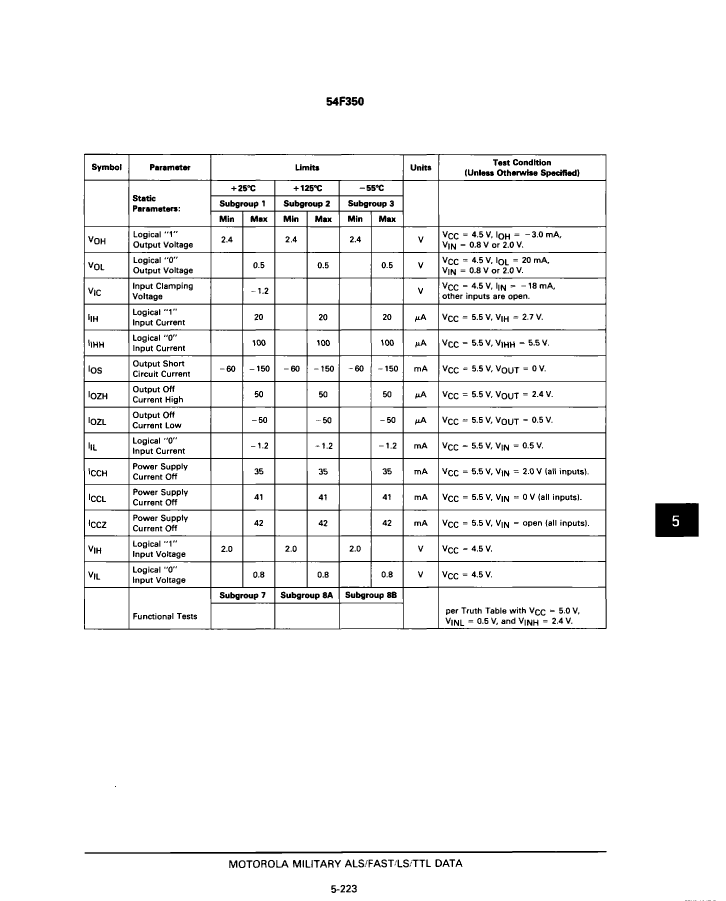

Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Output characteristics3-STATE
Package body materialCERAMIC, GLASS-SEALED
encapsulated codeDIP
Package shapeRECTANGULAR
Package formIN-LINE

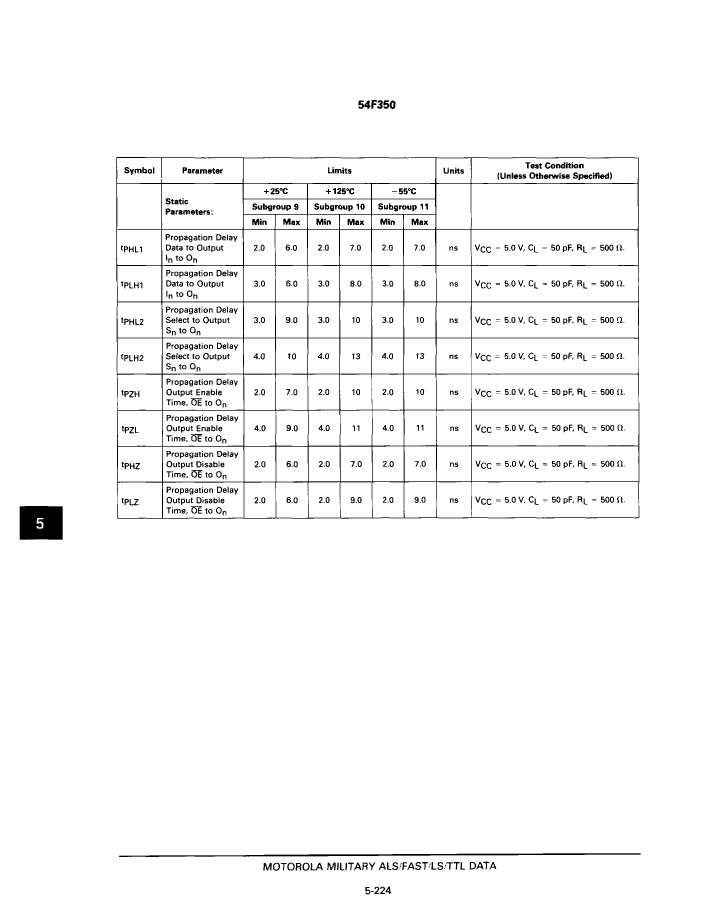

propagation delay (tpd)7 ns
Certification statusNot Qualified
Maximum seat height4.19 mm
Maximum supply voltage (Vsup)5.5 V
Minimum supply voltage (Vsup)4.5 V
Nominal supply voltage (Vsup)5 V
surface mountNO
technologyTTL
Temperature levelMILITARY
Terminal formTHROUGH-HOLE
Terminal pitch2.54 mm
Terminal locationDUAL
width7.62 mm
Base Number Matches1

54F350E Related Products

54F350E 54F350F 54F3502
Description Shifter, F/FAST Series, 4-Bit, TTL, CDIP16, CERDIP-16 Shifter, F/FAST Series, 4-Bit, TTL, CDFP16, CERAMIC, FP-16 Shifter, F/FAST Series, 4-Bit, TTL, CQCC20, LCC-20
Maker Motorola ( NXP ) Motorola ( NXP ) Motorola ( NXP )
package instruction DIP, DFP, QCCN,
Reach Compliance Code unknown unknown unknown
Other features WITH BARREL SHIFTING; THREE LINKING INPUTS FOR EXPANSION WITH BARREL SHIFTING; THREE LINKING INPUTS FOR EXPANSION WITH BARREL SHIFTING; THREE LINKING INPUTS FOR EXPANSION
series F/FAST F/FAST F/FAST
JESD-30 code R-GDIP-T16 R-GDFP-F16 S-CQCC-N20
length 19.3 mm 9.65 mm 8.89 mm
Logic integrated circuit type SHIFTER SHIFTER SHIFTER
Number of digits 4 4 4
Number of functions 1 1 1
Number of terminals 16 16 20
Maximum operating temperature 125 °C 125 °C 125 °C
Minimum operating temperature -55 °C -55 °C -55 °C
Output characteristics 3-STATE 3-STATE 3-STATE
Package body material CERAMIC, GLASS-SEALED CERAMIC, GLASS-SEALED CERAMIC, METAL-SEALED COFIRED
encapsulated code DIP DFP QCCN
Package shape RECTANGULAR RECTANGULAR SQUARE
Package form IN-LINE FLATPACK CHIP CARRIER
propagation delay (tpd) 7 ns 7 ns 7 ns
Certification status Not Qualified Not Qualified Not Qualified
Maximum seat height 4.19 mm 2.15 mm 1.9 mm
Maximum supply voltage (Vsup) 5.5 V 5.5 V 5.5 V
Minimum supply voltage (Vsup) 4.5 V 4.5 V 4.5 V
Nominal supply voltage (Vsup) 5 V 5 V 5 V
surface mount NO YES YES
technology TTL TTL TTL
Temperature level MILITARY MILITARY MILITARY
Terminal form THROUGH-HOLE FLAT NO LEAD
Terminal pitch 2.54 mm 1.27 mm 1.27 mm
Terminal location DUAL DUAL QUAD
width 7.62 mm 6.415 mm 8.89 mm
Base Number Matches 1 1 1
