86094648191765E3LF datasheet, PDF

Datasheet> All Categories > The connector> The connector> 86094648191765E3LF

86094648191765E3LF: DescriptionBoard Euro Connector, 64 Contact(s), 2 Row(s), Female, Straight, Wire Wrap Terminal, Receptacle, ROHS COMPLIANT; CategoryThe connector The connector; File Size155KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

86094648191765E3LF Overview

Board Euro Connector, 64 Contact(s), 2 Row(s), Female, Straight, Wire Wrap Terminal, Receptacle, ROHS COMPLIANT

86094648191765E3LF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Amphenol
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	STANDARD: DIN 41612
Body/casing type	RECEPTACLE
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	YES
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	8609
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	WIRE WRAP
Total number of contacts	64
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

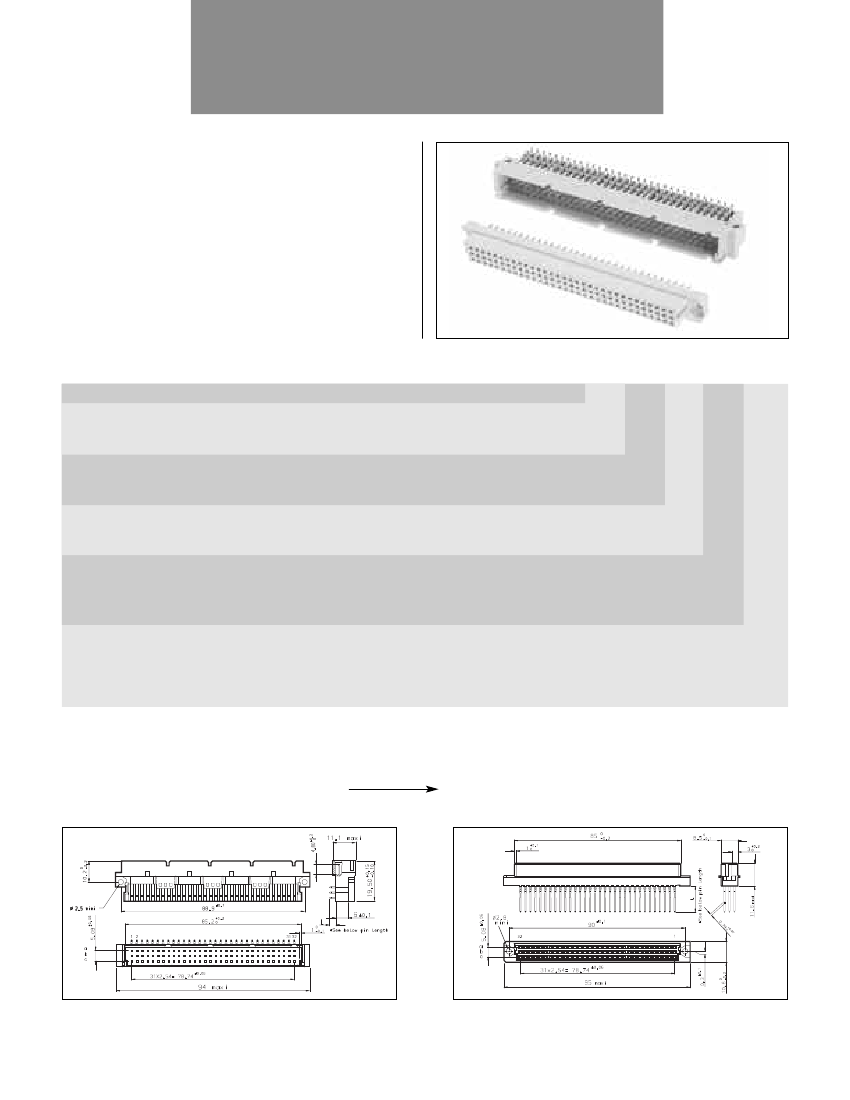

DIN 41612

PCB Signal Press-fit

STYLE C CONNECTORS

Press-fit

Header

: Right angle

Receptacle : Straight spill

Part number

Series

Rows fitted with contacts *

2 rows a & c

3 rows a, b & c

: 64 contacts

: 96 contacts

8609 464

464

396

755 E3LF

Type of insulator

3 rows Right angle Header insulator

3 rows Straight spill Receptacle insulator

Termination *

Short post for Header and Receptacle : L = 5.25 mm

Wire wrap 1 wrap for Receptacle

: L = 13.25 mm

Plating performance Class & Pitch *

DIN 41612 class III

: 2.54 mm

DIN 41612 class II

: 2.54 mm

DIN 41612 class I

: 2.54 mm

☺

745

755

765

Gender

Header (RoHS compatible)

Header (non RoHS compatible)

Receptacle (RoHS compatible)

Receptacle (non RoHS compatible)

* For other options, please consult your local FCI representative.

E1LF

000E1

E3LF

000E3

Rear plug up solution availability

DIN C/2 half size availability

}

Check FCI website at

www.fciconnect.com/din41612

Short post

Wire wrap

L : 5.25 mm

L : 13.25 mm
