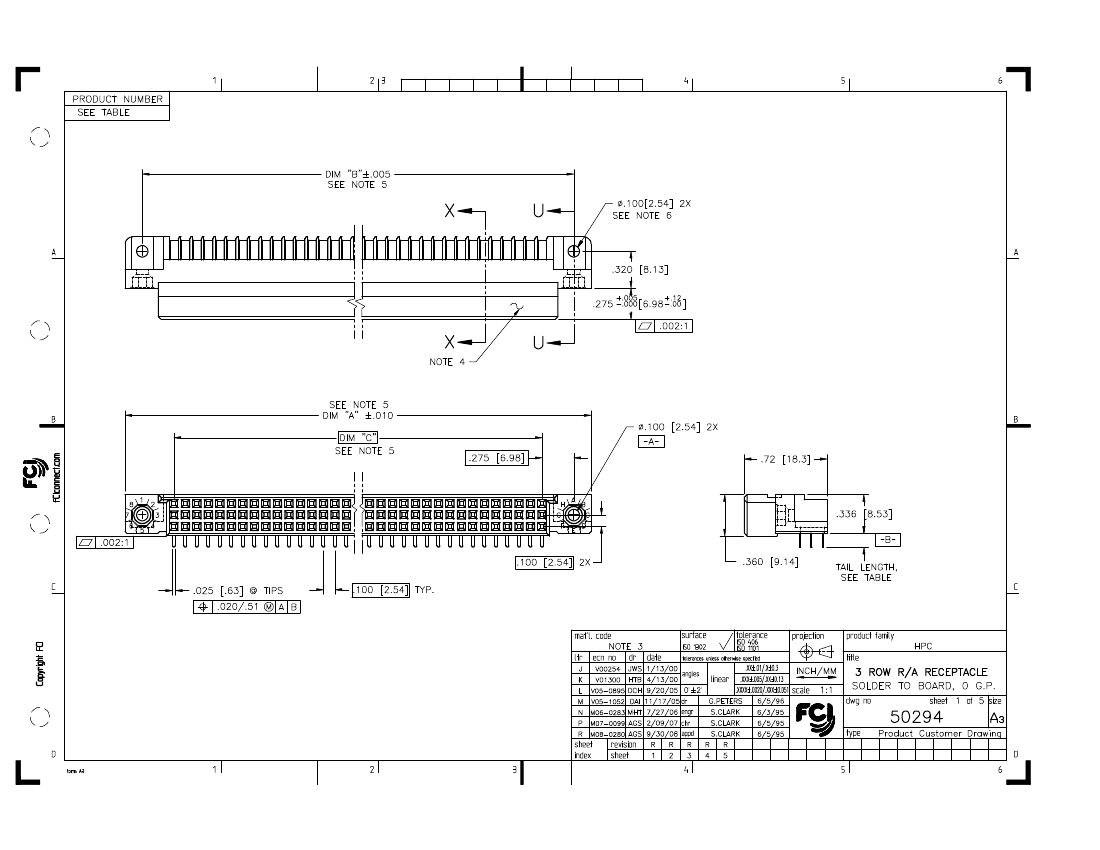

Board Connector, 180 Contact(s), 3 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle

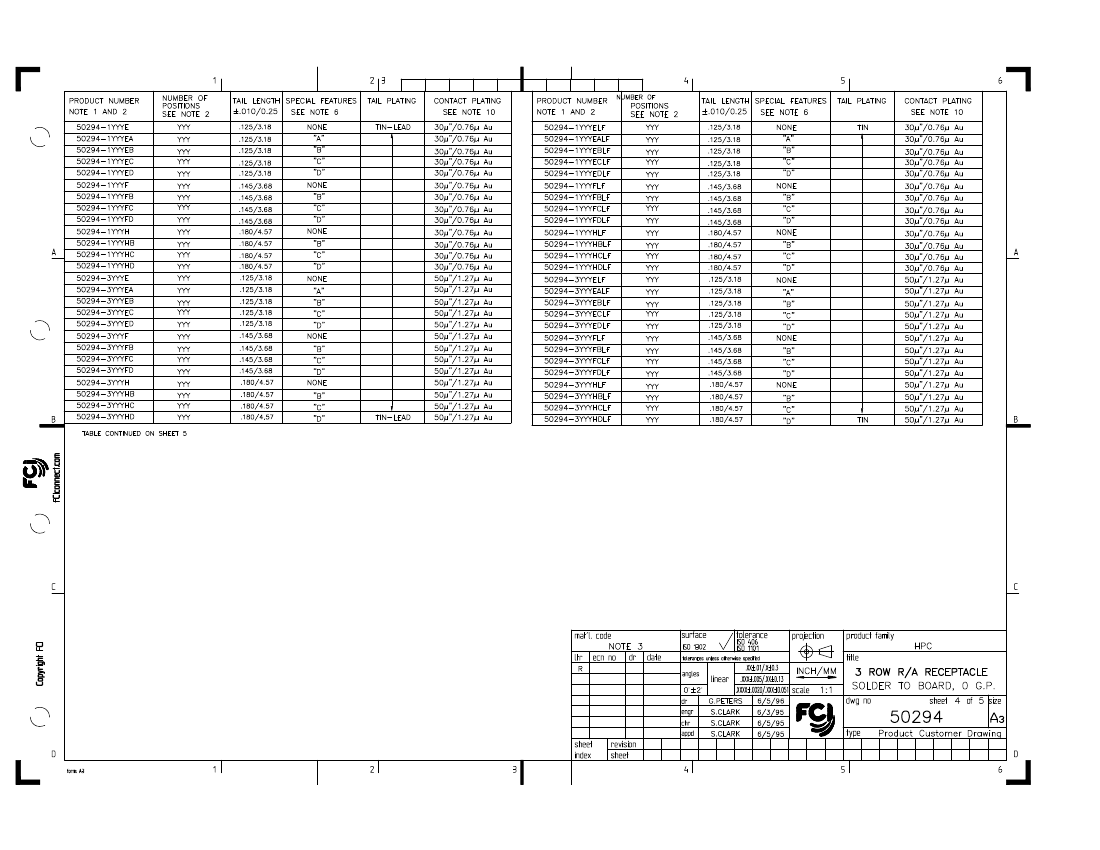

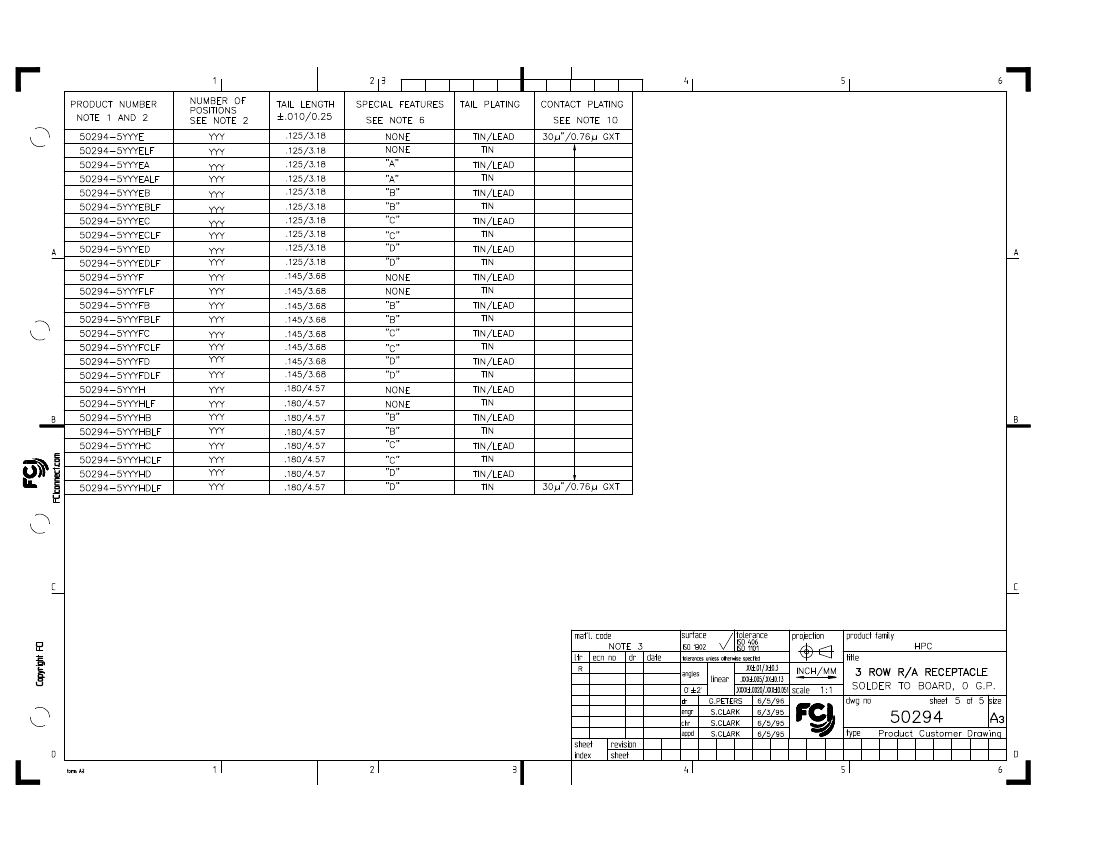

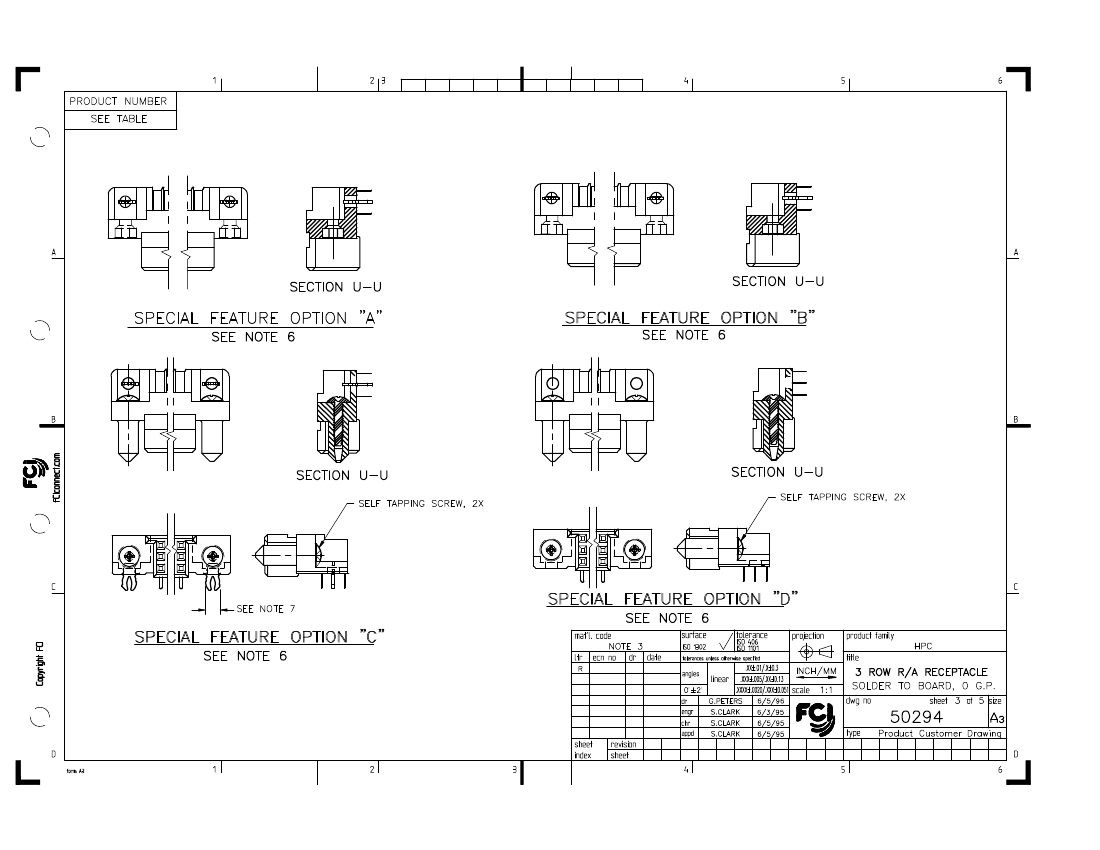

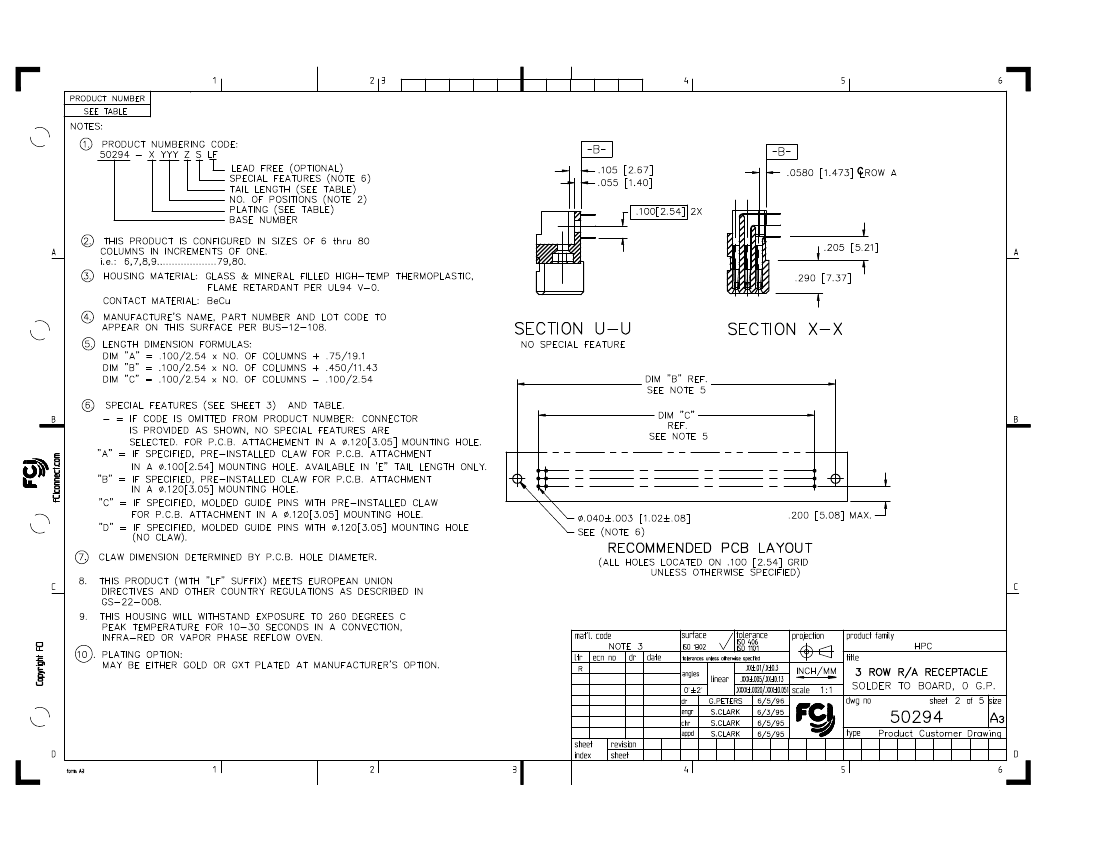

| Parameter Name | Attribute value |
| Is it lead-free? | Contains lead |
| Is it Rohs certified? | incompatible |
| Maker | Amphenol |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| Is Samacsys | N |
| Other features | OPTIONAL POLARIZATION |
| Board mount options | HOLE .099-.111 |
| body width | 0.36 inch |
| subject depth | 0.72 inch |
| body length | 6.75 inch |
| Body/casing type | RECEPTACLE |
| Connector type | BOARD CONNECTOR |
| Contact to complete cooperation | GOLD (30) |
| Contact completed and terminated | Tin/Lead (Sn/Pb) |
| Contact point gender | FEMALE |
| Contact material | BERYLLIUM COPPER |
| contact mode | RECTANGULAR |
| Contact style | SQ PIN-SKT |
| DIN compliance | NO |
| Filter function | NO |
| IEC compliance | NO |
| insulator material | GLASS FILLED POLYPHENYLENE SULPHIDE |
| JESD-609 code | e0 |
| MIL compliance | NO |
| Manufacturer's serial number | 50294 |
| Plug contact pitch | 0.1 inch |
| Match contact row spacing | 0.1 inch |
| Mixed contacts | NO |
| Installation option 1 | LOCKING |
| Installation method | RIGHT ANGLE |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 3 |
| Number of rows loaded | 3 |
| Options | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR |
| PCB contact row spacing | 2.54 mm |
| Plating thickness | 30u inch |
| polarization key | POLARIZED HOUSING |
| Guideline | UL |
| reliability | COMMERCIAL |
| Terminal length | 0.18 inch |
| Terminal pitch | 2.54 mm |
| Termination type | SOLDER |
| Total number of contacts | 180 |
| UL Flammability Code | 94V-0 |
| Base Number Matches | 1 |
| 50294-1060H | 50294-1048E | 50294-5075H | 50294-1210E | |
|---|---|---|---|---|
| Description | Board Connector, 180 Contact(s), 3 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle | Board Connector, 144 Contact(s), 3 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle | Board Connector, 225 Contact(s), 3 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle | Board Connector, 210 Contact(s), 3 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Black Insulator, Plug |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible |
| Reach Compliance Code | compliant | compliant | compliant | compliant |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 |
| Other features | OPTIONAL POLARIZATION | OPTIONAL POLARIZATION | OPTIONAL POLARIZATION | OPTIONAL POLARIZATION |
| Board mount options | HOLE .099-.111 | HOLE .112-.124 | HOLE .099-.111 | HOLE .099-.111 |
| body width | 0.36 inch | 0.36 inch | 0.36 inch | 0.336 inch |
| subject depth | 0.72 inch | 0.72 inch | 0.72 inch | 0.72 inch |
| body length | 6.75 inch | 5.55 inch | 8.25 inch | 7.75 inch |
| Body/casing type | RECEPTACLE | RECEPTACLE | RECEPTACLE | PLUG |
| Connector type | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR |
| Contact to complete cooperation | GOLD (30) | GOLD (30) | GOLD FLASH (30) OVER PALLADIUM NICKEL | AU ON NI |
| Contact completed and terminated | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Contact point gender | FEMALE | FEMALE | FEMALE | FEMALE |
| Contact material | BERYLLIUM COPPER | BERYLLIUM COPPER | BERYLLIUM COPPER | BERYLLIUM COPPER |
| contact mode | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Contact style | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT |
| insulator material | GLASS FILLED POLYPHENYLENE SULPHIDE | GLASS FILLED POLYPHENYLENE SULPHIDE | GLASS FILLED POLYPHENYLENE SULPHIDE | GLASS FILLED POLYPHENYLENE SULPHIDE |
| JESD-609 code | e0 | e0 | e0 | e0 |
| Manufacturer's serial number | 50294 | 50294 | 50294 | 50294 |
| Plug contact pitch | 0.1 inch | 0.1 inch | 0.1 inch | 0.1 inch |
| Match contact row spacing | 0.1 inch | 0.1 inch | 0.1 inch | 0.1 inch |
| Installation method | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE |
| Installation type | BOARD | BOARD | BOARD | BOARD |
| Number of connectors | ONE | ONE | ONE | ONE |
| PCB row number | 3 | 3 | 3 | 3 |
| Number of rows loaded | 3 | 3 | 3 | 3 |
| PCB contact pattern | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| PCB contact row spacing | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm |
| polarization key | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED KEY |
| Guideline | UL | UL | UL | UL, CSA |
| reliability | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal length | 0.18 inch | 0.125 inch | 0.18 inch | 0.125 inch |
| Terminal pitch | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm |
| Termination type | SOLDER | SOLDER | SOLDER | SOLDER |
| Total number of contacts | 180 | 144 | 225 | 210 |
| Base Number Matches | 1 | 1 | 1 | 1 |
| Is it lead-free? | Contains lead | Contains lead | Contains lead | - |
| Maker | Amphenol | Amphenol | Amphenol | - |
| DIN compliance | NO | NO | NO | - |
| Filter function | NO | NO | NO | - |
| IEC compliance | NO | NO | NO | - |
| MIL compliance | NO | NO | NO | - |
| Mixed contacts | NO | NO | NO | - |
| Installation option 1 | LOCKING | LOCKING | LOCKING | - |
| Options | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | - |
| Plating thickness | 30u inch | 30u inch | - | 30u inch |
| UL Flammability Code | 94V-0 | 94V-0 | 94V-0 | - |
