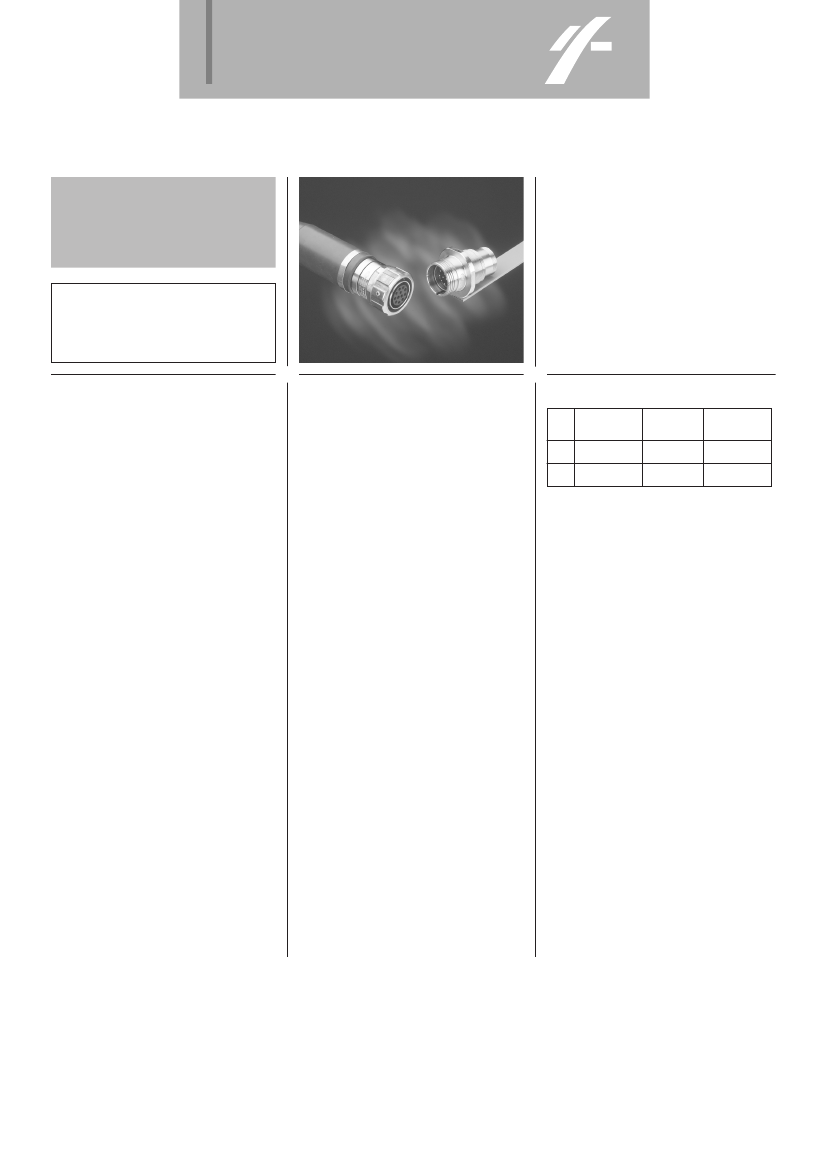

JUPITER

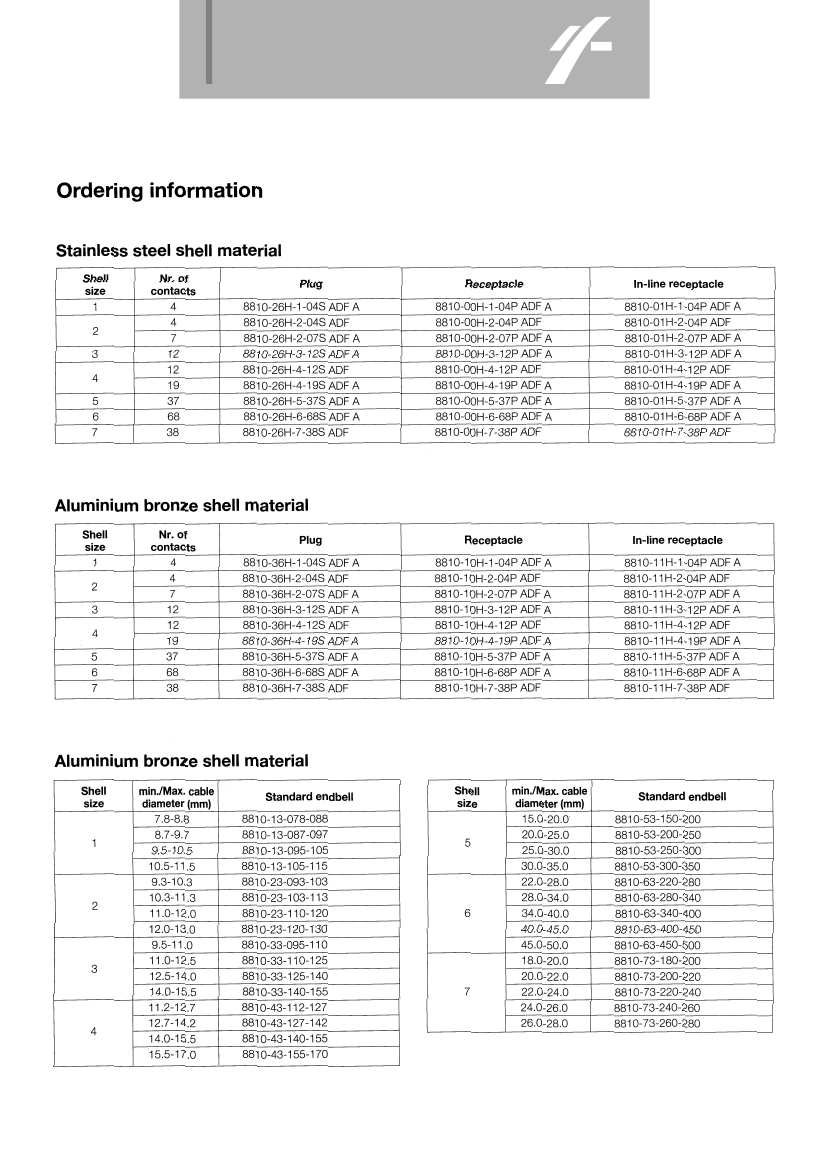

8810 ADF Series
Description
Explosion proof connectors for use in
hazardous areas
- screw locking system
Explosion proof certification by
B.A.S.E.E.F.A. (British Approvals Service
for Electrical Equipment in Flamable
Atmosphere)
Applications
Equipments on offshore platform
Standards
Ex d II BT6
Characteristics
Mechanical
Shell :
- nickel aluminium bronze
On request others metals are available
Insulator :
- Moulded rubber
Contacts :
- copper alloy with gold plate
Working pressure (mated or not mated
connectors)

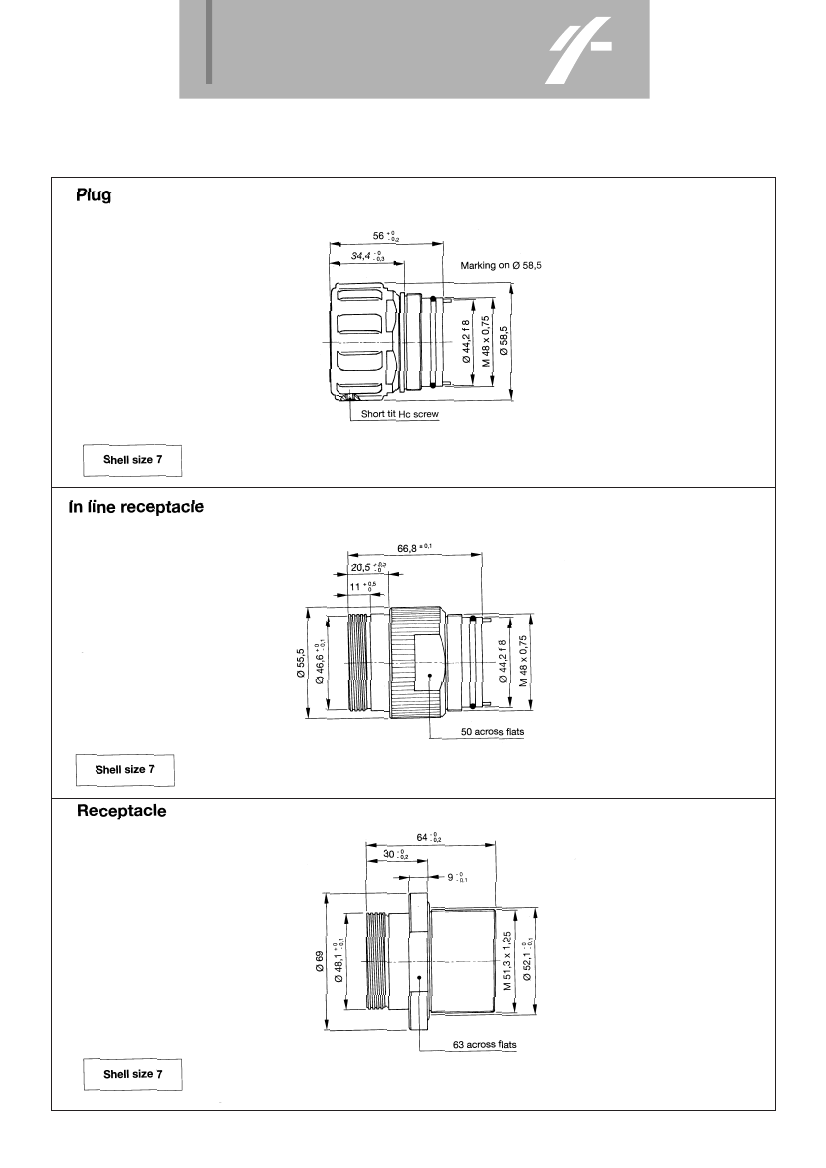

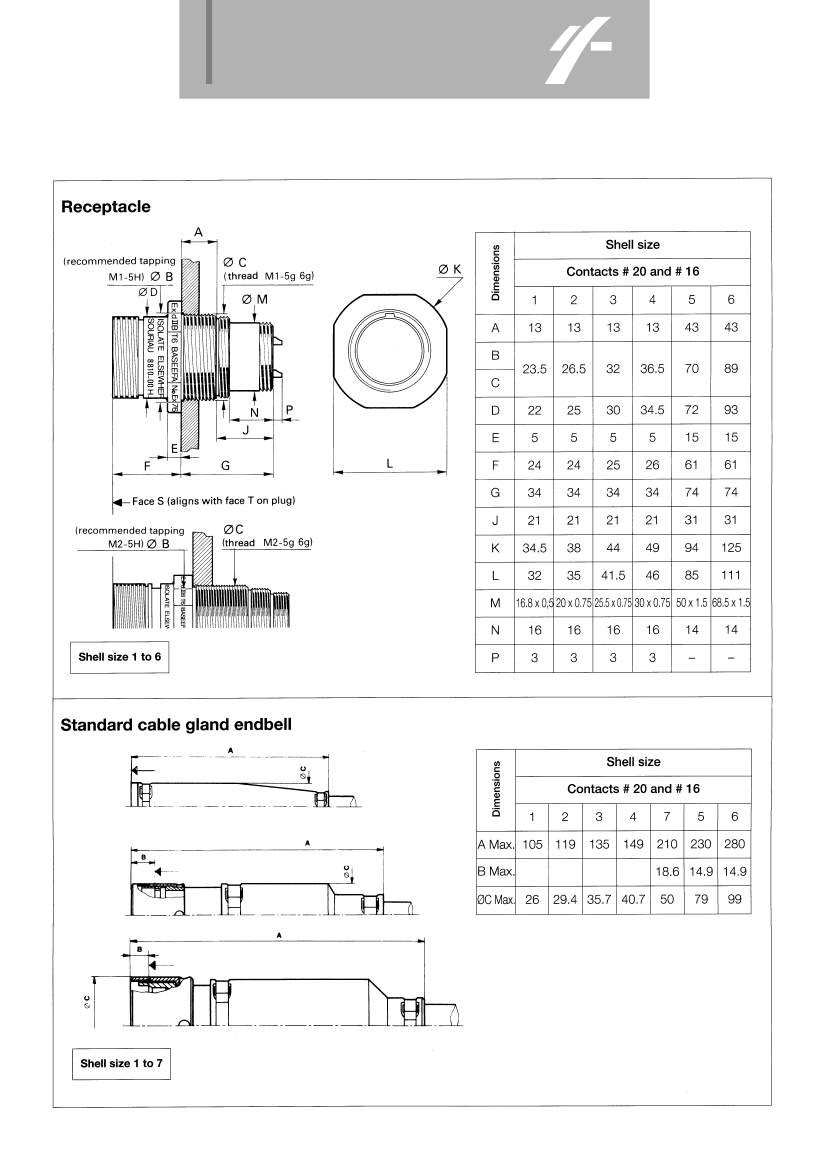

Shell size : 1, 2, 3, 4, 7
Fitted with cable gland endbell : 300 bars
Shell size 5,6
Fitted with all endbell types : 150 bars
Shocks (shell size 1, 2, 3, 4, 7)
75 g - 11 ms (3 axis)
Vibrations
0,1 Hz to 1 Hz 25 mm
1 Hz to 5 Hz : 0,1 g acceleration
5 Hz to 22 Hz : 1 mm
22 Hz to 50 Hz : 2g acceleration
Electrical
Max Current
Withstanding

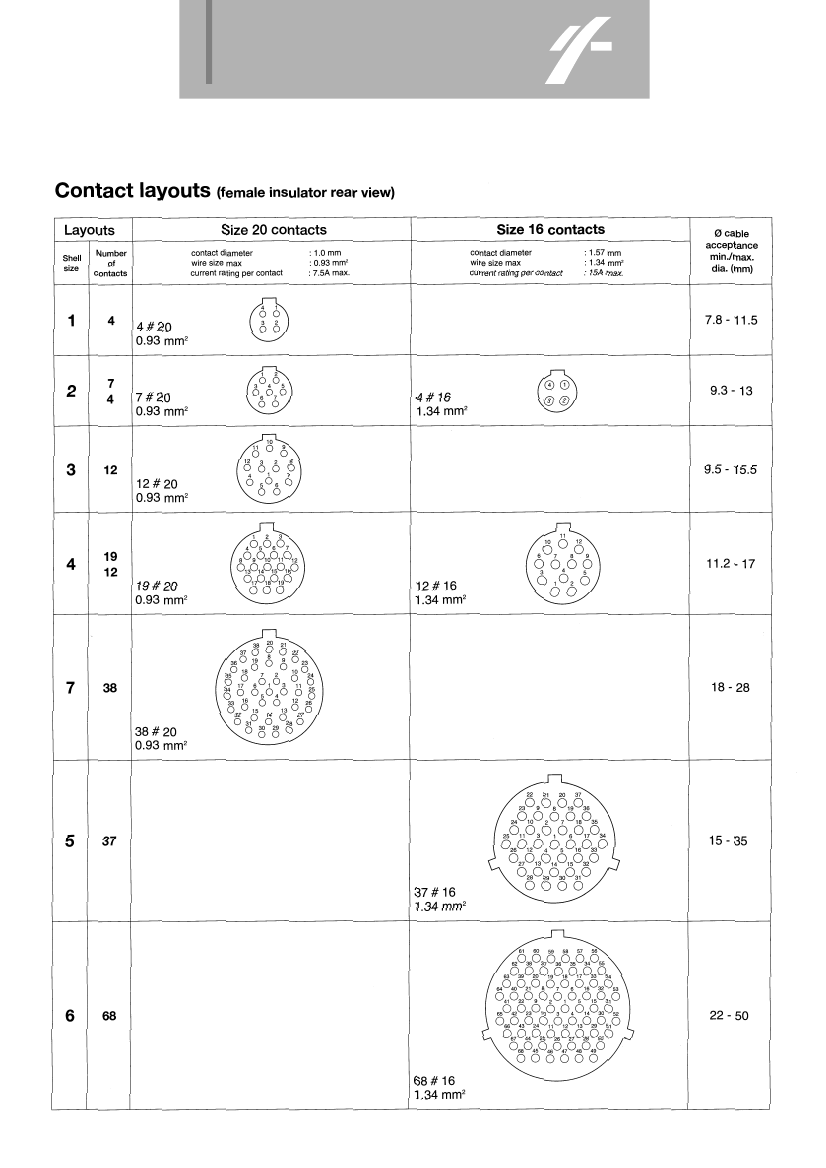

Contact
rating per ct (A) voltage (Vrms) resistance (m )
16
20
15
7.5
2500 V
2500 V
10
10
Insulation resistance
Climatic
Working temperature
- Ambient - 30°C to + 70°C
- Subsea - 3°C to + 40°C
Marking code
Ex “d” IIB T6
LCIE approval n° 90C 0003 U
Ex
”d”
Equipment designed for use in
hazardous areas.
Symbol designating protection for
flameproof enclosure. This
enclosure must withstand, by its
construction, the pressure
developed by an internal explosion
and prevent its transmission to the
external atmosphere.
For use in all industries except
mines with fire-damp and oxygen-
hydrogen atmospheres.
This is the classification of the
product that can be found in the
atmosphere. In this case Gas Group,
II Sub-Division B…
This is the maximum surface
temperature of the connector
85°C
IIB
T6
