89500K48-35PNL: DescriptionCircular Connector, 4 Contact(s), Steel, Male, Crimp Terminal, Receptacle; CategoryThe connector The connector; File Size70KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

89500K48-35PNL Overview

Circular Connector, 4 Contact(s), Steel, Male, Crimp Terminal, Receptacle

89500K48-35PNL Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
Is Samacsys	N
Back shell type	SOLID
Body/casing type	RECEPTACLE
Connector type	CIRCULAR CONNECTOR
Contact point gender	MALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	895
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE AND PANEL
Options	GENERAL PURPOSE
Shell surface	CADMIUM
Shell material	STEEL
Housing size	48
Termination type	CRIMP
Total number of contacts	4
Base Number Matches	1

Preview

Download Datasheet

View All

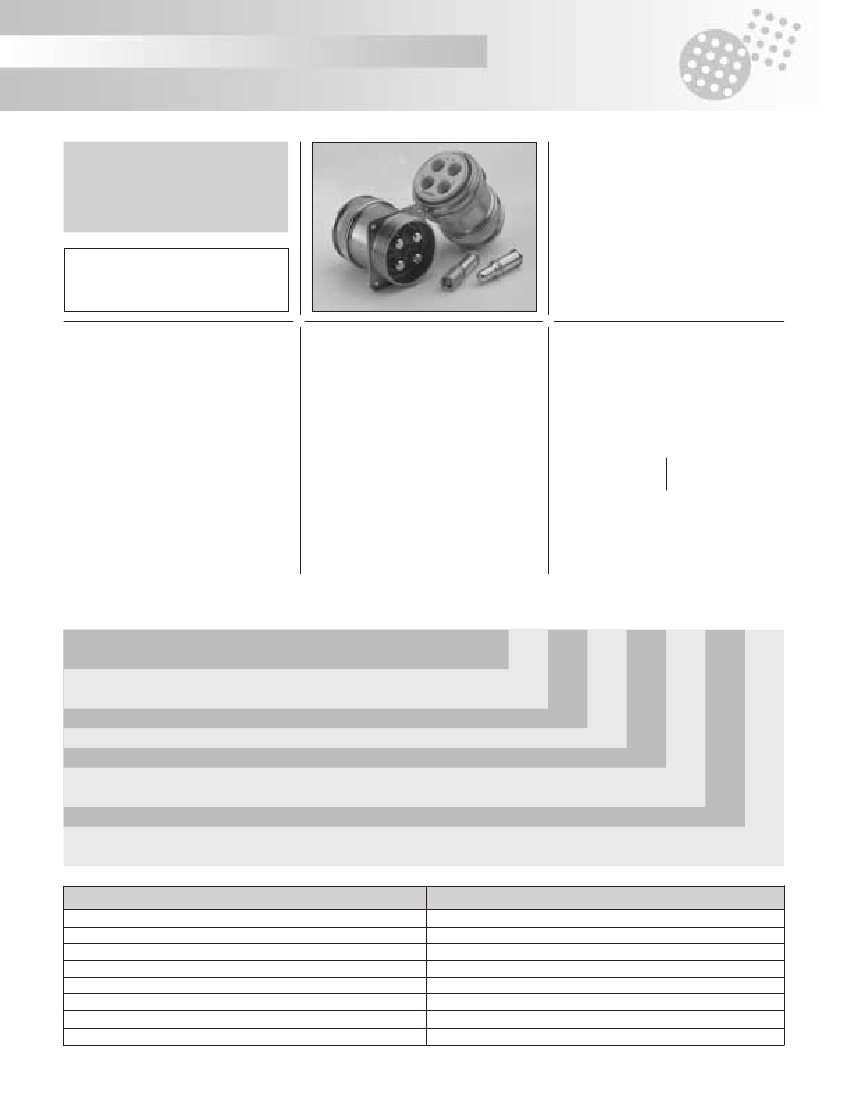

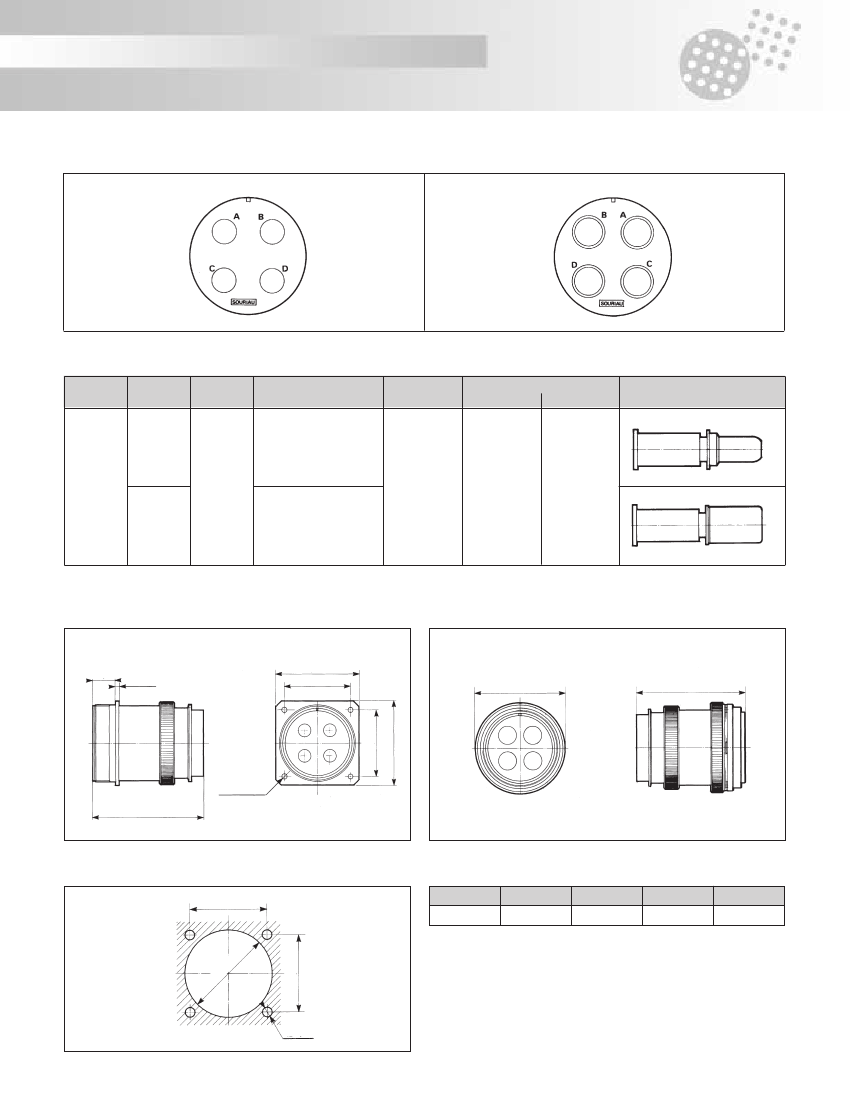

895 Series

Applications

Power supply for pylon/engine nacelle

electrical interface. High power appli-

cations (260 A)

Description

• Screw coupling with self locking system

• Power crimp contacts size 4/0 gold plated.

Standards

Aerospatiale

N° 462062/89

Characteristics

Mechanical

Shell : steel

Plating : yellow cadmium

Insulator : thermoset

Grommet and seal : elastomer

Contact : copper alloy

Plating : gold

Endurance :

500 mating/unmating operations

• Shock :

300 g / during 3 ms / 3 directions

• Vibration :

random 100 to 2000 Hz - 1G2/Hz

•

Electrical

•

Test voltage : 1500 Vrms

Contact resistance : < 0.23 mΩ

Insulation resistance :

≥

5000 MΩ

Contact rating : 260 A to 120°C

Climatic

• Temperature range : -65°C + 200°C

• Fire proofness and flammability :

to pr EN 2591

• Sealing : low air pressure - 15000 m

• Salt spray : 48 hours

• Damp heat : 10 cycles / 24 hours

MIL- H 5606

MIL-L 7808

MIL- L 7870A

MIL-A 8243

MIL- L 23699

MIL-C 25769

JP5

- skydrol 500 B4

- skydrol LD4

Coolanol - Chlorobromethane

Ordering information

basic series

shell type

class

shell size

contact layout

contact type

orientation

00

- square flange receptacle

26

- self locking plug

K

- fire resistant

48

35

P

- male

S

- female

N

- normal

- connector supplied with contact without specification

L

- connector supplied without contact

895

00

K

48

35

P

N

•

FCI Souriau part numbers

895 00K 48-35 PN

895 00K 48-35 SN

895 00K 48-35 PLN

895 00K 48-35 SNL

895

26K

48-35

PN

SN

PNL

SNL

AEROSPATIALE part numbers

ASN-E 0098 A 48-35 P

ASN-E 0098 A 48-35 S

——

ASN-E 0378 A 48-35 P

ASN-E 0378 A 48-35 S

——
