74ALVC132: DescriptionLow Voltage Quad 2-Input NAND Gate with Schmitt Trigger Inputs and 3.6V Tolerant Inputs and Outputs; File Size73KB，5 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Compare View All

74ALVC132 Overview

Low Voltage Quad 2-Input NAND Gate with Schmitt Trigger Inputs and 3.6V Tolerant Inputs and Outputs

Preview

Download Datasheet

View All

74ALVC132 Low Voltage Quad 2-Input NAND Gate with Schmitt Trigger Inputs and 3.6V Tolerant Inputs and

Outputs

December 2001

Revised December 2001

74ALVC132

Low Voltage Quad 2-Input NAND Gate with

Schmitt Trigger Inputs and 3.6V Tolerant Inputs

and Outputs

General Description

The ALVC132 contains four 2-input NAND gates with

Schmitt Trigger Inputs. The pin configuration and function

are the same as the ALVC00 except the inputs have hys-

teresis between the positive-going and negative-going

input thresholds. This hysteresis is useful for transforming

slowly switching input signals into sharply defined, jitter-

free output signals. This product should be used where

noise margin greater than that of conventional gates is

required.

The ALVC132 is designed for low voltage (1.65V to 3.6V)

applications with I/O compatibility up to 3.6V.

This product is fabricated with an advanced CMOS tech-

nology to achieve high-speed operation while maintaining

low CMOS power dissipation.

Features

1.65V to 3.6V V

supply operation

3.6V tolerant inputs and outputs

3.8 ns max for 3.0V to 3.6V V

4.6 ns max for 2.3V to 2.7V V

8.2 ns max for 1.65V to 1.95V V

Power-off high impedance inputs and outputs

Uses patented Quiet Series



noise/EMI reduction

circuitry

Latchup conforms to JEDEC JED78

ESD performance:

Human body model

2000V

Machine model

250V

Ordering Code:

Order Number

74ALVC132M

74ALVC132MTC

Package Number

M14A

MTC14

Package Description

14-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150" Narrow

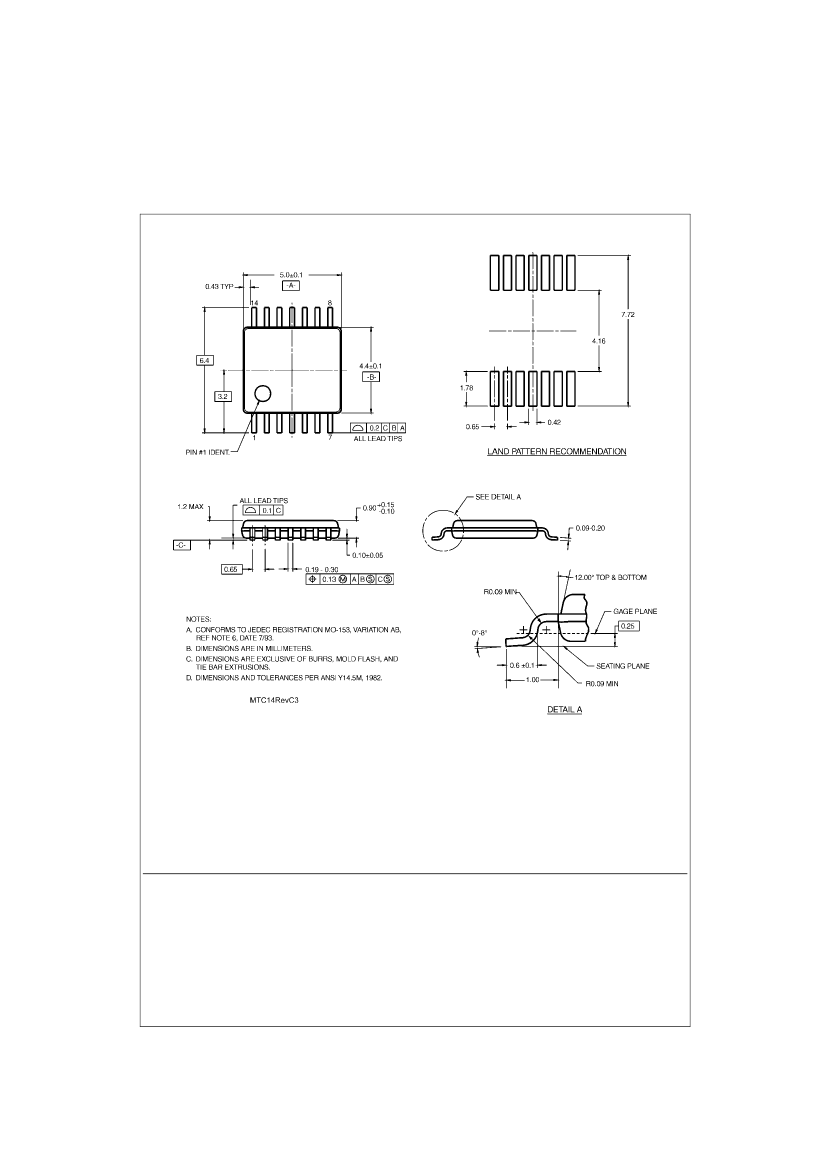

14-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 4.4mm Wide

Devices also available in Tape and Reel. Specify by appending suffix letter “X” to the ordering code.

Logic Diagram

Connection Diagram

Pin Descriptions

Pin Name

, B

Description

Inputs

Outputs

Quiet Series is a trademark of Fairchild Semiconductor Corporation.

ds500720

www.fairchildsemi.com

74ALVC132 Related Products

	74ALVC132	74ALVC132M	74ALVC132MTC
Description	Low Voltage Quad 2-Input NAND Gate with Schmitt Trigger Inputs and 3.6V Tolerant Inputs and Outputs	Low Voltage Quad 2-Input NAND Gate with Schmitt Trigger Inputs and 3.6V Tolerant Inputs and Outputs	Low Voltage Quad 2-Input NAND Gate with Schmitt Trigger Inputs and 3.6V Tolerant Inputs and Outputs
Is it Rohs certified?	-	conform to	conform to
Maker	-	Fairchild	Fairchild
Parts packaging code	-	SOIC	TSSOP
package instruction	-	SOP, SOP14,.25	TSSOP, TSSOP14,.25
Contacts	-	14	14
Reach Compliance Code	-	unknow	unknow
series	-	ALVC/VCX/A	ALVC/VCX/A
JESD-30 code	-	R-PDSO-G14	R-PDSO-G14
JESD-609 code	-	e3	e3
length	-	8.6235 mm	5 mm
Load capacitance (CL)	-	50 pF	50 pF
Logic integrated circuit type	-	NAND GATE	NAND GATE
MaximumI(ol)	-	0.024 A	0.024 A
Humidity sensitivity level	-	1	1
Number of functions	-	4	4
Number of entries	-	2	2
Number of terminals	-	14	14
Maximum operating temperature	-	85 °C	85 °C
Minimum operating temperature	-	-40 °C	-40 °C
Package body material	-	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	-	SOP	TSSOP
Encapsulate equivalent code	-	SOP14,.25	TSSOP14,.25
Package shape	-	RECTANGULAR	RECTANGULAR
Package form	-	SMALL OUTLINE	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	-	260	260
power supply	-	3.3 V	3.3 V
Prop。Delay @ Nom-Su	-	3.8 ns	3.8 ns
propagation delay (tpd)	-	8.2 ns	8.2 ns
Certification status	-	Not Qualified	Not Qualified
Schmitt trigger	-	YES	YES
Maximum seat height	-	1.753 mm	1.2 mm
Maximum supply voltage (Vsup)	-	3.6 V	3.6 V
Minimum supply voltage (Vsup)	-	1.65 V	1.65 V
Nominal supply voltage (Vsup)	-	1.8 V	1.8 V
surface mount	-	YES	YES
technology	-	CMOS	CMOS
Temperature level	-	INDUSTRIAL	INDUSTRIAL
Terminal surface	-	Matte Tin (Sn)	Matte Tin (Sn)
Terminal form	-	GULL WING	GULL WING
Terminal pitch	-	1.27 mm	0.65 mm
Terminal location	-	DUAL	DUAL
Maximum time at peak reflow temperature	-	NOT SPECIFIED	NOT SPECIFIED
width	-	3.9 mm	4.4 mm
Base Number Matches	-	1	1
