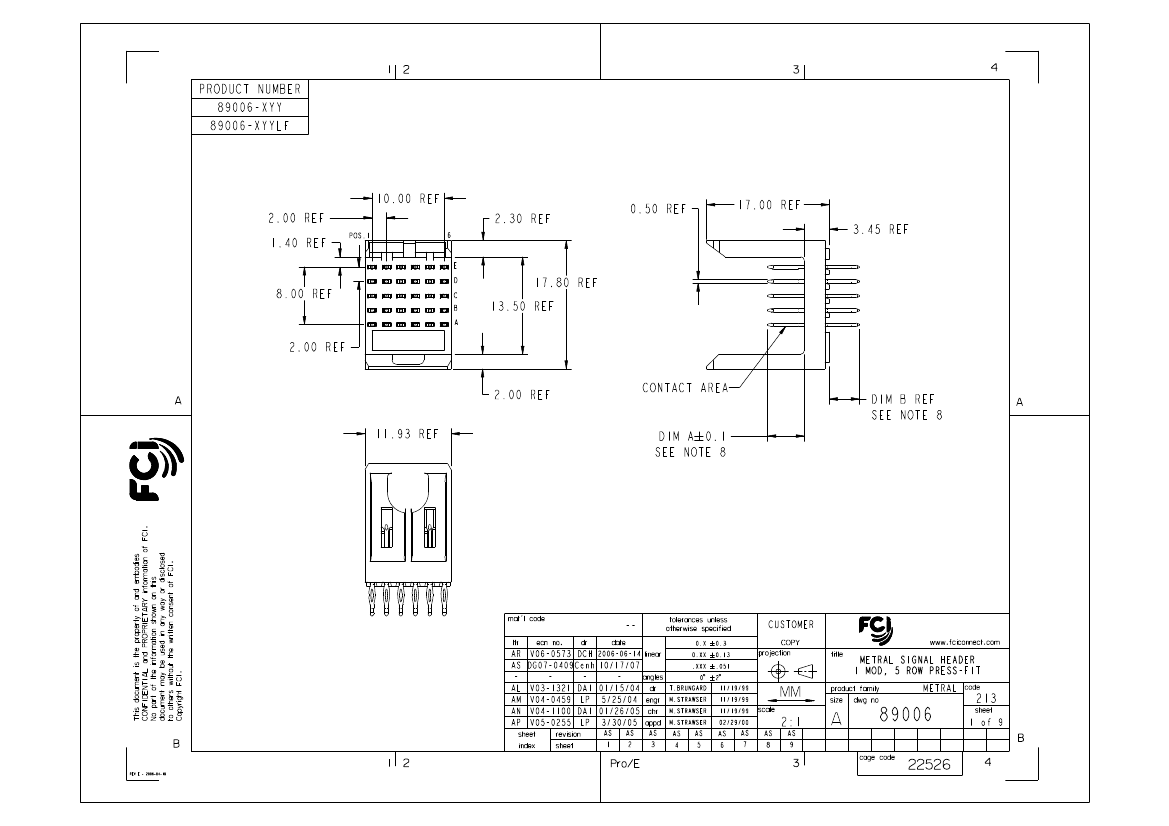

Board Connector, 30 Contact(s), 5 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Locking, Receptacle, LEAD FREE

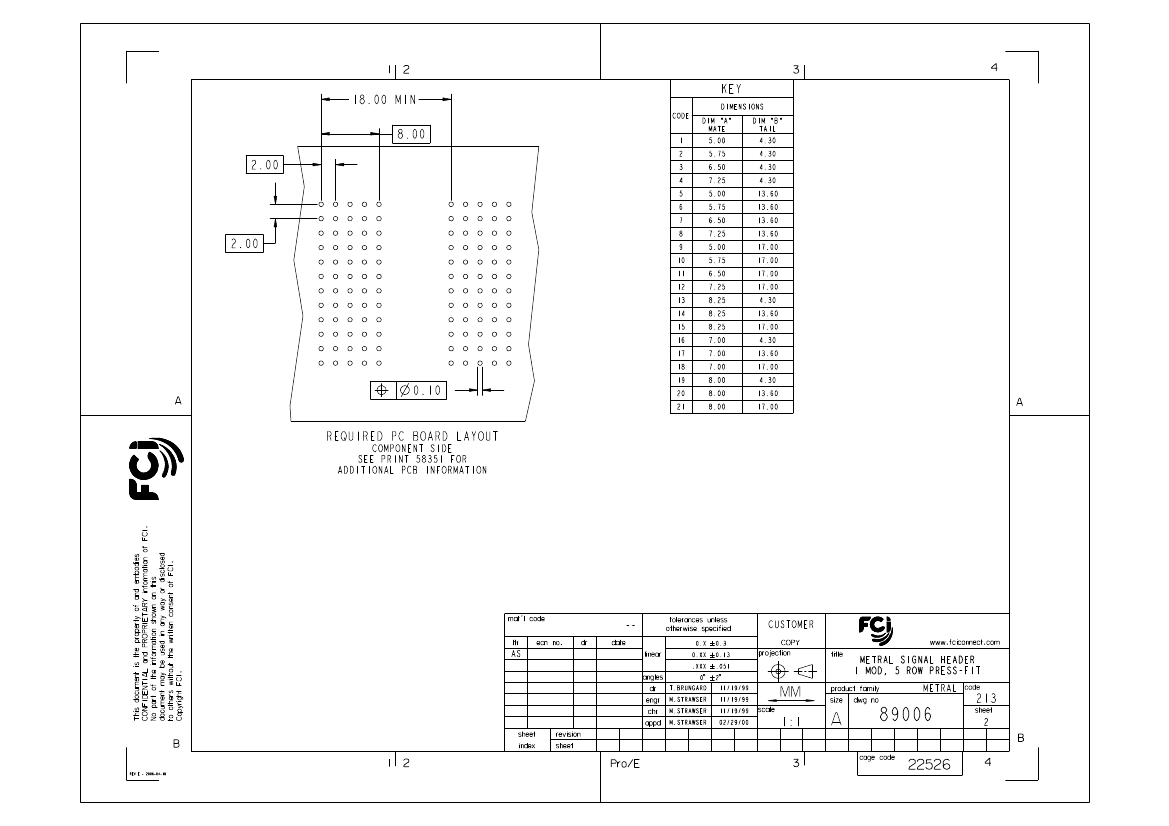

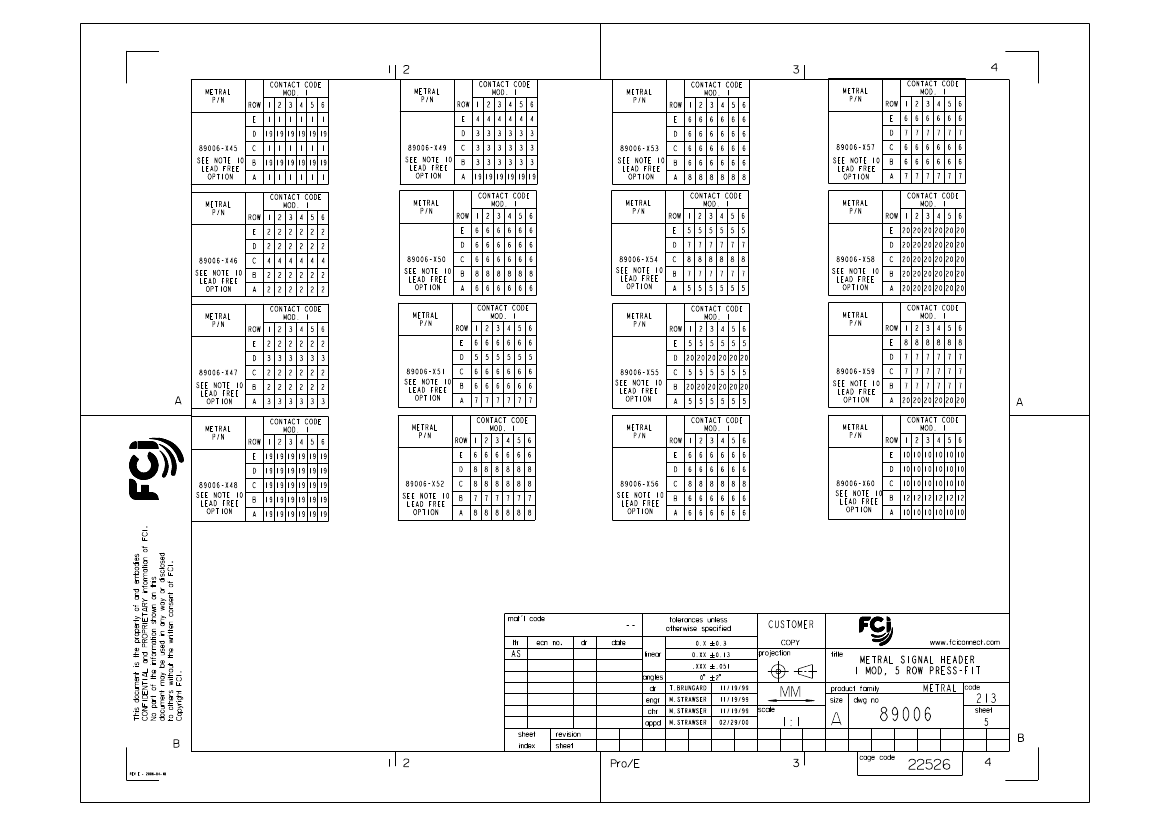

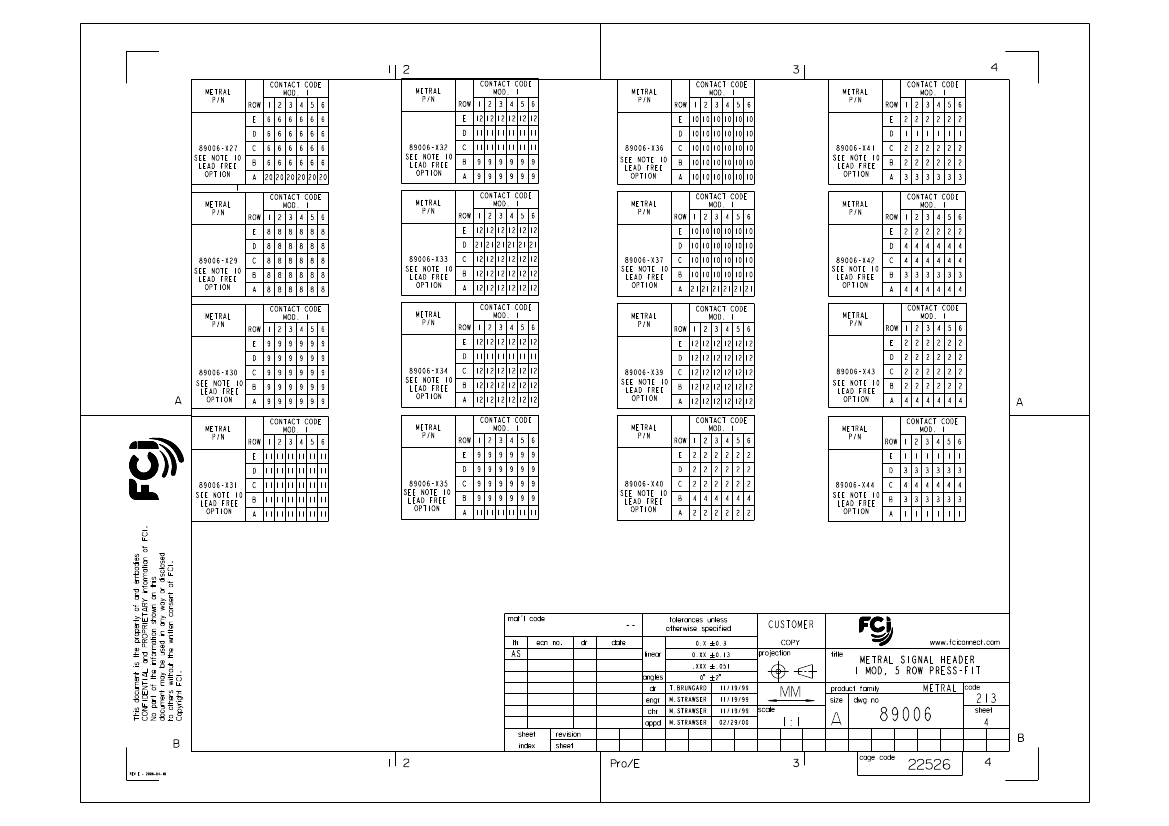

| Parameter Name | Attribute value |
| Is it lead-free? | Lead free |
| Is it Rohs certified? | conform to |
| Maker | Amphenol |
| package instruction | LEAD FREE |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| Other features | POLARIZED |
| body width | 0.701 inch |
| subject depth | 0.669 inch |
| body length | 0.47 inch |
| Body/casing type | RECEPTACLE |
| Connector type | BOARD CONNECTOR |
| Contact to complete cooperation | NOT SPECIFIED |
| Contact completed and terminated | Tin (Sn) |
| Contact point gender | MALE |
| Contact material | PHOSPHOR BRONZE |
| contact mode | RECTANGULAR |
| Contact style | SQ PIN-SKT |
| DIN compliance | NO |
| Dielectric withstand voltage | 1400VAC V |
| Filter function | NO |
| IEC compliance | NO |
| maximum insertion force | .3614 N |
| Insulation resistance | 1000000000 Ω |
| insulator material | GLASS FILLED LIQUID CRYSTAL POLYMER |
| JESD-609 code | e3 |
| MIL compliance | NO |
| Plug contact pitch | 0.079 inch |
| Match contact row spacing | 0.079 inch |
| Mixed contacts | NO |
| Installation option 1 | LOCKING |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 5 |
| Number of rows loaded | 5 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Options | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR |
| PCB contact row spacing | 2.0066 mm |
| polarization key | POLARIZED HOUSING |
| Rated current (signal) | 1 A |
| Guideline | UL, CSA |
| reliability | COMMERCIAL |
| Terminal pitch | 2 mm |
| Termination type | PRESS FIT |
| Total number of contacts | 30 |
| UL Flammability Code | 94V-0 |
| Evacuation force-minimum value | .14734 N |
| Base Number Matches | 1 |
| 89006-N598LF | 89006-N596LF | 89006-N597LF | 89006-N599LF | 89006-N590LF | 89006-N591LF | 89006-N592LF | 89006-N593LF | |
|---|---|---|---|---|---|---|---|---|
| Description | Board Connector, 30 Contact(s), 5 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Locking, Receptacle, LEAD FREE | Board Connector, 30 Contact(s), 5 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Locking, Receptacle, LEAD FREE | Board Connector, 30 Contact(s), 5 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Locking, Receptacle, LEAD FREE | Board Connector, 30 Contact(s), 5 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Locking, Receptacle, LEAD FREE | Board Connector, 30 Contact(s), 5 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Locking, Receptacle, LEAD FREE | Board Connector, 30 Contact(s), 5 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Locking, Receptacle, LEAD FREE | Board Connector, 30 Contact(s), 5 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Locking, Receptacle, LEAD FREE | Board Connector, 30 Contact(s), 5 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Locking, Receptacle, LEAD FREE |
| Is it lead-free? | Lead free | Lead free | Lead free | Lead free | Lead free | Lead free | Lead free | Lead free |
| Is it Rohs certified? | conform to | conform to | conform to | conform to | conform to | conform to | conform to | conform to |
| Maker | Amphenol | Amphenol | Amphenol | Amphenol | Amphenol | Amphenol | Amphenol | Amphenol |
| package instruction | LEAD FREE | LEAD FREE | LEAD FREE | LEAD FREE | LEAD FREE | LEAD FREE | LEAD FREE | LEAD FREE |
| Reach Compliance Code | compliant | compliant | compliant | compliant | compliant | compliant | compliant | compliant |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Other features | POLARIZED | POLARIZED | POLARIZED | POLARIZED | POLARIZED | POLARIZED | POLARIZED | POLARIZED |
| body width | 0.701 inch | 0.701 inch | 0.701 inch | 0.701 inch | 0.701 inch | 0.701 inch | 0.701 inch | 0.701 inch |
| subject depth | 0.669 inch | 0.669 inch | 0.669 inch | 0.669 inch | 0.669 inch | 0.669 inch | 0.669 inch | 0.669 inch |
| body length | 0.47 inch | 0.47 inch | 0.47 inch | 0.47 inch | 0.47 inch | 0.47 inch | 0.47 inch | 0.47 inch |
| Body/casing type | RECEPTACLE | RECEPTACLE | RECEPTACLE | RECEPTACLE | RECEPTACLE | RECEPTACLE | RECEPTACLE | RECEPTACLE |
| Connector type | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR |
| Contact to complete cooperation | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Contact completed and terminated | Tin (Sn) | Tin (Sn) | Tin (Sn) | Tin (Sn) | Tin (Sn) | Tin (Sn) | Tin (Sn) | Tin (Sn) |
| Contact point gender | MALE | MALE | MALE | MALE | MALE | MALE | MALE | MALE |
| Contact material | PHOSPHOR BRONZE | PHOSPHOR BRONZE | PHOSPHOR BRONZE | PHOSPHOR BRONZE | PHOSPHOR BRONZE | PHOSPHOR BRONZE | PHOSPHOR BRONZE | PHOSPHOR BRONZE |
| contact mode | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Contact style | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT |
| DIN compliance | NO | NO | NO | NO | NO | NO | NO | NO |
| Dielectric withstand voltage | 1400VAC V | 1400VAC V | 1400VAC V | 1400VAC V | 1400VAC V | 1400VAC V | 1400VAC V | 1400VAC V |
| Filter function | NO | NO | NO | NO | NO | NO | NO | NO |
| IEC compliance | NO | NO | NO | NO | NO | NO | NO | NO |
| maximum insertion force | .3614 N | .3614 N | .3614 N | .3614 N | .3614 N | .3614 N | .3614 N | .3614 N |
| Insulation resistance | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω |
| insulator material | GLASS FILLED LIQUID CRYSTAL POLYMER | GLASS FILLED LIQUID CRYSTAL POLYMER | GLASS FILLED LIQUID CRYSTAL POLYMER | GLASS FILLED LIQUID CRYSTAL POLYMER | GLASS FILLED LIQUID CRYSTAL POLYMER | GLASS FILLED LIQUID CRYSTAL POLYMER | GLASS FILLED LIQUID CRYSTAL POLYMER | GLASS FILLED LIQUID CRYSTAL POLYMER |
| JESD-609 code | e3 | e3 | e3 | e3 | e3 | e3 | e3 | e3 |
| MIL compliance | NO | NO | NO | NO | NO | NO | NO | NO |
| Plug contact pitch | 0.079 inch | 0.079 inch | 0.079 inch | 0.079 inch | 0.079 inch | 0.079 inch | 0.079 inch | 0.079 inch |
| Match contact row spacing | 0.079 inch | 0.079 inch | 0.079 inch | 0.079 inch | 0.079 inch | 0.079 inch | 0.079 inch | 0.079 inch |
| Mixed contacts | NO | NO | NO | NO | NO | NO | NO | NO |
| Installation option 1 | LOCKING | LOCKING | LOCKING | LOCKING | LOCKING | LOCKING | LOCKING | LOCKING |
| Installation method | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT |
| Installation type | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD |
| Number of connectors | ONE | ONE | ONE | ONE | ONE | ONE | ONE | ONE |
| PCB row number | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of rows loaded | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C |
| Options | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| PCB contact row spacing | 2.0066 mm | 2.0066 mm | 2.0066 mm | 2.0066 mm | 2.0066 mm | 2.0066 mm | 2.0066 mm | 2.0066 mm |
| polarization key | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING |
| Rated current (signal) | 1 A | 1 A | 1 A | 1 A | 1 A | 1 A | 1 A | 1 A |
| Guideline | UL, CSA | UL, CSA | UL, CSA | UL, CSA | UL, CSA | UL, CSA | UL, CSA | UL, CSA |
| reliability | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal pitch | 2 mm | 2 mm | 2 mm | 2 mm | 2 mm | 2 mm | 2 mm | 2 mm |
| Termination type | PRESS FIT | PRESS FIT | PRESS FIT | PRESS FIT | PRESS FIT | PRESS FIT | PRESS FIT | PRESS FIT |
| Total number of contacts | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 |
| UL Flammability Code | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 |
| Evacuation force-minimum value | .14734 N | .14734 N | .14734 N | .14734 N | .14734 N | .14734 N | .14734 N | .14734 N |
