SN74LS248NS datasheet, PDF - EEWORLD Datasheet

SN74LS248NS: DescriptionSeven Segment Decoder/Driver, LS Series, True Output, TTL, PDIP16, 648-05; Categorylogic logic; File Size354KB，6 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric View All

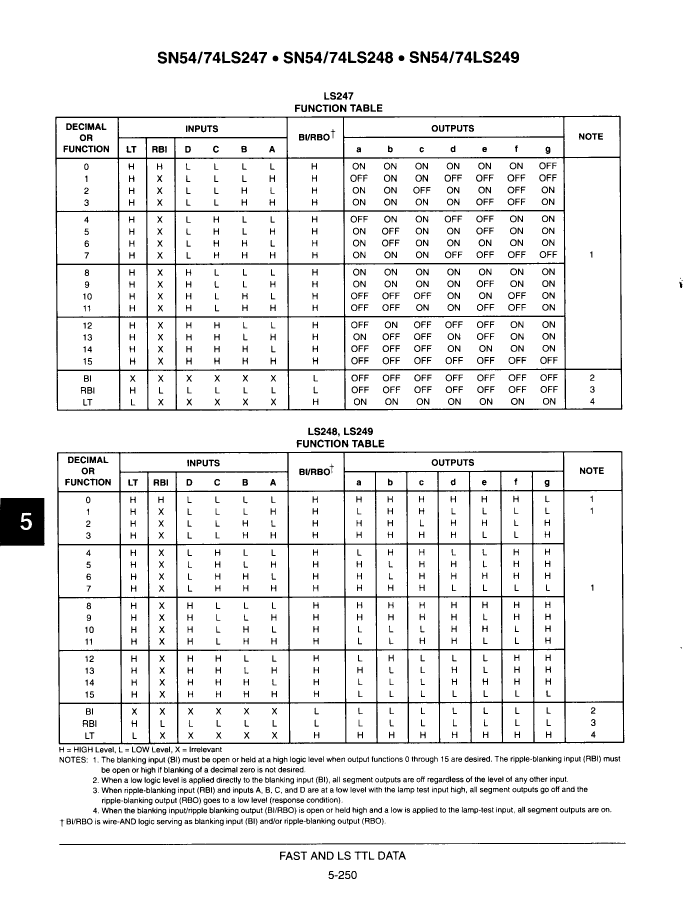

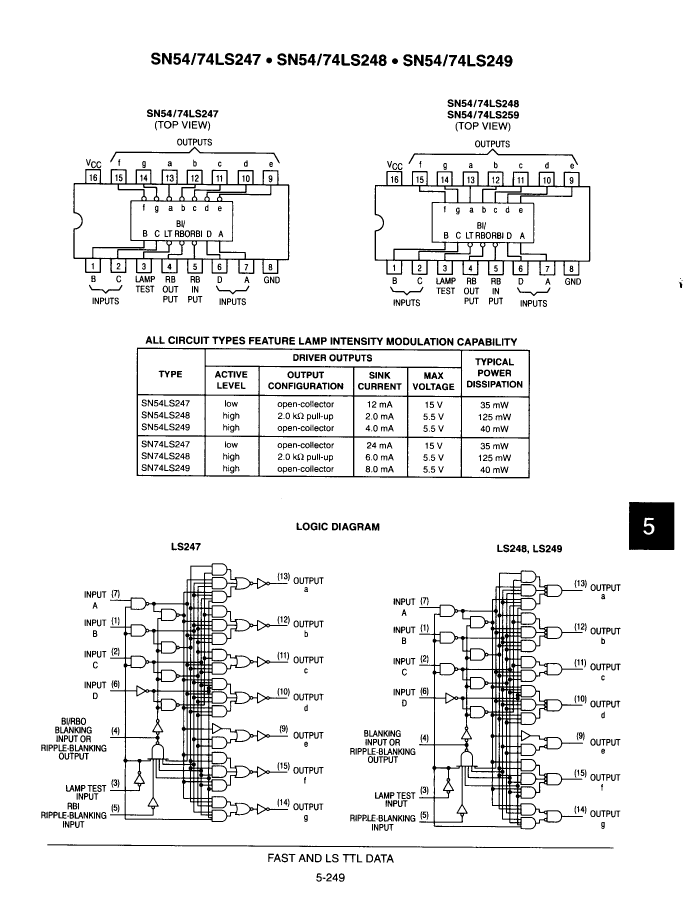

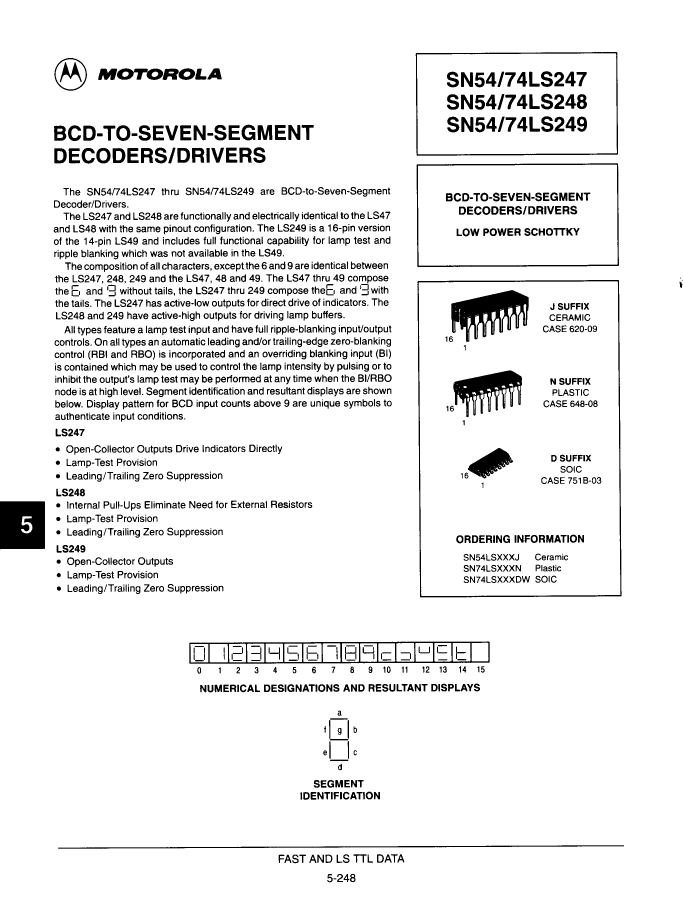

SN74LS248NS Overview

Seven Segment Decoder/Driver, LS Series, True Output, TTL, PDIP16, 648-05

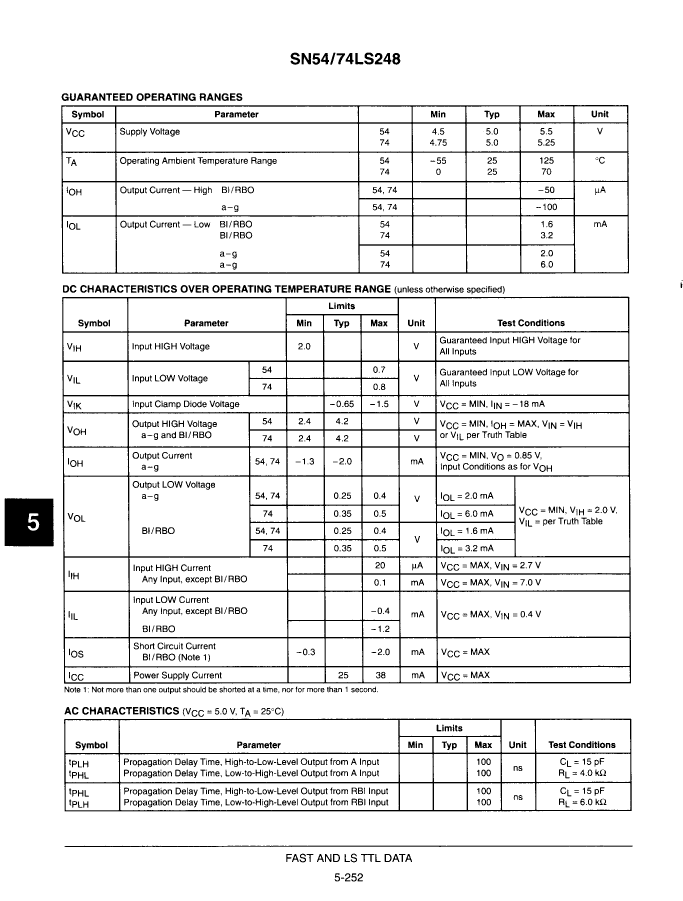

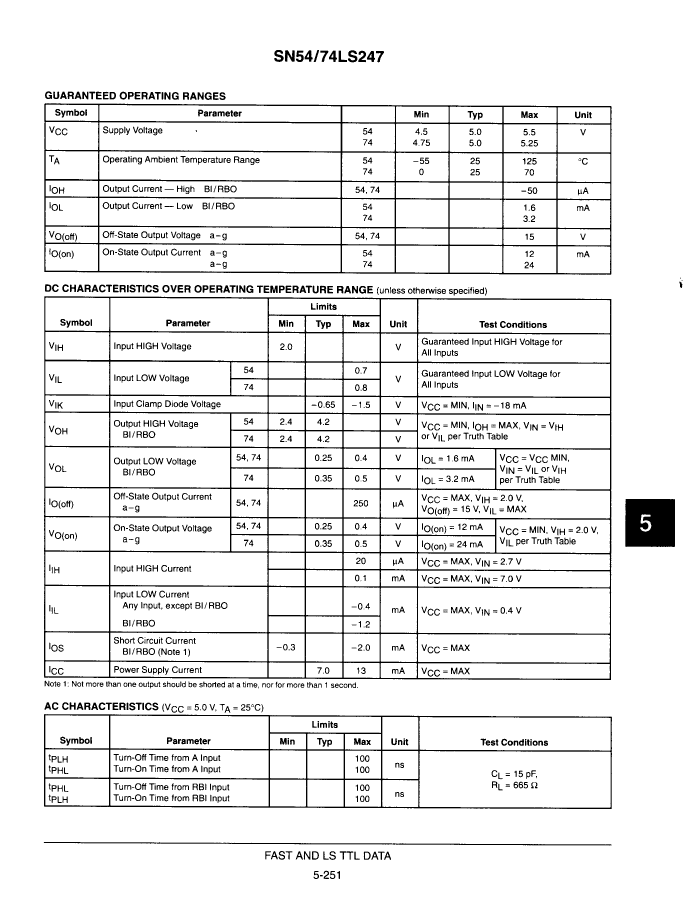

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Motorola ( NXP )
package instruction	DIP, DIP16,.3
Reach Compliance Code	unknown
ECCN code	EAR99
series	LS
Input adjustment	STANDARD
JESD-30 code	R-PDIP-T16
JESD-609 code	e0
length	20.07 mm
Logic integrated circuit type	SEVEN SEGMENT DECODER/DRIVER
Number of functions	1
Number of terminals	16
Maximum operating temperature	70 °C
Minimum operating temperature
Output characteristics	OPEN-COLLECTOR WITH PULLUP
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
propagation delay (tpd)	100 ns
Certification status	Not Qualified
Maximum seat height	5.08 mm
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm
Base Number Matches	1
