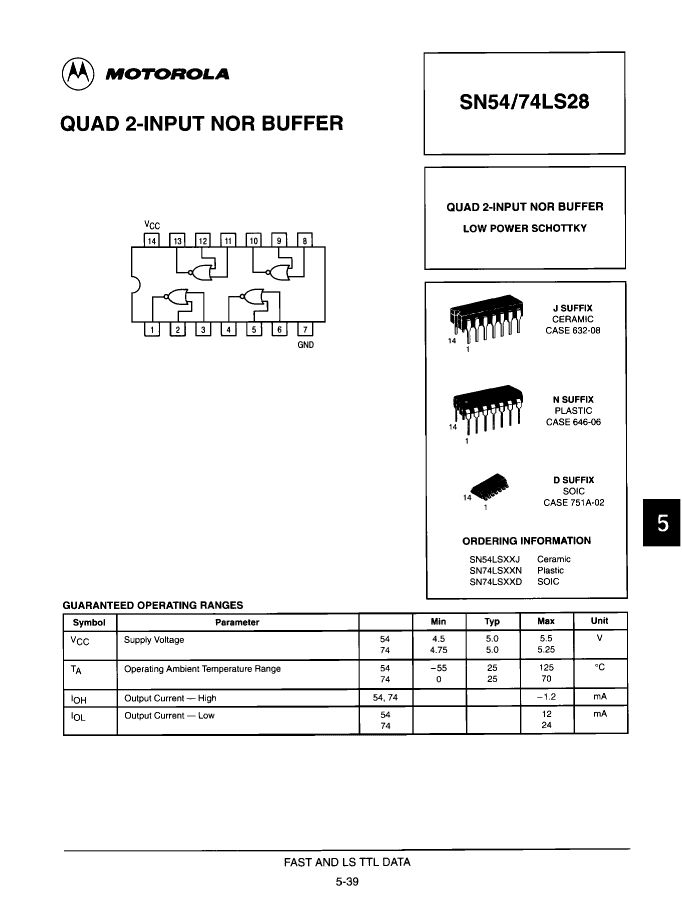

LS SERIES, QUAD 2-INPUT NOR GATE, PDSO14, PLASTIC, SOIC-14

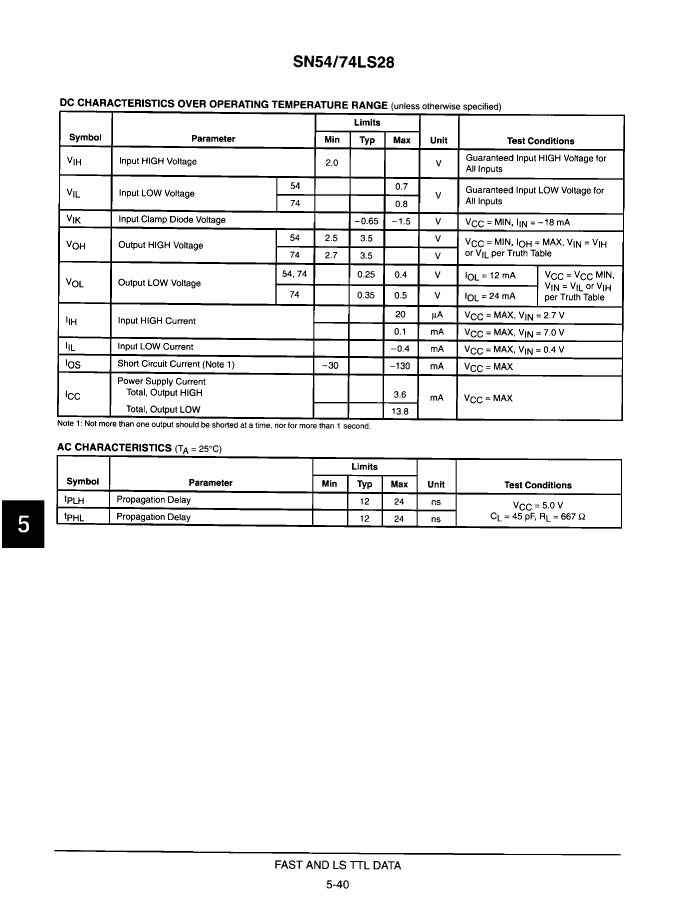

| Parameter Name | Attribute value |
| Is it lead-free? | Contains lead |
| Is it Rohs certified? | incompatible |
| Maker | Motorola ( NXP ) |
| Parts packaging code | SOIC |
| package instruction | SOP, SOP14,.25 |
| Contacts | 14 |
| Reach Compliance Code | unknown |
| Other features | IOH =1.2MA @ VOH = 3.5V; IOL = 24MA @ VOL = 0.5V |
| series | LS |
| JESD-30 code | R-PDSO-G14 |
| JESD-609 code | e0 |
| length | 8.65 mm |
| Load capacitance (CL) | 45 pF |
| Logic integrated circuit type | NOR GATE |
| MaximumI(ol) | 0.024 A |
| Number of functions | 4 |
| Number of entries | 2 |
| Number of terminals | 14 |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | SOP |
| Encapsulate equivalent code | SOP14,.25 |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE |
| method of packing | TAPE AND REEL |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| power supply | 5 V |
| Maximum supply current (ICC) | 13.8 mA |
| Prop。Delay @ Nom-Sup | 24 ns |
| propagation delay (tpd) | 24 ns |
| Certification status | Not Qualified |
| Schmitt trigger | NO |
| Maximum seat height | 1.75 mm |
| Maximum supply voltage (Vsup) | 5.25 V |
| Minimum supply voltage (Vsup) | 4.75 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | YES |
| technology | TTL |
| Temperature level | COMMERCIAL |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | GULL WING |
| Terminal pitch | 1.27 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| width | 3.9 mm |
| Base Number Matches | 1 |
