74ALVCH162240 Low Voltage 16-Bit Inverting Buffer/Line Driver
November 2001
Revised November 2001
74ALVCH162240
Low Voltage 16-Bit Inverting Buffer/Line Driver
with Bushold and 26
Ω
Series Resistors in Outputs
General Description
The ALVCH162240 contains sixteen inverting buffers with
3-STATE outputs to be employed as a memory and
address driver, clock driver, or bus oriented transmitter/
receiver. The device is nibble (4-bit) controlled. Each nibble
has separate 3-STATE control inputs which can be shorted
together for full 16-bit operation.
The ALVCH162240 data inputs include active bushold cir-
cuitry, eliminating the need for external pull-up resistors to
hold unused or floating data inputs at a valid logic level.
The 74ALVCH162240 is also designed with 26
Ω
series
resistors in the outputs. This design reduces line noise in
applications such as memory address drivers, clock driv-
ers, and bus transceivers/transmitters.
The 74ALVCH162240 is designed for low voltage (1.65V to
3.6V) V
CC
applications with output capability up to 3.6V.
The 74ALVCH162240 is fabricated with an advanced
CMOS technology to achieve high speed operation while
maintaining low CMOS power dissipation.
Features
s
1.65V to 3.6V V
CC
supply operation
s
3.6V tolerant control inputs and outputs
s
Bushold on data inputs eliminating the need for external
pull-up/pull-down resistors
s
26
Ω
series resistors in outputs
s
t
PD
3.8 ns max for 3.0V to 3.6V V
CC
4.3 ns max for 2.3V to 2.7V V
CC
7.6 ns max for 1.65V to 1.95V V
CC
s
Uses patented noise/EMI reduction circuitry
s
Latchup conforms to JEDEC JED78
s
ESD performance:
Human body model
>
2000V
Machine model
>
200V
Ordering Code:
Order Number
74ALVCH162240T
Package Number
MTD48
Package Descriptions
48-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 6.1mm Wide
Devices also available in Tape and Reel. Specify by appending the suffix letter “X” to the ordering code.
Logic Symbol
Pin Descriptions
Pin Names
OE
n
I
0
–I
15
O
0
–O
15
Description
Output Enable Input (Active LOW)
Bushold Inputs
Outputs
© 2001 Fairchild Semiconductor Corporation
DS500700
www.fairchildsemi.com
74ALVCH162240
Connection Diagram
Truth Tables
Inputs
OE
1
L
L
H
Inputs
OE
2
L
L
H
Inputs
OE
3
L
L
H
Inputs
OE
4
L
L
H
I
12
–I
15
L
H
X
I
8
–I
11
L
H
X
I
4
–I
7
L
H
X
I
0
–I
3
L
H
X
Outputs
O
0
–O
3
H
L
Z
Outputs
O
4
–O
7
H
L
Z
Outputs
O
8
–O
11
H
L
Z
Outputs
O
12
–O
15
H
L
Z
H
=
HIGH Voltage Level
L
=
LOW Voltage Level
X
=
Immaterial (HIGH or LOW, inputs may not float)
Z
=
High Impedance
Functional Description
The 74ALVCH162240 contains sixteen inverting buffers
with 3-STATE outputs. The device is nibble (4 bits) con-
trolled with each nibble functioning identically, but indepen-
dent of each other. The control pins may be shorted
together to obtain full 16-bit operation.The 3-STATE out-
puts are controlled by an Output Enable (OE
n
) input. When
OE
n
is LOW, the outputs are in the 2-state mode. When
OE
n
is HIGH, the standard outputs are in the high imped-
ance mode but this does not interfere with entering new
data into the inputs.
Logic Diagram
www.fairchildsemi.com
2
74ALVCH162240
Absolute Maximum Ratings
(Note 1)
Supply Voltage (V
CC
)
DC Input Voltage (V
I
)
Output Voltage (V
O
) (Note 2)
DC Input Diode Current (I
IK
)
V
I
<
0V
DC Output Diode Current (I
OK
)
V
O
<
0V
DC Output Source/Sink Current
(I
OH
/I
OL
)
DC V
CC
or GND Current per
Supply Pin (I
CC
or GND)
Storage Temperature Range (T
STG
)
−
0.5V to
+
4.6V
−
0.5V to 4.6V
−
0.5V to V
CC
+
0.5V
−
50 mA
−
50 mA
±
50 mA
±
100 mA
−
65
°
C to
+
150
°
C
Recommended Operating
Conditions
(Note 3)
Power Supply
Operating
Input Voltage
Output Voltage (V
O
)
Free Air Operating Temperature (T
A
)
Minimum Input Edge Rate (
∆
t/
∆
V)
V
IN
=
0.8V to 2.0V, V
CC
=
3.0V
10 ns/V
Note 1:
The Absolute Maximum Ratings are those values beyond which
the safety of the device cannot be guaranteed. The device should not be
operated at these limits. The parametric values defined in the Electrical
Characteristics tables are not guaranteed at the Absolute Maximum Rat-
ings. The “Recommended Operating Conditions” table will define the condi-
tions for actual device operation.
Note 2:
I
O
Absolute Maximum Rating must be observed.
Note 3:
Floating or unused control inputs must be held HIGH or LOW.
1.65V to 3.6V
0V to V
CC
0V to V
CC
−
40
°
C to
+
85
°
C
DC Electrical Characteristics
Symbol
V
IH
Parameter
HIGH Level Input Voltage
Conditions
V
CC
(V)
1.65 - 1.95
2.3 - 2.7
2.7 - 3.6
V
IL
LOW Level Input Voltage
1.65 - 1.95
2.3 - 2.7
2.7 - 3.6
V
OH
HIGH Level Output Voltage
I
OH
= −100 µA
I
OH
= −2
mA
I
OH
= −4
mA
I
OH
= −6
mA
I
OH
= −8
mA
I
OH
= −12
mA
V
OL
LOW Level Output Voltage
I
OL
=
100
µA
I
OL
=
2 mA
I
OL
=
4 mA
I
OL
=
6 mA
I
OL
=
8 mA
I
OL
=
12 mA
I
I
I
I(HOLD)
Input Leakage Current
Bushold Input Minimum
Drive Hold Current
0
≤
V
I
≤
3.6V
V
IN
=
0.58V
V
IN
=
1.07V
V
IN
=
0.7V
V
IN
=
1.7V
V
IN
=
0.8V
V
IN
=
2.0V
0
<
V
O
≤
3.6V
I
OZ
I
CC
∆I
CC
3-STATE Output Leakage
Quiescent Supply Current
Increase in I
CC
per Input
0
≤
V
O
≤
3.6V
V
I
=
V
CC
or GND, I
O
=
0
V
IH
=
V
CC
−
0.6V
1.65 - 3.6
1.65
2.3
2.3
3
2.7
3.0
1.65 - 3.6
1.65
2.3
2.3
3
2.7
3
3.6
1.65
1.65
2.3
2.3
3.0
3.0
3.6
3.6
3.6
3 - 3.6
25
−25
45
−45
75
−75
±500
±10
40
750
µA
µA
µA
µA
V
CC
- 0.2
1.2
1.9
1.7
2.4
2
2
0.2
0.45
0.4
0.55
0.55
0.6
0.8
±5.0
µA
V
V
Min
0.65 x V
CC
1.7
2.0
0.35 x V
CC
0.7
0.8
V
V
Max
Units
3
www.fairchildsemi.com
74ALVCH162240

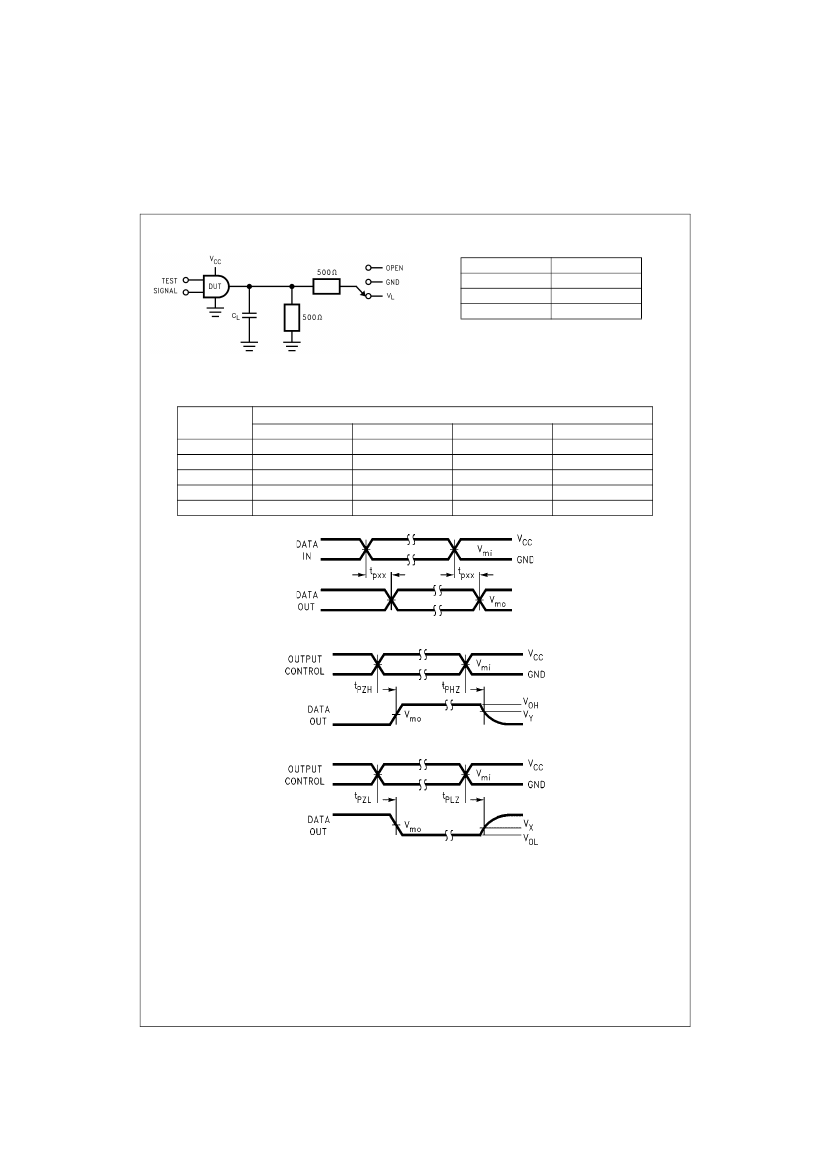

AC Loading and Waveforms
TABLE 1. Values for Figure 1
TEST
t
PLH
, t
PHL
t
PZL
, t
PLZ
t
PZH
, t
PHZ
SWITCH
Open
V
L
GND
FIGURE 1. AC Test Circuit
TABLE 2. Variable Matrix
(Input Characteristics: f
=
1MHz; t
r
=
t
f
=
2ns; Z
0
=
50
Ω
Symbol
V
mi
V
mo
V
X
V
Y
V
L
V
CC
3.3V
±
0.3V
1.5V
1.5V
V
OL
+
0.3V
V
OH
−
0.3V
6V
2.7V
1.5V
1.5V
V
OL
+
0.3V
V
OH
−
0.3V
6V
2.5V
±
0.2V
V
CC
/2
V
CC
/2
V
OL
+
0.15V
V
OH
−
0.15V
V
CC
*2
1.8V
±
0.15V
V
CC
/2
V
CC
/2
V
OL
+
0.15V
V
OH
−
0.15V
V
CC
*2
FIGURE 2. Waveform for Inverting and Non-Inverting Functions
