10087452-404HTLF datasheet, PDF

10087452-404HTLF: DescriptionBoard Connector, 4 Contact(s), 1 Row(s), Male, Right Angle Reverse, 0.1 inch Pitch, Solder Terminal, Black Insulator; CategoryThe connector The connector; File Size145KB，3 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric View All

10087452-404HTLF Overview

Board Connector, 4 Contact(s), 1 Row(s), Male, Right Angle Reverse, 0.1 inch Pitch, Solder Terminal, Black Insulator

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Amphenol
Reach Compliance Code	compliant
body width	0.095 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Insulator color	BLACK
insulator material	THERMOPLASTIC
Manufacturer's serial number	10087452
Plug contact pitch	0.1 inch
Installation method	RIGHT ANGLE REVERSE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
PCB contact pattern	RECTANGULAR
Plating thickness	50u inch
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.175 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	4
Base Number Matches	1

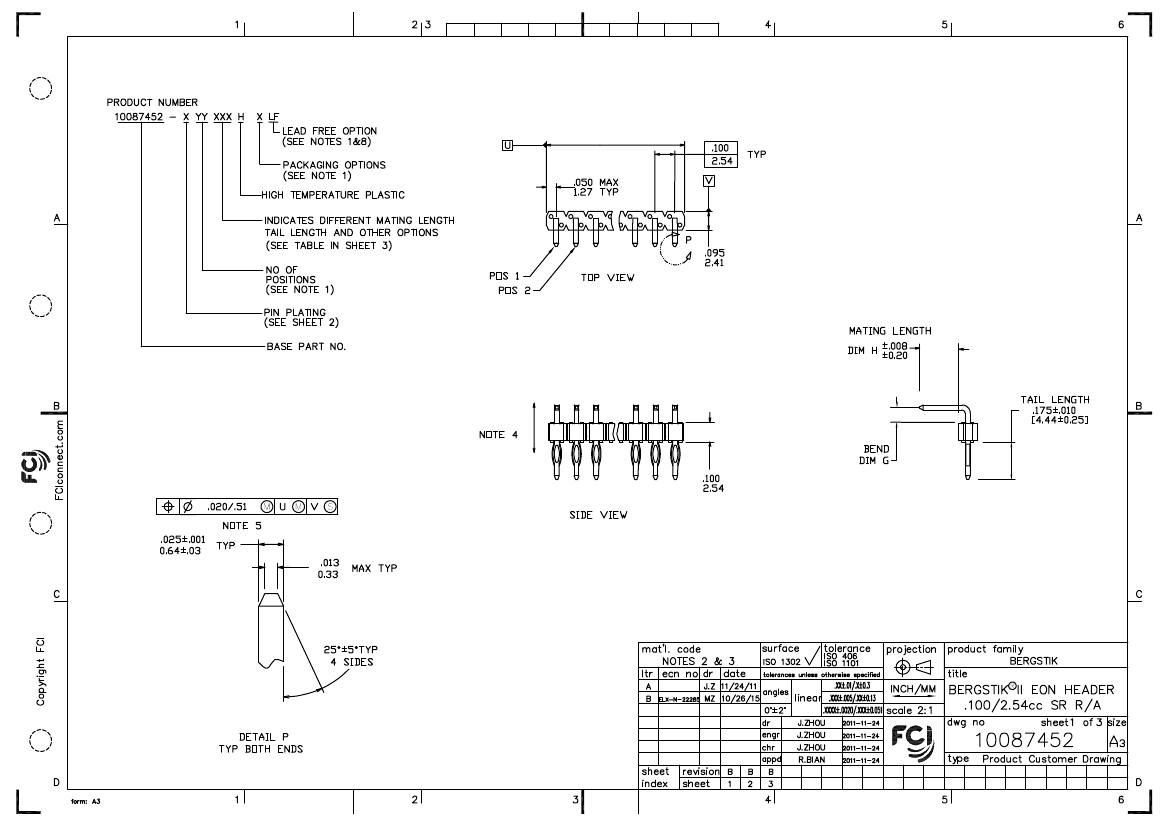

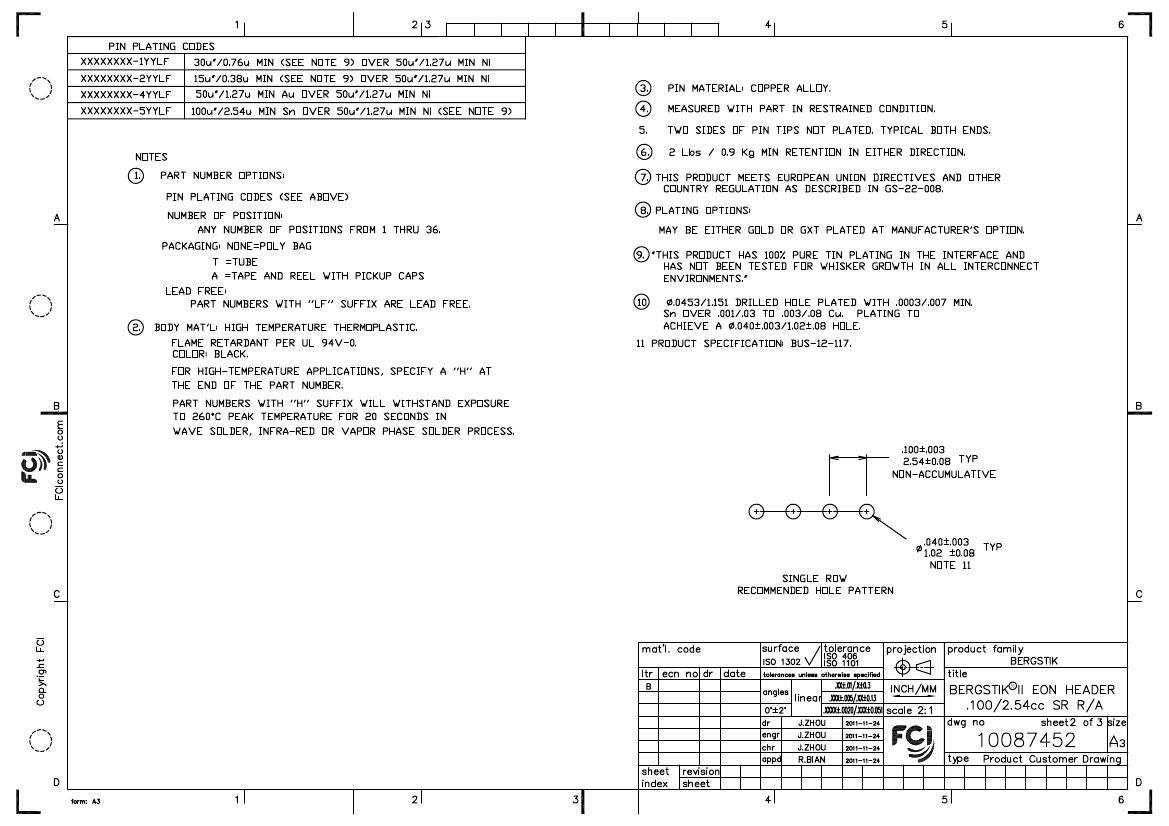

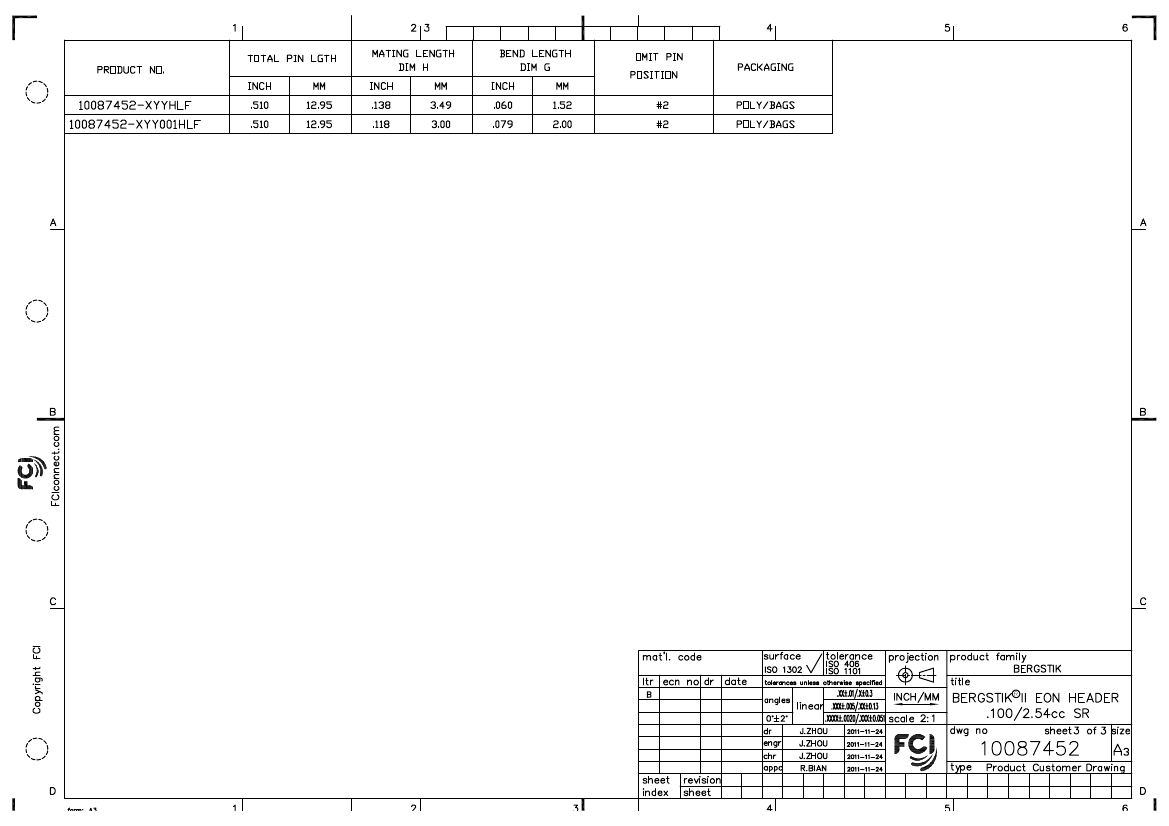

PDS: Rev :B

STATUS:Released

Printed: Oct 29, 2015
