7386R500L.5LTLF datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> 7386R500L.5LTLF

7386R500L.5LTLF: DescriptionRESISTOR, POTENTIOMETER, WIRE WOUND, 3 TURN(S), 1.5W, 500ohm, 7/8 INCH, CIRCULAR, 3 PINS, ROHS COMPLIANT; CategoryPassive components The resistor; File Size229KB，4 Pages; ManufacturerTT Electronics plc; Websitehttp://www.ttelectronics.com/

Download Datasheet Parametric View All

7386R500L.5LTLF Overview

RESISTOR, POTENTIOMETER, WIRE WOUND, 3 TURN(S), 1.5W, 500ohm, 7/8 INCH, CIRCULAR, 3 PINS, ROHS COMPLIANT

7386R500L.5LTLF Parametric

Parameter Name	Attribute value
Maker	TT Electronics plc
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
Actuator direction	HORIZONTAL
Actuator type	SHAFT
Other features	PRECISION
gang number	1
Installation features	CHASSIS MOUNT
Number of terminals	3
number of turns	3
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	CIRCULAR PACKAGE
Rated power dissipation(P)	1.5 W
Rated temperature	70 °C
resistance	500 Ω
resistance law	LINEAR
Resistor type	POTENTIOMETER
surface mount	NO
technology	WIRE WOUND
Terminal shape	LUG
Tolerance	5%
Base Number Matches	1

Preview

Download Datasheet

View All

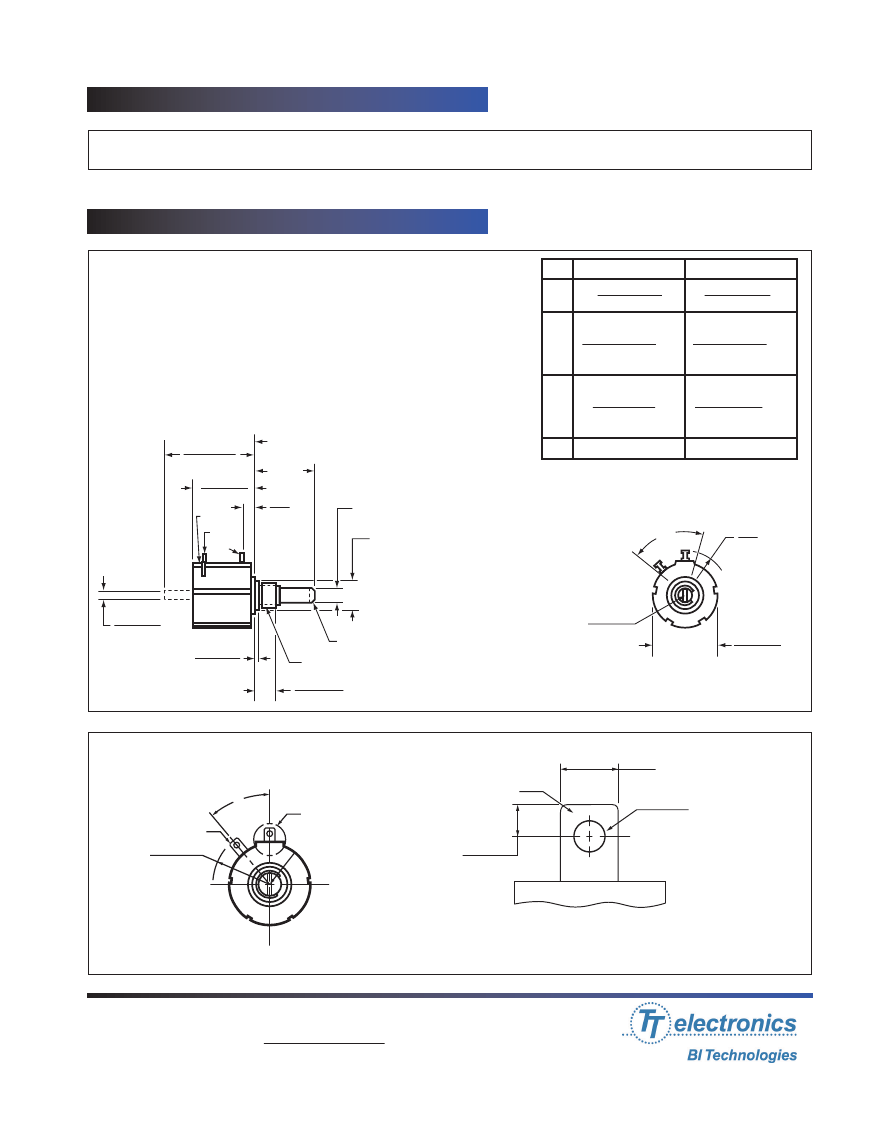

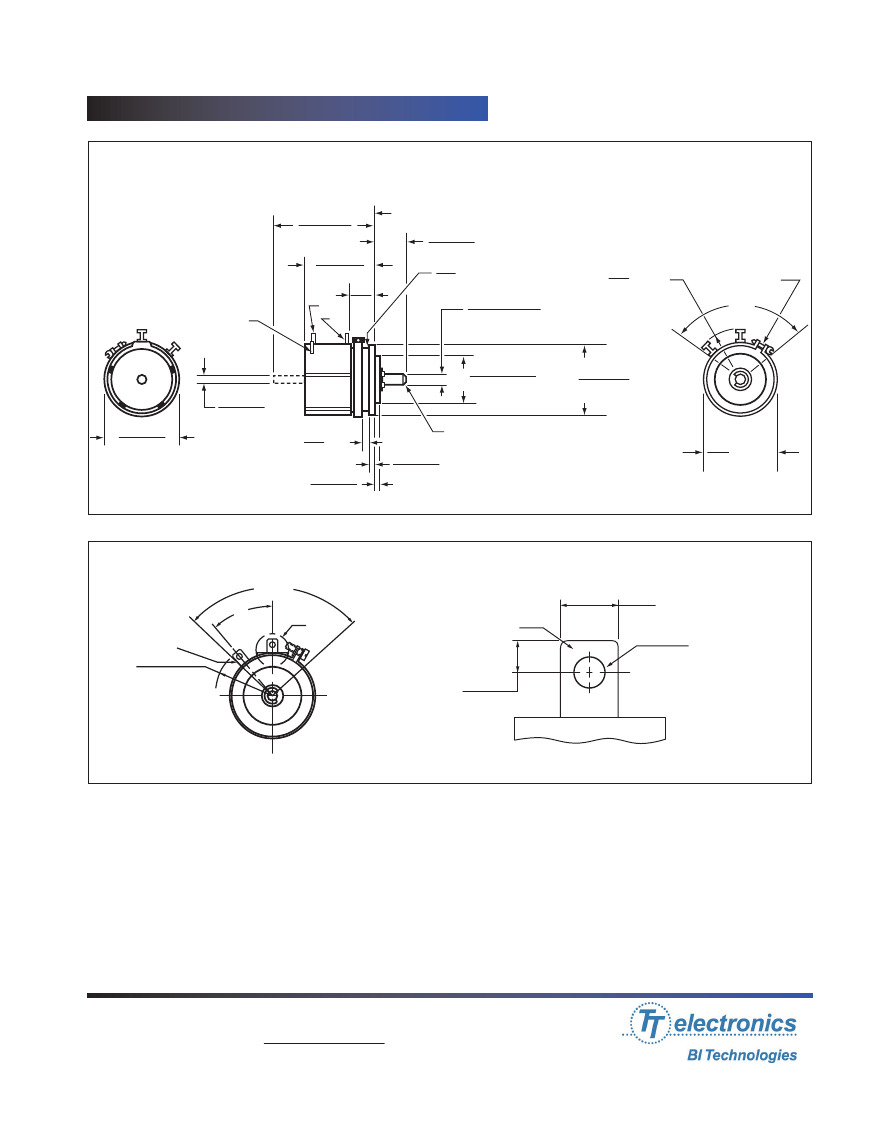

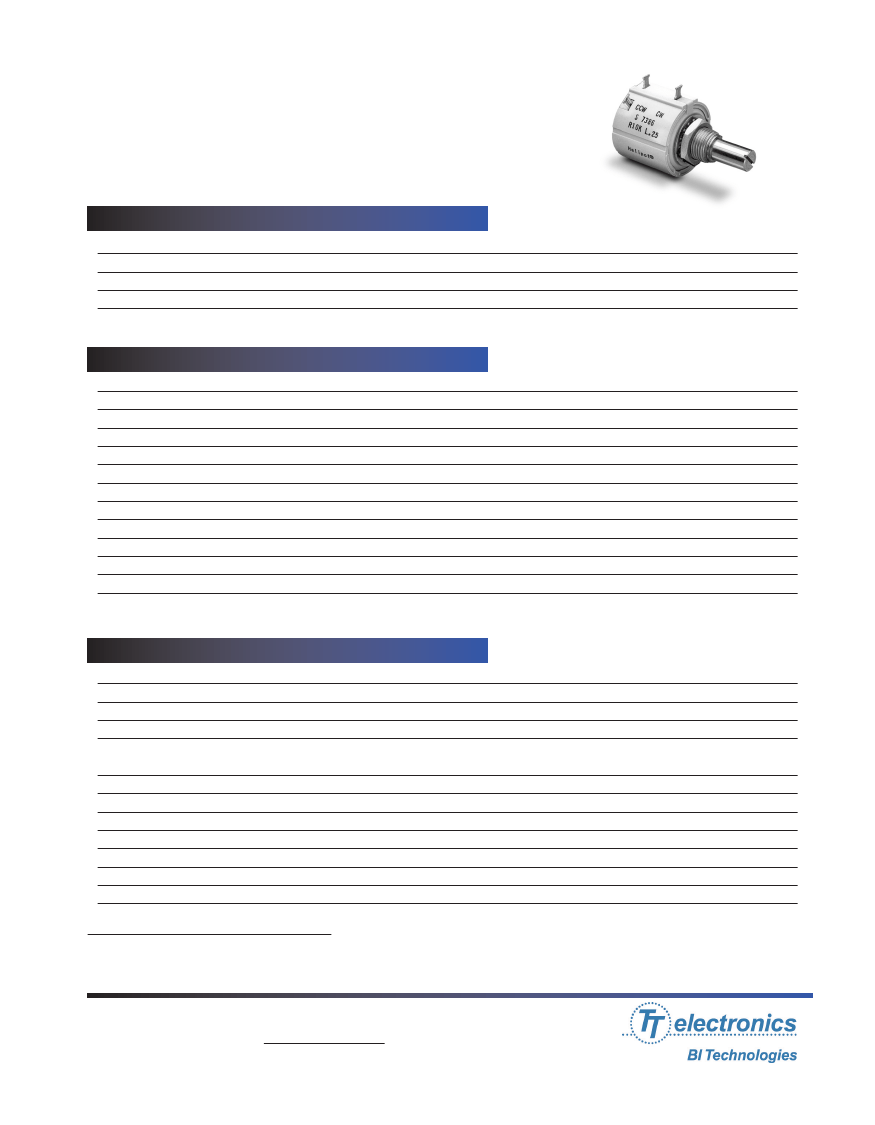

Model 7380

7/8” Diameter

3 Turn Wirewound

Precision Potentiometer

MODEL STYLES AVAILABLE

7381

7383

7386

7388 (for heavy side load applications)

1/8” Shaft, 1/4” Bushing

1/8” Shaft, Servo

1/4” Shaft, 3/8” Bushing

ELECTRICAL

Resistance Range

Standard Resistance Tolerance

Minimum Practical Resistance Tolerance

Independent Linearity

Minimum Practical Independent Linearity

Power Rating

Dielectric Strength

Insulation Resistance

Noise

Actual Electrical Travel

End Voltage

Tap Tolerance

100 to 30K ohms

±5%

±1%

±0.30% (<500 ohms), ±0.25% (≥500 ohms)

±0.30% (<500 ohms), ±0.20% (≥500 ohms)

1.5 Watts at 70°C, derating to 0 at 125°C

1,000 V rms

1,000 Megohms minimum

100 ohms maximum

1080° +10° -0° (>100 ohms), 1080° +10° -5° (≤100 ohms)

maximum 0.25% of input voltage

±3°

MECHANICAL

Total Mechanical Travel

Number of Gangs

Weight (single gang)

Backlash

7381, 7386

Static Stop Strength

Panel Nut Tightening Torque

Shaft End Play

Shaft Runout

Pilot Diameter Runout

Lateral Runout

Shaft Radial Play

Start/Run Torque (per gang)

maximum

maximum T.I.R.

maximum

60 oz.-in.

25 lb.-in.

0.010”

0.003”

0.004”

0.005”

0.003”

1.2 oz.-in.

1080° +15° -0°

2 maximum

0.75 oz. nominal

1° maximum

7383

36 oz.-in.

n/a

0.005”

0.002”

0.004”

0.002”

0.9 oz.-in.

Specifications subject to change without notice.

Linearity is measured between 1% and 99% of input voltage.

BI Technologies Corporation

4200 Bonita Place, Fullerton, CA 92835 USA

Phone: 714 447 2345

August 24, 2012

Website: www.bitechnologies.com

Model 7380 page 1 of 4
