Part Number

Search

8609-432-71-13-768-015-E1

Description
Board Euro Connector, 32 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Gray Insulator, Receptacle,
CategoryThe connector    The connector
File Size116KB,1 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Download Datasheet Parametric View All

8609-432-71-13-768-015-E1 Overview

Board Euro Connector, 32 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Gray Insulator, Receptacle,

8609-432-71-13-768-015-E1 Parametric

Parameter NameAttribute value
Objectid1741377475
Reach Compliance Codecompliant
ECCN codeEAR99
YTEOL7.9
Other featuresSTANDARD: DIN 41612
body width0.437 inch
subject depth0.709 inch
body length3.7 inch
Body/casing typeRECEPTACLE
Connector typeBOARD EURO CONNECTOR
Contact to complete cooperationGOLD OVER NICKEL
Contact completed and terminatedTIN LEAD
Contact point genderMALE
Contact materialPHOSPHOR BRONZE
Contact styleSQ PIN-SKT
DIN complianceYES
Filter functionNO
IEC complianceNO
Insulator colorGRAY
insulator materialPOLYETHYLENE
JESD-609 codee0
MIL complianceNO
Manufacturer's serial number8609
Plug contact pitch0.1 inch
Match contact row spacing0.1 inch
Mixed contactsNO
Installation methodRIGHT ANGLE
Installation typeBOARD
Loaded row nameA,C
PCB row number3
Number of rows loaded2
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
PCB contact row spacing2.54 mm
Plating thickness30u inch
polarization keyHOUSING SIDE
GuidelineUL, CSA
reliabilityCOMMERCIAL
Terminal length0.102 inch
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts32
UL Flammability Code94V-0

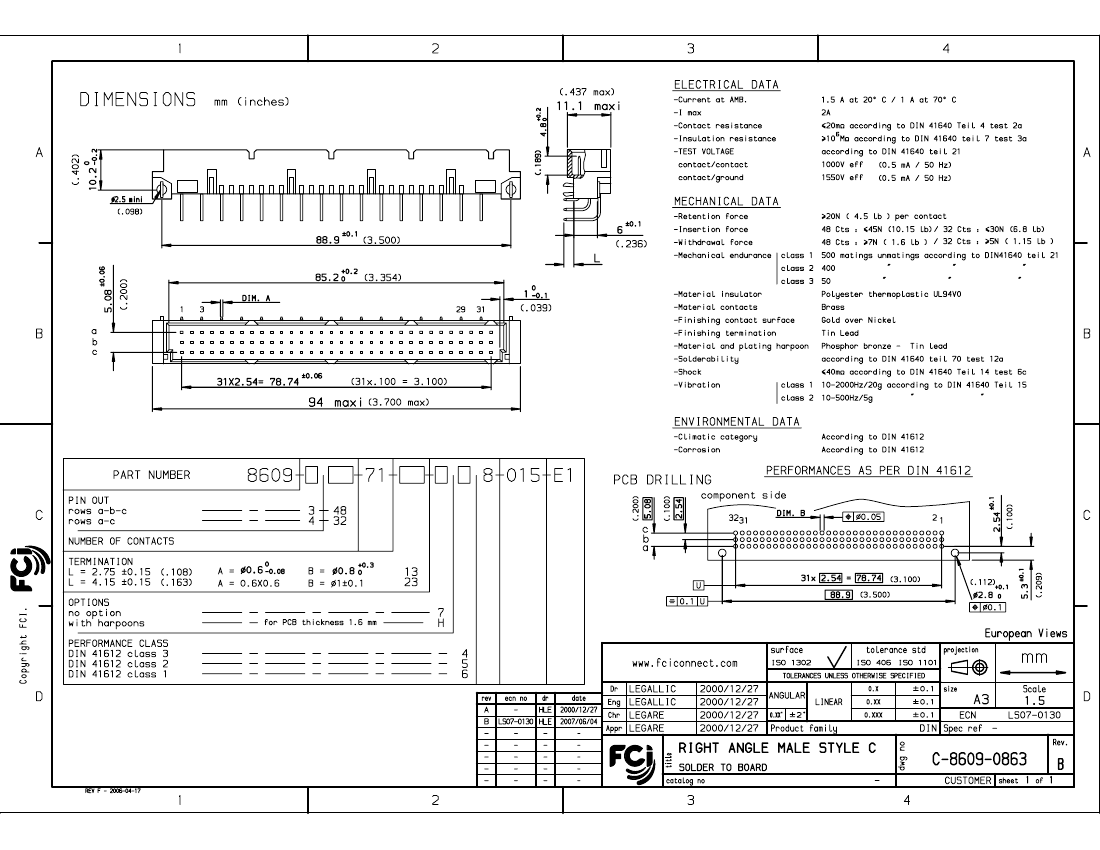

PDM: Rev:B
STATUS:
Released
Printed: May 14, 2011
.
