31113110: DescriptionRIACON Pluggable Terminal Block, Type 113, 10 POLE 3.81MM; CategoryThe connector terminals; File Size219KB，1 Pages; ManufacturerMETZ CONNECT; Websitehttp://www.metz-connect.com/; Environmental Compliance

Download Datasheet Parametric View All

31113110 Overview

RIACON Pluggable Terminal Block, Type 113, 10 POLE 3.81MM

31113110 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	METZ CONNECT
Reach Compliance Code	compliant
Base Number Matches	1

Preview

Download Datasheet

View All

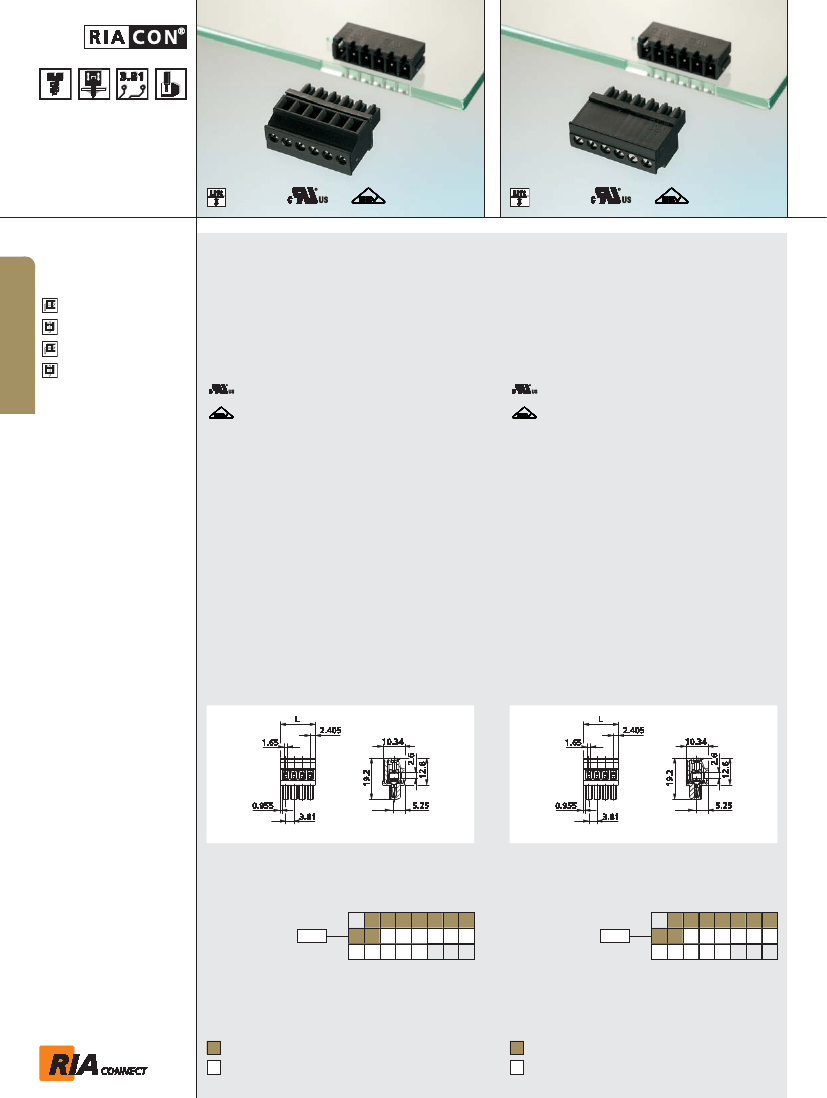

Headers

Type 113

page 124

page 122

page 124

page 122

Screw type terminal block, pluggable, centerline

3.81 mm / 0.150 inches, wire entry on the straight

side, perpendicular to plug direction, lift system,

contact system with integrated wire protection

Type 114

Screw type terminal block, pluggable, centerline

3.81 mm / 0.150 inches, wire entry on the rippled

side, perpendicular to plug direction, lift system,

contact system with integrated wire protection

Type 113

and

Type 114

Type 190

Type 191

Type 382

Type 383

Technical Data

V / A / AWG

300 / 11 / 28 - 16

Technical Data

V / A / AWG

300 / 11 / 28 - 16

0.08 - 1.5 mm² 130 V / 2.5 kV / 11 A

Insulation co-ordination according to EN 60664-1

Clearance and creepage distances min. 2.9 mm

Insulating material class

CTI 600

Overvoltage category

III

Pollution degree

Rated voltage

200

500

Rated test voltage

2.5

Protection category according

to IEC 529

IP20

Tightening torque UL

2.2 lb-in max.

Min. insul. strip length

7 mm

Solder pin dimension

1 mm

Recommended pc board hole

dia.

Ø 1.3 mm

Solder pin length

4 mm

Pole size

2 - 21

Color

black

Dimensions in mm

1 mm = 0.0394 in.

0.08 - 1.5 mm² 130 V / 2.5 kV / 11 A

Insulation co-ordination according to EN 60664-1

Clearance and creepage distances min. 2.9 mm

Insulating material class

CTI 600

Overvoltage category

III

Pollution degree

Rated voltage

200

500

Rated test voltage

2.5

Protection category according

to IEC 529

IP20

Tightening torque UL

2.2 lb-in max.

Min. insul. strip length

7 mm

Solder pin dimension

1 mm

Recommended pc board hole

dia.

Ø 1.3 mm

Solder pin length

4 mm

Pole size

2 - 21

Color

black

Dimensions in mm

1 mm = 0.0394 in.

L = (pole size - 1) x centerline + 4.81 mm / 0.189 inches

Part numbers (P/N)

Type 113

centerline 3.81 mm / 0.150 inches

(information: page 56)

Complete the part number by

adding the pole size.

Part numbers (P/N)

Type 114

(information: page 56)

Complete the part number by

adding the pole size.

02 03 04 05 06 07 08

09 10 11 12 13 14 15 16

17 18 19 20 21

centerline 3.81 mm / 0.150 inches

02 03 04 05 06 07 08

09 10 11 12 13 14 15 16

17 18 19 20 21

P/N

311131

P/N

311141

Standard pole sizes

Available on demand. Minimum order quantity 5000

pieces per item.

Standard pole sizes

Available on demand. Minimum order quantity 5000

pieces per item.
