31204102

Description
RIACON Direct Solder Terminal Block, Type 204, 2 POLE 5MM
CategoryThe connector    terminals
File Size105KB，1 Pages
ManufacturerMETZ CONNECT
Websitehttp://www.metz-connect.com/
Environmental Compliance
Download Datasheet Parametric Compare View All

31204102 Overview

RIACON Direct Solder Terminal Block, Type 204, 2 POLE 5MM

31204102 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerMETZ CONNECT
Reach Compliance Codecompliant
Base Number Matches1

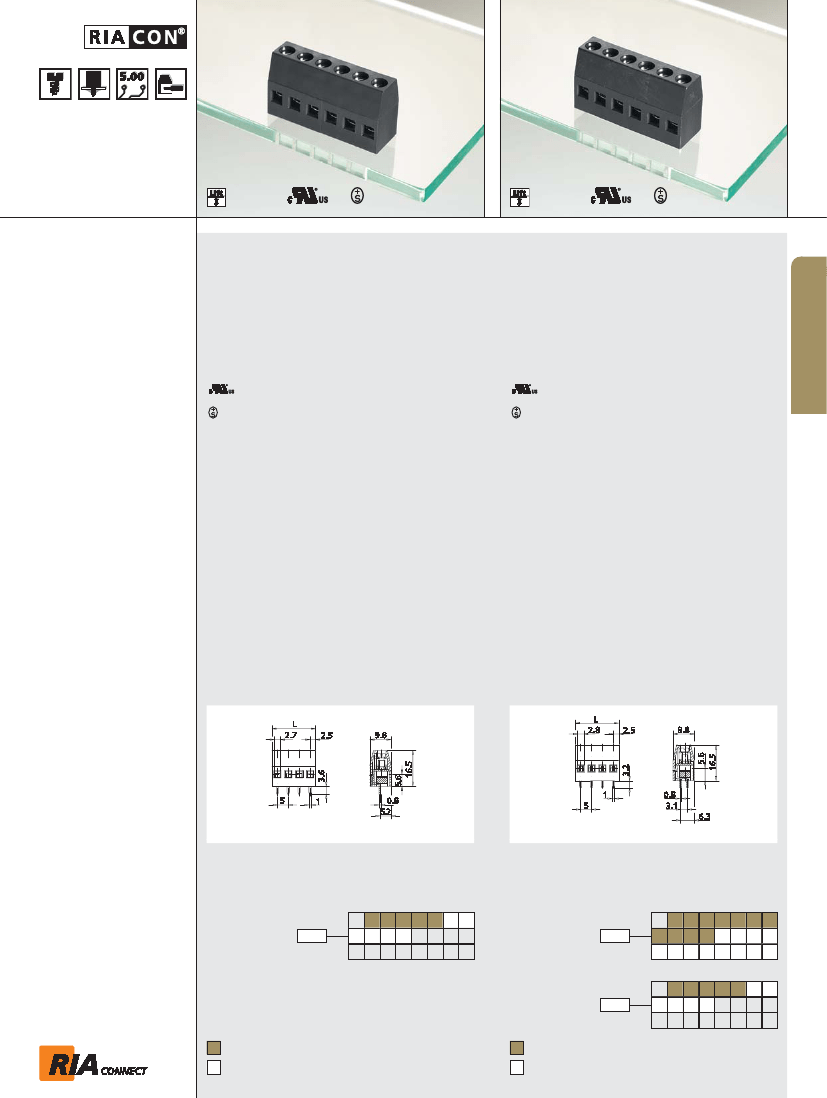

Preview

Download Datasheet
69
Type 204
Screw type terminal block, solderable, centerline 5 mm /
0.197 inches, horizontal wire entry, lift system
Type 269
Screw type terminal block, solderable, centerline 5 mm /
0.197 inches, horizontal wire entry, lift system,
double solder pins
A
Technical Data
V / A / AWG
300 / 15 / 28 - 12
Technical Data
V / A / AWG
300 / 15 / 28 - 12
0.08 - 2.5 mm² 250 V / 4 kV / 16 A
Insulation co-ordination according to EN 60664-1
Clearance and creepage distances min. 4 mm
Insulating material class
CTI 600
Overvoltage category
III
III
II
Pollution degree
3
2
2
Rated voltage
320
800
800
Rated test voltage
4
6
4
Protection category according
to IEC 529
IP20
Tightening torque UL
4.4 lb-in max.
Min. insul. strip length
8 mm
Solder pin dimension
0.8 x 1.0 mm
Recommended pc board hole
dia.
Ø 1.4 mm
Solder pin length
3.6 mm
Pole size
2 - 12
Color
black
Dimensions in mm
1 mm = 0.0394 in.
0.08 - 2.5 mm² 250 V / 4 kV / 15 A
Insulation co-ordination according to EN 60664-1
Clearance and creepage distances min. 4 mm
Insulating material class
CTI 600
Overvoltage category
III
III
II
Pollution degree
3
2
2
Rated voltage
320
800
800
Rated test voltage
4
6
4
Protection category according
to IEC 529
IP20
Tightening torque UL
4.4 lb-in max.
Min. insul. strip length
8 mm
Solder pin dimension
0.8 x 1.0 mm
Recommended pc board hole
dia.
Ø 1.4 mm
Solder pin length
3.2 mm
Pole size
2 - 24
Color
black
Dimensions in mm
1 mm = 0.0394 in.
L = (pole size - 1) x centerline + 5 mm / 0.197 inches
L = (pole size - 1) x centerline + 5 mm / 0.197 inches
Part numbers (P/N)
Type 204
centerline 5 mm / 0.197 inches
(information: page 56)
Complete the part number by
adding the pole size.
Part numbers (P/N)
Type 269
(information: page 56)
Complete the part number by
adding the pole size.
02 03 04 05 06 07 08
09 10 11 12
centerline 5 mm / 0.197 inches
02 03 04 05 06 07 08
09 10 11 12 13 14 15 16
17 18 19 20 21 22 23 24
P/N
312041
P/N
312691
Type 269
centerline 10 mm / 0.394 inches
02 03 04 05 06 07 08
09 10 11 12
P/N
312692
Standard pole sizes
Available on demand. Minimum order quantity 5000
pieces per item.
Standard pole sizes
Available on demand. Minimum order quantity 5000
pieces per item.
