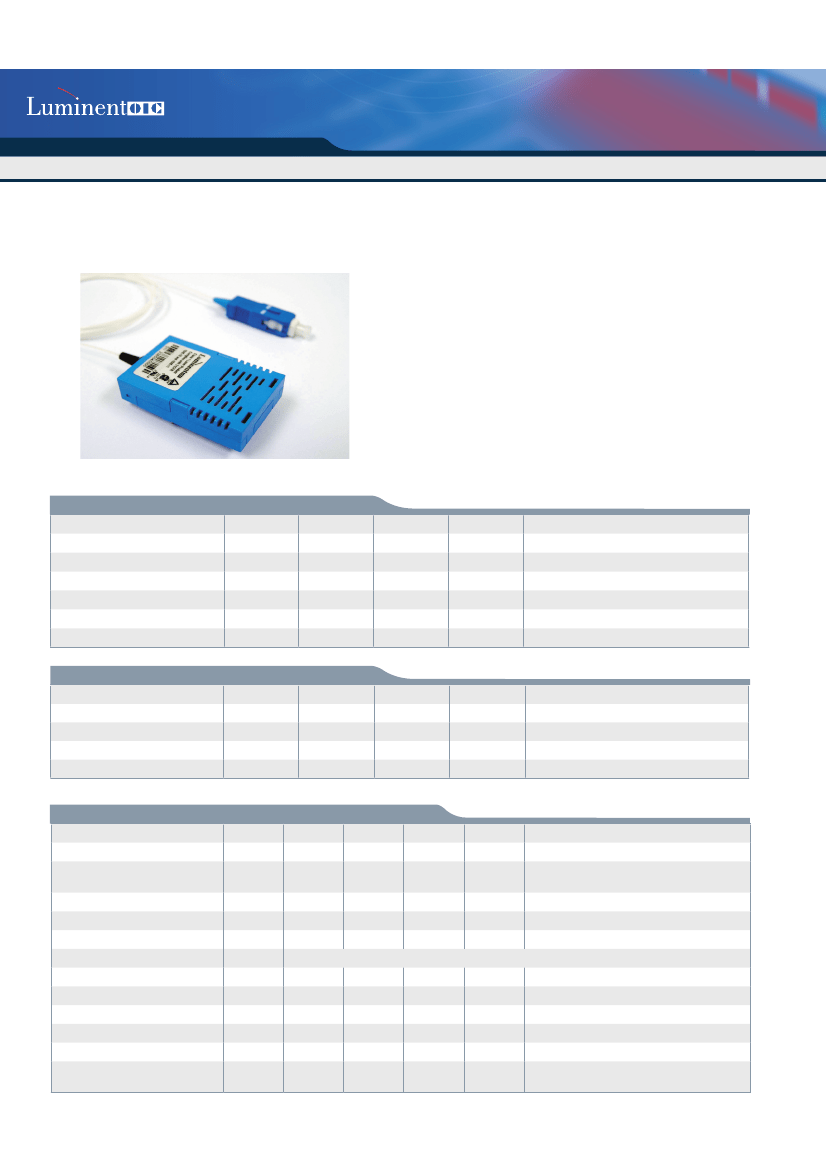

622 Mbps Bi-directional Single Fiber Transceiver
B-13/15-622-TPM(3)-Sxx-60
Features
• Coaxial Single Mode Single Fiber Package with Optional
SC/FC/ST Connector
• Wavelength Tx 1310 nm/Rx 1550 nm
• SONET OC-12 SDH STM-4 (S-4.1) Compliant
• Single +3.3V/+5V Power Supply
• LVPECL/PECL Differential Inputs and Outputs
• Wave Solderable and Aqueous Washable
• Class 1 Laser Int. Safety Standard IEC 825 Compliant
• Uncooled Laser Diode with MQW Structure
• Complies with Telcordia (Bellcore) GR-468-CORE
• Temperature Range: 0 to 70 ºC
• Optical Isolation > 30 dB
• Cross Talk < -33 dB
• Optical Return Loss >14 dB
• RoHS compliance available
Absolute Maximum Rating
Parameter
Power Supply Voltage (3.3V)
Power Supply Voltage (5V)
Output Current
Soldering Temperature
Operating Temperature
Storage Temperature
Recommended Operating Condition
Parameter
Power Supply Voltage (3.3V)
Power Supply Voltage (5V)
Operating Temperature
Data Rate
Symbol
V
cc
V
cc
T
opr
Min.
3.1
4.75
0
-
Typ.
3.3
5
-
622
Max.
3.5
5.25
70
-
Unit
V
V
ºC
Mbps
Symbol
V
cc
V
cc
I
out
-
T
opr
T
stg
Min.
0
0
0
-
0
-40
Max.
3.6
6
30
260
70
85
Unit
V
V
mA
ºC
ºC
ºC
10 seconds on leads only
Note
B-13/15-622-TPM3-Sxx-60
B-13/15-622-TPM-Sxx-60
Transmitter Specifications
Parameter
Optical
Optical Transmit Power
Output Center Wavelength
Output Spectrum Width
Extinction Ratio
Output Eye
Optical Rise Time
Optical Fall Time
Optical Isolation
Optical Return Loss
Relative Intensity Noise
Total Jitter
RIN
TJ
tr
tf
P
o
λ
∆λ
ER
8.2
-
-
30
14
-
-
-
-
-
-
-
-
-
-15
1260
-
1310
-8
1360
2.5
-
1.2
1.2
-
-
-120
0.55
dBm
nm
nm
dB
ns
ns
dB
dB
dB/Hz
ns
Measured with 2
23
-1 PRBS with 72 ones and
72 zeros.
LUMNDS609-Mar0907
Rev A.1
10% to 90% Values
10% to 90% Values
Tx: 1310 nm/ Rx: 1550 nm
RMS(σ)
Output power is coupled into a 9/125 µm
single mode fiber
Symbol
Min
Typical
Max
Unit
Notes
Compliant with Bellcore TR-NWT-000253 and ITU recommendation G957
LUMINENTOIC.COM
20550 Nordhoff St. • Chatsworth, CA 91311 • tel: 818.773.9044 • fax: 818.576.9486
9F, No 81, Shui Lee Rd. • Hsinchu, Taiwan, R.O.C. • tel: 886.3.5169222 • fax: 886.3.5169213
1
622 Mbps Bi-directional Single Fiber Transceiver
B-13/15-622-TPM(3)-Sxx-60
Transmitter Specifications
Parameter
Electrical
Power Supply Current
Data Input Current-Low
Data Input Current-High
Differential Input Voltage
Data Input Voltage-Low
Data Input Voltage-High
I
CC
I
IL
I
IH
V
IH
-V
IL
V
IL
-V
CC
V
IH
-V
CC
-
-350
-
300
-2.0
-1.1
-
-
-
-
-
-
140
-
350
-
-1.58
-0.74
mA
µA
µA
mV
V
V
These inputs are compatible with 10K, 10KH
and 100K ECL and PECL inputs
Maximum current is specified at
Vcc= Maximum @ maximum temperature
Symbol
Min
Typical
Max
Unit
Notes
Receiver Specifications
Parameter
Optical
Sensitivity
Maximum Input Power
Signal Detect-Asserted
Signal Detect-Deasserted
Signal Detect-Hysteresis
Cross Talk
Wavelength of Operation
-
-
P
in
Pa
Pd
-
-3
-
-40
-
-
1480
-
-
-
-
3.0
-
-
-28
-
-28
-
-
-33
1600
dBm
dBm
dBm
dBm
dB
dB
nm
Measured on transition: low to high
Measured on transition: high to low
Measured with 2
23
-1 PRBS with 72 ones and
72 zeros. (ITU-T recommendation G.958)
Symbol
Min
Typical
Max
Unit
Notes
Receiver Specifications
Parameter
Electrical
Power Supply Current
Data Output Voltage-Low
Data Output Voltage-High
Signal Detect Output Voltage-Low
Signal Detect Output Voltage-High
I
CC
V
OL
-V
cc
V
OH
-
V
cc
V
SDL-
V
cc
V
SDH-
V
cc
-
-1.9
-1.1
-1.9
-1.1
-
-
-
-
-
100
-1.6
-0.8
-1.6
-0.8
mA
V
V
V
V
These outputs are compatible with 10K,
10KH and 100KECL and PECL outputs.
The current excludes the output load current
Symbol
Min
Typical
Max
Unit
Notes
LUMINENTOIC.COM
20550 Nordhoff St. • Chatsworth, CA 91311 • tel: 818.773.9044 • fax: 818.576.9486
9F, No 81, Shui Lee Rd. • Hsinchu, Taiwan, R.O.C. • tel: 886.3.5169222 • fax: 886.3.5169213
2
LUMNDS609-Mar0907
Rev A.1
622 Mbps Bi-directional Single Fiber Transceiver
B-13/15-622-TPM(3)-Sxx-60
Connection Diagram
1. (Rx GND)
2. (Rx +)
3. (Rx-)
4. (SD)
5. (Rx Vcc)
6. (Tx Vcc)
7. (TD-)
8. (TD+)
9. (Tx GND)
NC
Top View
NC
Receiver Signal Ground
Receiver Data Out
Receiver Data Out Bar
Signal Detect
Receiver Power Supply
Transmitter Power Supply
Transmitter Data In Bar
Transmitter Data in
Transmitter Signal Ground
Warnings
PIN
1
2
3
4
5
6
7
8
9
Symbol
RxGND
RD+
RD-
SD
RxVcc
TxVcc
TD-
TD+
TxGND
Notes
Directly connect this pin to the receiver ground plane
See recommended circuit schematic
See recommended circuit schematic
Active high on this indicates a received optical signal
DC power for the receiver section
DC power for the transmitter section
See recommended circuit schematic
See recommended circuit schematic
Directly connect this pin to the transmitter ground plane
LUMINENTOIC.COM
20550 Nordhoff St. • Chatsworth, CA 91311 • tel: 818.773.9044 • fax: 818.576.9486
9F, No 81, Shui Lee Rd. • Hsinchu, Taiwan, R.O.C. • tel: 886.3.5169222 • fax: 886.3.5169213
3
LUMNDS609-Mar0907
Rev A.1
622 Mbps Bi-directional Single Fiber Transceiver
B-13/15-622-TPM(3)-Sxx-60

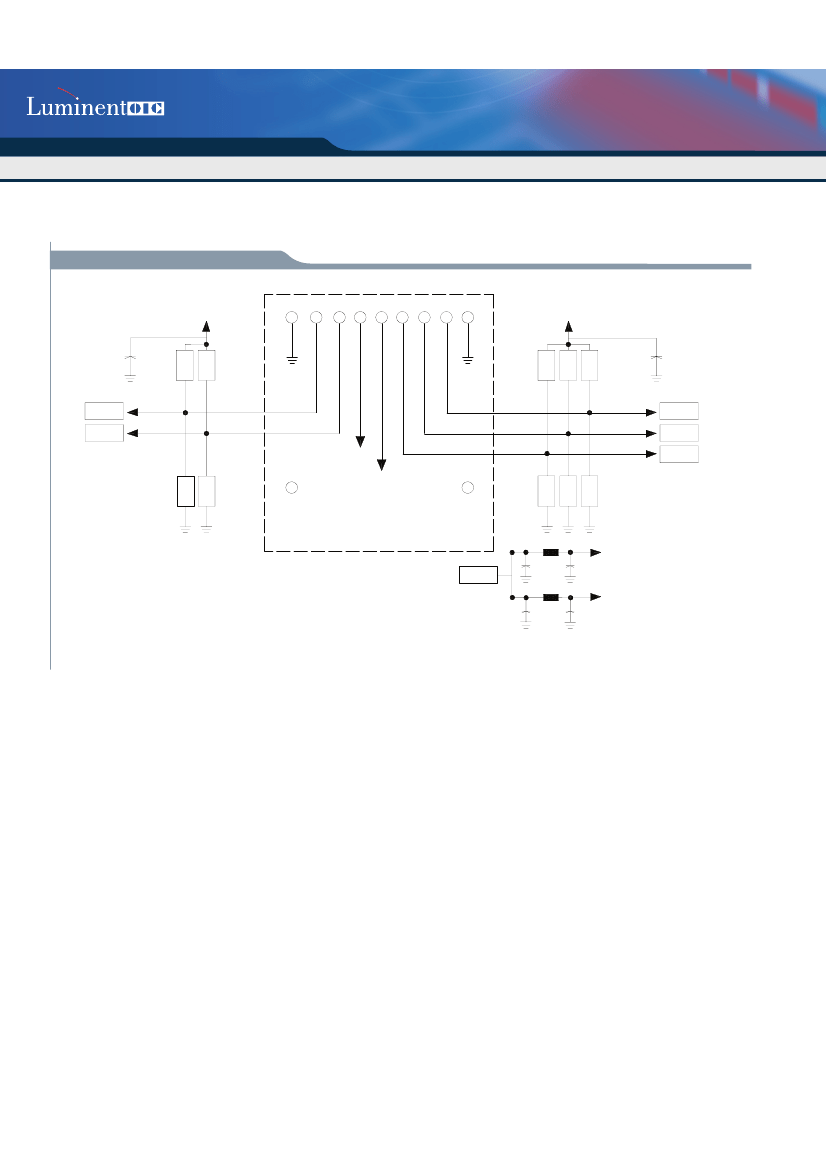

Recommended Circuit Schematic
Tx Vcc
C5
Rx Vcc
9 8
R1
R3
7 6 5
4 3 2
1
R9
R5
R7
C6
TD +
TD -
RD +
RD -
Tx Vcc
Rx Vcc
R2
R4
SD
R10
No internal
connection
Transceiver
Top view
No internal
connection
R6
R8
L1
Notes +3.3V:
R1=R3=R5=R7=R9=130
R2=R4=R6=R8=R10=82
C1=C2=C3=C5=C6=0.1F
C4=10F
L1=L2=1H
Notes +5V:
R1=R3=R5=R7=R9=82
R2=R4=R6=R8=R10=130
C1=C2=C3=C5=C6=0.1F
C4=10F
L1=L2=1H
Vcc
C3
L2
C4
C1
Rx Vcc
C2
Tx Vcc
The split-loaded terminations for ECL signals need to be located at the input of devices receiving those ECL signals.
The power supply filtering is required for good EMI performance. Use short tracks from the inductor L1/L2 to the module Rx Vcc.
A GND plane under the module is required for good EMI and sensitivity performance.
LUMINENTOIC.COM
20550 Nordhoff St. • Chatsworth, CA 91311 • tel: 818.773.9044 • fax: 818.576.9486
9F, No 81, Shui Lee Rd. • Hsinchu, Taiwan, R.O.C. • tel: 886.3.5169222 • fax: 886.3.5169213
4
LUMNDS609-Mar0907
Rev A.1
622 Mbps Bi-directional Single Fiber Transceiver
B-13/15-622-TPM(3)-Sxx-60

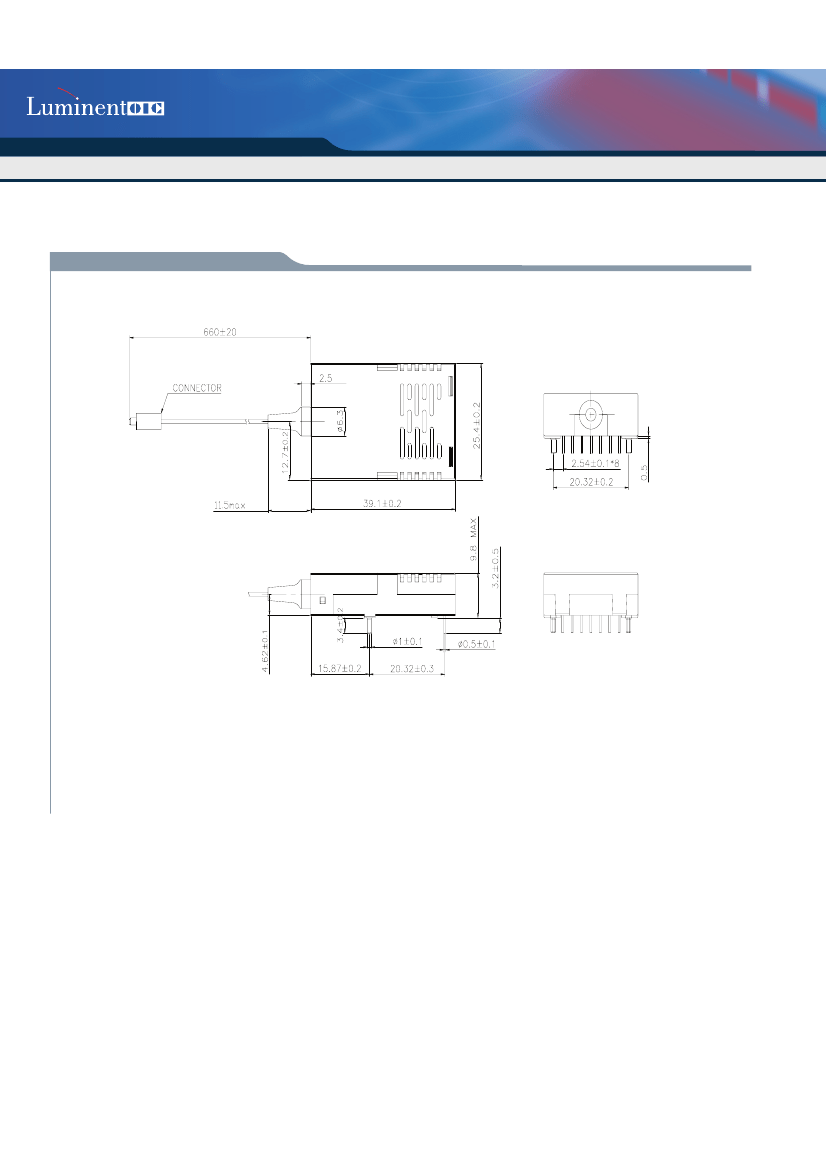

Package Diagram
Top View
max
Front View
Units: mm
Side View
Rear View
