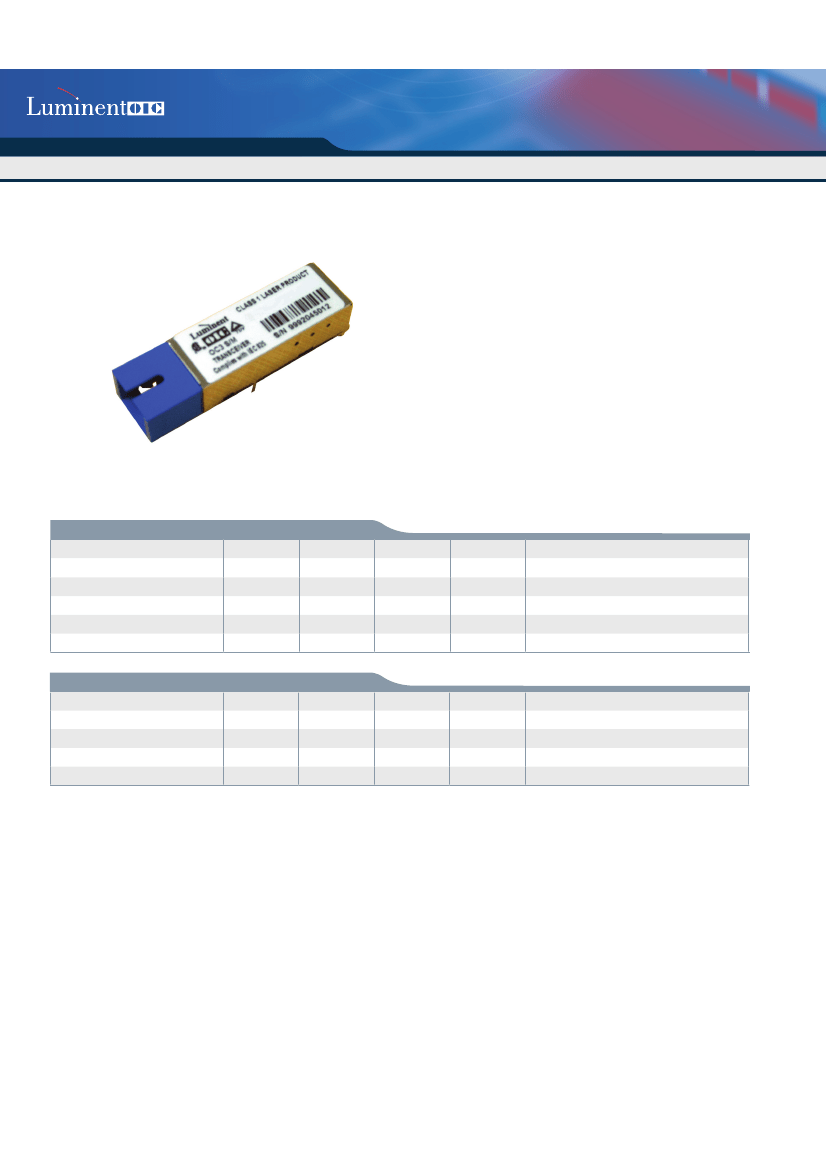

1.25 Gbps bi-directional SC Receptacle
single Fiber Transceiver
B-1X/1X-1250C-F(DFB)-SSCx
Features
• Single Mode Single Fiber 2x5 SFF SC Receptacle connector
• Gigabit Ethernet Compliant
• Single +3.3V Power Supply
• Tx 1310nm/Rx 1550 nm [B-13/15-1250C-F(DFB)-SSCx]
• Tx 1550nm/Rx 1310 nm [B-15/13-1250C-F(DFB)-SSCx]
• LVPECL Differential Inputs and Outputs
• LVTTL Signal Detection Output
• Class 1 Laser Int. Safety Standard IEC-825 Compliant
• EMI Shielding Finger Optional
• RoHS compliance available
Absolute Maximum Rating
Parameter
Power Supply Voltage
Input Voltage
Output Current
Soldering Temperature
Storage Temperature
Symbol
V
cc
-
Min.
0
0
-
-
-40
Max.
3.6
Vcc
30
260
85
Unit
V
V
mA
ºC
ºC
Note
I
out
-
10 seconds on leads only
T
stg
Recommended Operating Condition
Parameter
Power Supply Voltage
Operating Temperature (-SSCx(S))
Operating Temperature (-SSCxA(S))
Data Rate
Symbol
V
cc
T
opr
T
opr
-
Min.
3.1
-5
-40
-
Typ.
3.3
-
-
1250
Max.
3.5
70
85
-
Unit
V
ºC
ºC
Mbps
LUMINENTOIC.COM
20550 Nordhoff St. • Chatsworth, CA 91311 • tel: 818.773.9044 • fax: 818.576.9486
9F, No 81, Shui Lee Rd. • Hsinchu, Taiwan, R.O.C. • tel: 886.3.5169222 • fax: 886.3.5169213
1
LUMNDS796-Jan2407
Rev. A.3
1.25 Gbps bi-directional SC Receptacle
single Fiber Transceiver
B-1X/1X-1250C-F(DFB)-SSCx
Transmitter Specifications
Parameter
Optical
Optical Transmit Power
Optical Transmit Power
Optical Transmit Power
Optical Transmit Power
Output center Wavelength
Output center Wavelength
Output Spectrum Width
Output Spectrum Width
Side Mode Supression Ratio
Extinction Ratio
Output Eye
Optical Rise Time
Optical Fall Time
Optical Isolation
Relative Intensity Noise
Total Jitter
Symbol
P
o
P
o
P
o
P
o
λ
λ
∆λ
rms
∆λ
SMSR
ER
t
r
t
f
RIN
TJ
Min
-9
-5
-3
0
1260
1480
-
-
30
9
-
-
30
-
-
Typical
-
-
-
-
1310
1550
-
-
-
-
-
-
-
-
-
Max
-3
0
+2
+5
1360
1580
4
1
-
-
260
260
-
-116
270
Unit
dBm
dBm
dBm
dBm
nm
nm
nm
nm
dB
dB
ps
ps
dB
dB/Hz
ns
Notes
B-1X/1X-1250C-F(DFB)-SSC
B-1X/1X-1250C-FDFB-SSC2
B-1X/1X-1250C-FDFB-SSC3
B-1X/1X-1250C-FDFB-SSC4
B-13/15-1250C-F(DFB)-SSCX
B-15/13-1250C-F(DFB)-SSCX
RMS(σ), B-1X/1X-1250C-F-SSC
-20dB width, B-1X/1X-1250C-FDFB-SSCX
B-1X/1X-1250C-FDFB-SSCX
Compliant with IEEE 802.3z
20% to 80% Values
20% to 80% Values
Measured with 2
7
-1 PRBS
Transmitter Specifications
Parameter
Electrical
Supply Current
Transmit Enable Voltage
Transmit Disable Voltage
Data Input Current-Low
Data Input Current-High
Differential Input Voltage
Data Input Voltage-Low
Data Input Voltage-High
Symbol
I
CC
V
EN
V
DIS
I
IL
I
IH
V
IH
-V
IL
V
IL
-V
CC
V
IH
-V
CC
Min
-
0
2
-350
-
300
-2.0
-1.1
Typical
-
-
-
-
-
-
-
-
Max
150
0.8
V
CC
-
350
-
-1.58
-0.74
Unit
mA
V
V
µA
µA
mV
V
V
Notes
Maximum current is specified at Vcc=
Maximum @ maximum temperature
These inputs are compatible with 10K, 10KH
and 100K ECL and PECL inputs
LUMINENTOIC.COM
20550 Nordhoff St. • Chatsworth, CA 91311 • tel: 818.773.9044 • fax: 818.576.9486
9F, No 81, Shui Lee Rd. • Hsinchu, Taiwan, R.O.C. • tel: 886.3.5169222 • fax: 886.3.5169213
2
LUMNDS796-Jan2407
Rev. A.3
1.25 Gbps bi-directional SC Receptacle
single Fiber Transceiver
B-1X/1X-1250C-F(DFB)-SSCx
Receiver Specifications
Parameter
Optical
Sensitivity
Maximum Input Power
Signal Detect-Asserted
Signal Detect-Deasserted
Signal Detect-Hysteresis
Cross Talk
Wavelength of Operation
Wavelength of Operation
Symbol
-
P
in
Pa
Pd
-
-
-
-
Min
-
-3
-
-38
1
-
1480
1260
Typical
-
-
-
-
-
-
-
-
Max
-22
-
-22
-
4
-33
1600
1360
Unit
dBm
dBm
dBm
dBm
dB
dB
nm
nm
Notes
Measured with 2
7
-1 PRBS,BER= 10
-12
Measured on transition: low to high (Note 1)
Measured on transition: high to low (Note 1)
B-13/15-1250C-F(DFB)-SSCX
B-15/13-1250C-F(DFB)-SSCX
Note 1: The SD level should be deasserted when fiber disconnected
Receiver Specifications
Parameter
Electrical
Supply Current
Data Output Voltage-Low
Data Output Voltage-High
Signal Detect Output Voltage-Low
Signal Detect Output Voltage-High
Symbol
I
CC
V
OL
-V
cc
V
OH
-
V
cc
V
SDL
V
SDH
Min
-
-2.0
-1.1
0
2.0
Typical
-
-
-
-
-
Max
100
-1.58
-0.74
0.5
Vcc
Unit
mA
V
V
V
V
Note
The current excludes the output load current
These outputs are compatible with 10K,
10KH and 100KECL and PECL outputs
LVTTL SD Output
LUMINENTOIC.COM
20550 Nordhoff St. • Chatsworth, CA 91311 • tel: 818.773.9044 • fax: 818.576.9486
9F, No 81, Shui Lee Rd. • Hsinchu, Taiwan, R.O.C. • tel: 886.3.5169222 • fax: 886.3.5169213
3
LUMNDS796-Jan2407
Rev. A.3
1.25 Gbps bi-directional SC Receptacle
single Fiber Transceiver
B-1X/1X-1250C-F(DFB)-SSCx

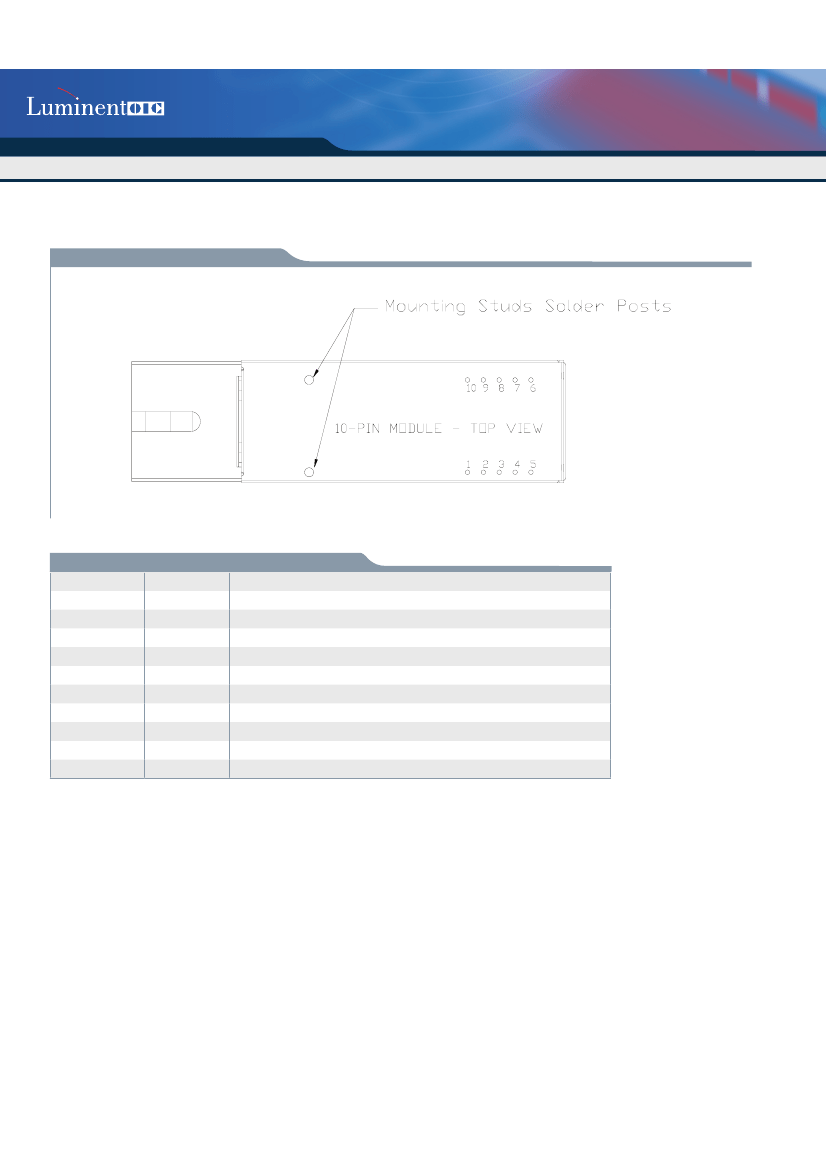

Connection Diagram
PIN
1
2
3
4
5
6
7
8
Warnings
9
10
Symbol
RxGND
RxVcc
SD
RD-
RD+
TxVcc
TxGND
TxDIS
TD+
TD-
Notes
Directly connect this pin to the receiver ground plane
+3.3V dc power for the receiver section
Active high on this indicates a received optical signal(LVTTL)
Receiver Data Out Bar(LVPECL)
Receiver Data Out (LVPECL)
+3.3V dc power for the transmitter section
Directly connect this pin to the tranmitter ground plane
Transmitter disable(LVTTL)
Transmitter Data In (LVPECL)
Transmitter Data In Bar (LVPECL)
LUMINENTOIC.COM
20550 Nordhoff St. • Chatsworth, CA 91311 • tel: 818.773.9044 • fax: 818.576.9486
9F, No 81, Shui Lee Rd. • Hsinchu, Taiwan, R.O.C. • tel: 886.3.5169222 • fax: 886.3.5169213
4
LUMNDS796-Jan2407
Rev. A.3
1.25 Gbps bi-directional SC Receptacle
single Fiber Transceiver
B-1X/1X-1250C-F(DFB)-SSCx

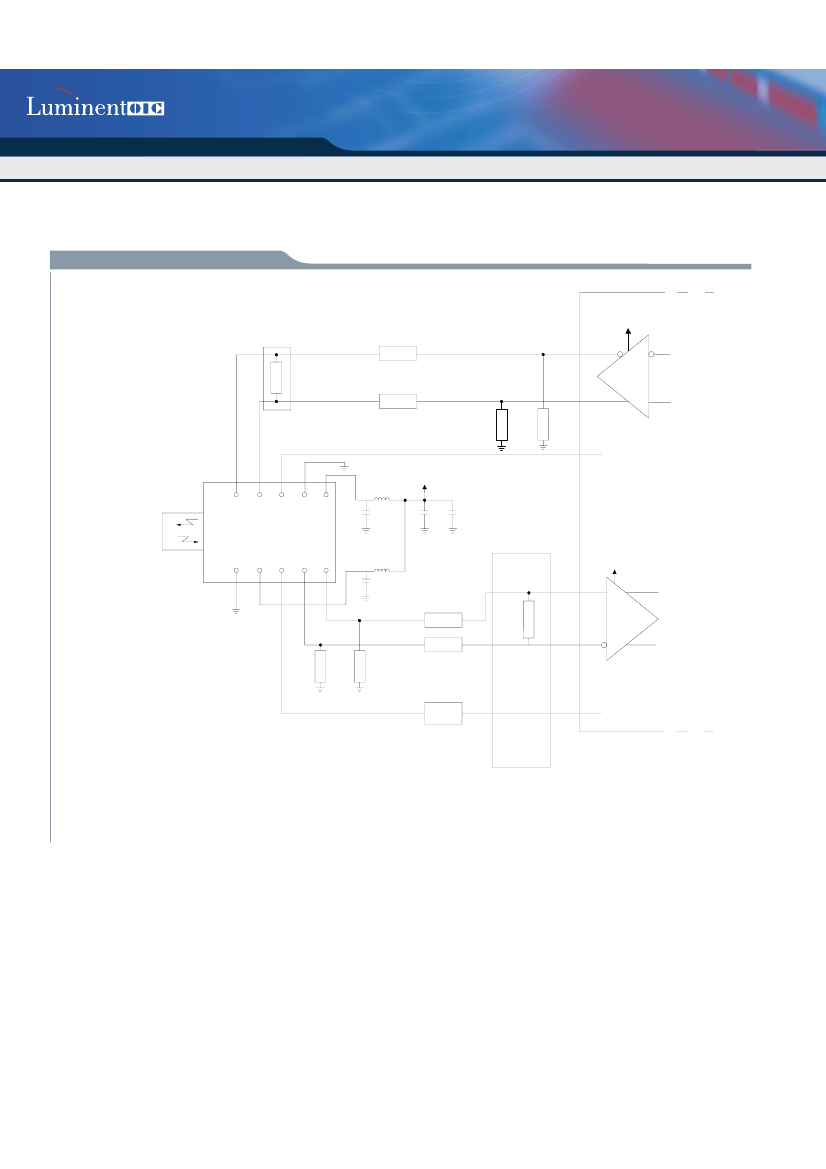

Recommended Circuit Schematic
PHY DEVICE
TERMINATE AT
TRANSCEIVER INPUTS
Vcc(+3.3V)
Z=50
½
TD-
100
½
LVPECL
Z=50
½
130
½
TD+
130
½
10
TD-
9
TD+
8
TxDIS
7
TxGND
6
1
½
H
TxVcc
Tx Disable
LVTTL
Vcc(+3.3V)
C3
Tx
Rx
C2
10
½
F
RxGND
RxVcc
RD+
RD-
SD
1
½
H
C1
Vcc(+3.3V)
RD+
1
2
3
4
5
Z=50
½
100
½
RD-
LVPECL
Z=50
½
130
½
130
½
Z=50
½
Vcc(+3.3V)
SD
LVTTL
NOTE:C1=C2=C3=100nF
TERMINATE AT
DEVICE INPUTS
The split-loaded terminations for ECL signals need to be located at the input of devices receiving those ECL signals.
The power supply filtering is required for good EMI performance. Use short tracks from the inductor L1/L2 to the module Rx Vcc.
A GND plane under the module is required for good EMI and sensitivity performance.
LUMINENTOIC.COM
20550 Nordhoff St. • Chatsworth, CA 91311 • tel: 818.773.9044 • fax: 818.576.9486
9F, No 81, Shui Lee Rd. • Hsinchu, Taiwan, R.O.C. • tel: 886.3.5169222 • fax: 886.3.5169213
5
LUMNDS796-Jan2407
Rev. A.3
