93723-51172 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 93723-51172

93723-51172: DescriptionCard Edge Connector, 72 Contact(s), 2 Row(s), Female, Right Angle, Surface Mount Terminal, Socket; CategoryThe connector The connector; File Size739KB，7 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

93723-51172 Overview

Card Edge Connector, 72 Contact(s), 2 Row(s), Female, Right Angle, Surface Mount Terminal, Socket

93723-51172 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
Is Samacsys	N
Body/casing type	SOCKET
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	TIN LEAD (150) OVER NICKEL
Contact completed and terminated	TIN LEAD (100) OVER NICKEL
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	93723
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	0.635 mm
Termination type	SURFACE MOUNT
Total number of contacts	72
UL Flammability Code	94V-0
Base Number Matches	1

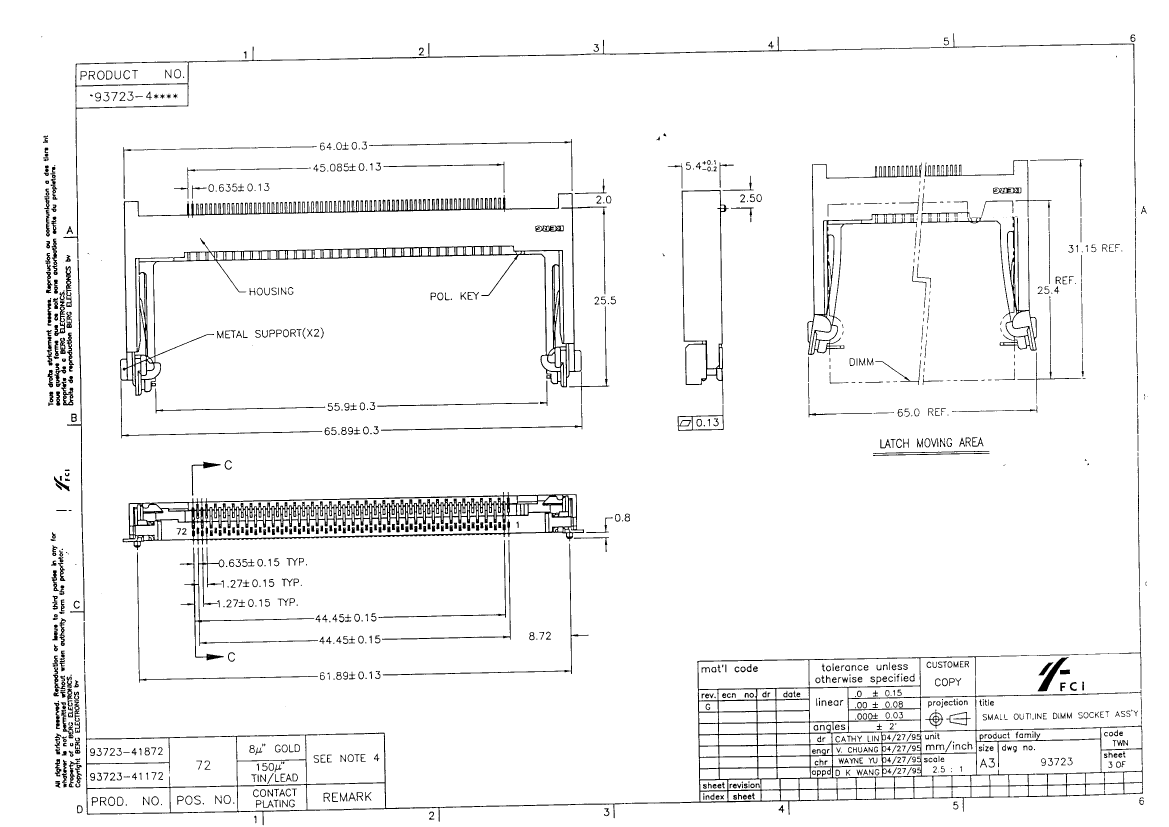

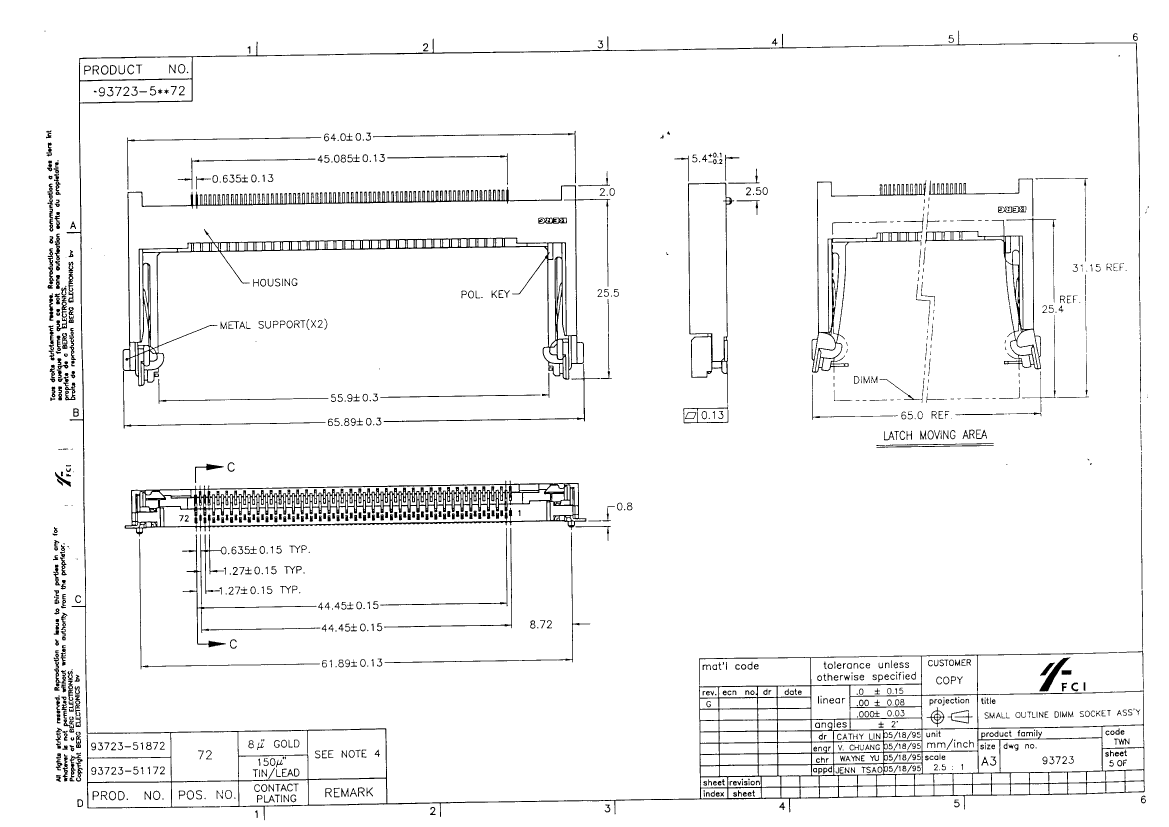

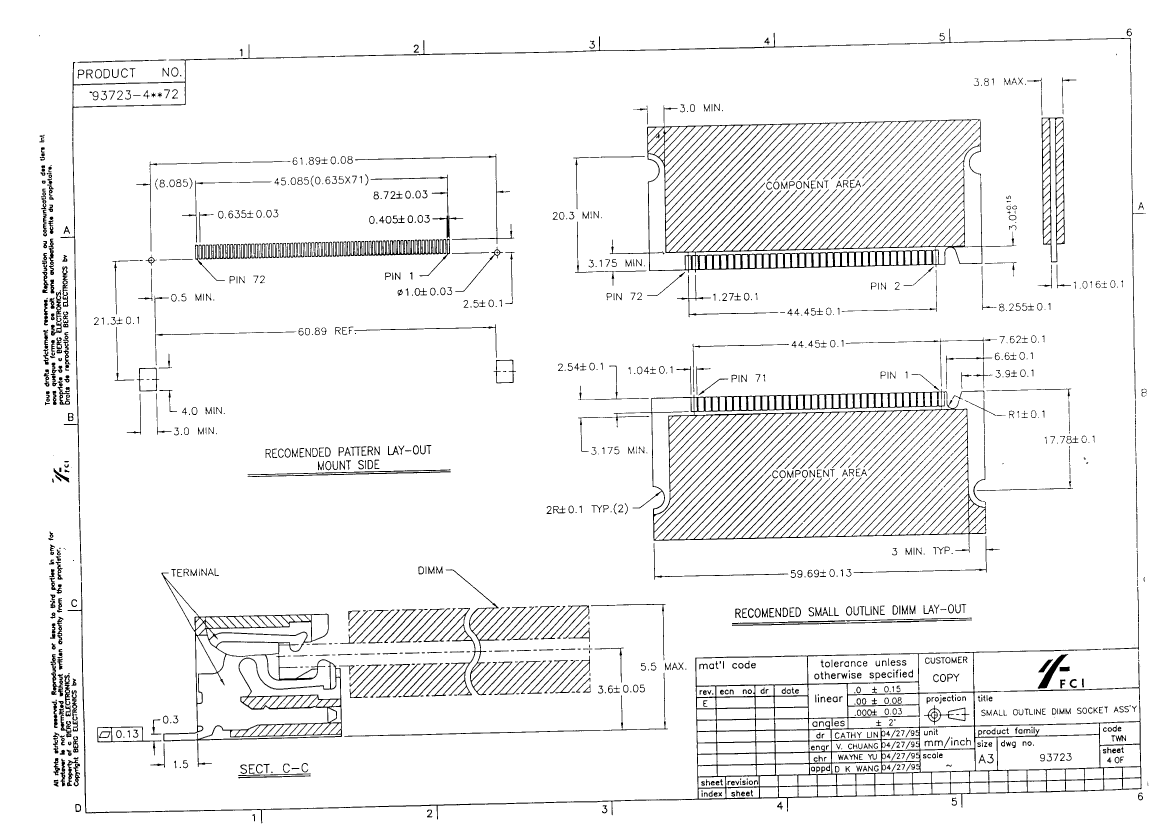

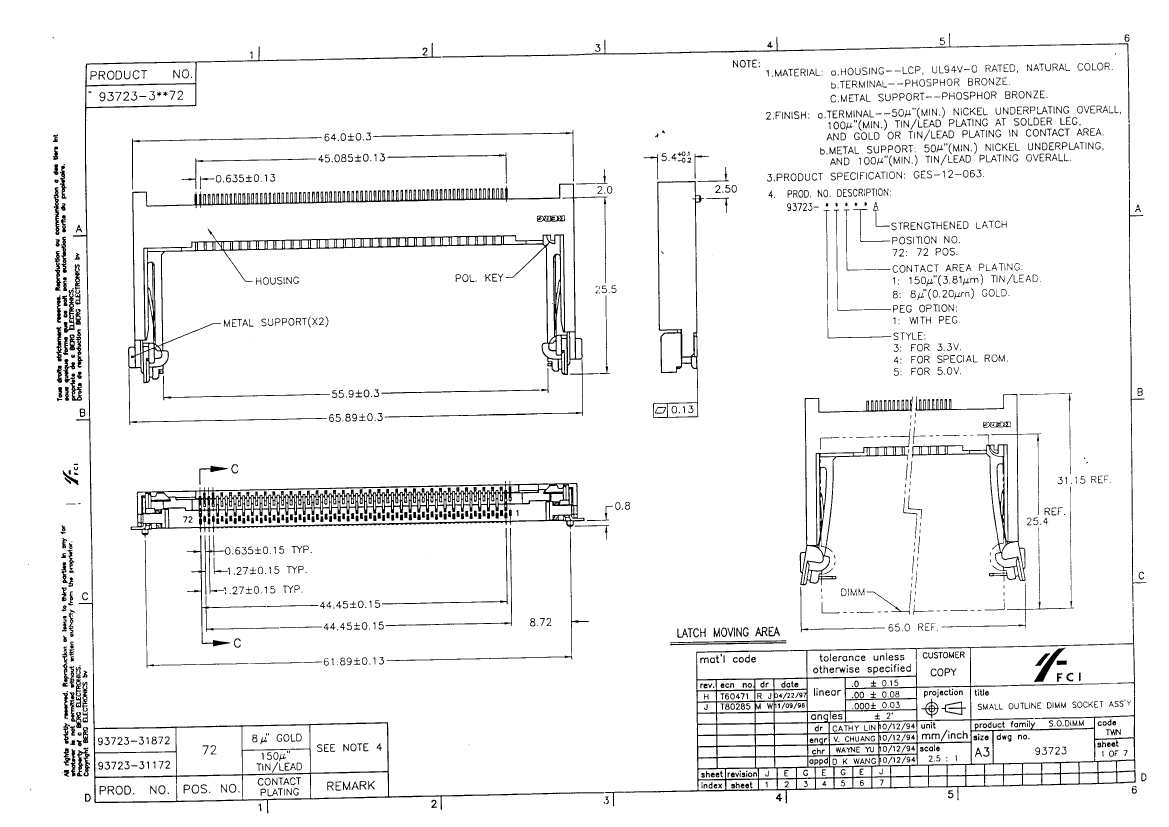

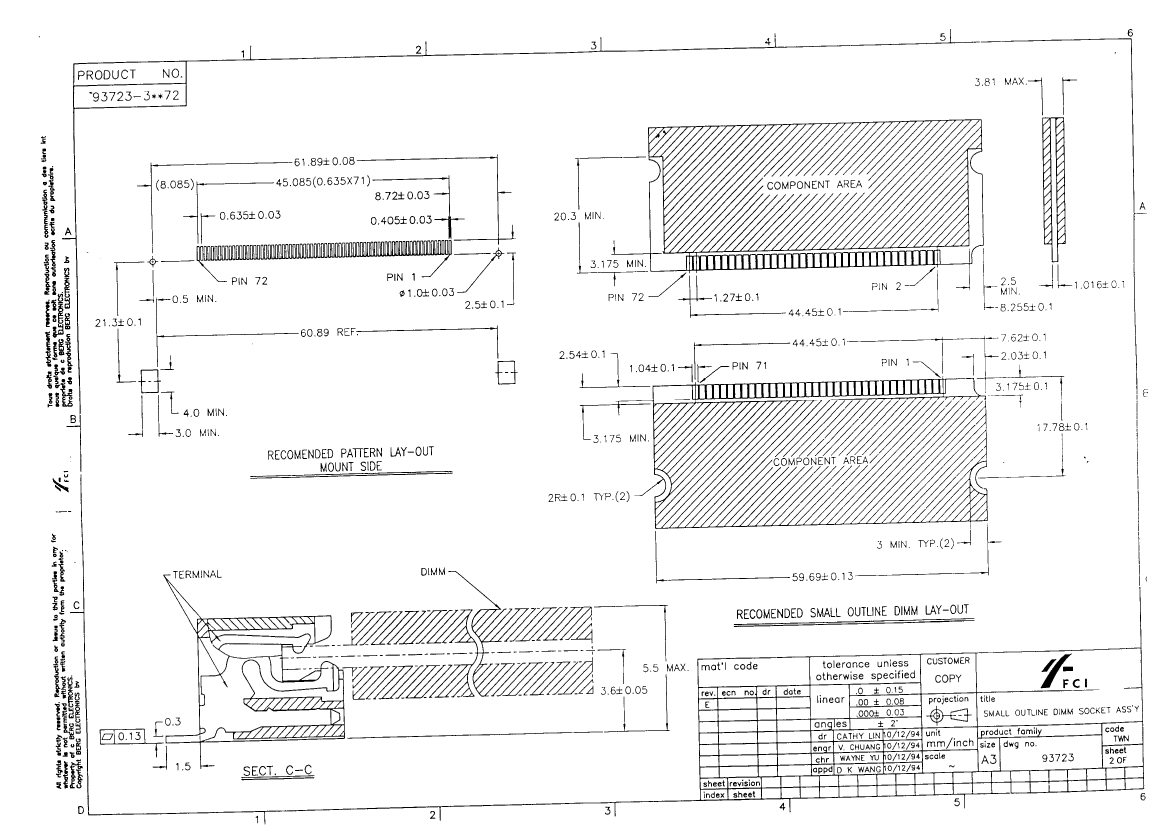

Preview

Download Datasheet

View All

PDM: Rev:J

STATUS:

Released

Printed: Apr 15, 2006

93723-51172 Related Products

	93723-51172	93723-41172	93723-31172A	93723-31172	93723-31872A	93723-31872	93723-41872	93723-51872
Description	Card Edge Connector, 72 Contact(s), 2 Row(s), Female, Right Angle, Surface Mount Terminal, Socket	Card Edge Connector, 72 Contact(s), 2 Row(s), Female, Right Angle, Surface Mount Terminal, Socket	Card Edge Connector, 72 Contact(s), 2 Row(s), Female, Right Angle, Surface Mount Terminal, Socket	Card Edge Connector, 72 Contact(s), 2 Row(s), Female, Right Angle, Surface Mount Terminal, Socket	Card Edge Connector, 72 Contact(s), 2 Row(s), Female, Right Angle, Surface Mount Terminal, Socket	Card Edge Connector, 72 Contact(s), 2 Row(s), Female, Right Angle, Surface Mount Terminal, Socket	Card Edge Connector, 72 Contact(s), 2 Row(s), Female, Right Angle, Surface Mount Terminal, Socket	Card Edge Connector, 72 Contact(s), 2 Row(s), Female, Right Angle, Surface Mount Terminal, Socket
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	unknown
Body/casing type	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET
Connector type	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR
Contact to complete cooperation	TIN LEAD (150) OVER NICKEL	TIN LEAD (150) OVER NICKEL	TIN LEAD (150) OVER NICKEL	TIN LEAD (150) OVER NICKEL	GOLD (8) OVER NICKEL	GOLD (8) OVER NICKEL	GOLD (8) OVER NICKEL	GOLD (8) OVER NICKEL
Contact completed and terminated	TIN LEAD (100) OVER NICKEL	TIN LEAD (100) OVER NICKEL	TIN LEAD (100) OVER NICKEL	TIN LEAD (100) OVER NICKEL	TIN LEAD (100) OVER NICKEL	TIN LEAD (100) OVER NICKEL	TIN LEAD (100) OVER NICKEL	TIN LEAD (100) OVER NICKEL
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	93723	93723	93723	93723	93723	93723	93723	93723
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	0.635 mm	0.635 mm	0.635 mm	0.635 mm	0.635 mm	0.635 mm	0.635 mm	0.635 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	72	72	72	72	72	72	72	72
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Maker	Amphenol	-	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
Is Samacsys	N	-	N	N	N	N	N	-
Base Number Matches	1	1	1	1	1	1	1	-
