BXA3-12D15-F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> BXA3-12D15-F

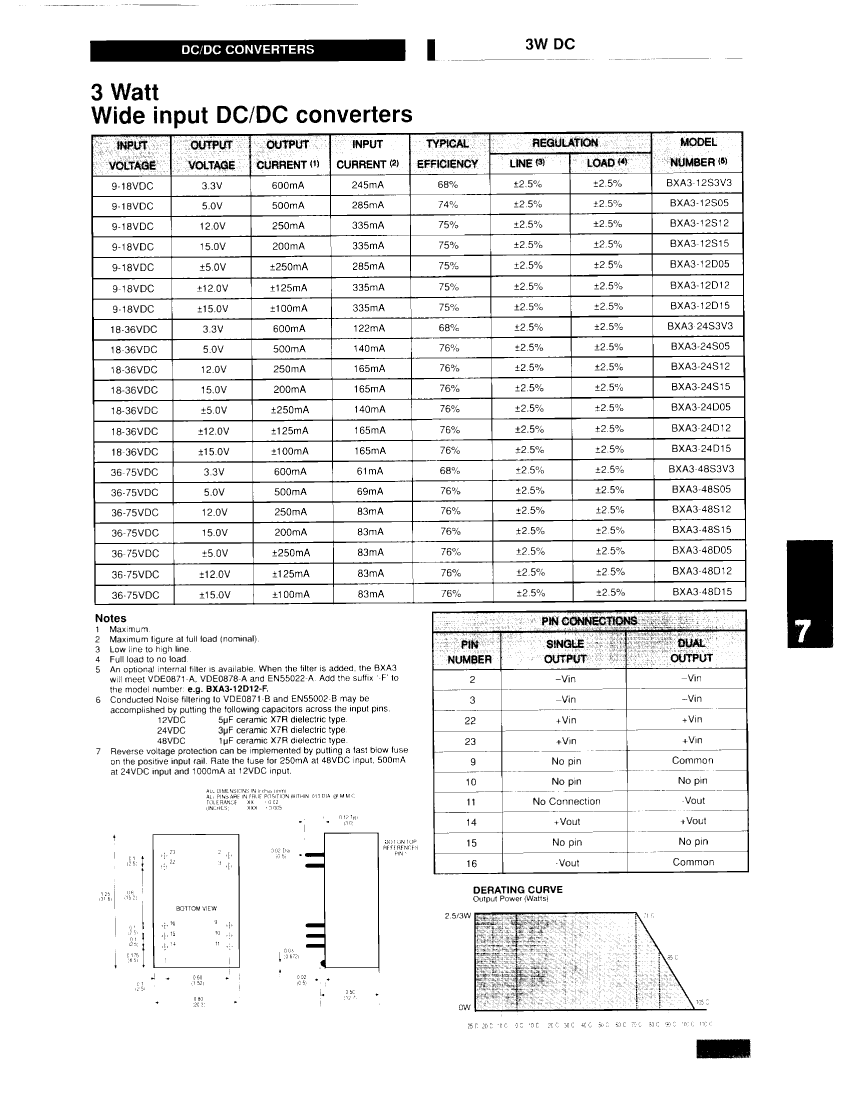

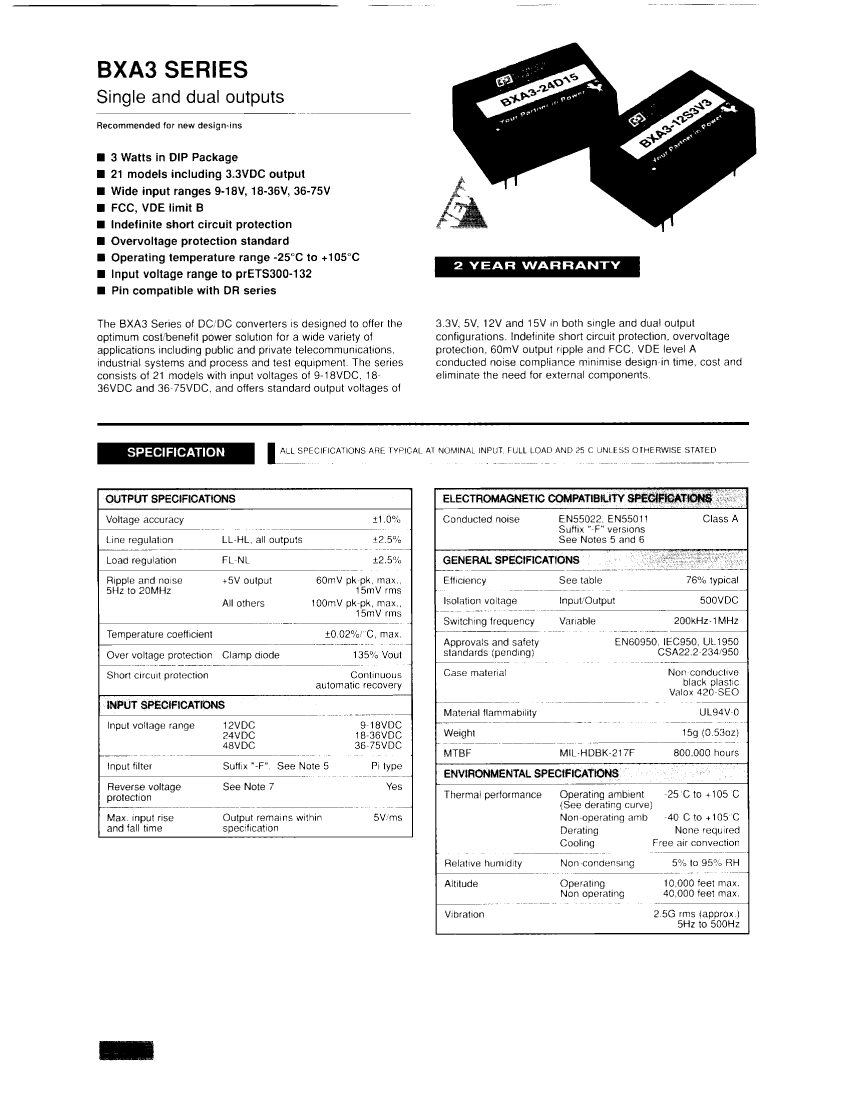

BXA3-12D15-F: DescriptionDC-DC Regulated Power Supply Module, 2 Output, 3W, Hybrid; CategoryPower/power management The power supply circuit; File Size136KB，2 Pages; ManufacturerArtysen Embedded Technologies

Download Datasheet Parametric Compare View All

BXA3-12D15-F Overview

DC-DC Regulated Power Supply Module, 2 Output, 3W, Hybrid

BXA3-12D15-F Parametric

Parameter Name	Attribute value
Maker	Artysen Embedded Technologies
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Other features	INPUT FILTER
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Certification	UL; CSA
Efficiency (main output)	75%
Maximum input voltage	18 V
Minimum input voltage	9 V
Nominal input voltage	12 V
JESD-30 code	R-PDIP-P10
Maximum grid adjustment rate	2.5%
Maximum load regulation	2.5%
Number of functions	1
Output times	2
Number of terminals	10
Maximum operating temperature	105 °C
Minimum operating temperature	-25 °C
Maximum output voltage	15.15 V
Minimum output voltage	14.85 V
Nominal output voltage	15 V
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Protect	CURRENT; OUTPUT OVER VOLTAGE
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Temperature level	OTHER
Terminal form	PIN/PEG
Terminal location	DUAL
Maximum total power output	3 W
Fine-tuning/adjustable output	NO
Base Number Matches	1

Preview

Download Datasheet

View All

BXA3-12D15-F Related Products

	BXA3-12D15-F	BXA3-48S3V3-F	BXA3-24D15-F	BXA3-12S05-F	BXA3-12S05
Description	DC-DC Regulated Power Supply Module, 2 Output, 3W, Hybrid	DC-DC Regulated Power Supply Module, 1 Output, 3W, Hybrid	DC-DC Regulated Power Supply Module, 2 Output, 3W, Hybrid	DC-DC Regulated Power Supply Module, 1 Output, 3W, Hybrid, DIP-23	DC-DC Regulated Power Supply Module, 1 Output, 3W, Hybrid, DIP-23
Maker	Artysen Embedded Technologies	Artysen Embedded Technologies	Artysen Embedded Technologies	Artysen Embedded Technologies	Artysen Embedded Technologies
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	18 V	75 V	36 V	18 V	18 V
Minimum input voltage	9 V	36 V	18 V	9 V	9 V
Nominal input voltage	12 V	48 V	24 V	12 V	12 V
JESD-30 code	R-PDIP-P10	R-PDIP-P10	R-PDIP-P10	R-PDMA-P7	R-PDMA-P7
Maximum load regulation	2.5%	2.5%	2.5%	2.5%	2.5%
Number of functions	1	1	1	1	1
Output times	2	1	2	1	1
Number of terminals	10	10	10	7	7
Maximum operating temperature	105 °C	105 °C	105 °C	71 °C	71 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
Maximum output voltage	15.15 V	3.333 V	15.15 V	5.05 V	5.05 V
Minimum output voltage	14.85 V	3.267 V	14.85 V	4.95 V	4.95 V
Nominal output voltage	15 V	3.3 V	15 V	5 V	5 V
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO	NO
technology	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID
Temperature level	OTHER	OTHER	OTHER	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED
Terminal form	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum total power output	3 W	3 W	3 W	3 W	3 W
Fine-tuning/adjustable output	NO	NO	NO	NO	NO
Other features	INPUT FILTER	INPUT FILTER	INPUT FILTER	-	-
Certification	UL; CSA	UL; CSA	UL; CSA	-	-
Efficiency (main output)	75%	68%	76%	-	-
Maximum grid adjustment rate	2.5%	2.5%	2.5%	-	-
Protect	CURRENT; OUTPUT OVER VOLTAGE	CURRENT; OUTPUT OVER VOLTAGE	CURRENT; OUTPUT OVER VOLTAGE	-	-
Parts packaging code	-	DIP	DIP	-	DIP
Contacts	-	23/7	23	-	23
