HM79-102R7LFTR13 datasheet, PDF

Datasheet> All Categories > Passive components> inductor> HM79-102R7LFTR13

HM79-102R7LFTR13: DescriptionGeneral Purpose Inductor, 2.7uH, 20%, 1 Element, Amorphous Magnetic-Core, SMD, 1816, ROHS COMPLIANT; CategoryPassive components inductor; File Size316KB，2 Pages; ManufacturerTT Electronics plc; Websitehttp://www.ttelectronics.com/; Environmental Compliance

Download Datasheet Parametric View All

HM79-102R7LFTR13 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	HM79-102R7LFTR13	-	-	View	Buy Now

HM79-102R7LFTR13 Overview

General Purpose Inductor, 2.7uH, 20%, 1 Element, Amorphous Magnetic-Core, SMD, 1816, ROHS COMPLIANT

HM79-102R7LFTR13 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	TT Electronics plc
package instruction	1816
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
uppercase and lowercase codes	1816
structure	Bobbin
core material	AMORPHOUS MAGNETIC
DC Resistance	0.078 Ω
Nominal inductance(L)	2.7 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e1
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package height	3.2 mm
Package length	4.5 mm
Package form	SMT
Package width	4 mm
method of packing	TR, 13 Inch
Maximum rated current	1.58 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal surface	Tin/Silver/Copper (Sn/Ag/Cu)
Terminal location	DUAL ENDED
Terminal shape	ONE SURFACE
Test frequency	0.1 MHz
Tolerance	20%
Base Number Matches	1

Preview

Download Datasheet

View All

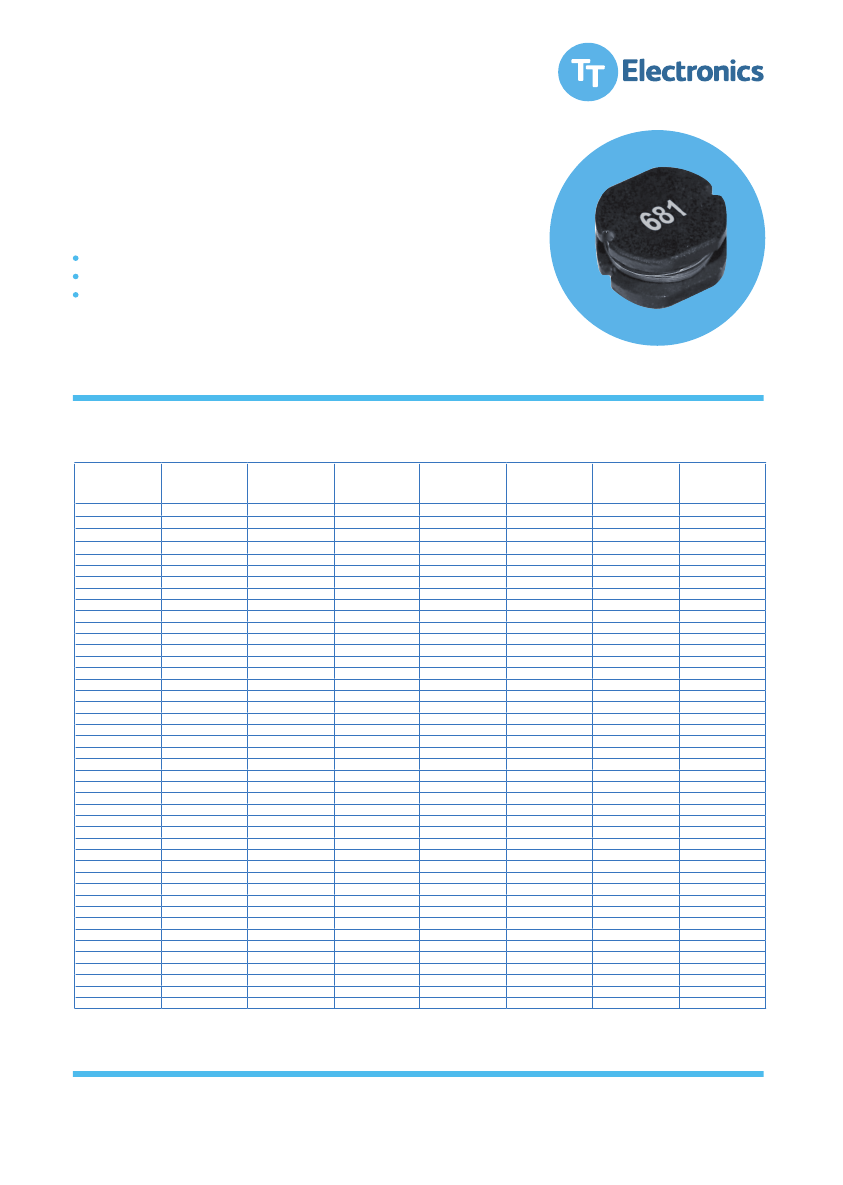

Magnetics

Low Cost Medium Power

Surface Mount Inductors

MODEL HM79

Features

Operating Temperature Range -40°C to +125°C

Operating Frequency Up to 3MHz

RoHS Compliant

Specifications @ 25°C

Part

Number

HM79-101R0LF

HM79-101R4LF

HM79-101R8LF

HM79-102R2LF

HM79-102R7LF

HM79-103R3LF

HM79-103R9LF

HM79-104R7LF

HM79-105R6LF

HM79-106R8LF

HM79-108R2LF

HM79-10100LF

HM79-10120LF

HM79-10150LF

HM79-10180LF

HM79-10220LF

HM79-10270LF

HM79-10330LF

HM79-201R0LF

HM79-204R7LF

HM79-206R8LF

HM79-20100LF

HM79-20120LF

HM79-20150LF

HM79-20180LF

HM79-20220LF

HM79-20270LF

HM79-20330LF

HM79-20390LF

HM79-20470LF

HM79-20560LF

HM79-20680LF

HM79-20820LF

HM79-20101LF

HM79-20121LF

HM79-20151LF

HM79-20181LF

HM79-20221LF

HM79-30100LF

HM79-30120LF

HM79-30150LF

HM79-30180LF

HM79-30220LF

HM79-30270LF

Inductance

μH ± 20%

(1)

1.0

1.4

1.8

2.2

2.7

3.3

3.9

4.7

5.6

6.8

8.2

1.0

4.7

6.8

100

120

150

180

220

Resistance

Ω Max .

0.048

0.056

0.063

0.071

0.078

0.086

0.093

0.108

0.125

0.131

0.146

0.182

0.210

0.235

0.338

0.378

0.522

0.540

0.015

0.057

0.060

0.10

0.12

0.14

0.15

0.18

0.20

0.23

0.32

0.37

0.42

0.46

0.60

0.70

0.93

1.10

1.38

1.57

0.080

0.089

0.104

0.111

0.129

0.153

Rated

Current

(2)

Amps

2.56

2.52

1.95

1.75

1.58

1.44

1.33

1.15

0.99

0.95

0.84

1.04

0.97

0.85

0.74

1.00

0.62

0.56

8.00

5.50

2.00

1.44

1.40

1.30

1.23

1.11

0.97

0.88

0.80

0.72

0.68

0.61

0.58

0.52

0.48

0.40

0.38

0.35

1.44

1.39

1.24

1.12

1.07

0.94

Part

Number

HM79-30330LF

HM79-30390LF

HM79-30470LF

HM79-30560LF

HM79-30680LF

HM79-30820LF

HM79-30101LF

HM79-30121LF

HM79-30151LF

HM79-30181LF

HM79-30221LF

HM79-30271LF

HM79-30331LF

HM79-40100LF

HM79-40120LF

HM79-40150LF

HM79-40180LF

HM79-40220LF

HM79-40270LF

HM79-40330LF

HM79-40390LF

HM79-40470LF

HM79-40560LF

HM79-40680LF

HM79-40820LF

HM79-40101LF

HM79-40121LF

HM79-40151LF

HM79-40181LF

HM79-40221LF

HM79-40271LF

HM79-40331LF

HM79-40391LF

HM79-40471LF

HM79-452R3LF

HM79-461R5LF

HM79-50100LF

HM79-50120LF

HM79-50150LF

HM79-50180LF

HM79-50220LF

HM79-50270LF

HM79-50330LF

HM79-50390LF

Inductance

μH ± 20%

(1)

100

120

150

180

220

270

330

100

120

150

180

220

270

330

390

470

2.3

1.5

Resistance

Ω Max .

0.170

0.217

0.252

0.282

0.332

0.406

0.481

0.536

0.755

1.022

1.200

1.306

1.495

0.07

0.08

0.09

0.10

0.11

0.12

0.13

0.16

0.18

0.24

0.28

0.37

0.43

0.47

0.64

0.71

0.96

1.11

1.26

1.77

1.96

0.008

0.005

0.053

0.061

0.070

0.081

0.088

0.100

0.120

0.151

Rated

Current

(2)

Amps

0.85

0.74

0.68

0.64

0.59

0.54

0.51

0.49

0.40

0.36

0.31

0.29

0.28

2.30

2.00

1.80

1.60

1.50

1.30

1.20

1.10

1.00

0.94

0.85

0.78

0.72

0.66

0.58

0.51

0.49

0.42

0.40

0.36

0.34

9.00

14.00

2.38

2.13

1.87

1.73

1.60

1.44

1.26

1.20

General Note

TT Electronics reserves the right to make changes in product specification without notice or liability.

All information is subject to TT Electronics’ own data and is considered accurate at time of going to print.

http://www.ttelectronics.com/magnetics/customer-service-enquiry

BI Technologies

A-1445, Jalan Tanjung Api

25050 Kuantan

Pahang Darul Makmur

Malaysia

Ph: +60 9 565 8888 Fax: +60 9 514 3555

Rev. 02

8.17
