AMC-119SMA Overview

High Performance Amplifier, 8 dB Gain, 30 - 250 MHz

AMC-119SMA Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	MACOM
package instruction	C-32
Reach Compliance Code	compli
Other features	SMA, HIGH RELIABILITY
Characteristic impedance	50 Ω
structure	COAXIAL
Gain	7.5 dB
Maximum input power (CW)	13 dBm
Maximum operating frequency	250 MHz
Minimum operating frequency	30 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND MEDIUM POWER
Maximum voltage standing wave ratio	2.3

Preview

Download Datasheet

View All

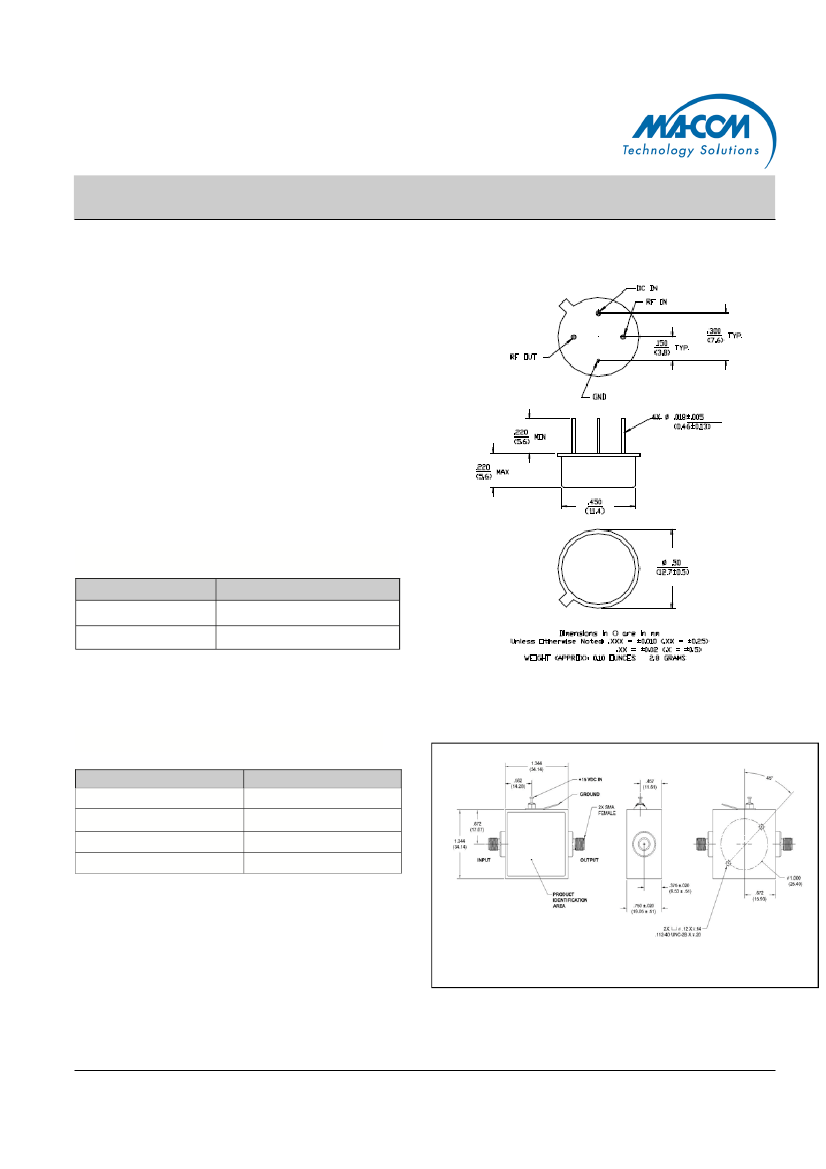

AM-119 / AMC-119

High Performance Amplifier,

8 dB Gain, 30 - 250 MHz

Features

•

2.3 dB Typical Midband Noise Figure

•

+23 dBm Typical Midband Output Power

•

+40 dBm Typical Midband Third Order Intercept

Rev. V4

TO-8-1

Description

M/A-COM’s AM-119 is a coupler feedback amplifier

with high intercept and compression points. The use

of coupler feedback minimizes noise figure and

current in a high intercept amplifier. This amplifier is

packaged in a TO-8 package. Due to the internal

power dissipation the thermal rise minimized. The

ground plane on the PC board should be configured

to remove heat from under the package. AM-119 is

ideally suited for use where a high intercept, high

reliability amplifier is required.

Ordering Information

Part Number

AM-119 PIN

AMC-119 SMA

Package

TO-8-1

Connectorized

4. Mounting kit part number AU00071 required for PCB

applications.

Outline Drawing: SMA Connectorized

Absolute Maximum Ratings

Parameter

Max. Input Power

Vbias

Operating Temperature

Storage Temperature

Absolute Maximum

+13 dBm

+15.75 V

-55°C to +85°C

-65°C to +125°C

1. Operation of this device above any one of these parameters

may cause permanent damage.

∗

Dimensions are inches (millimeters) ±0.015 (0.38) unless otherwise specified.

ADVANCED:

Data Sheets contain information regarding a product M/A-COM Technology Solutions

•

North America

Tel: 800.366.2266 •

Europe

Tel: +353.21.244.6400

is considering for development. Performance is based on target specifications, simulated results,

•

India

Tel: +91.80.4155721

•

China

Tel: +86.21.2407.1588

and/or prototype measurements. Commitment to develop is not guaranteed.

Visit www.macomtech.com for additional data sheets and product information.

PRELIMINARY:

Data Sheets contain information regarding a product M/A-COM Technology

Solutions has under development. Performance is based on engineering tests. Specifications are

typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.

M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make

Commitment to produce in volume is not guaranteed.

changes to the product(s) or information contained herein without notice.

AMC-119SMA Related Products

	AMC-119SMA	AMC-119	AM-119PIN	AM-119
Description	High Performance Amplifier, 8 dB Gain, 30 - 250 MHz	High Performance Amplifier, 8 dB Gain, 30 - 250 MHz	High Performance Amplifier, 8 dB Gain, 30 - 250 MHz	High Performance Amplifier, 8 dB Gain, 30 - 250 MHz
Maker	MACOM	MACOM	MACOM	MACOM
Reach Compliance Code	compli	compli	compli	unknown
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω
Gain	7.5 dB	7.5 dB	7.5 dB	7.5 dB
Maximum input power (CW)	13 dBm	13 dBm	13 dBm	13 dBm
Maximum operating frequency	250 MHz	250 MHz	250 MHz	250 MHz
Minimum operating frequency	30 MHz	30 MHz	30 MHz	30 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	WIDE BAND MEDIUM POWER	WIDE BAND MEDIUM POWER	WIDE BAND MEDIUM POWER	WIDE BAND MEDIUM POWER
Maximum voltage standing wave ratio	2.3	2.3	2.3	2.3
Is it lead-free?	Contains lead	Contains lead	Contains lead	-
Is it Rohs certified?	incompatible	incompatible	incompatible	-
