D1211UK-P

Description
RF Power Field-Effect Transistor, Ultra High Frequency Band, Silicon, N-Channel, Metal-oxide Semiconductor FET,
CategoryDiscrete semiconductor    The transistor
File Size23KB，2 Pages
ManufacturerTT Electronics plc
Websitehttp://www.ttelectronics.com/
Download Datasheet Parametric View All

D1211UK-P Overview

RF Power Field-Effect Transistor, Ultra High Frequency Band, Silicon, N-Channel, Metal-oxide Semiconductor FET,

D1211UK-P Parametric

Parameter NameAttribute value
MakerTT Electronics plc
Reach Compliance Codecompliant
ECCN codeEAR99
Is SamacsysN
Other featuresLOW NOISE
Minimum drain-source breakdown voltage40 V
FET technologyMETAL-OXIDE SEMICONDUCTOR
highest frequency bandULTRA HIGH FREQUENCY BAND
JESD-30 codeR-XDSO-G8
Number of terminals8
Operating modeENHANCEMENT MODE
Maximum operating temperature200 °C
Package body materialUNSPECIFIED
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Polarity/channel typeN-CHANNEL
Certification statusNot Qualified
surface mountYES
Terminal formGULL WING
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
transistor applicationsAMPLIFIER
Transistor component materialsSILICON
Base Number Matches1

Preview

Download Datasheet
TetraFET
PR
EL
IM
INA
RY

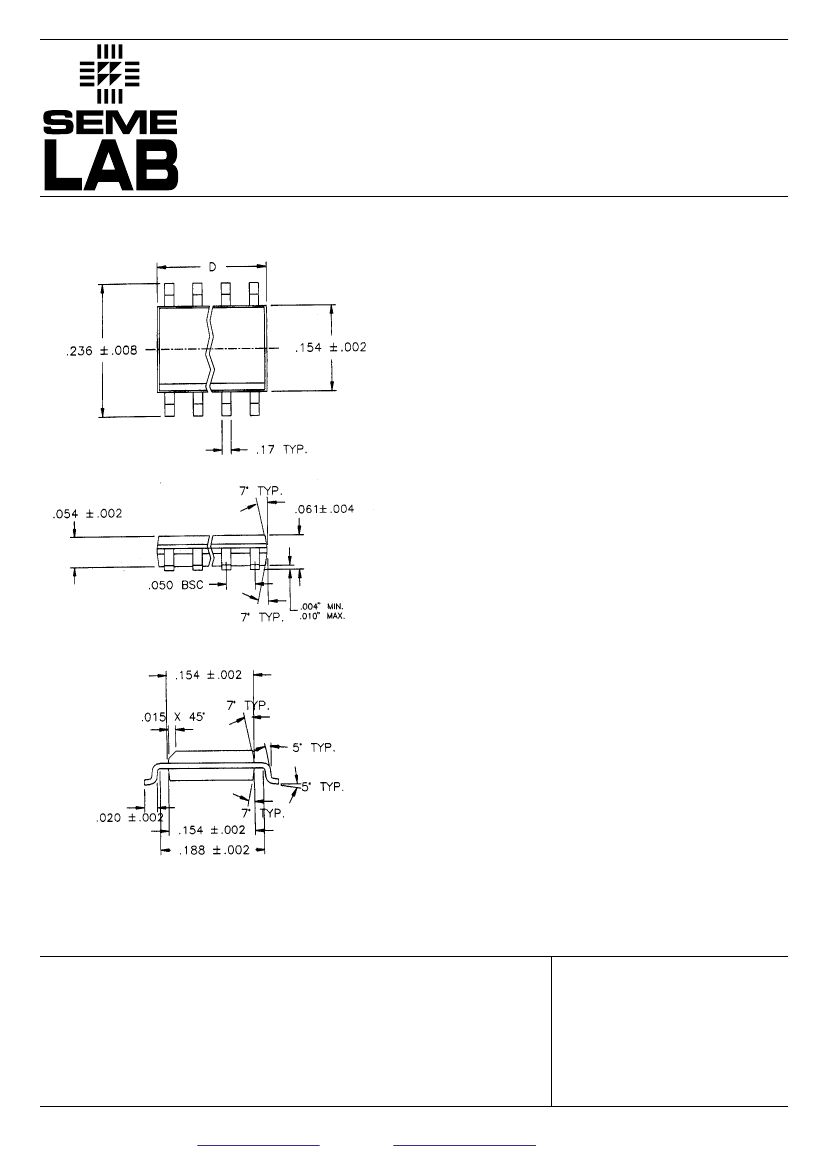

MECHANICAL DATA
D1211UK-P
METAL GATE RF SILICON FET
GOLD METALLISED
MULTI-PURPOSE SILICON
DMOS RF FET
10W – 12.5V – 500MHz
SINGLE ENDED
FEATURES
• SIMPLIFIED AMPLIFIER DESIGN
• SUITABLE FOR BROAD BAND APPLICATIONS
• VERY LOW C
rss
• SIMPLE BIAS CIRCUITS
• LOW NOISE
• HIGH GAIN – 10 dB MINIMUM
APPLICATIONS
•
HF/VHF/UHF COMMUNICATIONS
from 1 MHz to 1 GHz
P
D
BV
DSS
BV
GSS
I
D(sat)
T
stg
T
j
Power Dissipation
Drain – Source Breakdown Voltage
Gate – Source Breakdown Voltage
Drain Current
Storage Temperature
Maximum Operating Junction Temperature
30W
40V
±20V
10A
–65 to 150°C
200°C
Prelim. 12/95
Semelab plc.
Telephone +44(0)1455 556565. Fax +44(0)1455 552612.
E-mail:
sales@semelab.co.uk
Website:
http://www.semelab.co.uk
