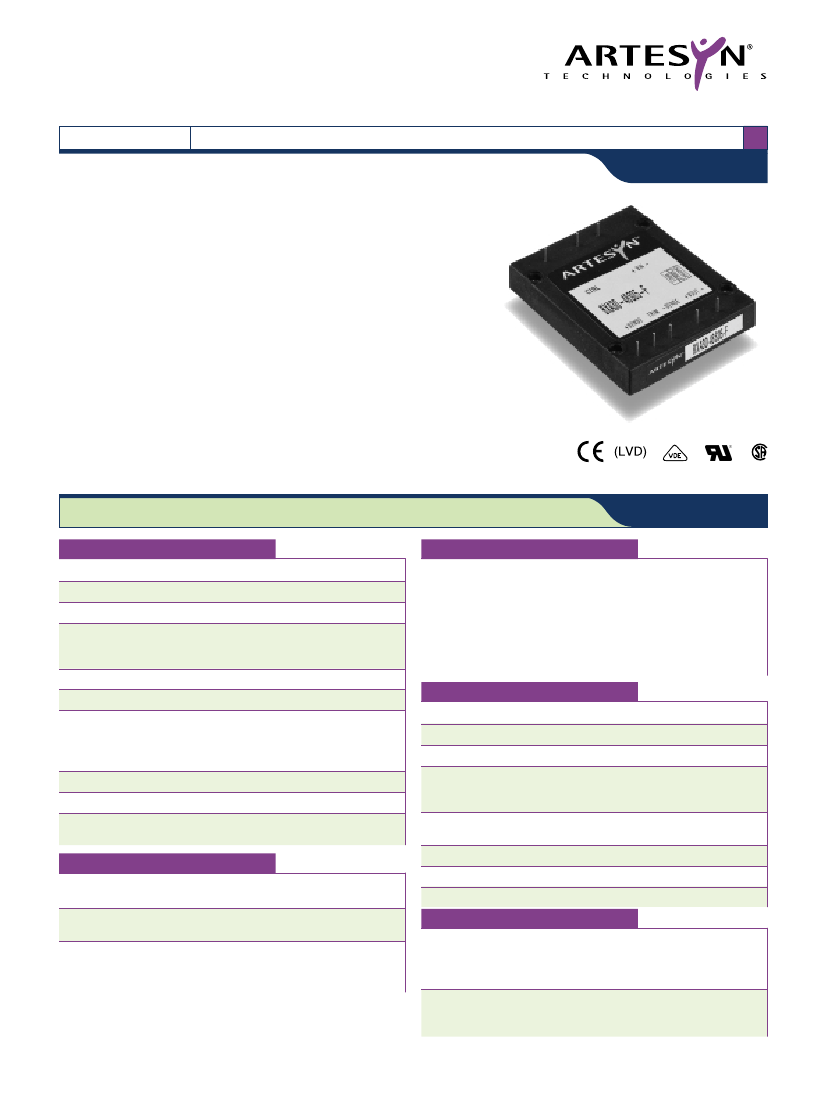

BXA30 Series
DC/DC CONVERTERS
Single and dual output
30W Wide Input DC/DC Converters
1
•
Designed to meet telecom power supply interface
standard ETS300-132-2
•
UL, VDE and CSA safety approvals
•
VDE0878 and EN55022 conducted emissions level A
•
EN61000-4-2, -3, -4, -5, -6 immunity compliant
•
Fixed frequency operation at 350kHz
•
MTBF in excess of 7,005,000 hours (demonstrated)
•
Basic insulation system
The BXA30 series, comprising 8 different models, has been conceived as an
applications-specific range of DC/DC converters, specifically addressing
telecommunications, industrial electronics, test equipment, mobile telecommunications
and distributed power applications. The series offers two wide input voltage ranges, 9-
18VDC and 18-36VDC and is available in single and dual output versions. Designed to
meet ETSI telecoms interface standards ETS300-132-2 and BTR2511, together with
internal filtering to EN55022 level A, safety approval to EN60950 and UL1950, and
isolation of 1500VDC. The 12V and 24V models are particularly suited to industrial,
mobile telecom and test equipment applications, featuring EN61000-4-2, -3, -4, -5 and
-6 immunity compliant. Other features include low output ripple, overvoltage protection,
continuous short circuit protection, remote enable and remote sense.
2 YEAR WARRANTY
All specifications are typical at nominal input, full load at 25°C unless otherwise stated
SPECIFICATIONS
OUTPUT SPECIFICATIONS
Voltage adjustability
Line regulation
Load regulation
Ripple and noise
(20MHz bandwidth)
Temperature coefficient
Overvoltage protection
Short circuit protection
Transient
Singles
Duals (single short)
Duals (dual short)
Transient response
Voltage accuracy
Load cross regulation
Dual output
30% to 100% output variation
25% to 100% load
Singles
LL to HL (single/dual)
FL to NL (single/dual)
5.0V
All others
All models
±10%
±0.2%/±0.4%
±0.2%/±0.4%
50mV pk-pk
100mV pk-pk
20mV rms
±0.02%/°C
135% Vout
Continuous
(See BXA15/30
Design Note 100)
Continuous
4.0%
±1.5%
3.0%
EMC CHARACTERISTICS
Conducted emissions
Radiated emissions
ESD air
ESD contact
Surge
Fast transients
Radiated immunity
Conducted immunity
EN55022, FCC part 15 (Note 4) Level A
EN55022, FCC part 15 (Note 5) Level B
EN55022, FCC part 15
Level A
EN61000-4-2, level 3
Perf. criteria 2
EN61000-4-2, level 4
Perf. criteria 2
EN61000-4-5, level 3
Perf. criteria 2
EN61000-4-4, level 3
Perf. criteria 2
EN61000-4-3, level 3
Perf. criteria 2
EN61000-4-6, level 3
Perf. criteria 2
GENERAL SPECIFICATIONS
Efficiency
Isolation voltage
Switching frequency
Approvals and
standards
(See Note 11)
Case material
Material flammability
Input/output
Fixed
See table
1500VDC
350kHz
VDE0805, EN60950
IEC950, UL1950
CSA C22.2 No. 950
Aluminum substrate
with plastic case
UL94V-0
120g (4.24oz)
Demonstrated @ 25°C
7,005,000 hours
INPUT SPECIFICATIONS
Input voltage range
Reverse voltage
protection (See Note 7)
Remote ON/OFF
Logic compatibility
ON
OFF
12Vin nominal
24Vin nominal
9 to 18VDC
18 to 36VDC
Yes
Weight
MTBF (See Note 9)
ENVIRONMENTAL SPECIFICATIONS
Thermal performance
Baseplate operating
temperature,
(See Notes 6, 8)
Non-operating
-25°C to +100°C
CMOS/TTL
Open circuit
<1VDC
Thermal impedance
-55°C to +100°C
6.5°C/W
5.2°C/W
Free air convection,
baseplate to air
With heatsink (See Note 8)
File Name: BXA30SD_BTO.PDF Rev: 07 Oct 2002
BXA30 Series
DC/DC CONVERTERS
INPUT
VOLTAGE
9-18VDC
9-18VDC
9-18VDC
18-36VDC
18-36VDC
18-36VDC
18-36VDC
18-36VDC
OUTPUT
VOLTAGE
12.0V
15.0V
±12.0V
5.0V
12.0V
15.0V
±12.0V
±15.0V
OUTPUT
CURRENT (MAX.)
2.5A
2.0A
±1.25A
5.0A
2.5A
2.0A
±1.25A
±1.0A
Single and dual output
30W Wide Input DC/DC Converters
2
For the most current data and application support visit www.artesyn.com/powergroup/products.htm
INPUT
CURRENT
100mA
100mA
100mA
60mA
60mA
60mA
60mA
60mA
(1)
TYPICAL
EFFICIENCY
84%
86%
84%
80%
84%
86%
84%
86%
REGULATION
LINE
(2)
MODEL
(3)
LOAD
NUMBER
(4,6)
±0.2%
±0.2%
±0.4%
±0.2%
±0.2%
±0.2%
0±.4%
±0.4%
±0.2%
±0.2%
±0.4%
±0.2%
±0.2%
±0.2%
±0.4%
±0.4%
BXA30-12S12
BXA30-12S15
BXA30-12D12
BXA30-24S05
BXA30-24S12
BXA30-24S15
BXA30-24D12
BXA30-24D15
Notes
1
2
3
4
Nominal, at no load.
Low line to high line.
Full load to no-load. For duals, the value stated is for balanced loads.
An optional internal filter is available, which will meet VDE0871 level A,
VDE0878 level A and EN55022 level A. Add the suffix ‘-F’ to the model
number, e.g.
BXA30-24S12-F.
See BXA15 and BXA30 Design Note 100.
5
For conducted noise operation of the BXA30 to VDE0871, VDE0878 and
EN55022 level B, see BXA15 and BXA30 Design Note 100.
6
For extended operating temperature, include the heatsink option, ‘-1’ in the
model number. Max. heatsink height is 12.5mm, e.g.
BXA30-24S15-1
7
Reverse voltage protection can be implemented by putting a slow blow
fuse on the negative input rail. Rate the fuse for 24VDC at 3A; 12VDC at
6A.
8
The maximum operating ambient temperature, without derating depends
on internal power dissipation and hence efficiency and cooling method.
BXA15 and BXA30 Design Note 100 provides detailed thermal calculations
and design-in details.
9
Test results to-date are 1,590,000 hours @ 46˚C. The MTBF figure shown
includes a calculated acceleration factor of 4.1 based on an activation
energy of -0.55 eV.
10
Visit the Artesyn website to download a copy of Design Note 100.
11
This product is only for inclusion by professional installers within other
equipment and must not be operated as a stand alone product.
12
If remote sense is not used, connect +sense to +vout and -sense to -vout.
Please consult our website for the following items:
✔
Design Note
www.artesyn.com
File Name: BXA30SD_BTO.PDF Rev: 07 Oct 2002
BXA30 Series
DC/DC CONVERTERS
PIN CONNECTIONS
PIN NUMBER
1
2
3
4
5
6
7
8
SINGLE OUTPUT
+ Vin
– Vin
+ Sense
Trim
– Sense
+ Vout
– Vout
Remote ON/OFF
(12)
Single and dual output
30W Wide Input DC/DC Converters
3
For the most current data and application support visit www.artesyn.com/powergroup/products.htm
EXTERNAL OUTPUT TRIMMING
DUAL OUTPUT
+ Vin
– Vin
+ Vout
Common
3
3
Single output models can be
externally trimmed by ±10%
using either method shown.
5
5
TRIM
UP
4
TRIM
DOWN
4
10KΩ
TRIMPOT
– Vout
No Pin
No Pin
Remote ON/OFF
2.50
(63.5)
3.02
(76.30
±
0.30)
0.20
(5.08)
0.302
(7.67±0.30)
0.76
(19.20±0.30)
0.20 (5.08)
3
4
5
1
6
8
0.95
(24.13)
0.80 (20.32)
0.50 (12.70)
0.6 (15.24)
0.70 (17.78)
0.30 (7.62)

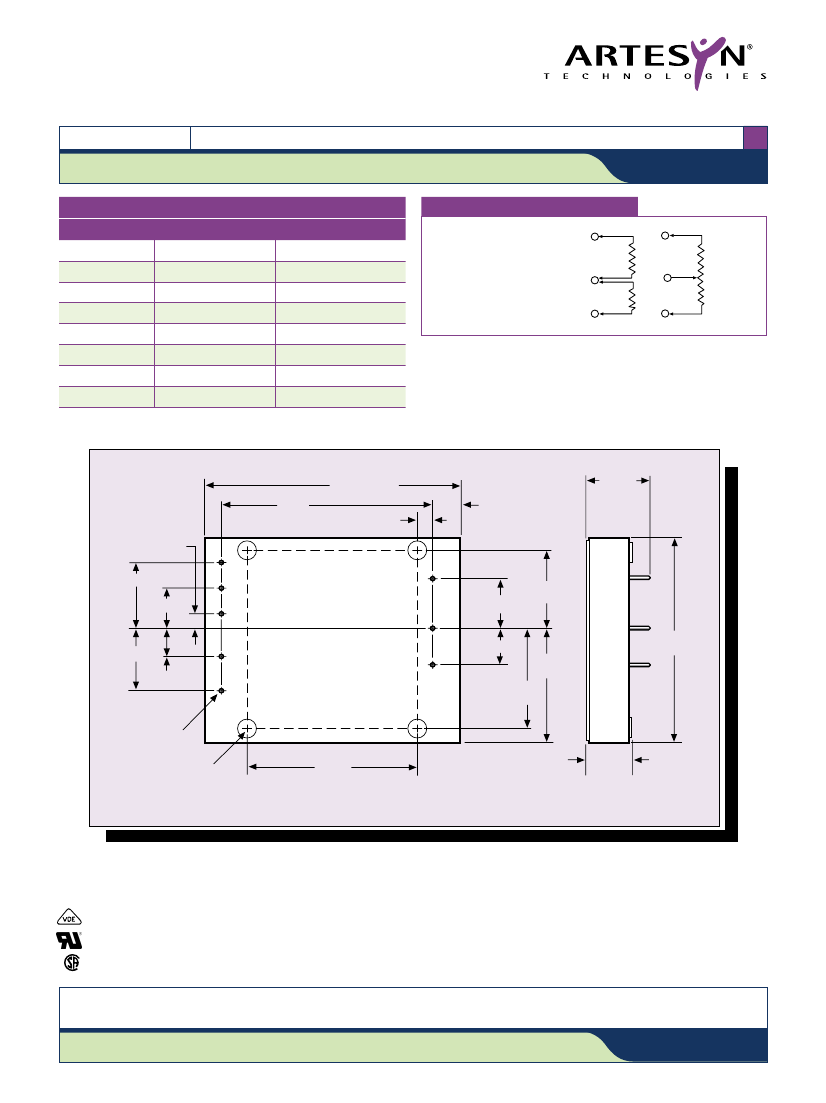

BOTTOM
VIEW
0.4 (10.16)
2
1.30
(33.02)
1.15
(29.21)
2.41
(61.10±0.30)
7
Ø 1.000
8 Places
Case/Metal Inserts M3.0
(Typ. 4 Places)
2.00
(50.80)
ALL DIMENSIONS IN INCHES (mm)
Tolerance .XX
±0.02
.XXX
±0.005
0.52
(13.30±0.30)
SIDE VIEW
International Safety Standard Approvals
VDE0805/EN60950/IEC950 File No. 14501-3336-7006
Licence No. 6231
UL1950 File No. E174104
CSA C22.2 No. 950 File No. LR41062C
