BXB75-24S15FHT datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> BXB75-24S15FHT

BXB75-24S15FHT: DescriptionDC-DC Regulated Power Supply Module, 1 Output, 75W, Hybrid; CategoryPower/power management The power supply circuit; File Size48KB，2 Pages; ManufacturerArtysen Embedded Technologies

Download Datasheet Parametric Compare View All

BXB75-24S15FHT Overview

DC-DC Regulated Power Supply Module, 1 Output, 75W, Hybrid

BXB75-24S15FHT Parametric

Parameter Name	Attribute value
Maker	Artysen Embedded Technologies
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Other features	UNDERVOLTAGE LOCKOUT (UVLO)
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	36 V
Minimum input voltage	18 V
Nominal input voltage	24 V
JESD-30 code	R-PUFM-P9
Maximum load regulation	0.1%
Number of functions	1
Output times	1
Number of terminals	9
Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C
Maximum output voltage	16.5 V
Minimum output voltage	9 V
Nominal output voltage	15 V
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Temperature level	INDUSTRIAL
Terminal form	PIN/PEG
Terminal location	UPPER
Maximum total power output	75 W
Fine-tuning/adjustable output	YES
Base Number Matches	1

Preview

Download Datasheet

View All

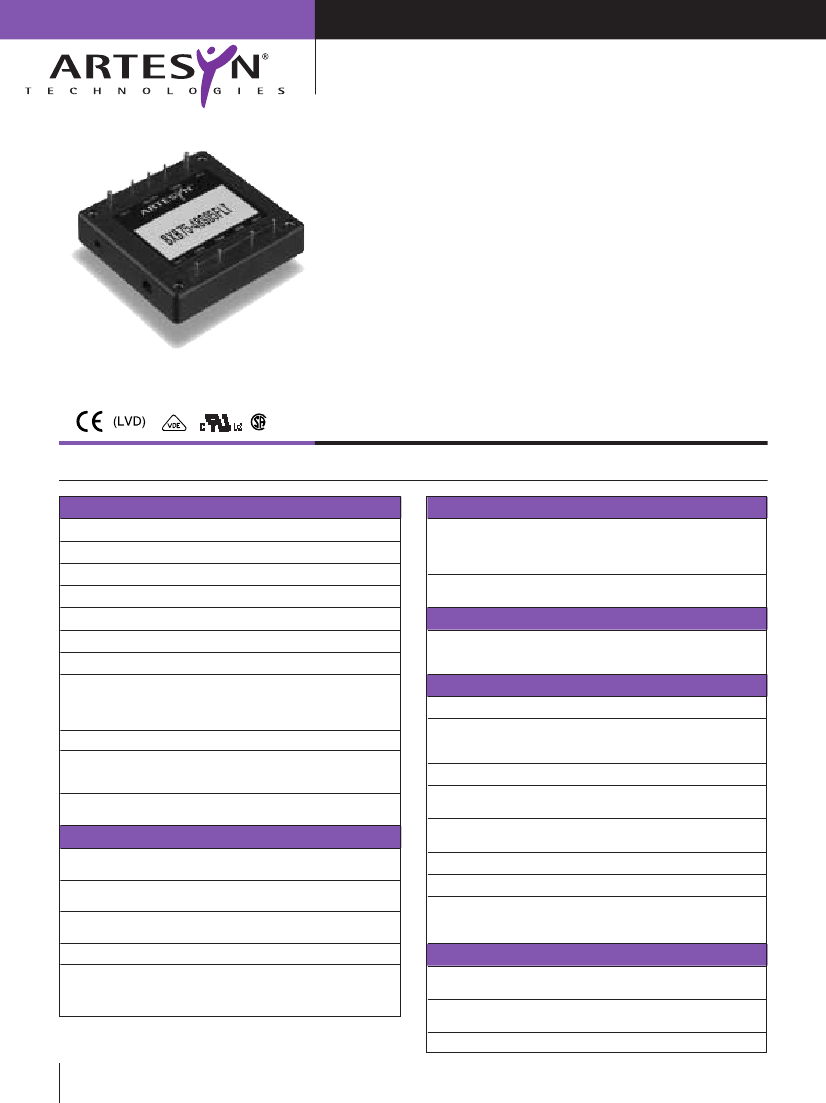

BXB75 SERIES

Single output

•

Industry standard footprint

MTBF >1.4 million hours (Bellcore 332)

Input voltage to ETS300-132-2

Adjustable output voltage

No minimum load required

Separate case ground pin

2:1 input range for battery powered applications

Undervoltage lockout (UVLO)

UL, VDE and CSA safety approvals

[ 2 YEAR WARRANTY ]

The BXB75 Series are high power density DC/DC converters packaged in the

industry standard footprint (2.40 x 2.28 x 0.50 inches) to give designers optimum

choices when specifying for both new and replacement designs. Suitable for a

wide range of applications in nearly any industry, the BXB75 was particularly

designed with communication and distributed power applications in mind. Using

Bellcore 332, the MTBF is greater than 1,400,000 hours. Aluminum baseplate

technology with four threaded M3 inserts makes heatsink attachment and

optimum thermal management easy. The BXB75 series is approved to IEC950 by

UL, CSA and VDE.

SPECIFICATION

OUTPUT SPECIFICATIONS

Voltage adjustability

Set point accuracy

Line regulation

Load regulation

Minimum load

Overshoot

Undershoot

Ripple and noise

(5Hz to 20MHz)

(See Note 1)

Temperature coefficient

Transient response

(See Note 2)

Remote sense

INPUT SPECIFICATIONS

Input voltage range

Input current

Input current (max.)

(See Note 4)

Input reflected ripple

All specifications are typical at nominal input, full load at 25°C unless otherwise stated

INPUT SPECIFICATIONS CONTINUED

60% to 110%

±1.0%

Undervoltage lockout

24Vin:

48Vin:

power

down

17V

16V

34V

32.5V

20ms

Low line to high line

Full load to min. load

±0.05%

±0.10%

Start-up time

(See Note 8)

Power up

Remote ON/OFF

EMC CHARACTERISTICS

Conducted emissions

(See Note 3)

Bellcore 1089

FCC part 15

EN55022, CISPR22

Level A

At turn-on and turn-off

None

3.3V and 5V

12V and 15V

75mV pk-pk,

20mV rms

100mV pk-pk,

30mV rms

±0.01%/°C

±2.0% max. deviation

170µs recovery

to within ±1.0%

0.5VDC transmission

line drop compensation

GENERAL SPECIFICATIONS

Efficiency

Isolation voltage

Input/case

Input/output

Output/case

Fixed

See table

1500VDC

500kHz typ.

VDE0805, EN60950, IEC950

UL1950, CSA C22.2 No. 950

Aluminum baseplate

with plastic case

UL94V-0

110g (3.88oz)

Bellcore 332

1,400,000 hours

MIL-HDBK-217F

580,000 hours

@ 40°C, 100% full load

min.

Switching frequency

Approvals and

standards (See Note 5)

Case material

24Vin nominal

48Vin nominal

No load

Remote OFF

48V models

(See Note 6)

18 to 36VDC

36 to 75VDC

100mA max.

20mA max.

3.5A max. @ Io max.

and Vin = 0 to 75V

5mA pk-pk

Material flammability

Weight

MTBF

ENVIRONMENTAL SPECIFICATIONS

Thermal performance

Altitude

Vibration

Operating case temp. -40°C to +100°C

Non-operating

-55°C to +125°C

Operating

Non-operating

5Hz to 500Hz

10,000 feet max.

40,000 feet max.

2.4G rms (approx.)

Active low remote ON/OFF

Logic compatibility

OFF

(See Note 7)

Open collector ref to -input

1.2VDC max.

Open circuit

PAGE 150
