LMT2901DR2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Amplifier circuit> LMT2901DR2

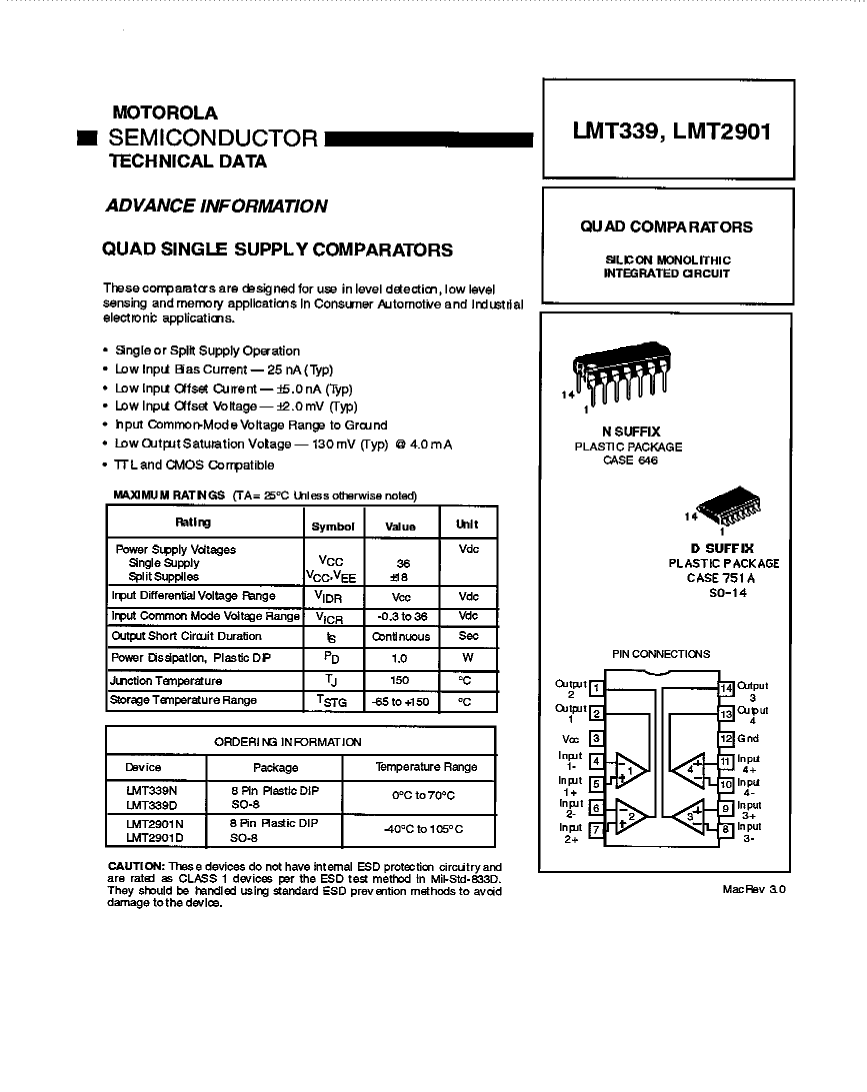

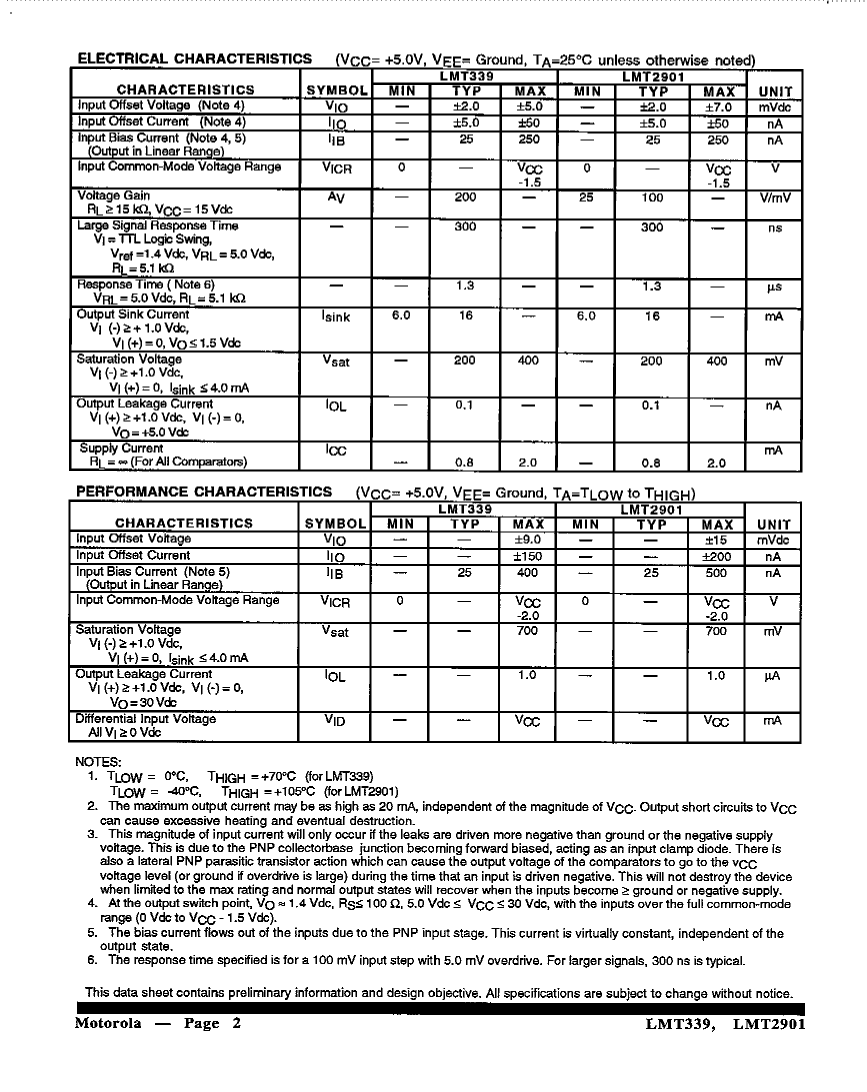

LMT2901DR2: DescriptionQUAD COMPARATOR, 15000uV OFFSET-MAX, 1300ns RESPONSE TIME, PDSO14, PLASTIC, SO-14; CategoryAnalog mixed-signal IC Amplifier circuit; File Size78KB，3 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

LMT2901DR2 Overview

QUAD COMPARATOR, 15000uV OFFSET-MAX, 1300ns RESPONSE TIME, PDSO14, PLASTIC, SO-14

LMT2901DR2 Parametric

Parameter Name	Attribute value
Maker	Motorola ( NXP )
Parts packaging code	SOIC
package instruction	SOP,
Contacts	14
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Amplifier type	COMPARATOR
Maximum average bias current (IIB)	0.5 µA
Maximum input offset voltage	15000 µV
JESD-30 code	R-PDSO-G14
length	8.65 mm
Number of functions	4
Number of terminals	14
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Nominal response time	1300 ns
Maximum seat height	1.75 mm
Maximum slew rate	2 mA
Nominal supply voltage (Vsup)	5 V
surface mount	YES
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	3.9 mm
Base Number Matches	1

Preview

Download Datasheet

View All

LMT2901DR2 Related Products

	LMT2901DR2	LMT2901N	LMT2901D	LMT2901DG	LMT339D	LMT339N
Description	QUAD COMPARATOR, 15000uV OFFSET-MAX, 1300ns RESPONSE TIME, PDSO14, PLASTIC, SO-14	QUAD COMPARATOR, 15000uV OFFSET-MAX, 1300ns RESPONSE TIME, PDIP14, PLASTIC, DIP-14	QUAD COMPARATOR, 15000uV OFFSET-MAX, 1300ns RESPONSE TIME, PDSO14, PLASTIC, SO-14	QUAD COMPARATOR, 15000uV OFFSET-MAX, 1300ns RESPONSE TIME, PDSO14, LEAD FREE, PLASTIC, SOP-14	Comparator, 4 Func, 9000uV Offset-Max, 1300ns Response Time, PDSO14, PLASTIC, SO-14	QUAD COMPARATOR, 9000uV OFFSET-MAX, 1300ns RESPONSE TIME, PDIP14, PLASTIC, DIP-14
Maker	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )
package instruction	SOP,	DIP,	SOP,	SOP,	SOP,	DIP,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknow	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Amplifier type	COMPARATOR	COMPARATOR	COMPARATOR	COMPARATOR	COMPARATOR	COMPARATOR
Maximum average bias current (IIB)	0.5 µA	0.5 µA	0.5 µA	0.5 µA	0.4 µA	0.4 µA
Maximum input offset voltage	15000 µV	15000 µV	15000 µV	15000 µV	9000 µV	9000 µV
JESD-30 code	R-PDSO-G14	R-PDIP-T14	R-PDSO-G14	R-PDSO-G14	R-PDSO-G14	R-PDIP-T14
Number of functions	4	4	4	4	4	4
Number of terminals	14	14	14	14	14	14
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	70 °C	70 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-	-
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	DIP	SOP	SOP	SOP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal response time	1300 ns	1300 ns	1300 ns	1300 ns	1300 ns	1300 ns
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	YES	YES	YES	NO
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	THROUGH-HOLE	GULL WING	GULL WING	GULL WING	THROUGH-HOLE
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Parts packaging code	SOIC	DIP	SOIC	SOIC	-	DIP
Contacts	14	14	14	14	-	14
Is Samacsys	N	N	N	N	-	-
length	8.65 mm	-	8.65 mm	8.65 mm	8.65 mm	-
Maximum seat height	1.75 mm	-	1.75 mm	1.75 mm	1.75 mm	-
Maximum slew rate	2 mA	2 mA	2 mA	-	2 mA	2 mA
Terminal pitch	1.27 mm	-	1.27 mm	1.27 mm	1.27 mm	-
width	3.9 mm	-	3.9 mm	3.9 mm	3.9 mm	-
Base Number Matches	1	1	1	1	-	-
