BK60C-048L-018F40HN datasheet, PDF

Datasheet> All Categories > Power/power management> The power supply circuit> BK60C-048L-018F40HN

BK60C-048L-018F40HN: DescriptionDC-DC Regulated Power Supply Module, 1 Output, 150W, Hybrid; CategoryPower/power management The power supply circuit; File Size92KB，2 Pages; ManufacturerArtysen Embedded Technologies

Download Datasheet Parametric Compare View All

BK60C-048L-018F40HN Overview

DC-DC Regulated Power Supply Module, 1 Output, 150W, Hybrid

BK60C-048L-018F40HN Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Artysen Embedded Technologies
package instruction	DIP, DIP9/10,1.9,400/300
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	75 V
Minimum input voltage	36 V
Nominal input voltage	48 V
JESD-30 code	R-XDMA-P9
JESD-609 code	e0
Maximum load regulation	0.3%
Number of functions	1
Output times	1
Number of terminals	9
Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C
Maximum output current	40 A
Maximum output voltage	2.16 V
Minimum output voltage	1.44 V
Nominal output voltage	1.8 V
Package body material	UNSPECIFIED
encapsulated code	DIP
Encapsulate equivalent code	DIP9/10,1.9,400/300
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Temperature level	INDUSTRIAL
Terminal surface	TIN LEAD
Terminal form	PIN/PEG
Terminal pitch	7.62 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum total power output	150 W
Fine-tuning/adjustable output	YES
Base Number Matches	1

Preview

Download Datasheet

View All

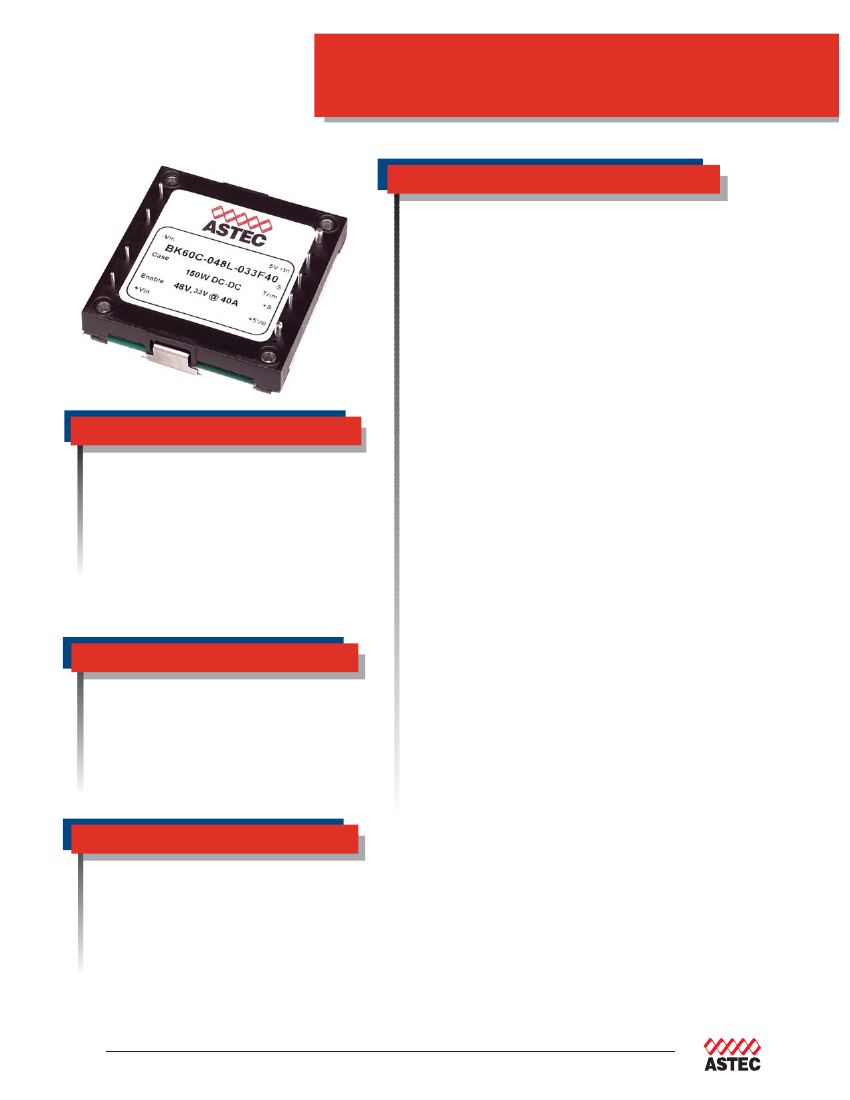

Astec Industry Standard

150 Watts

BK60C-40

High Efficiency

Total Power:

Input Voltages:

No. of Outputs:

150 Watts

48V

Single

Electrical Specs

Input

Input range

Input Surge

Efficiency

36-75 VDC

100V / 100ms

89% @ 3.3V (typ)

Output

Load regulation

Line regulation

Ripple and noise

Remote sense

Output voltage

adjust range

Transient Response

10mV typical down to no load

(output below 5V)

10mV typical

(outpt below 5V)

200mV p-p max)

Up to 0.5V

±20% of nominal output

10% max deviation with 25% to 75%

full load (output 5V and above)

200mV

130% nominal output

(output 5V and above)

160% nominal outpt

(2.2V output)

140% nominal output

(3.3V output)

115% maximum output

Special Features

• High efficiency, 5V@89%

• -40°C to 100°C baseplate operating

temperature (no derating)

• Positive and Negative enable function

• Low output ripple and noise

• High capacitive load limit on start-up

• Remote sense compensation

• Regulation to zero load

• Fixed frequency switching (300 kHz)

Overvoltage Protection

Current Limit

Control

Environmental

Operating temperature (baseplate):

-40°C to +100°C

Storage temperature: -55°C to +105°C

Overtemperature protection: 110°C typical

MTBF: >1 million hours

Voltage Adjust

Enable

90 to 110%

TTL compatible (positive & negative

enable options)

Notes:

1. Nominal values apply with sense pins connected and other

control pins unconnected.

2. Specifications subject to change without notice.

Safety

UL 1950

CAN22.2-950

EN60950

TUV

America’s (USA): 1-888-41-ASTEC

Europe (UK): 44 (1384) 842-211

Asia (HK): 852-2437-9662
