Part Number

Search

BST80115

Description
TRANSISTOR 500 mA, 80 V, N-CHANNEL, Si, SMALL SIGNAL, MOSFET, FET General Purpose Small Signal
CategoryDiscrete semiconductor    The transistor
File Size99KB,5 Pages
ManufacturerNXP
Websitehttps://www.nxp.com
Download Datasheet Parametric Compare View All

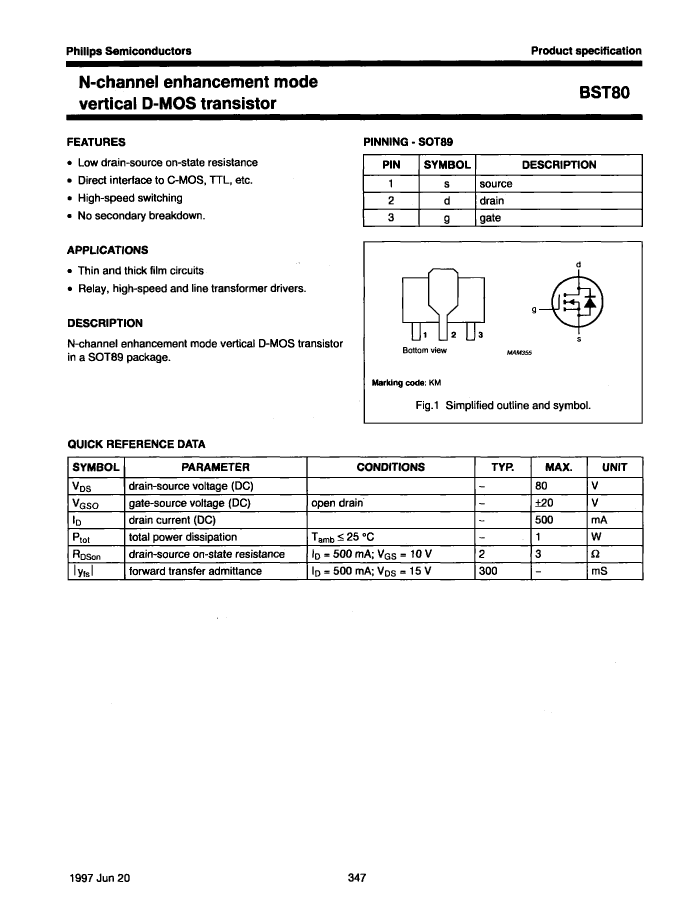

BST80115 Overview

TRANSISTOR 500 mA, 80 V, N-CHANNEL, Si, SMALL SIGNAL, MOSFET, FET General Purpose Small Signal

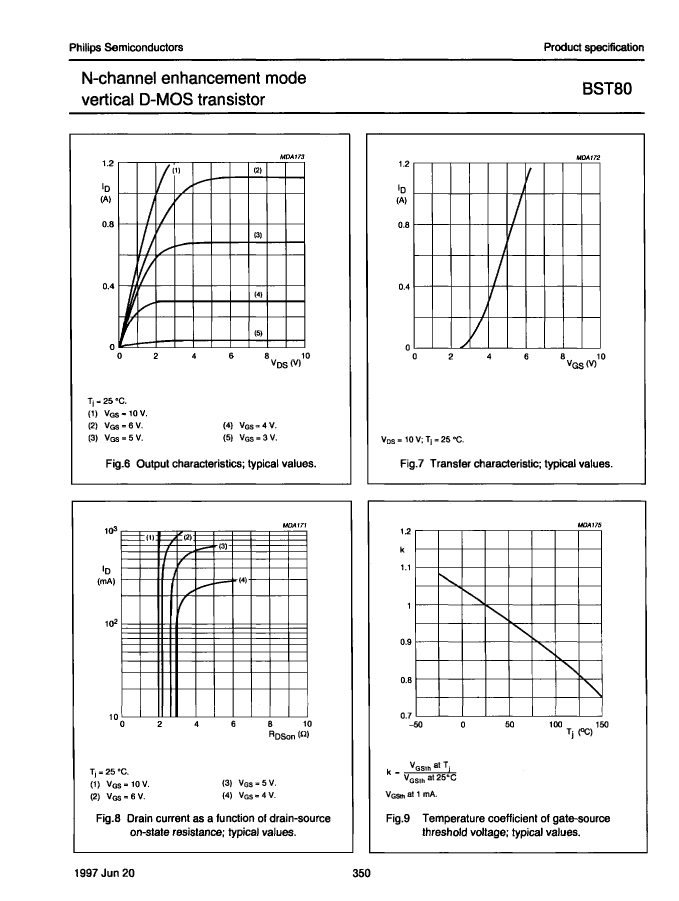

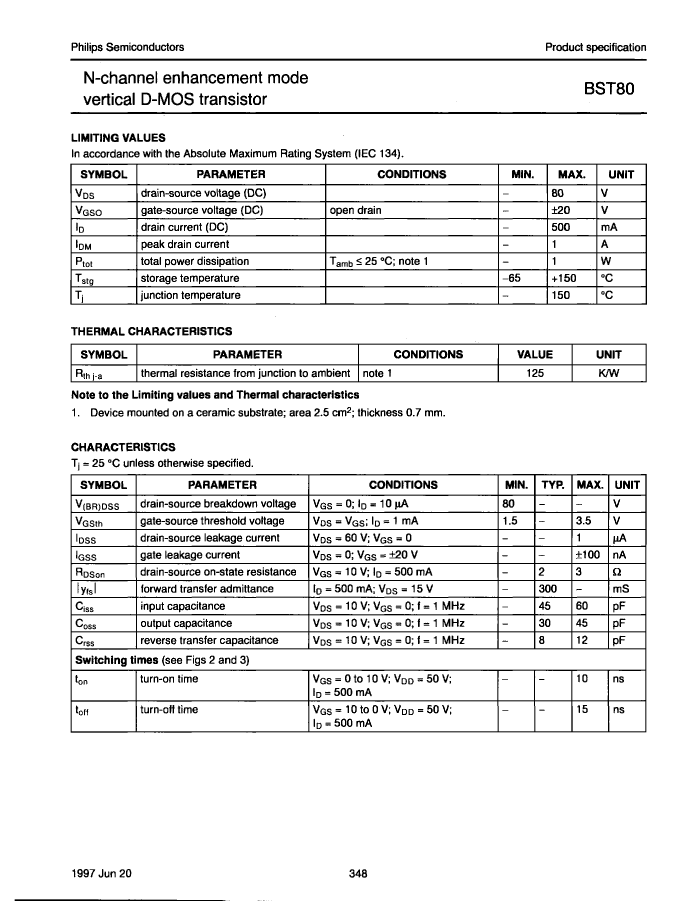

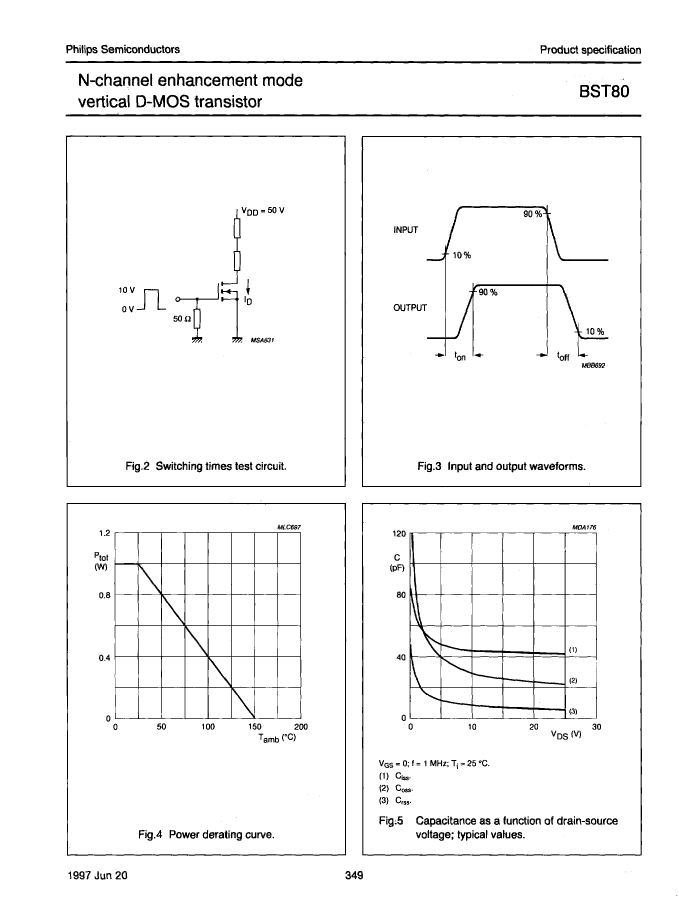

BST80115 Parametric

Parameter NameAttribute value
MakerNXP
package instructionSMALL OUTLINE, R-PSSO-F3
Reach Compliance Codeunknown
ECCN codeEAR99
Shell connectionDRAIN
ConfigurationSINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage80 V
Maximum drain current (ID)0.5 A
Maximum drain-source on-resistance3 Ω
FET technologyMETAL-OXIDE SEMICONDUCTOR
Maximum feedback capacitance (Crss)12 pF
JESD-30 codeR-PSSO-F3
Number of components1
Number of terminals3
Operating modeENHANCEMENT MODE
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Polarity/channel typeN-CHANNEL
Certification statusNot Qualified
surface mountYES
Terminal formFLAT
Terminal locationSINGLE
transistor applicationsSWITCHING
Transistor component materialsSILICON

BST80115 Related Products

BST80115 BST80135
Description TRANSISTOR 500 mA, 80 V, N-CHANNEL, Si, SMALL SIGNAL, MOSFET, FET General Purpose Small Signal TRANSISTOR 500 mA, 80 V, N-CHANNEL, Si, SMALL SIGNAL, MOSFET, FET General Purpose Small Signal
Maker NXP NXP
package instruction SMALL OUTLINE, R-PSSO-F3 SMALL OUTLINE, R-PSSO-F3
Reach Compliance Code unknown unknown
ECCN code EAR99 EAR99
Shell connection DRAIN DRAIN
Configuration SINGLE WITH BUILT-IN DIODE SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage 80 V 80 V
Maximum drain current (ID) 0.5 A 0.5 A
Maximum drain-source on-resistance 3 Ω 3 Ω
FET technology METAL-OXIDE SEMICONDUCTOR METAL-OXIDE SEMICONDUCTOR
Maximum feedback capacitance (Crss) 12 pF 12 pF
JESD-30 code R-PSSO-F3 R-PSSO-F3
Number of components 1 1
Number of terminals 3 3
Operating mode ENHANCEMENT MODE ENHANCEMENT MODE
Package body material PLASTIC/EPOXY PLASTIC/EPOXY
Package shape RECTANGULAR RECTANGULAR
Package form SMALL OUTLINE SMALL OUTLINE
Polarity/channel type N-CHANNEL N-CHANNEL
Certification status Not Qualified Not Qualified
surface mount YES YES
Terminal form FLAT FLAT
Terminal location SINGLE SINGLE
transistor applications SWITCHING SWITCHING
Transistor component materials SILICON SILICON
