Data Sheet
QUAD OP AMP AND VOLTAGE REFERENCE
General Description
The AP4302 is a monolithic IC specifically designed
to regulate the output current and voltage levels of
switching battery chargers and power supplies.
The device contains quad Op Amps and a 2.5V exter-
nally adjusted voltage reference in a 16-pin package.
The four Op Amps feature accurate voltage and current
control. Combining a stable voltage reference with the
four Op Amps makes AP4302 ideal for use in multi-
function charger, power supply voltage monitor, signal
processing and control system.
The IC offers the power converter designer a control
solution that features increased precision with a corre-
sponding reduction in system complexity and cost.
The AP4302 is available in standard packages of DIP-
16 and SOIC-16.
AP4302
Features
Op Amp
·
Input Offset Voltage: 0.5mV
·
Supply Current: 250µA per Op Amp at 5.0V Sup-
ply Voltage
·
Unity Gain Bandwidth: 1MHz
·
Output Voltage Swing: 0 to (V
CC
- 1.5)V
·
Power Supply Range: 3 to 18V
Voltage Reference
·
Reference Voltage Tolerance: 0.5%, 1%
·
Sink Current Capability from 0.1 to 80mA
·
Output Dynamic Impedance: 0.2Ω
·
Externally Adjusted Voltage Reference: 2.5V
Applications
·
·
Battery Charger
Switching Power Supply
SOIC-16
DIP-16

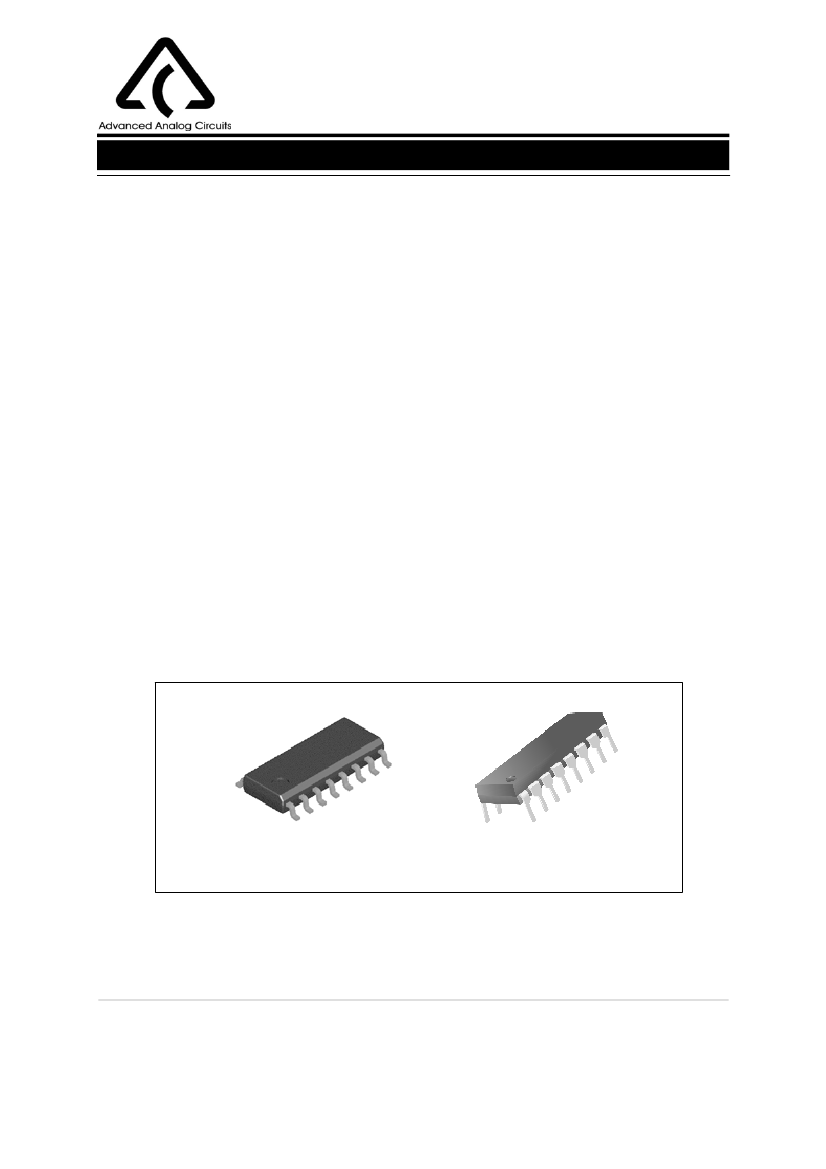

Figure 1. Package Types of AP4302
Apr. 2005 Rev. 1. 1
BCD Semiconductor Manufacturing Limited
1
Data Sheet
QUAD OP AMP AND VOLTAGE REFERENCE
Pin Configuration
M Package/P Package
(SOIC-16/DIP-16)
OUTPUT 1
INPUT 1-
INPUT 1+
V
CC
INPUT 2+
INPUT 2-
OUTPUT 2
V
REF
AP4302
1
2
3
4
5
6
7
8
16
15
14
13
12
11
10
9
Top View
OUTPUT 4
INPUT 4-
INPUT 4+
GND
INPUT 3+
INPUT 3-
OUTPUT 3
CATHODE
Figure 2. Pin configuration of AP4302
Functional Block Diagram
OUTPUT 1
1
2
16
15
OUTPUT 4
INPUT 1-
INPUT 4-
-
INPUT 1+
+
+
-
14
13
12
INPUT 4+
3
4
5
6
V
CC
GND
INPUT 2+
INPUT 3+
-
+
+
-
11
10
9
INPUT 3-
INPUT 2-
OUTPUT 2
7
8
OUTPUT 3
V
REF
CATHODE
Figure 3. Functional Block Diagram of AP4302
Apr. 2005 Rev. 1. 1
BCD Semiconductor Manufacturing Limited
2
Data Sheet
QUAD OP AMP AND VOLTAGE REFERENCE
Functional Block Diagram (Continued)
V
CC
AP4302
6µA
4µA
100µA
Q5
Q6
Q2
INPUT-
Q1
Q3
Q4
Rsc
OUTPUT
INPUT+
Q11
Q10
Q8
Q9
Q12
50uA
Q13
Cc
Q7

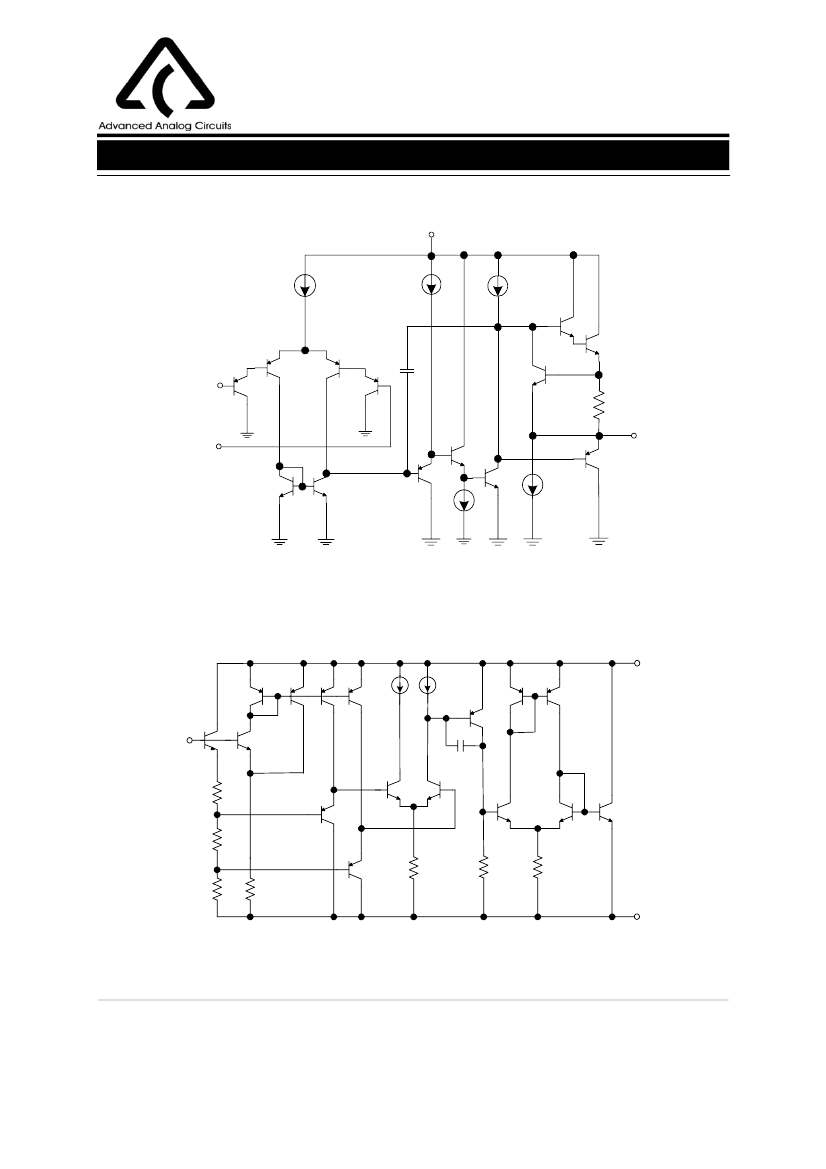

Figure 4. Op Amp Functional Block Diagram
(Each Amplifier)
CATHODE
20µA
20µA
V
REF
GND
Figure 5. Voltage Reference Functional Block Diagram
Apr. 2005 Rev. 1. 1
BCD Semiconductor Manufacturing Limited
3
Data Sheet
QUAD OP AMP AND VOLTAGE REFERENCE
Ordering Information
AP4302
AP4302
Circuit Type
Voltage Tolerance
A: 0.5%
B: 1%
-
E1: Lead-free
Blank: Tin Lead
TR: Tape and Reel
Blank: Tube
Package
M: SOIC-16
P: DIP-16
Package
Voltage Tol-
erance
0.5%
1%
0.5%
Tempera-
ture Range
-40 to 85
o
C
Part Number
Tin Lead
AP4302AP
AP4302BP
AP4302AM
Lead Free
AP4302AP-E1
AP4302BP-E1
AP4302AM-E1
AP4302AMTR-E1
AP4302BM-E1
AP4302BMTR-E1
Marking ID
Tin Lead
AP4302AP
AP4302BP
AP4302AM
AP4302AM
AP4302BM
AP4302BM
Lead Free
AP4302AP-E1
AP4302BP-E1
AP4302AM-E1
AP4302AM-E1
AP4302BM-E1
AP4302BM-E1
Packing
Type
Tube
Tube
Tape & Reel
Tube
Tape & Reel
DIP-16
SOIC-16
1%
-40 to 85
o
C
AP4302AMTR
AP4302BM
AP4302BMTR
BCD Semiconductor's Pb-free products, as designated with "E1" suffix in the part number, are RoHS compliant.
Apr. 2005 Rev. 1. 1
BCD Semiconductor Manufacturing Limited
4
Data Sheet
QUAD OP AMP AND VOLTAGE REFERENCE
Absolute Maximum Ratings (Note 1)
Parameter
Power Supply Voltage (V
CC
to GND)
Input Voltage Range
Op Amp Input Differential Voltage
Voltage Reference Cathode Current
Power Dissipation
DIP-16
SOIC-16
Storage Temperature Range
ESD Protection Voltage (Machine Model)
T
STG
Symbol
V
CC
V
IN
V
ID
I
K
P
D
Value
20
-0.3 to V
CC
+ 0.3
20
100
1000
1000
-65 to 150
>200
o
AP4302
Unit
V
V
V
mA
mW
C
V
Note 1: Stresses greater than those listed under "Absolute Maximum Ratings" may cause permanent damage to the
device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond
those indicated under "Recommended Operating Conditions" is not implied. Exposure to "Absolute Maximum
Ratings " for extended periods may affect device reliability.
Recommended Operating Conditions
Parameter
Supply Voltage
Ambient Temperature
Min
3
-40
Max
18
85
Unit
V
o
C
Apr. 2005 Rev. 1. 1
BCD Semiconductor Manufacturing Limited
5
Power technology
