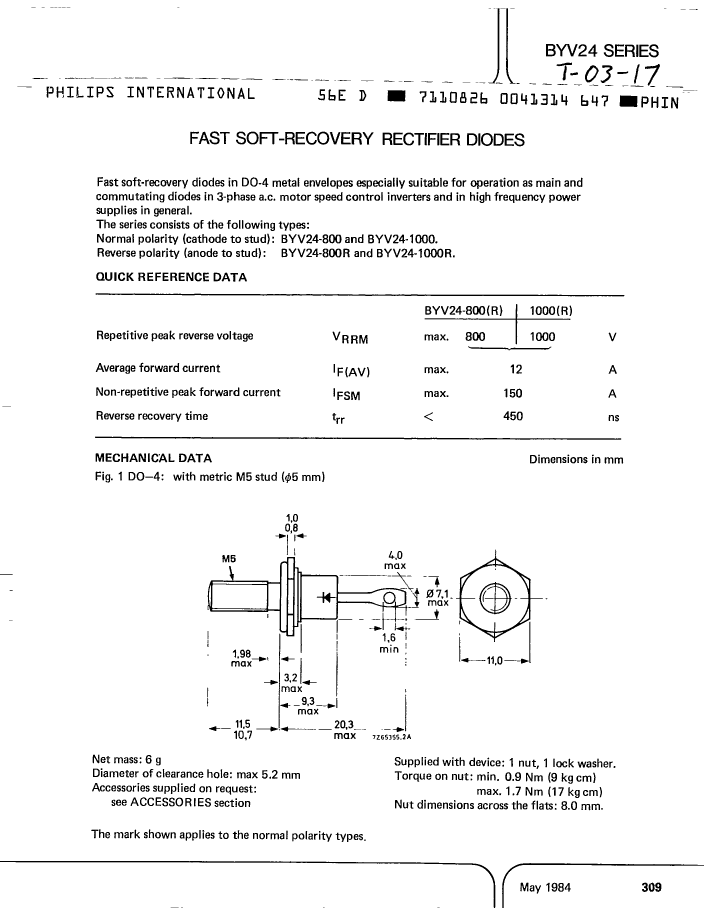

BYV24-800 datasheet, PDF - EEWORLD Datasheet

BYV24-800: DescriptionRECTIFIER DIODE,800V V(RRM),STR-M5; CategoryDiscrete semiconductor diode; File Size326KB，7 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

BYV24-800 Overview

RECTIFIER DIODE,800V V(RRM),STR-M5

Parameter Name	Attribute value
Maker	NXP
package instruction	O-MUPM-D1
Reach Compliance Code	compliant
application	FAST SOFT RECOVERY
Shell connection	CATHODE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE

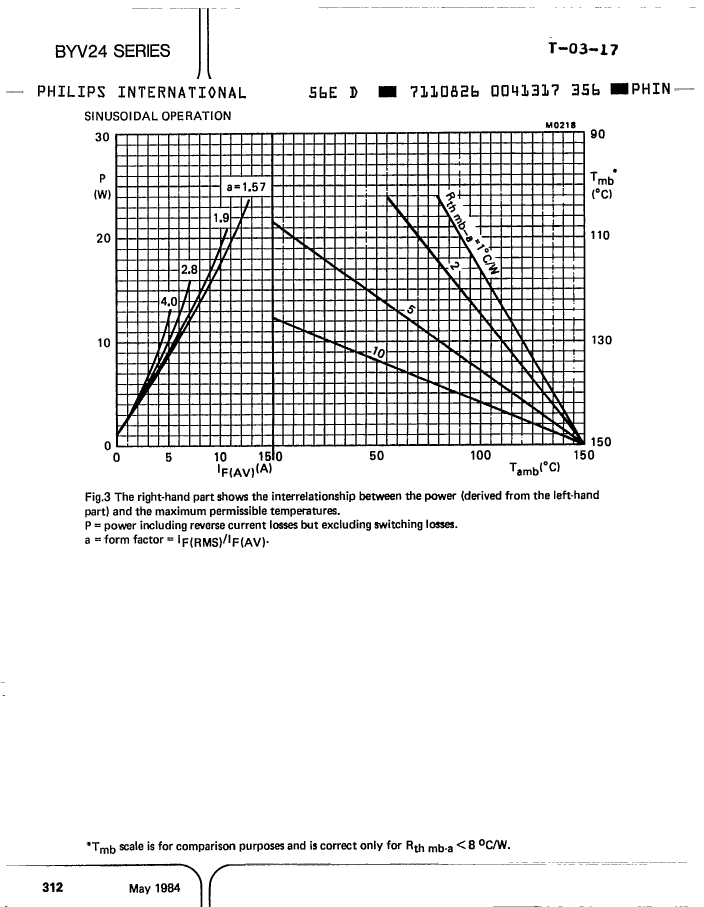

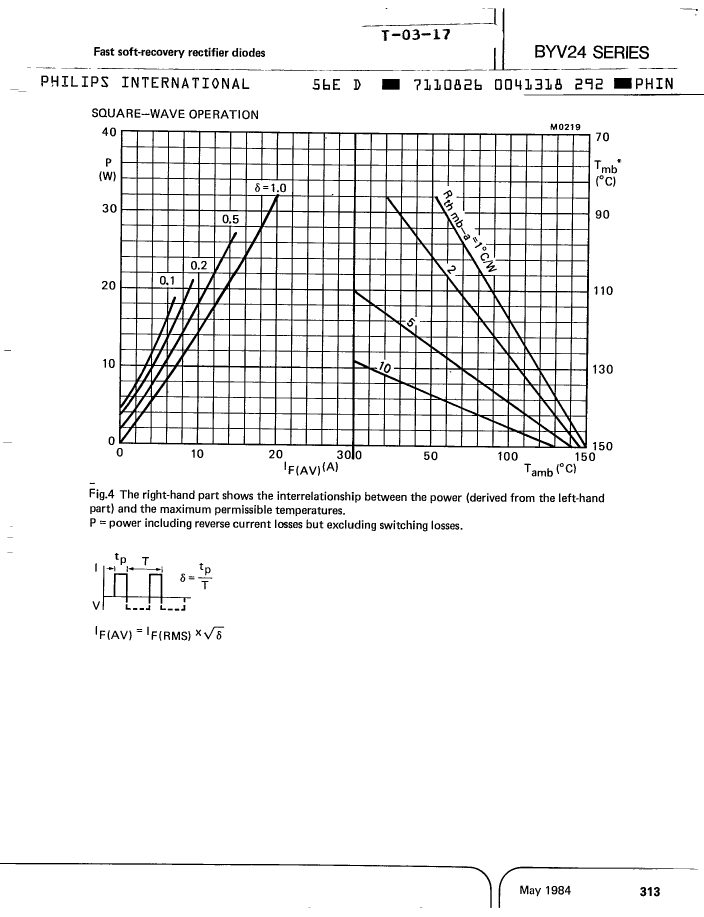

Maximum forward voltage (VF)	1.7 V
JEDEC-95 code	DO-4
JESD-30 code	O-MUPM-D1
Maximum non-repetitive peak forward current	150 A
Number of components	1
Phase	1
Number of terminals	1
Maximum operating temperature	150 °C
Maximum output current	12 A
Package body material	METAL
Package shape	ROUND
Package form	POST/STUD MOUNT
Guideline	IEC-134

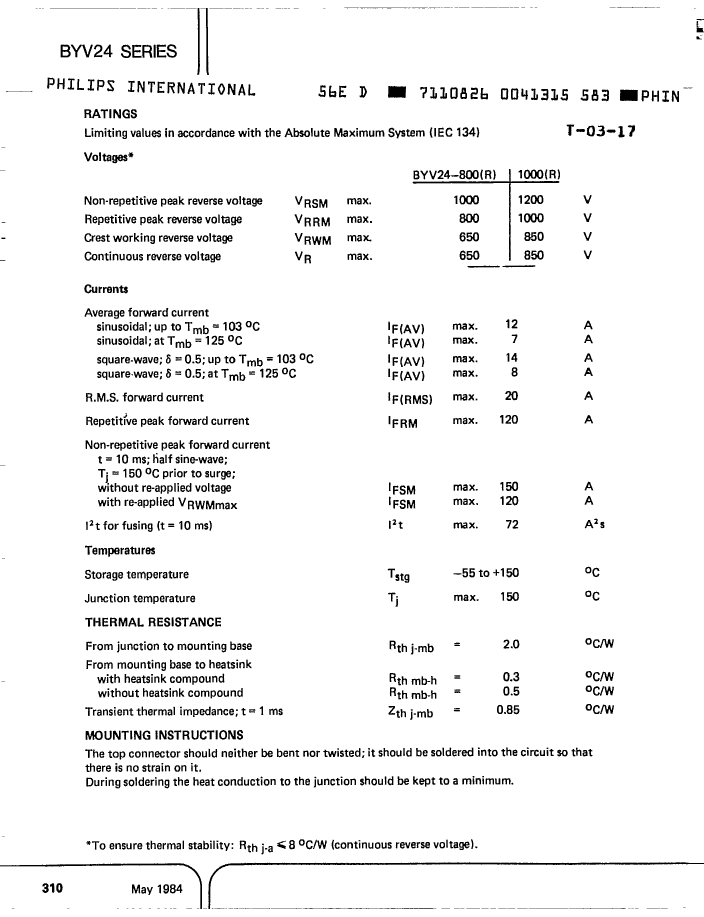

Maximum repetitive peak reverse voltage	800 V
Maximum reverse current	1500 µA

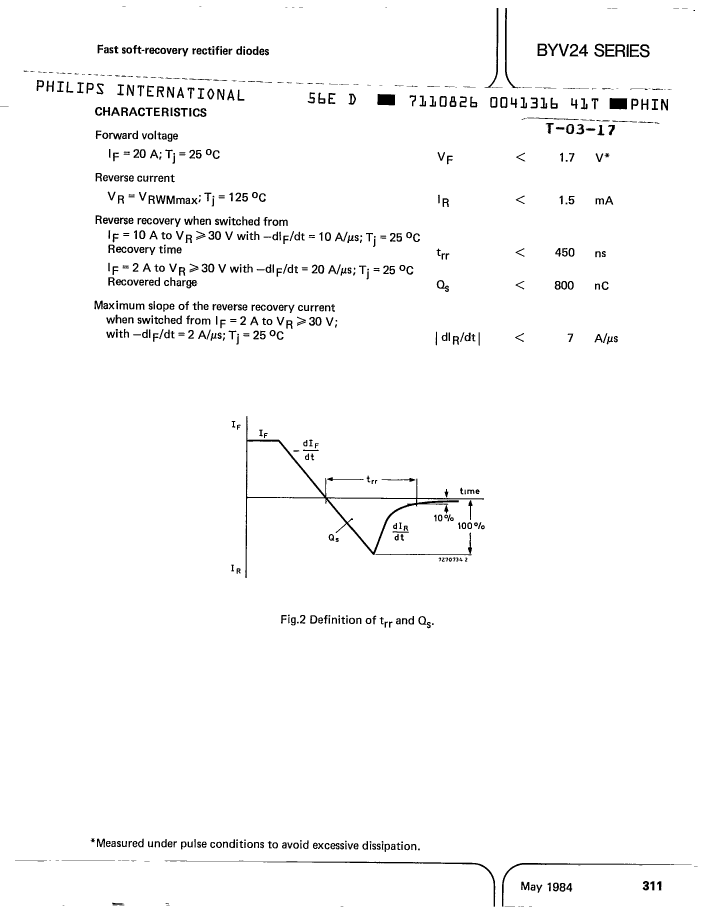

Maximum reverse recovery time	0.45 µs
surface mount	NO
Terminal form	SOLDER LUG
Terminal location	UPPER

	BYV24-800	BYV24-1000R	BYV24-800R
Description	RECTIFIER DIODE,800V V(RRM),STR-M5	RECTIFIER DIODE,1KV V(RRM),STR-M5	RECTIFIER DIODE,800V V(RRM),STR-M5
package instruction	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1
Reach Compliance Code	compliant	compliant	compliant
application	FAST SOFT RECOVERY	FAST SOFT RECOVERY	FAST SOFT RECOVERY
Shell connection	CATHODE	ANODE	ANODE
Configuration	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.7 V	1.7 V	1.7 V
JEDEC-95 code	DO-4	DO-4	DO-4
JESD-30 code	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1
Maximum non-repetitive peak forward current	150 A	150 A	150 A
Number of components	1	1	1
Phase	1	1	1
Number of terminals	1	1	1
Maximum operating temperature	150 °C	150 °C	150 °C
Maximum output current	12 A	12 A	12 A
Package body material	METAL	METAL	METAL
Package shape	ROUND	ROUND	ROUND
Package form	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT
Guideline	IEC-134	IEC-134	IEC-134
Maximum repetitive peak reverse voltage	800 V	1000 V	800 V
Maximum reverse current	1500 µA	1500 µA	1500 µA
Maximum reverse recovery time	0.45 µs	0.45 µs	0.45 µs
surface mount	NO	NO	NO
Terminal form	SOLDER LUG	SOLDER LUG	SOLDER LUG
Terminal location	UPPER	UPPER	UPPER
Maker	NXP	-	NXP
